£172.99

Stock Available: 0

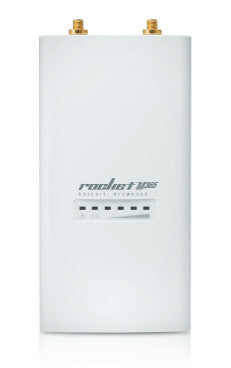

Featuring enhanced radio performance and mix-and-match industrial design, the Rocket™M is ideal for deployment in Point-to-Point (PtP) bridging or Point-to-MultiPoint (PtMP) applications.

Plug and Play Integration

Rocket™radios seamlessly work together with airMAX®Sector, RocketDish™, Omni and Yagi antennas for PtP and PtMP links. Every airMAX antenna has a built-in Rocket mount, so no tools are needed to install the Rocket.

Advanced Software Technology

Ubiquiti’s airMAX®technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Frequency and Channel Flexibility

Built to survive harsh environments, the Rocket™M is available in several frequency models and supports multiple channel bandwidths, depending on the specific model and local country regulations.

Spectrum Analysis Tools

The airView Spectrum Analyzer allows operators to identify noise signatures and analyze frequency usage and activity levels onsite, so new access points can be set up on the least-used channels to optimize wireless performance.

Features
Transmitting power 25 dBmW
Quality of Service (QoS) support Yes
VLAN support Yes
Channel bandwidth 25 MHz
Frequency band 3.65 - 3.675 GHz
Ethernet LAN data rates 10,100 Mbit/s
Maximum data transfer rate 150 Mbit/s
Security
Security algorithms WPA2-AES
Protocols
Management protocols SNMP
DHCP client Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Design
Internal No
LED indicators Yes
Product colour White
Antenna
Number of connectors 2
Antenna connector type RP-SMA
Performance
Flash memory 8 MB
Internal memory 64 MB
Processor architecture MIPS 24Kc
Built-in processor Yes
Certificates
Certification FCC, IC, CE, RoHS
Weight & dimensions
Weight 500 g
Height 30 mm
Depth 80 mm
Width 160 mm
Operational conditions
Operating temperature (T-T) -30 - 70 °C
Operating relative humidity (H-H) 5 - 95%
