Tripp Lite PDU3XMV6G20 11.5kW 3-Phase Local Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical
Tripp Lite PDU3XMV6G20 11.5kW 3-Phase Local Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical
Tripp Lite PDU3XMV6G20 11.5kW 3-Phase Local Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical
Tripp Lite PDU3XMV6G20 11.5kW 3-Phase Local Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical
Tripp Lite PDU3XMV6G20 11.5kW 3-Phase Local Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical
Tripp Lite PDU3XMV6G20 11.5kW 3-Phase Local Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical
Tripp Lite PDU3XMV6G20 11.5kW 3-Phase Local Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical
Tripp Lite PDU3XMV6G20 11.5kW 3-Phase Local Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical
Tripp Lite PDU3XMV6G20 11.5kW 3-Phase Local Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical
Tripp Lite PDU3XMV6G20 11.5kW 3-Phase Local Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical
Tripp Lite PDU3XMV6G20 11.5kW 3-Phase Local Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical
Tripp Lite PDU3XMV6G20 11.5kW 3-Phase Local Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical
Tripp Lite PDU3XMV6G20 11.5kW 3-Phase Local Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical
Tripp Lite PDU3XMV6G20 11.5kW 3-Phase Local Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical
Tripp Lite PDU3XMV6G20 11.5kW 3-Phase Local Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical
Tripp Lite PDU3XMV6G20 11.5kW 3-Phase Local Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical
Tripp Lite PDU3XMV6G20 11.5kW 3-Phase Local Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical
Tripp Lite PDU3XMV6G20 11.5kW 3-Phase Local Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical

Tripp Lite PDU3XMV6G20 11.5kW 3-Phase Local Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical

Eaton
£630.99
Stock Available: 0

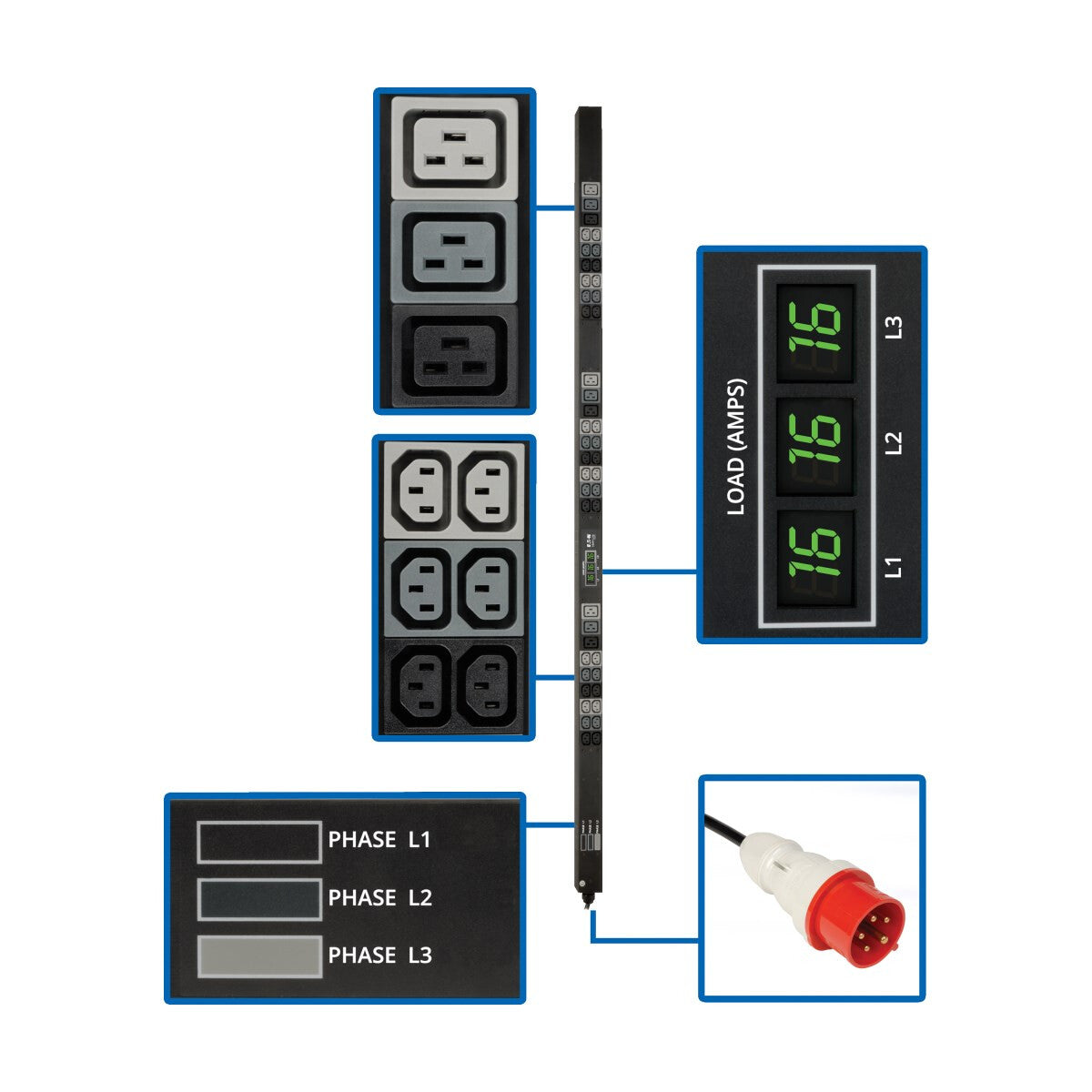

  • Local metered 11.5kW 3 Phase 360-415V input / 208-240V output PDU

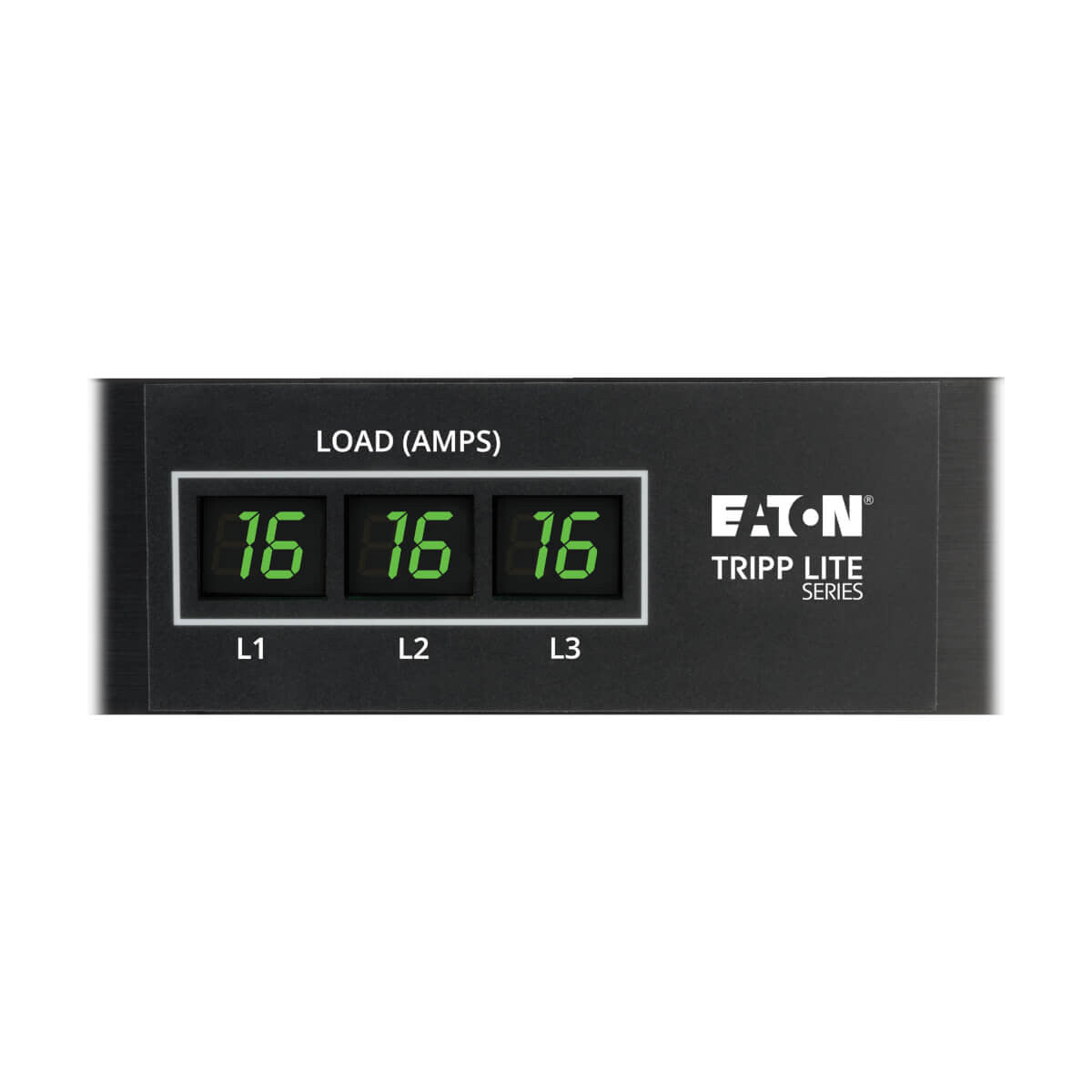

  • Set of 3 digital meters reports output load level per phase in amps

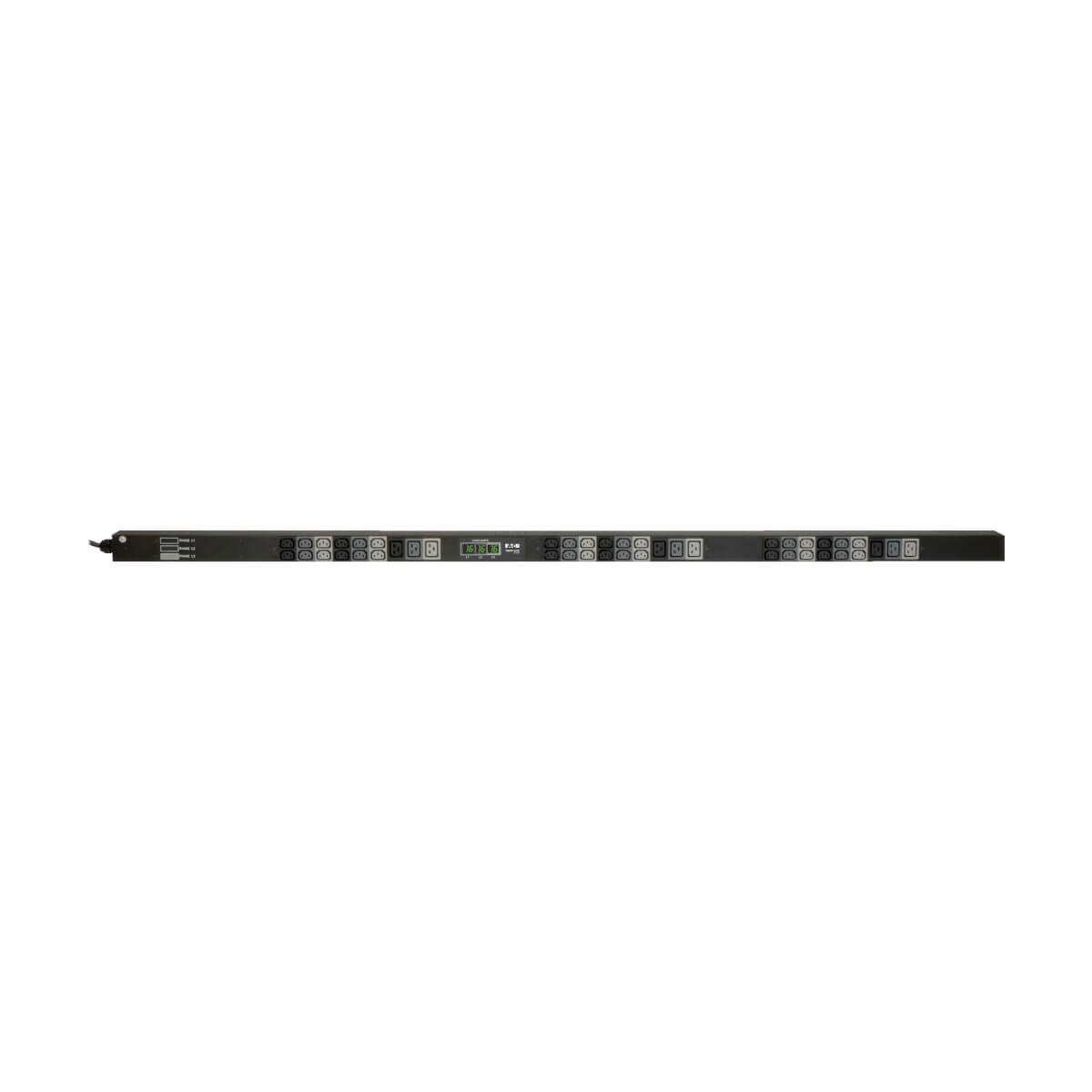

  • 70in / 1778mm 0U vertical format, toolless button-mount installation

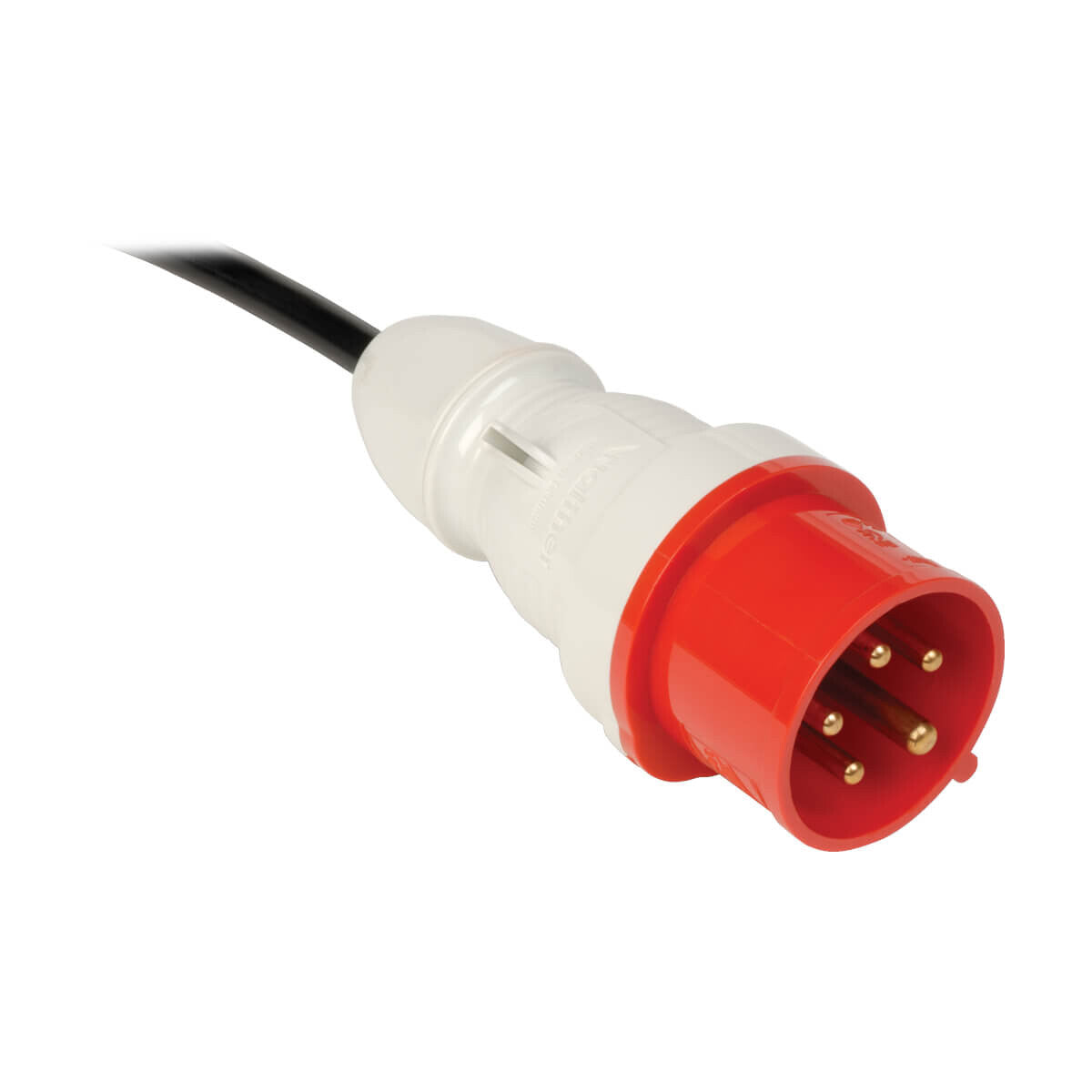

  • IEC-309 Red 16/20A (3P+N+E) 3 phase input; 6ft 1.8m line cord

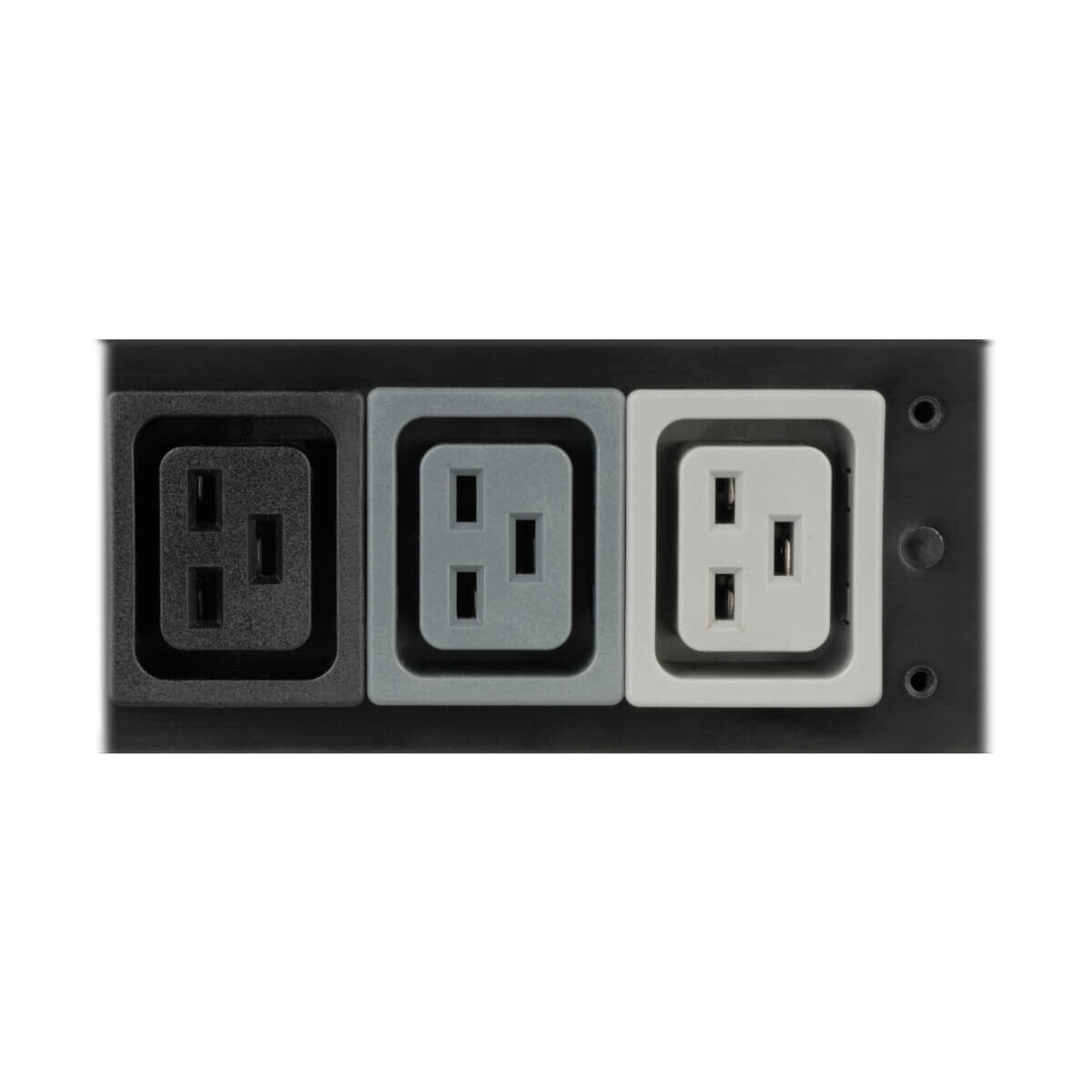

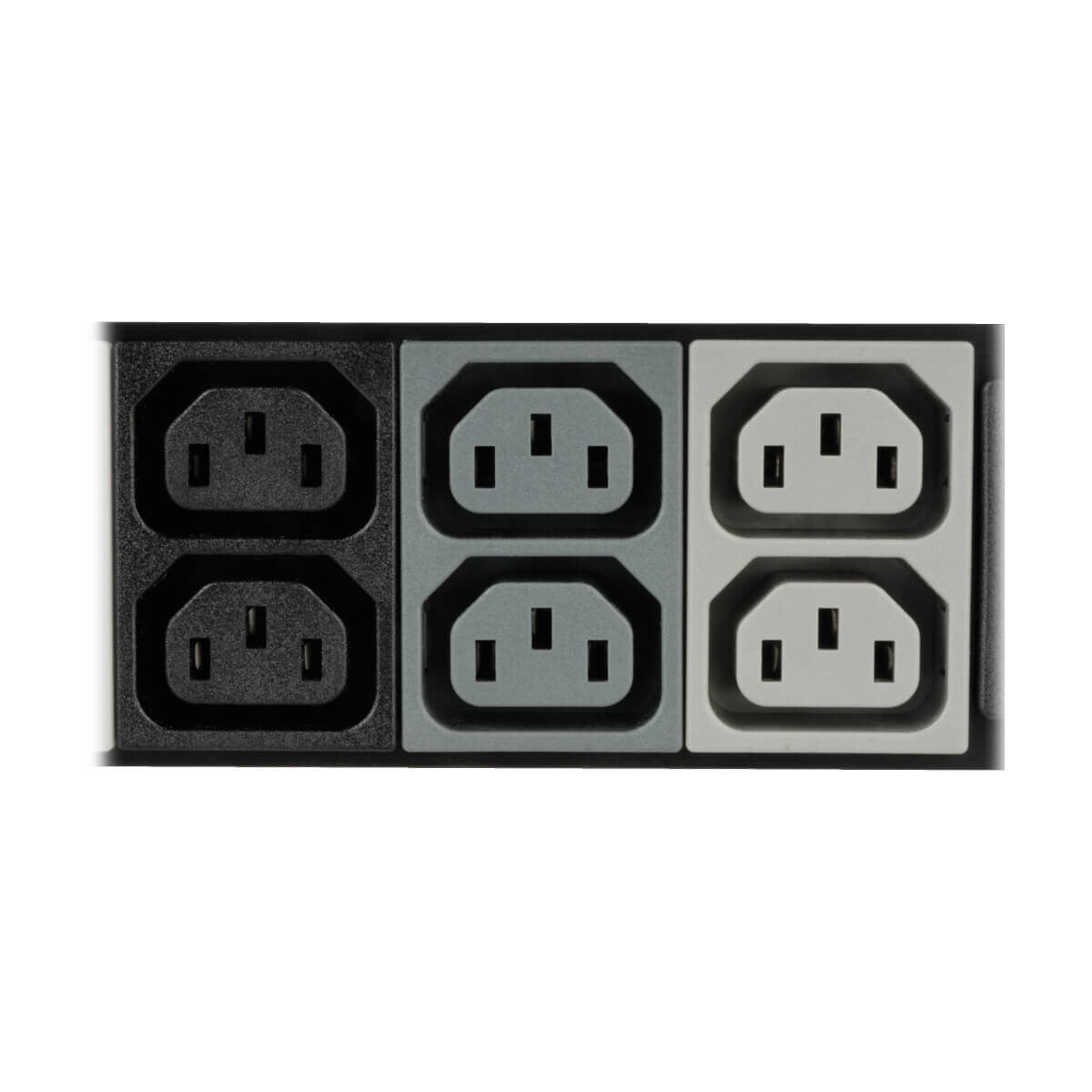

  • 36 C13 and 9 C19 single phase outlets; Included cord retention brackets

11.5kW Local Metered Power Distribution Unit / rack PDU (rPDU)
380-415V IEC-309 Red 16/20A (3P+N+E) 3-phase input connection
208-240V output with 36 C13 & 9 C19 single phase output receptacles
Supports 50/60Hz worldwide applications
0U / 1778mm vertical rackmount installation supported

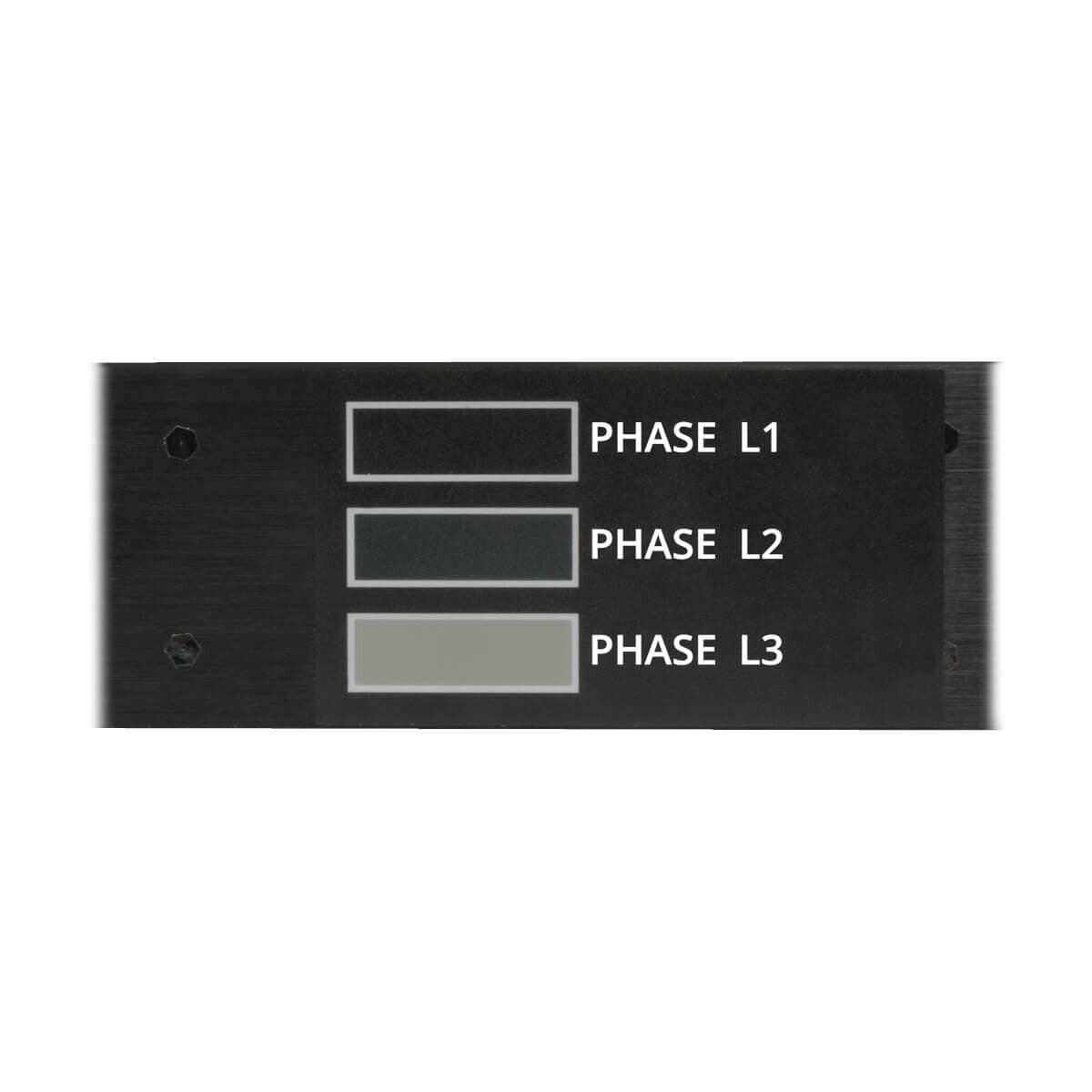

Outlets are arranged in 3 local metered 15 outlet load banks

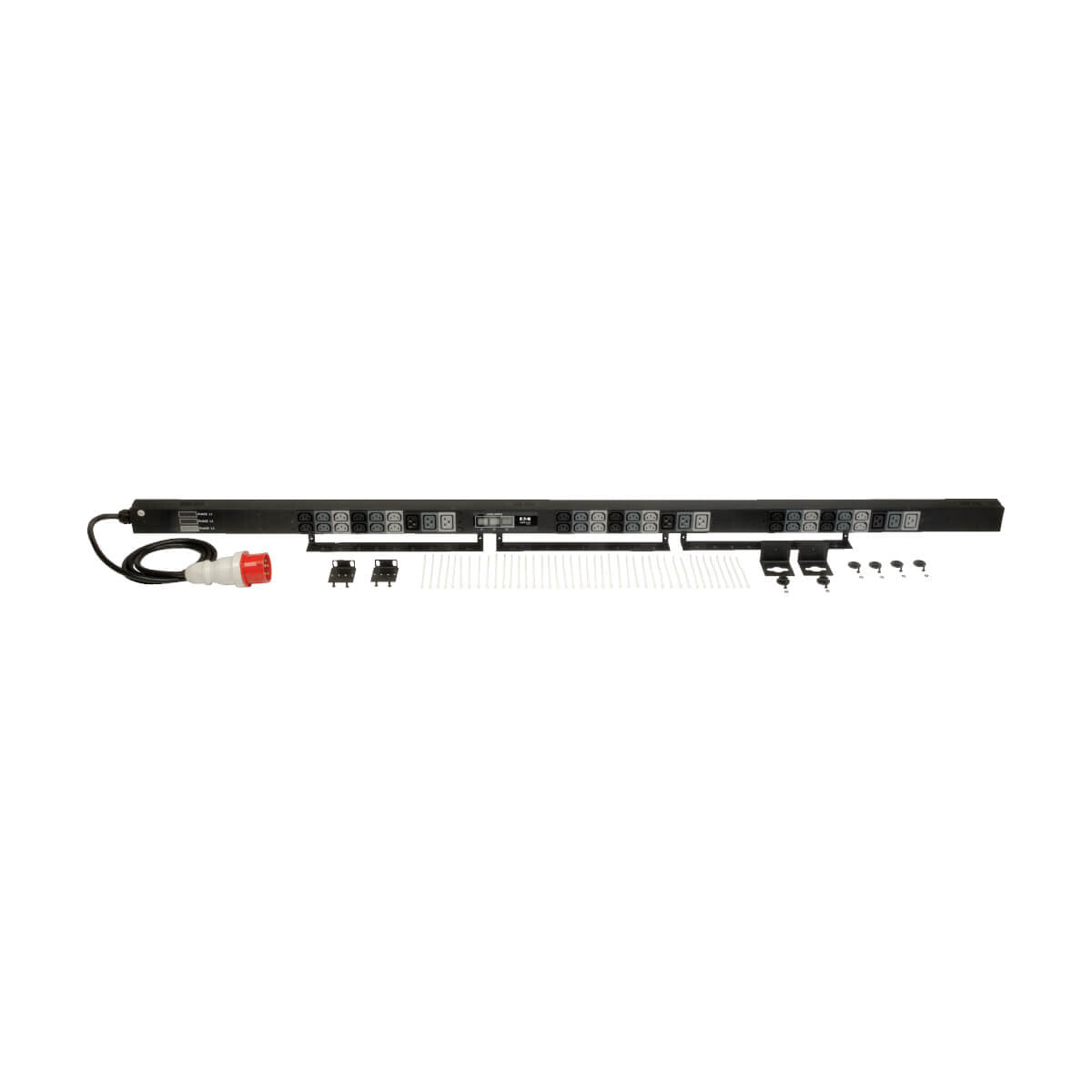

Included cord retention brackets keep vital network equipment plugged in and continuously powered

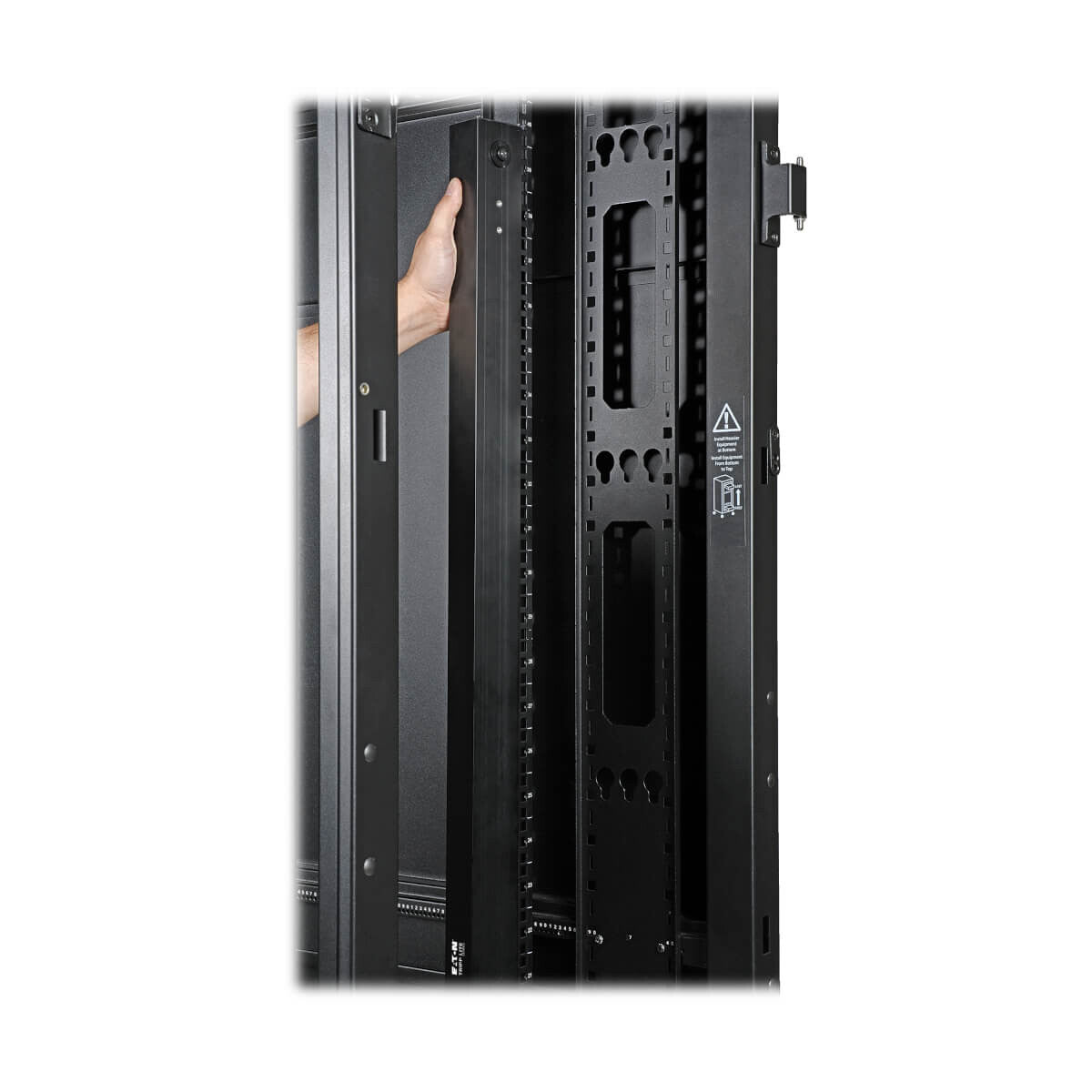

Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included) for other mounting applications
TAA Compliant

Design
Product colour Black
Housing material Steel
Mounting Vertical
Rack capacity 0U
PDU types Metered
Ports & interfaces
Input connection type IEC-309 16A RED (3P+N+E)
AC outlet types C13 coupler, C19 coupler
AC outlets quantity 45 AC outlet(s)
Features
Cable length 1.8 m
Power
Load capacity 11500 VA
Nominal output voltage 220-240 V
Maximum current 16 A
AC input frequency 50 - 60 Hz
Nominal input voltage 380-415 V
Certificates
Certification UL, CSA, NOM, CE
Compliance certificates RoHS
Operational conditions
Operating relative humidity (H-H) 0 - 95%
Weight & dimensions
Weight 4.08 kg
Height 1778 mm
Depth 49 mm
Width 56 mm
Packaging data
Package height 155 mm
Package depth 1925 mm
Package width 109 mm
Package weight 6.85 kg
Logistics data
Products per master (outer) case 1 pc(s)
Country of origin Taiwan
