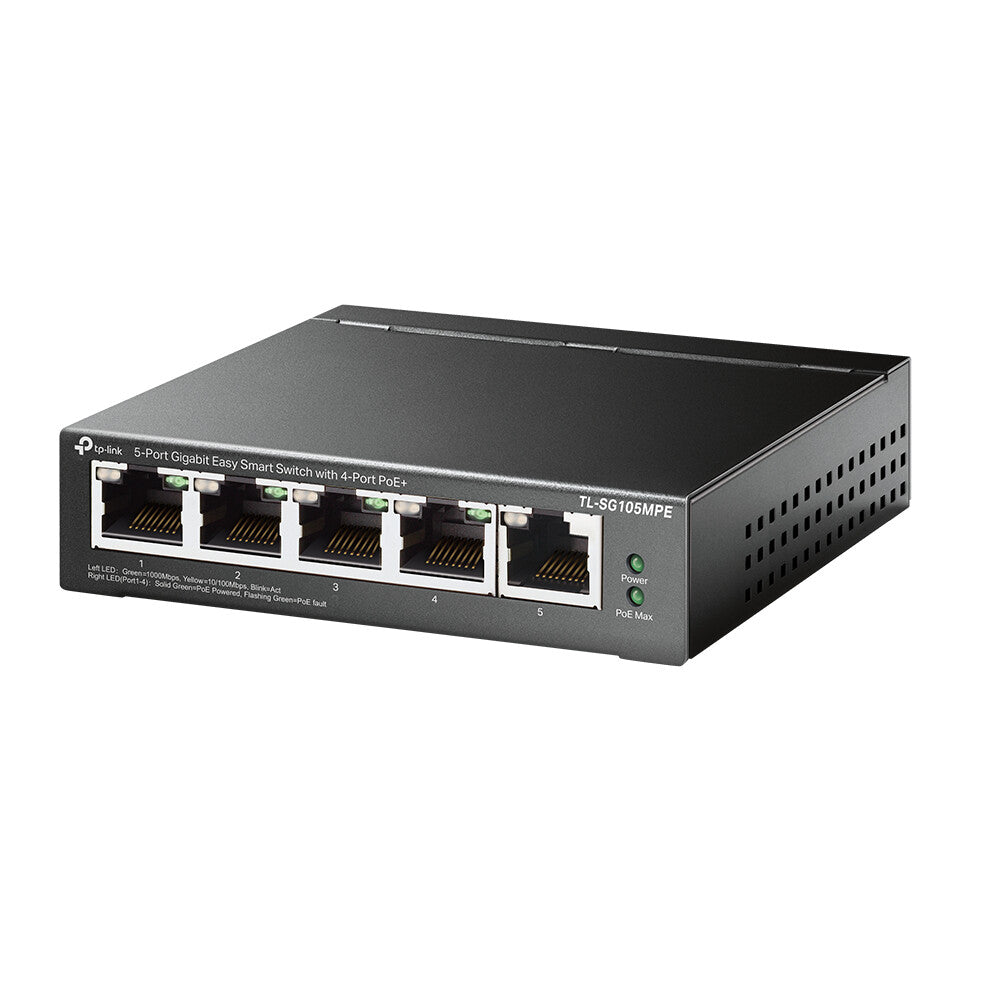

TP-Link 5-Port Gigabit Easy Smart Switch with 4-Port PoE+
£91.99
Couldn't load pickup availability
- Five 10/100/1000Mbps RJ45 ports
- Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
- Supports PoE power up to 120 W for all PoE ports
- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
- Fanless design lowers energy consumption and eliminates operating noise
5-Port Gigabit Easy Smart Switch with 4-Port PoE+
- Five 10/100/1000Mbps RJ45 ports
- Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
- Supports PoE power up to 120 W for all PoE ports*
- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
- Fanless design lowers energy consumption and eliminates operating noise
Multiple Application Scenarios
The TL-SG105MPE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works
with non-PoE wired devices, such as PCs, printers, and IPTV.
Dedicated 4 PoE+ Ports (120 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 120 W PoE power budget* for the 4× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video
IGMP Snooping for Multicast Optimization
Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.
VLAN for Security
Helps to create network with higher security and better overall performance by dividing network into smaller groups
Making Management Easy
TL-SG105MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
Supports PoE Power up to 30 W for each PoE port
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. It is fully compatible with more 802.3at PD devices.
Great Compatibility with PD Detection
Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Long Product Life with Durable Metal Casing
Interior components of TL-SG105MPE are protected by high-quality metal casing to ensure a product longevity. Having passed an array of stringent reliability tests, TL-SG105MPE delivers switching performance you can depend on.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
| Management features | |
|---|---|
| Web-based management | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Network | |
|---|---|
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Port mirroring | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Data transmission | |
|---|---|
| Jumbo frames | 16 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 7.44 Mpps |
| Switching capacity | 10 Gbit/s |
| MAC address table | 2000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| IGMP snooping | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Rack mounting | No |
| Power | |
|---|---|
| Power consumption (max) | 137.01 W |
| DC input voltage | 53.5 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 25 mm |
| Depth | 98 mm |
| Width | 99.8 mm |
| Packaging content | |
|---|---|
| Cables included | LAN (RJ-45) |
