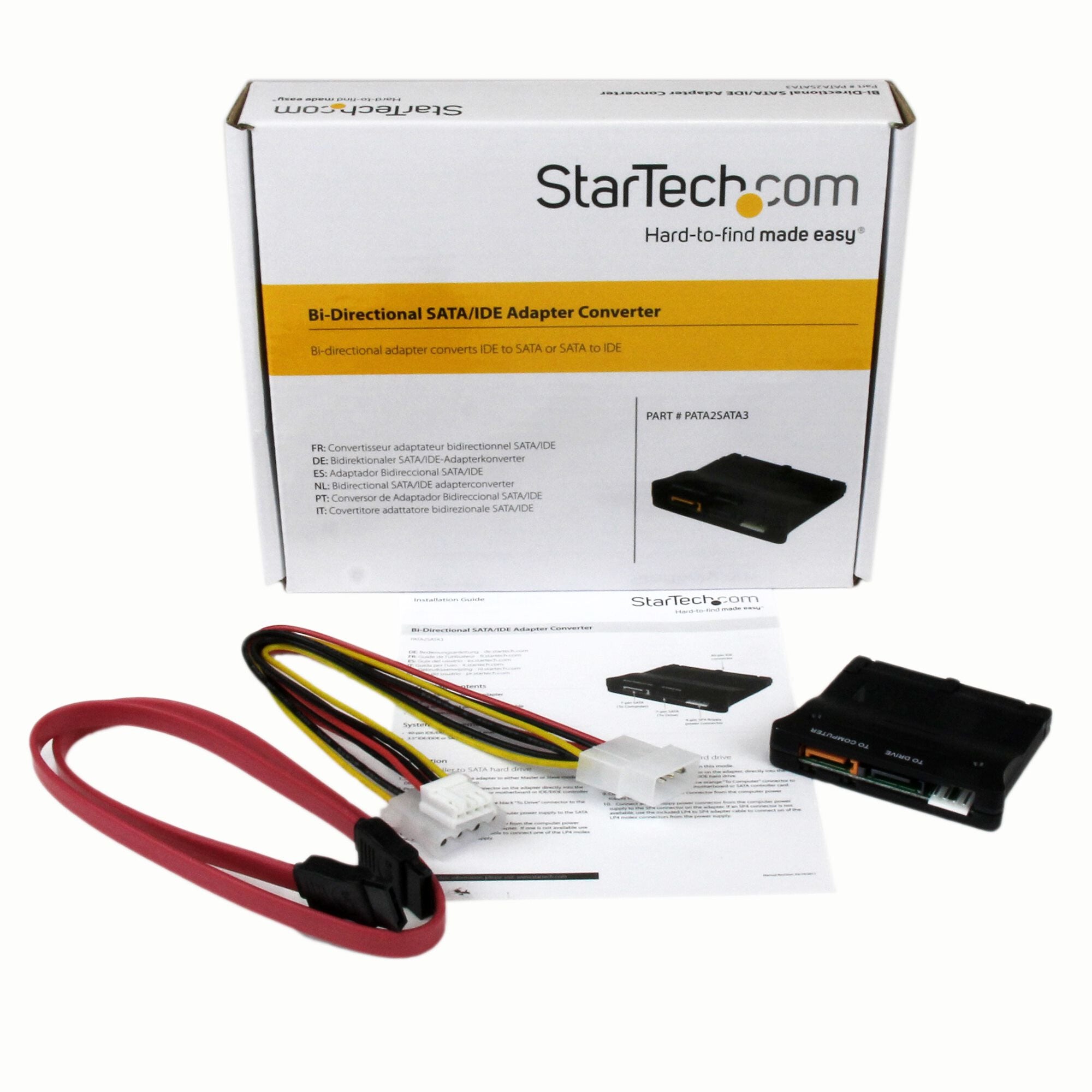

StarTech.com Bi-Directional SATA IDE Adapter Converter
Couldn't load pickup availability
- 2 x SATA Data 7 pin M/1 x IDE 40 pin F Male
- SP4 M Female
- Housing material: Plastic
- Black
Bi-directional adapter converts IDE to SATA or SATA to IDE

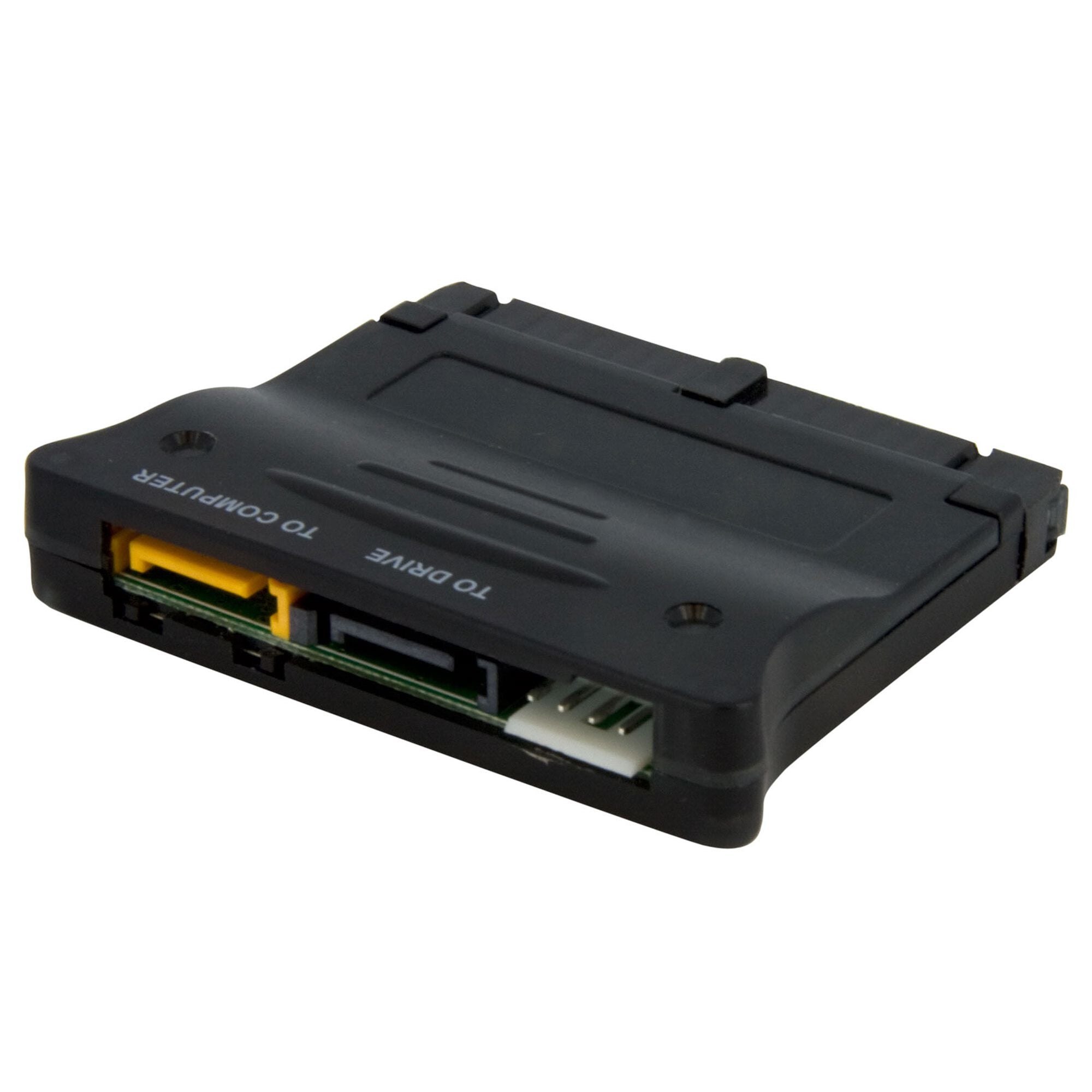

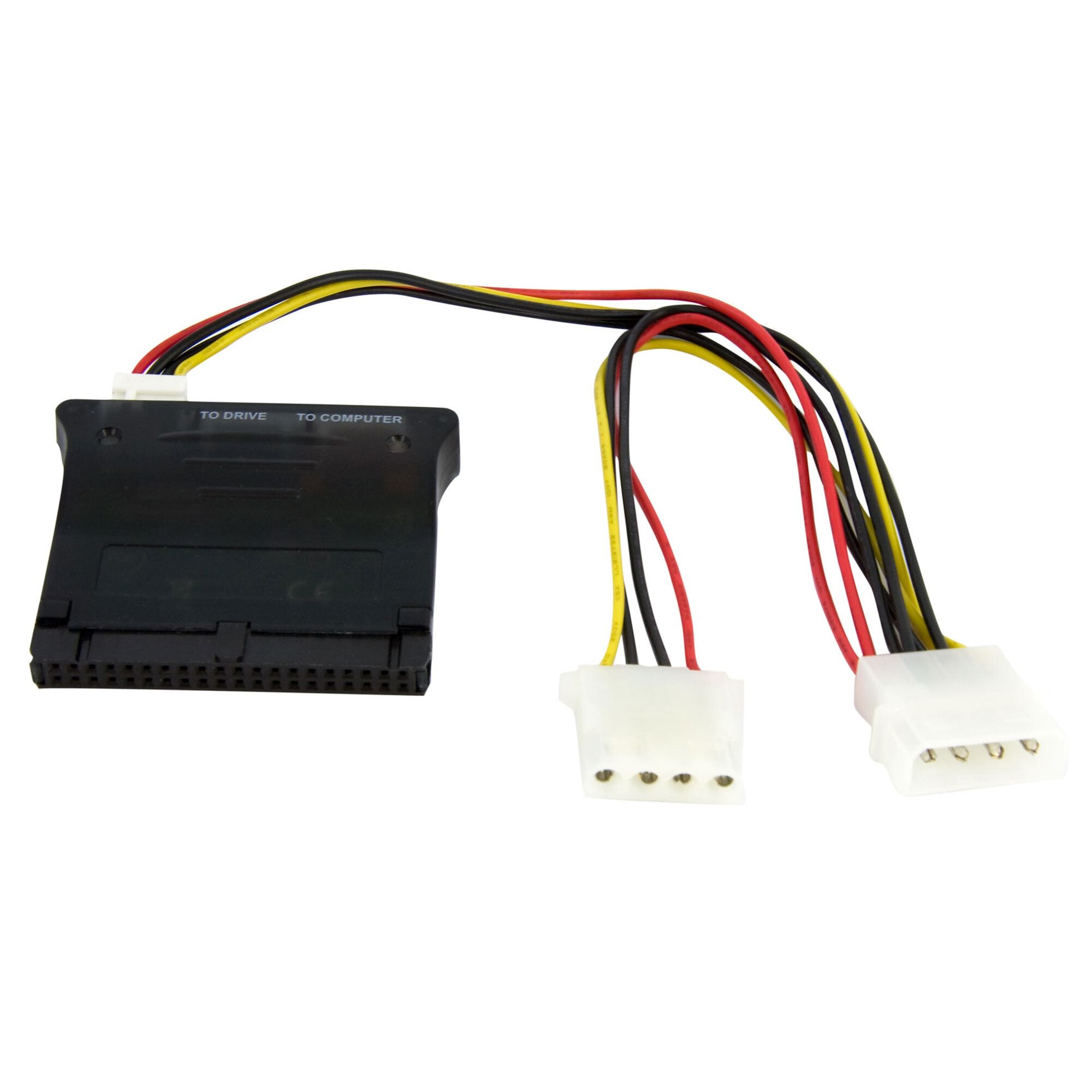

The PATA2SATA3 is a bi-directional SATA IDE adapter/converter that lets you connect a Serial ATA drive to a legacy IDE port, or an IDE drive to a SATA motherboard port.
A cost-effective solution for upgrading existing IDE systems to support SATA hard drives or optical drives, the SATA/IDE adapter eliminates the expense of having to purchase a controller card while saving the expansion slot that would be required for card installation.
In addition to SATA hard drive installation, the adapter can be reversed in order to connect older IDE drives to a newer SATA-enabled motherboard, making it easy to retrieve old files from a previous system.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 2 | SP4 M |
| Connector 1 | 2 x SATA Data 7 pin M/1 x IDE 40 pin F |
| Performance | |
|---|---|
| Compatible products | 2.5" SATA3.5" EIDE3.5" SATA5.25" SATA5.25" EIDE |
| Housing material | Plastic |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Weight | 20 g |
| Packaging data | |
|---|---|
| Package weight | 102 g |
| Package height | 32 mm |
| Package depth | 142 mm |
| Package width | 173 mm |
| Logistics data | |
|---|---|
| Master (outer) case height | 279 mm |
| Master (outer) case length | 467 mm |
| Master (outer) case width | 402 mm |
| Products per master (outer) case | 50 pc(s) |
| Quantity per box | 40 pc(s) |
| Other features | |
|---|---|
| Dimensions (WxDxH) | 50 x 61 x 11 mm |
