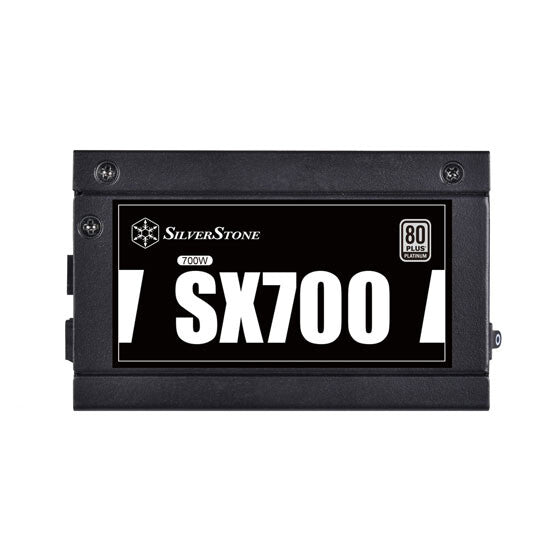

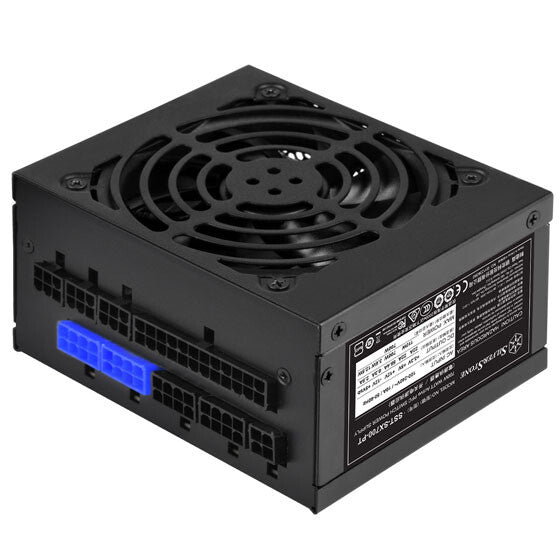

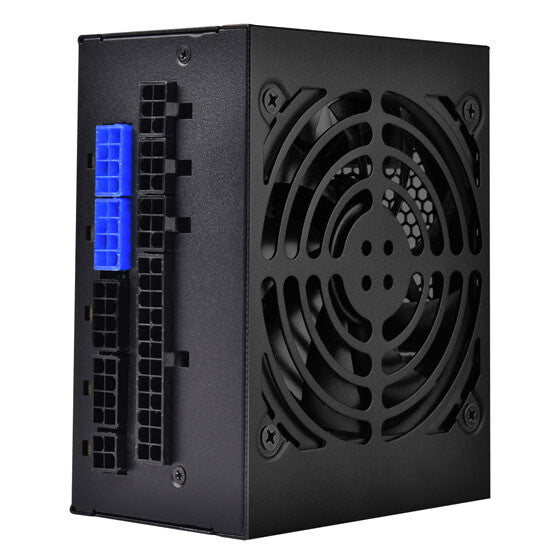

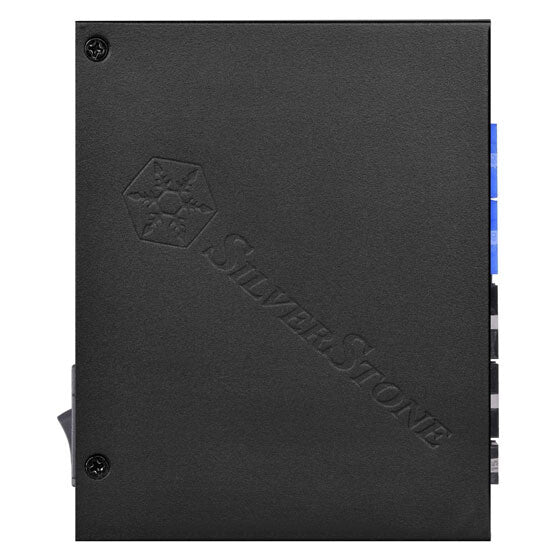

Silverstone SX700-PT power supply unit 700 W 20+4 pin ATX SFX Black
£136.99
Couldn't load pickup availability
- Support standard SFX form factor
- Silent running 92mm FDB fan with 18 dBA minimum
- All Japanese capacitors
- High efficiency with 80 PLUS Platinum certification
- Class-leading single +12V rail
- Strict ±3% voltage regulation and low ripple & noise
- 100% modular cables
- All cable with flexible flat arrays
SX700-PT
- Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.
- All Japanese electrolytic capacitors

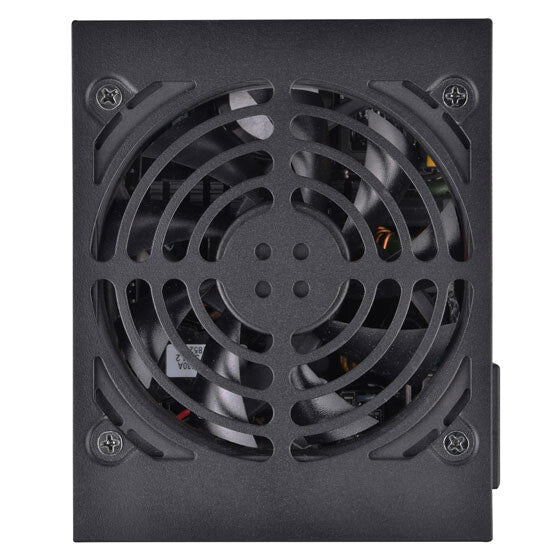

- Built-in 92mm FDB fan has excellent airflow and low noise, perfect for quiet home or office use
- 100% modular cable design for easy removal in a case with cable routed and tied down
- ±3% regulation and low ripple & noise performance for high stability
- Flexible flat cables have much greater flexibility to allow for tighter folding and management of cables

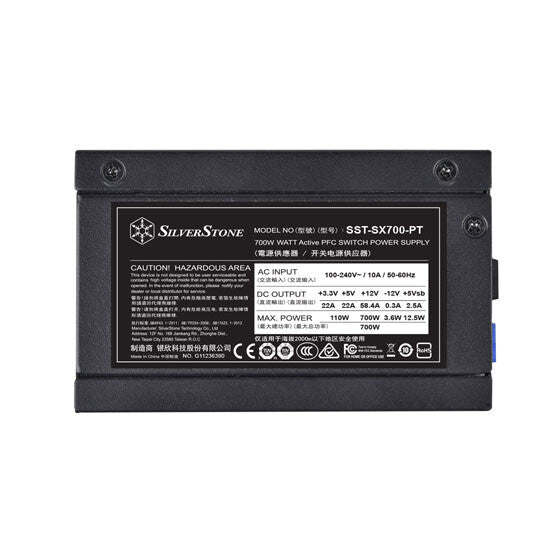

| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Efficiency | 90% |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 22 A |
| Max output current (+12V) | 58.4 A |
| Max output current (+3.3V) | 22 A |
| Combined power (+12V) | 700 W |
| Combined power (+3.3V) | 110 W |
| Power Factor Correction (PFC) type | Active |
| Power factor | 0.9 |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 90 - 264 V |
| Total power | 700 W |

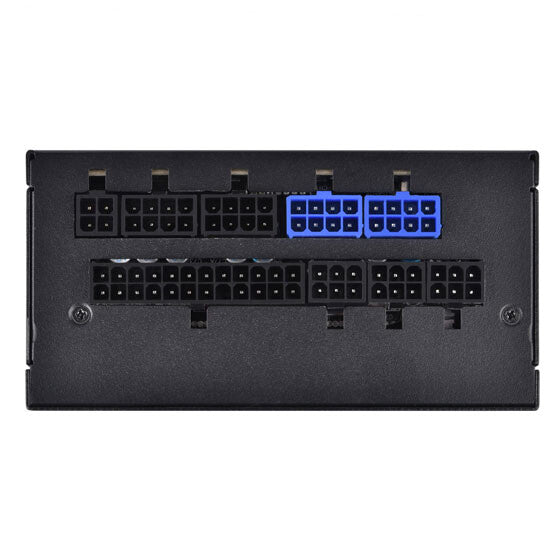

| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| Floppy drive power connector | 1 |
| Floppy disk drive cable length | 10 cm |
| Floppy disk drive connector | Yes |
| ATX power connector (20+4 pin) | Yes |
| PCI Express power cable length | 55 cm |
| PCI Express power connectors (6+2 pin) | 4 |
| EPS power connector (4+4 pin) | Yes |
| Peripheral (Molex) power cable length | 200,300 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| SATA power cable length | 100,200,300 mm |
| Number of SATA power connectors | 6 |
| Motherboard power cable length | 30 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Noise level | 18 dB |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply unit (PSU) form factor | SFX |
| Purpose | PC |
| Design | |
|---|---|

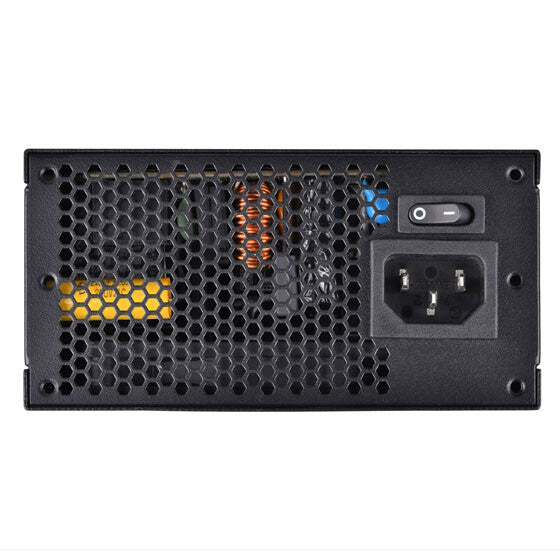

| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Fan diameter | 9.2 cm |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 960 g |
| Height | 63.5 mm |
| Depth | 100 mm |
| Width | 125 mm |
