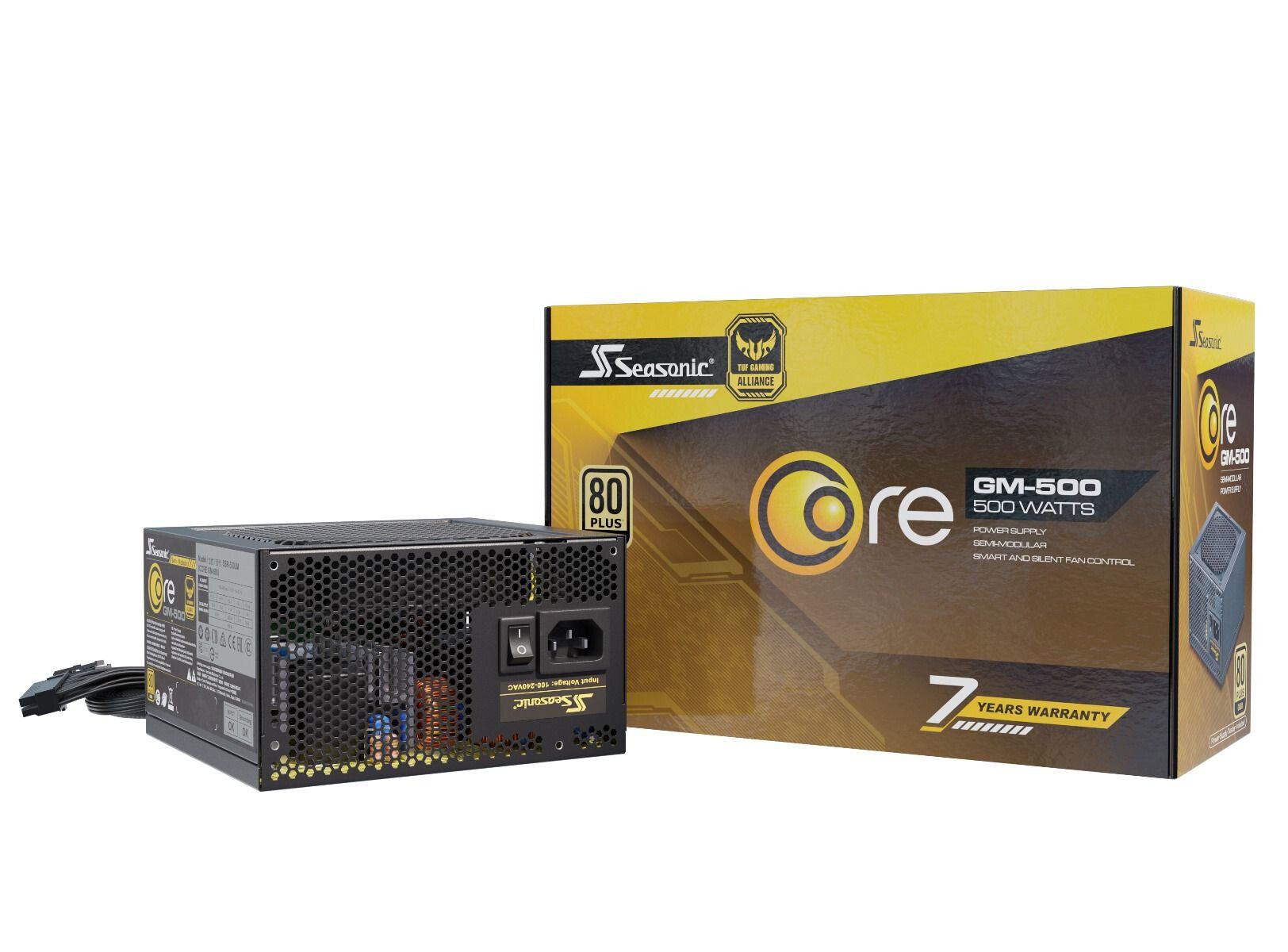

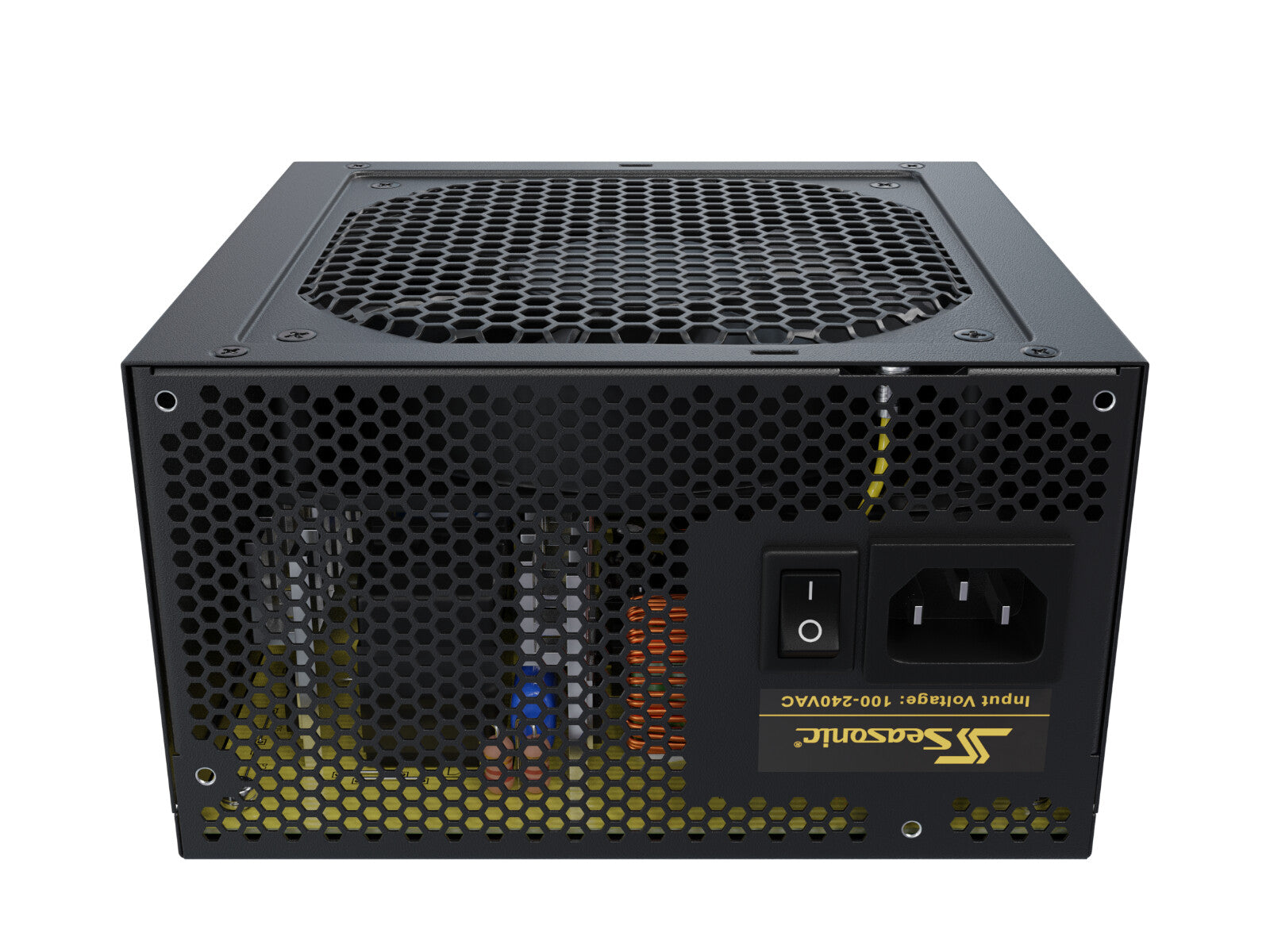

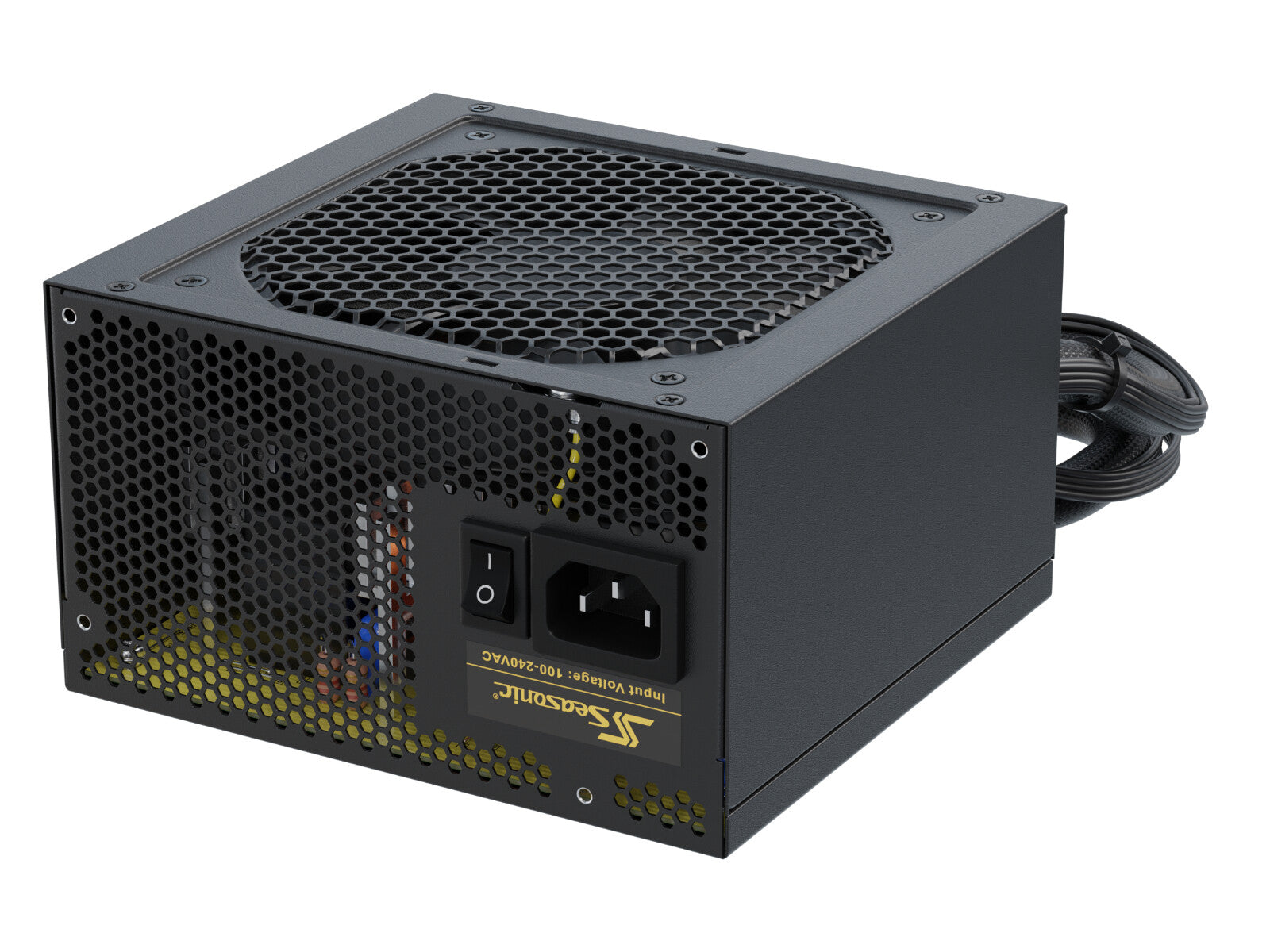

Seasonic CORE-GM-500 power supply unit 500 W 20+4 pin ATX ATX Black
Couldn't load pickup availability
- 80 PLUS® Gold certified
- Semi-modular
- Tight Voltage Regulation
- S2FC - Smart and Silent Fan Control
- DC to DC Converter Design
- 105 °C Japanese Capacitor
The CORE Series is the brand new series that completes the Seasonic lineup. The 80 PLUS® Gold certified CORE Series comes in all three cabling setups, including the fully modular CORE GX, semi-modular CORE GM, and lastly the fixed-cabled CORE GC. The Seasonic Smart and Silent Fan Control automatically adjusts the fan speed according to the temperature inside the power supply. As part of the TUF Gaming Alliance, the CORE Series is the perfect unit to go with your gaming PC.
80 PLUS® GOLD
The CORE GM Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.

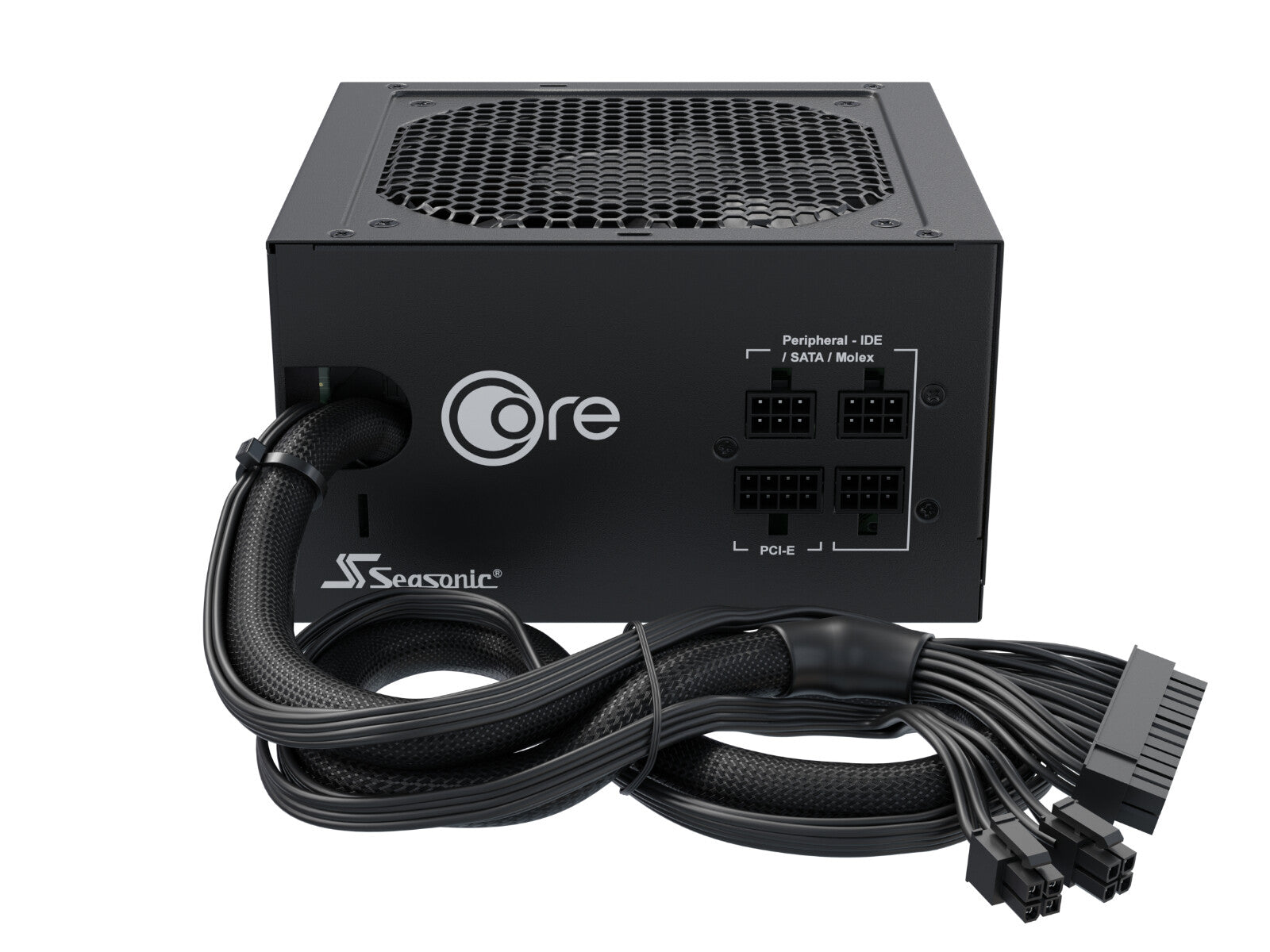

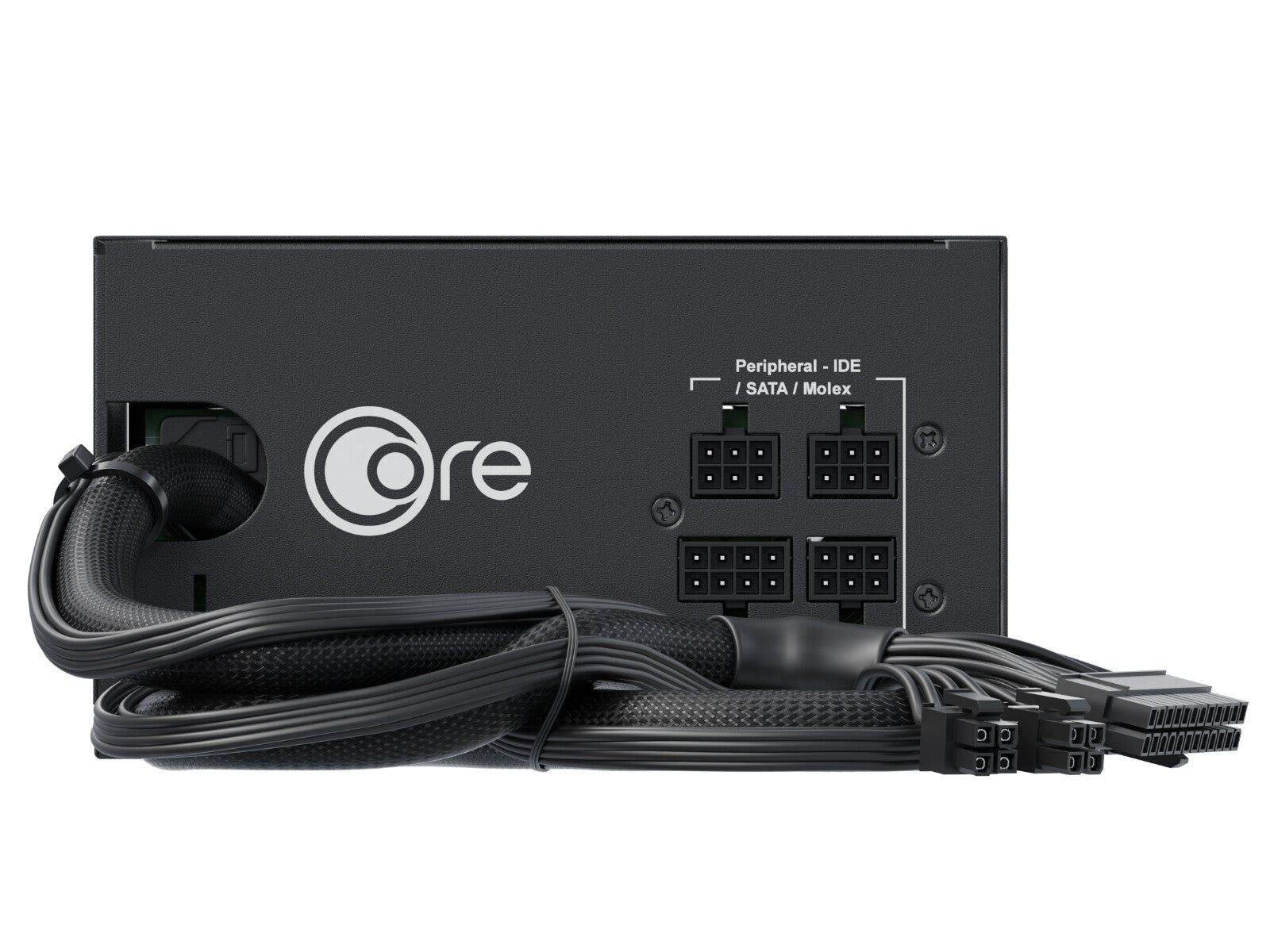

SEMI-MODULAR CABLES
Some cables are permanently attached to the power supply (most of the time the 24-pin and the 8-pin ATX power cables) and the rest of the cables can be used to connect the rest of the available components.

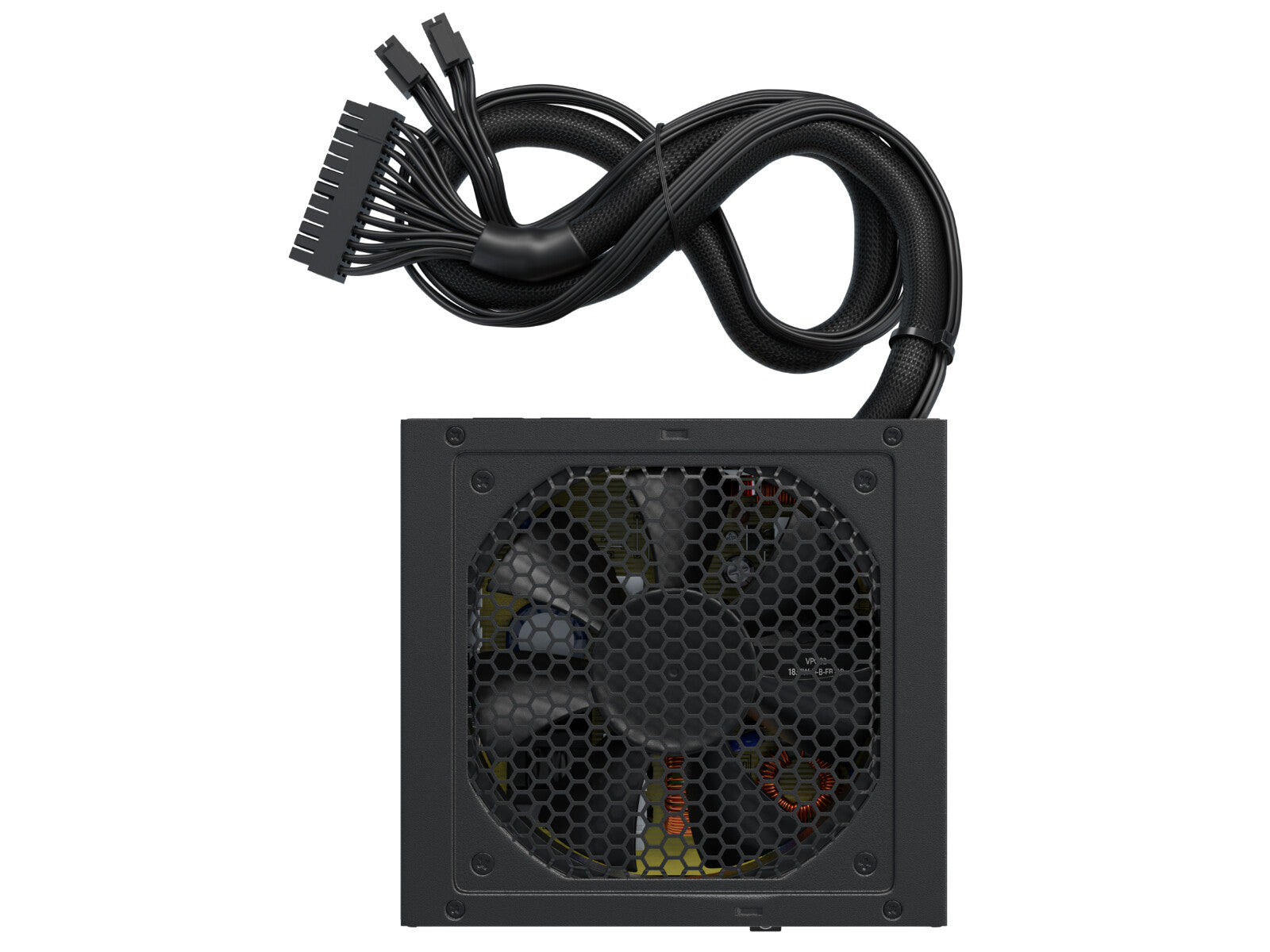

S2FC - SMART AND SILENT FAN CONTROL
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 41 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 100 W |
| Combined power (+12V) | 492 W |
| Combined power (+3.3V) | 100 W |
| Input current | 7 - 3.5 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 500 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Semi-Modular |
| PCI Express connector | Yes |
| Floppy drive power connector | 1 |
| Floppy disk drive cable length | 10.1 cm |
| Floppy disk drive connector | Yes |
| ATX power connector (20+4 pin) | Yes |
| CPU power cable length | 65 cm |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power cable length | 75 cm |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power cable length | 470,690 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| SATA power cable length | 450,570,700,760,810,860 mm |
| Number of SATA power connectors | 6 |
| Motherboard power cable length | 61 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | Sleeve |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Safety regulation & standards | |
|---|---|
| Safety | cTUVus, TUV, CB, CCC, BSMI, CE, FCC |
| Packaging content | |
|---|---|
| Cables included | AC |
| Certificates | |
|---|---|
| Certification | WEEE, ErP Lot 6, REACH |
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Height | 86 mm |
| Depth | 140 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Manual | Yes |
| Technical details | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
