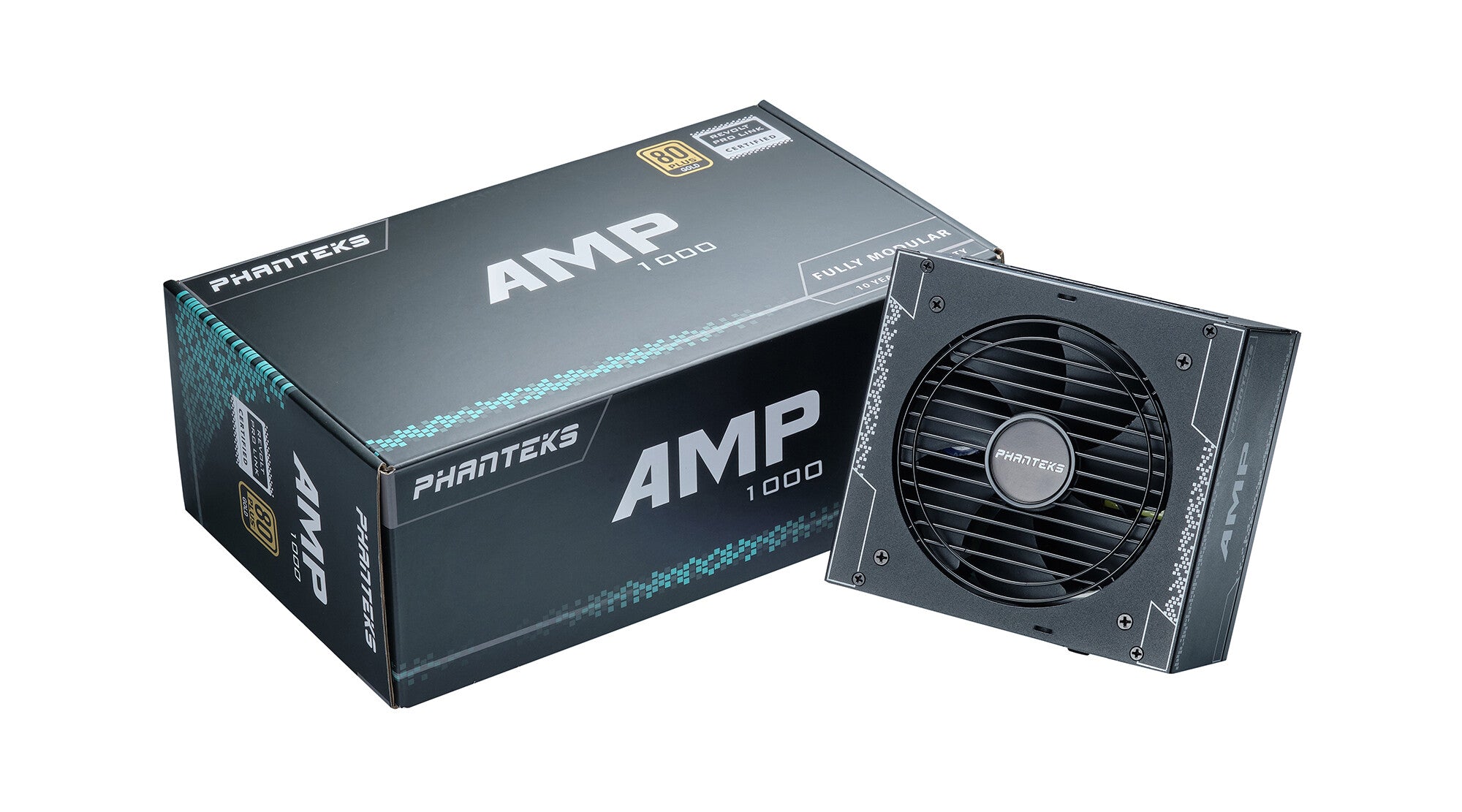

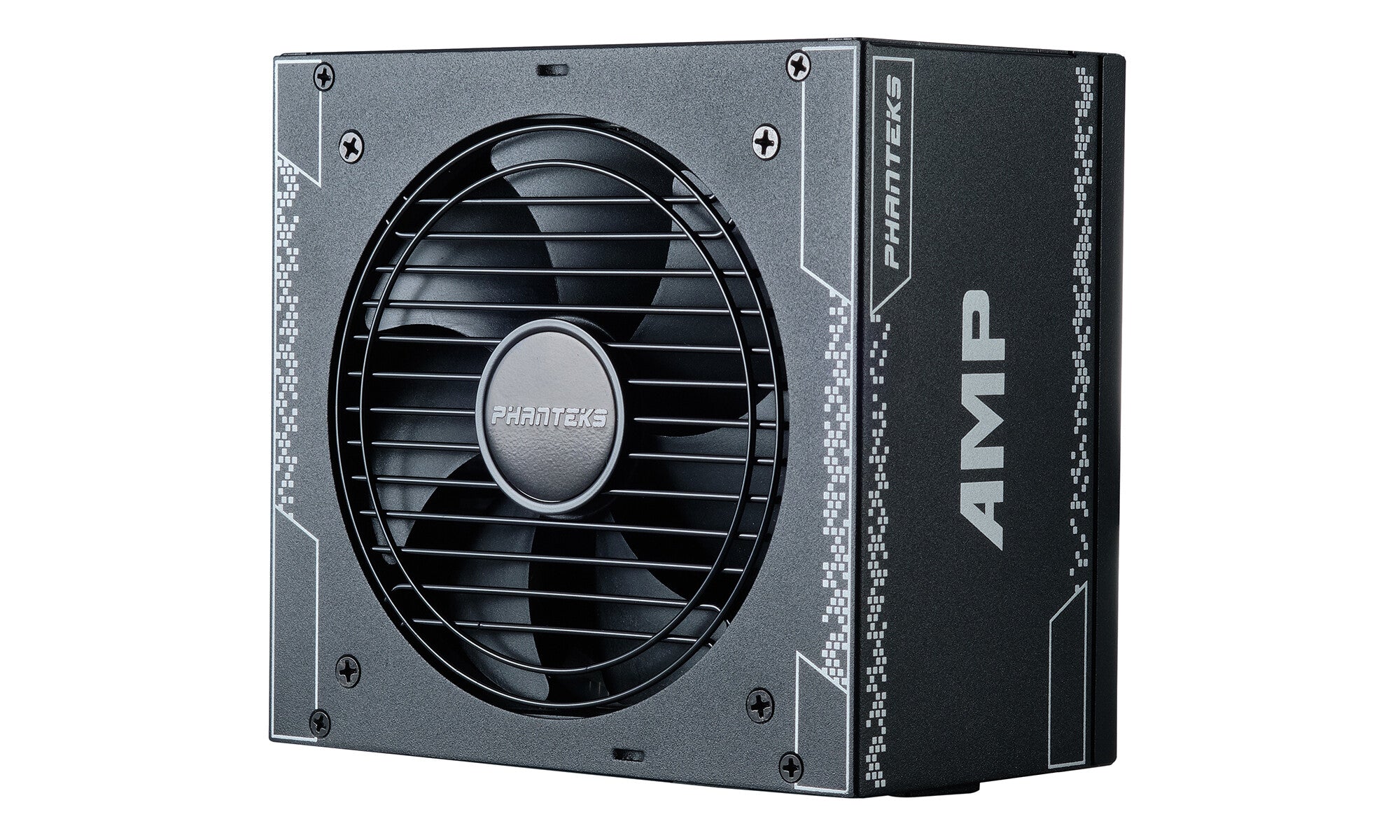

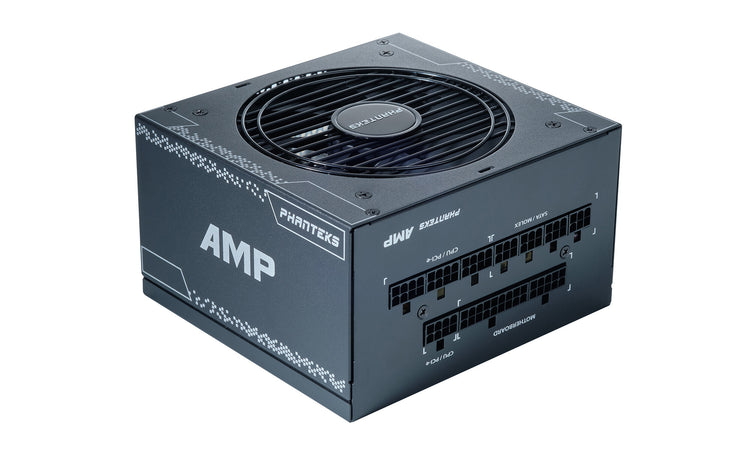

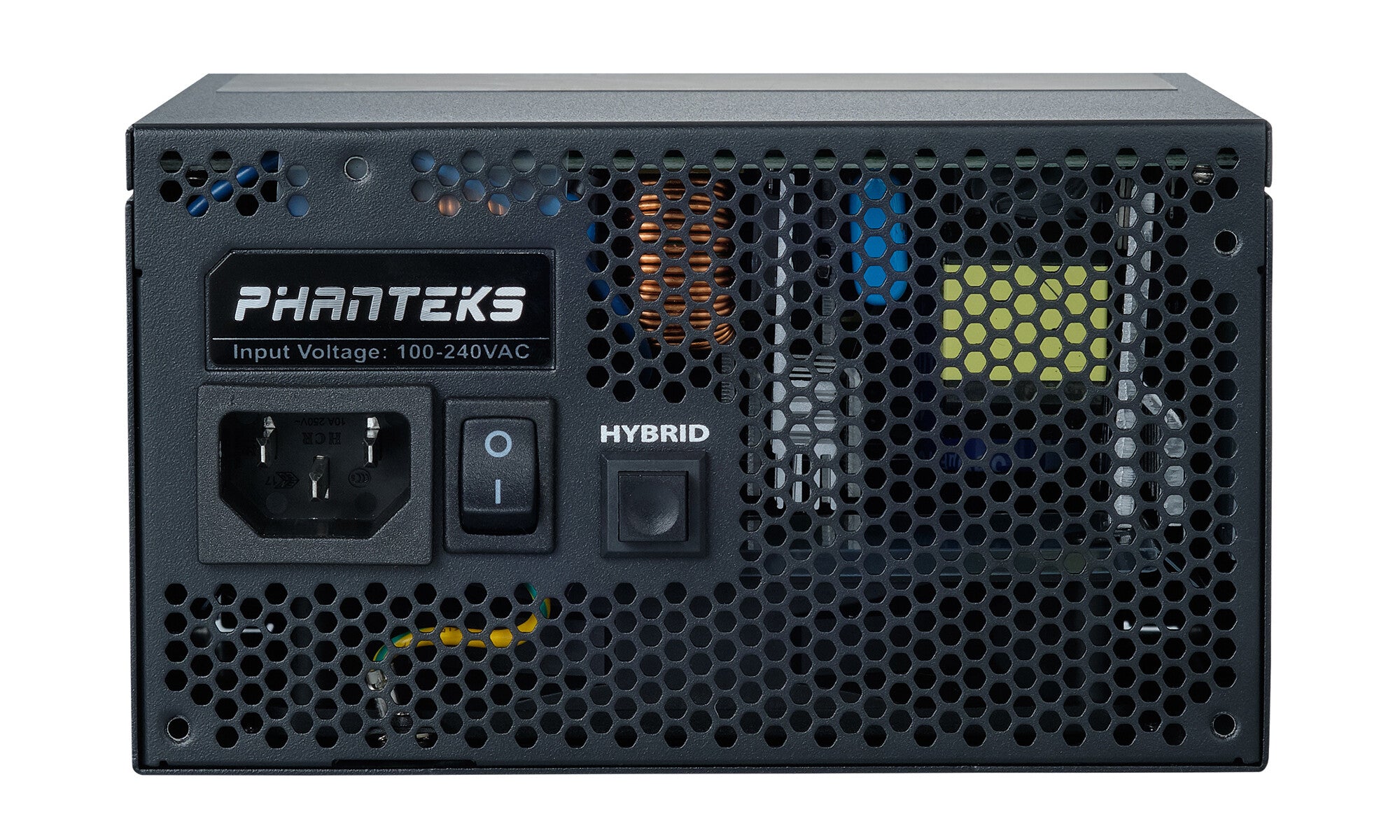

Phanteks PH-P1000G power supply unit 1000 W 24-pin ATX ATX Black
£144.99
Couldn't load pickup availability
- 1000 W 100 - 240 V 50/60 Hz
- Motherboard power connector: 24-pin ATX
- PC ATX 80 PLUS Gold
- Active 13.5 cm
- Black
Phanteks AMP 1000W 80 Plus Gold Modular Power Supply
| Power | |
|---|---|
| Power protection features | Over current, Over power, Overcharge, Overheating, Short circuit |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 25 A |
| Max output current (+12V) | 83 A |
| Max output current (+3.3V) | 25 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 125 W |
| Combined power (+12V) | 996 W |
| Combined power (+3.3V) | 125 W |
| Maximum input current (@220V) | 6.5 A |
| Maximum input current (@110V) | 13 A |
| Input current | 10 - 5 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 1000 W |
| Ports & interfaces | |
|---|---|

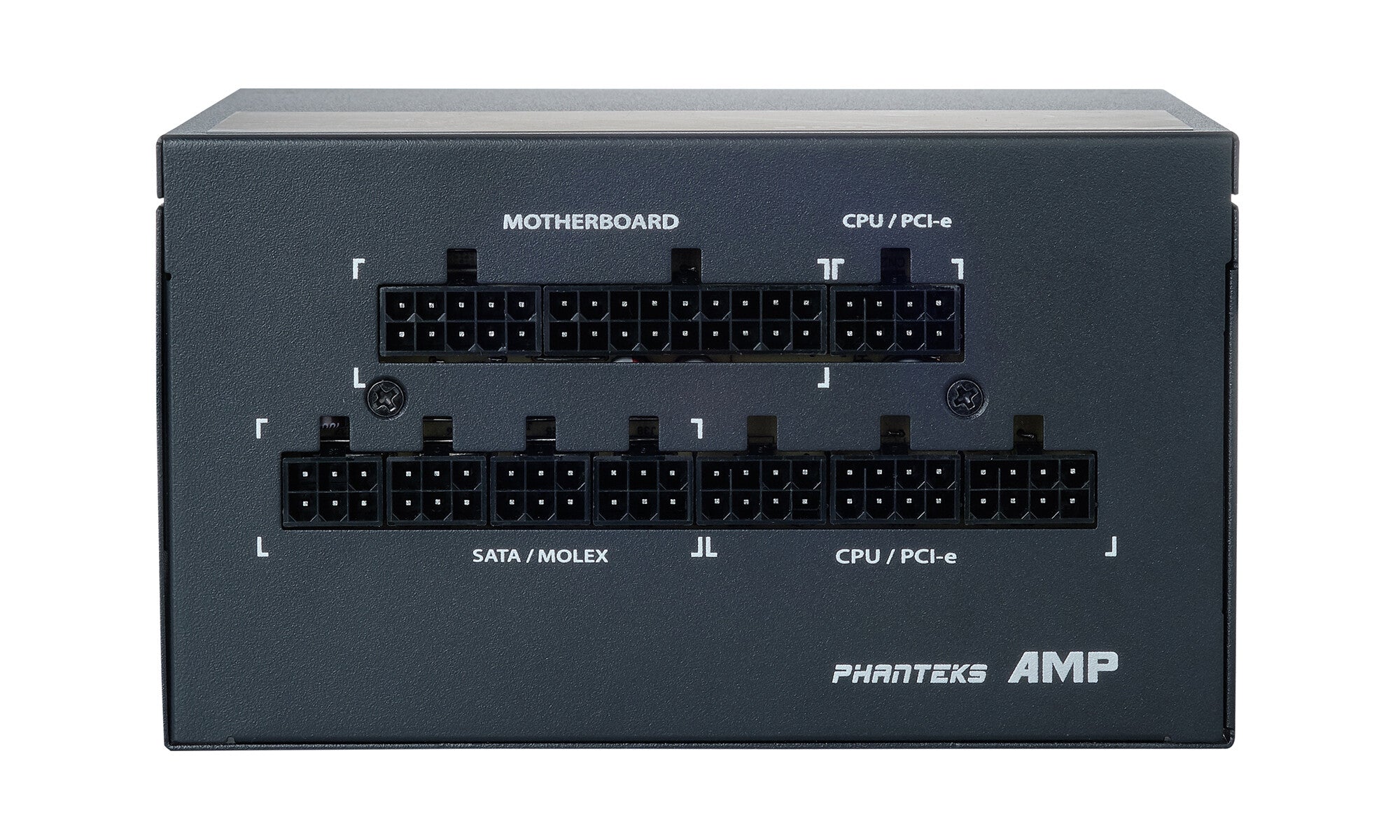

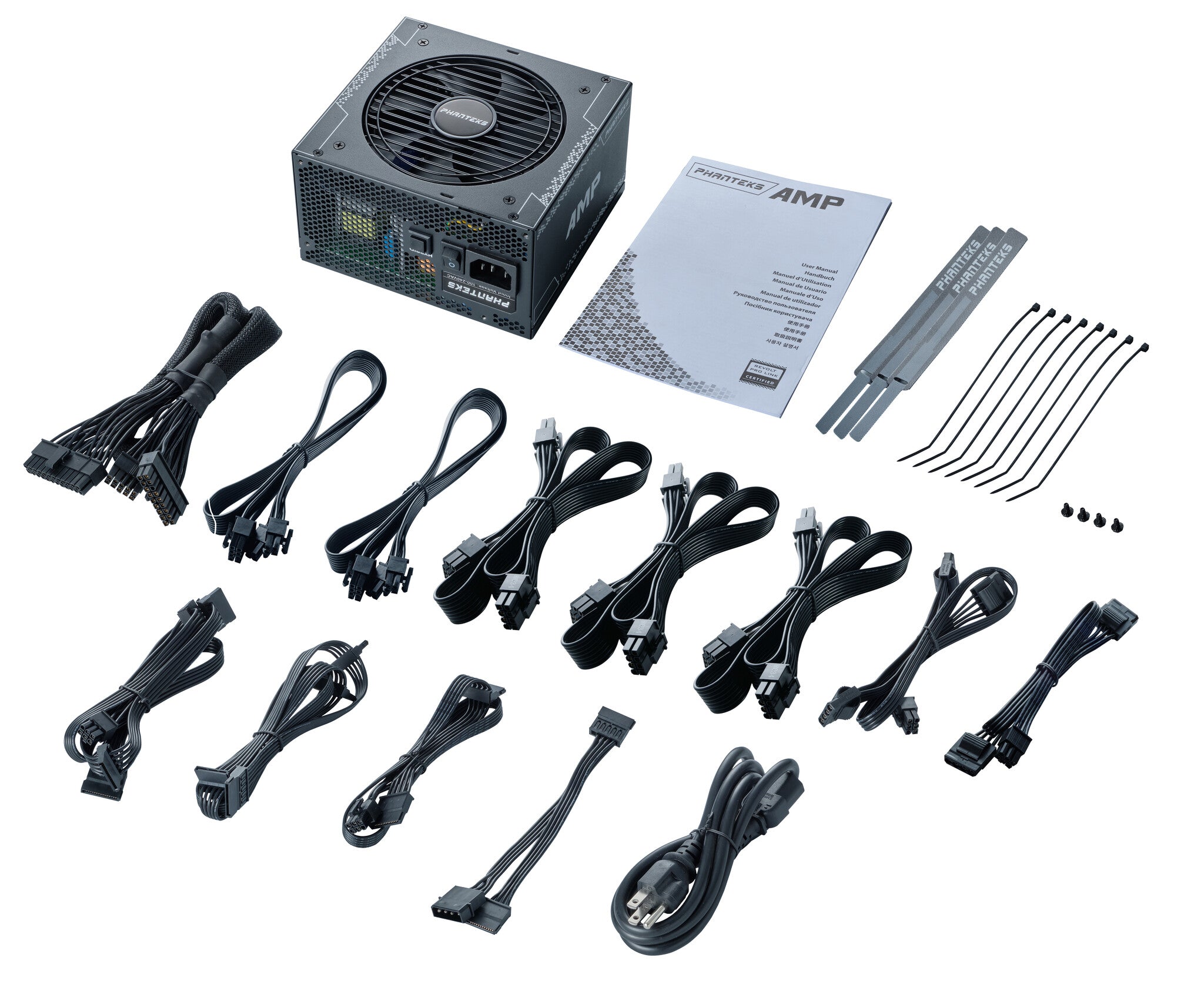

| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| ATX Power connector (24-pin) | Yes |
| PCI Express power connectors (6-pin) | 8 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Number of SATA power connectors | 4 |
| Motherboard power connector | 24-pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Number of fans | 1 fan(s) |

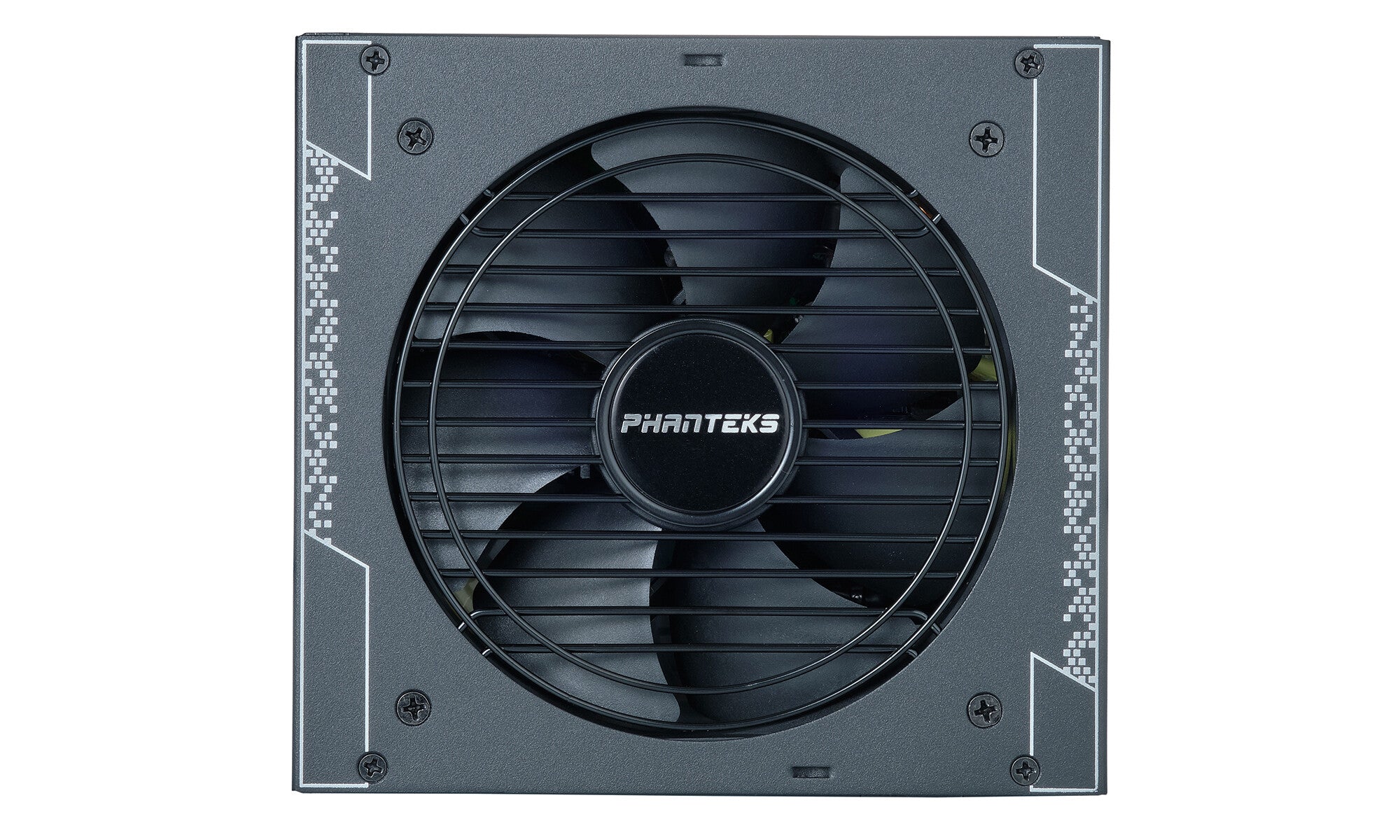

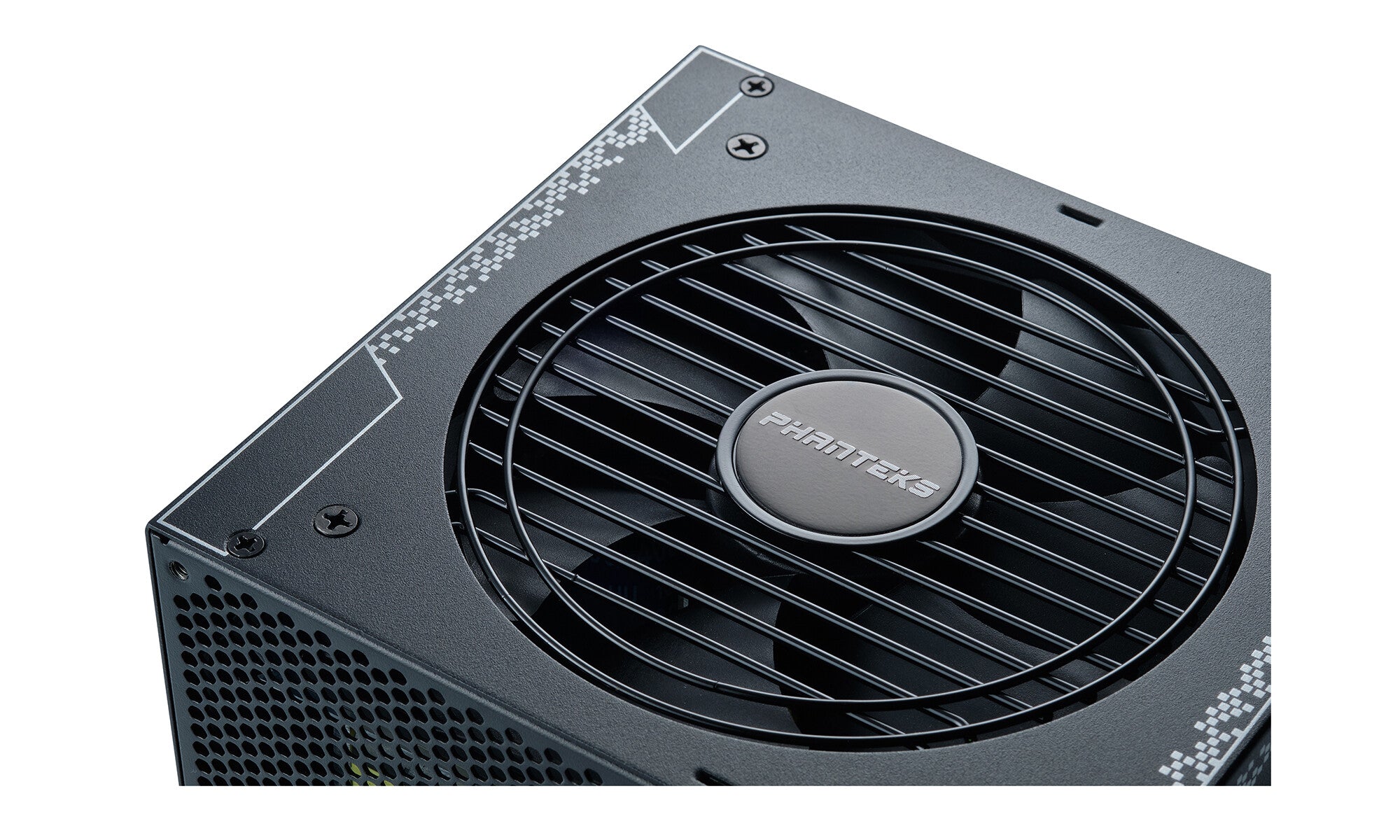

| Fan diameter | 13.5 cm |
| Cooling type | Active |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Height | 115 mm |
| Depth | 150 mm |
| Width | 140 mm |
| Packaging data | |
|---|---|
| Package type | Box |
