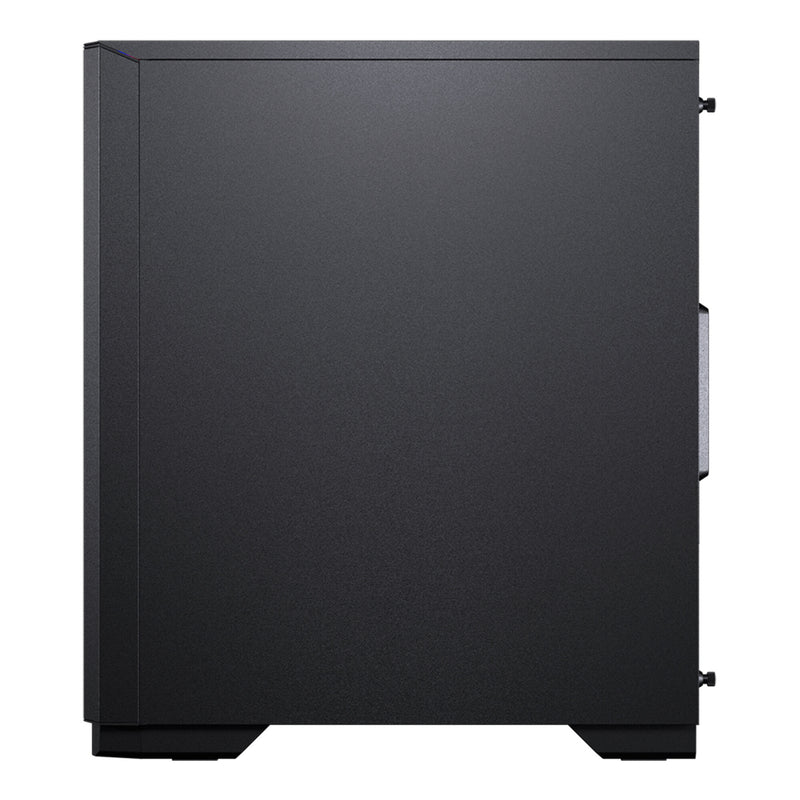

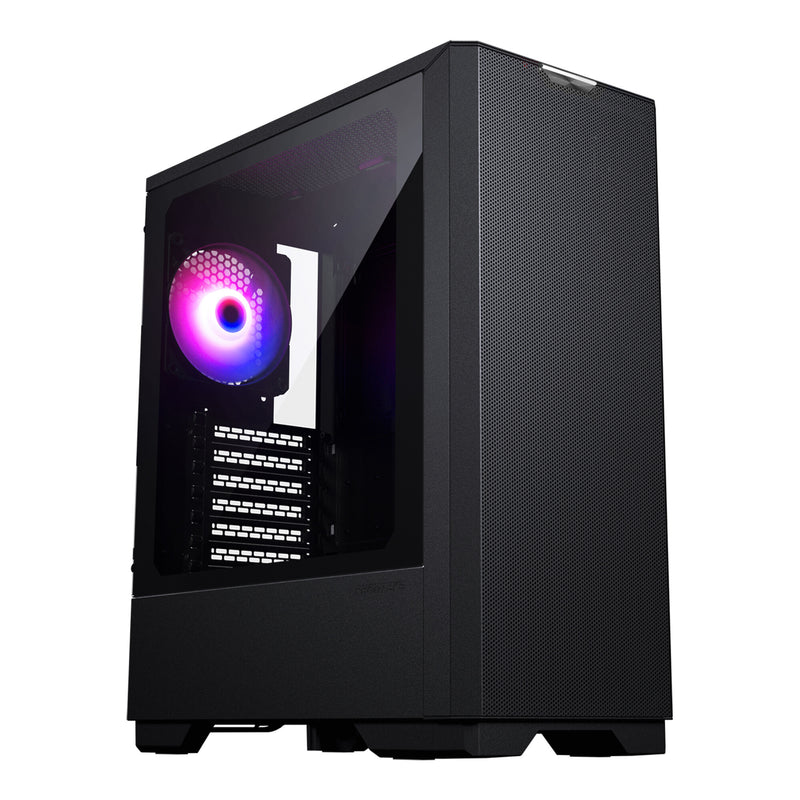

Phanteks ECLIPSE G300A Midi Tower Black
Couldn't load pickup availability
- Midi Tower PC
- ATX, micro ATX, Mini-ITX
- Supported HDD sizes: 2.5,3.5"
- Number of 2.5" bays: 3 Number of 3.5" bays: 1
- Side window Illumination Blue, Green, Red Tempered glass panel(s)
- Steel, Tempered glass
- Black

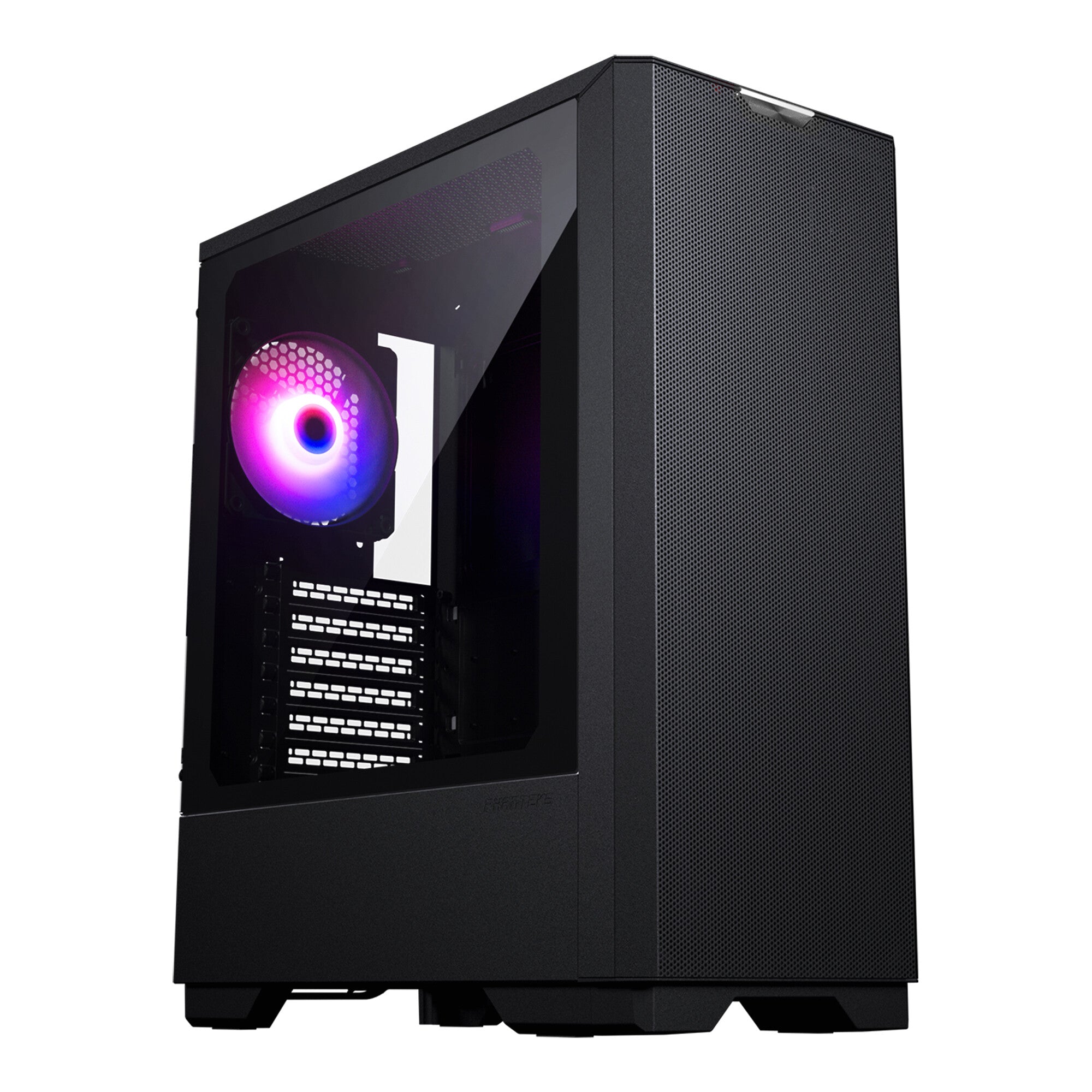

Small in size and big on features, the Phanteks Eclipse G300A brings high airflow performance in a compact ATX chassis. Large GPUs, like the ASUS RTX4090 STRIX, fit perfectly with front fans installed and even high-end CPUs can be cooled easily with front 360 or top 240 radiator support.

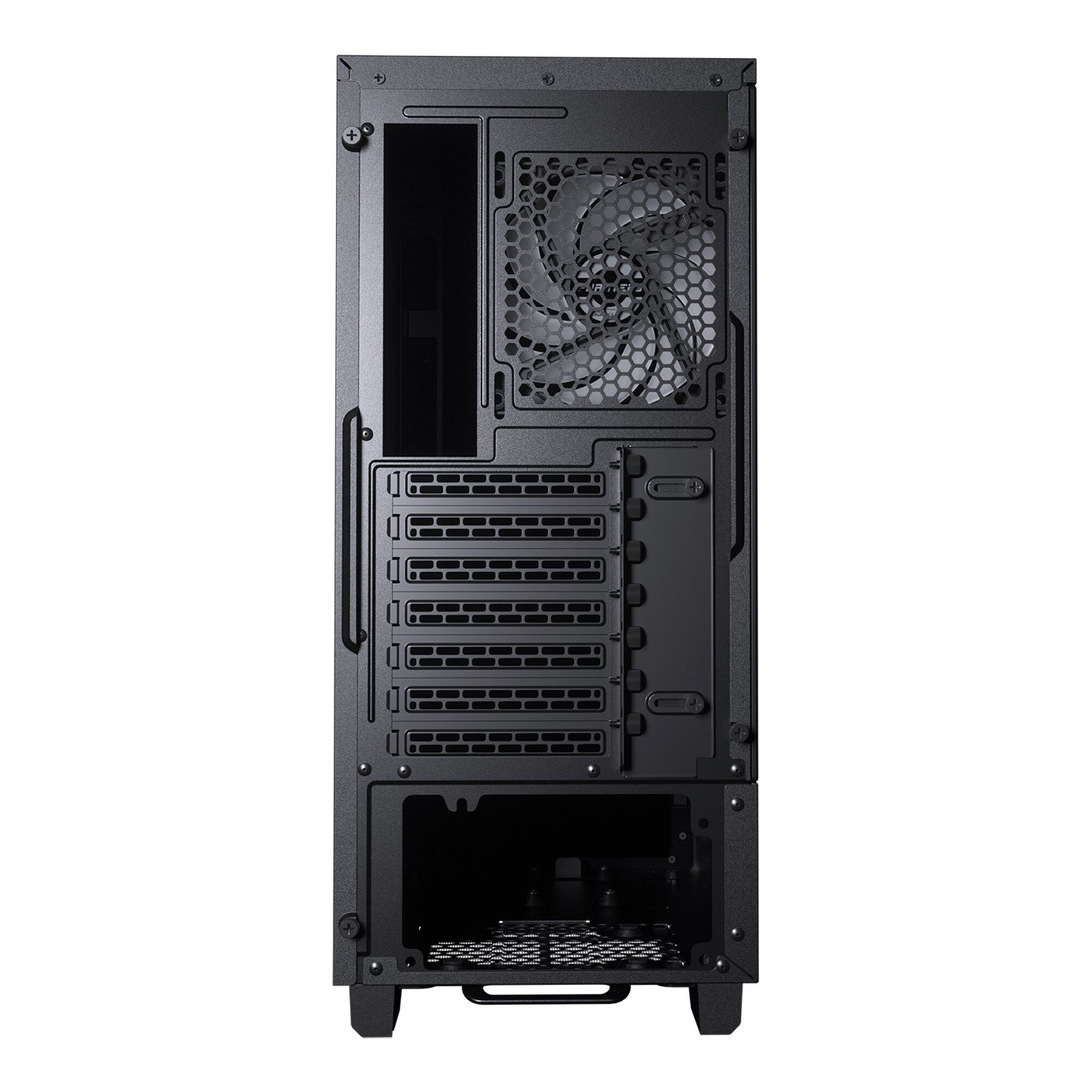

The G300A comes equipped with a rear 120mm D-RGB fan and a D-RGB Motherboard Adapter to connect it directly to a motherboard.

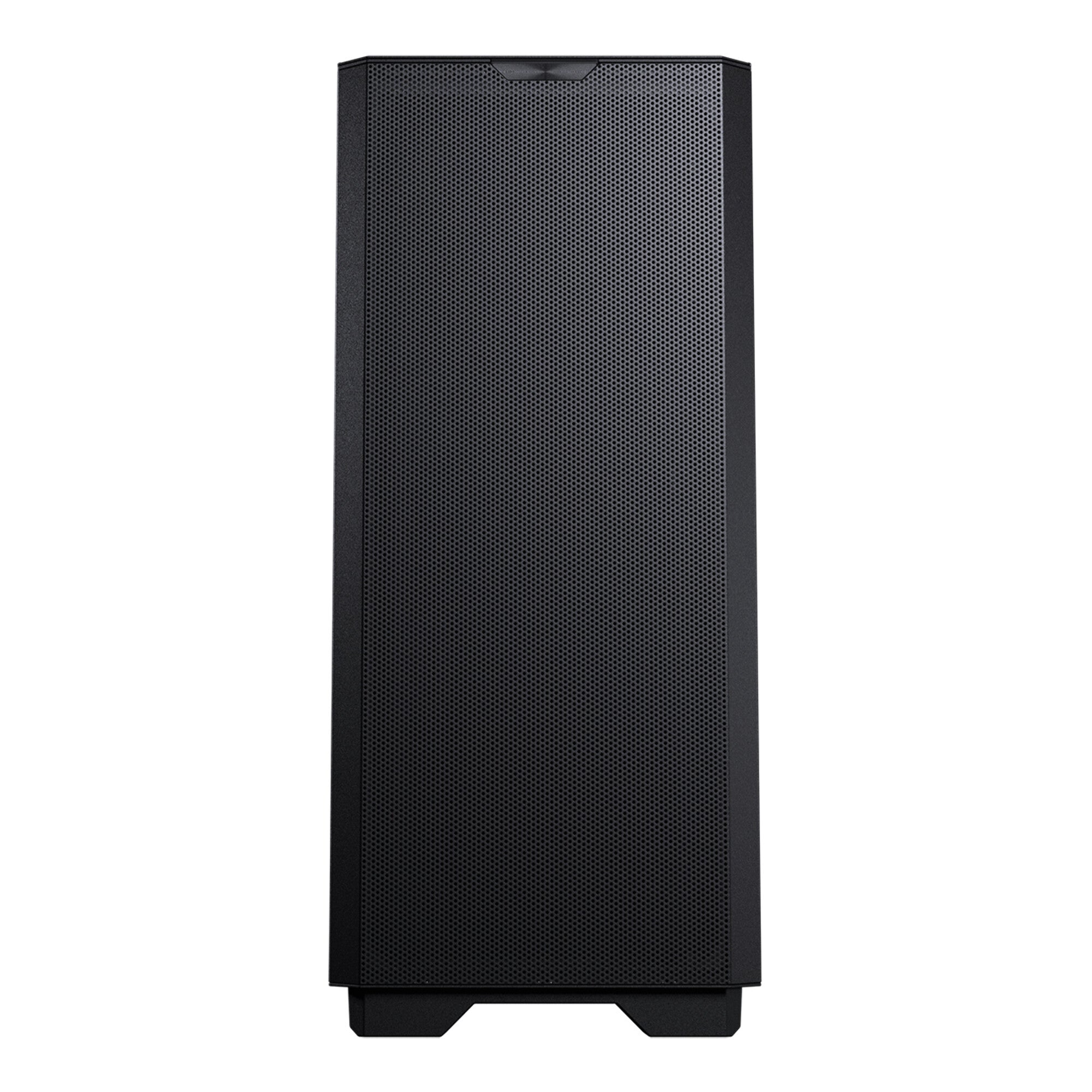

High airflow mesh with triple 120mm front fan support.
Rear D-RGB fan and D-RGB MB adapter included.
360mm GPU support with 30mm front fans combined.
360 radiator support in the front, 240 radiator support in the top.

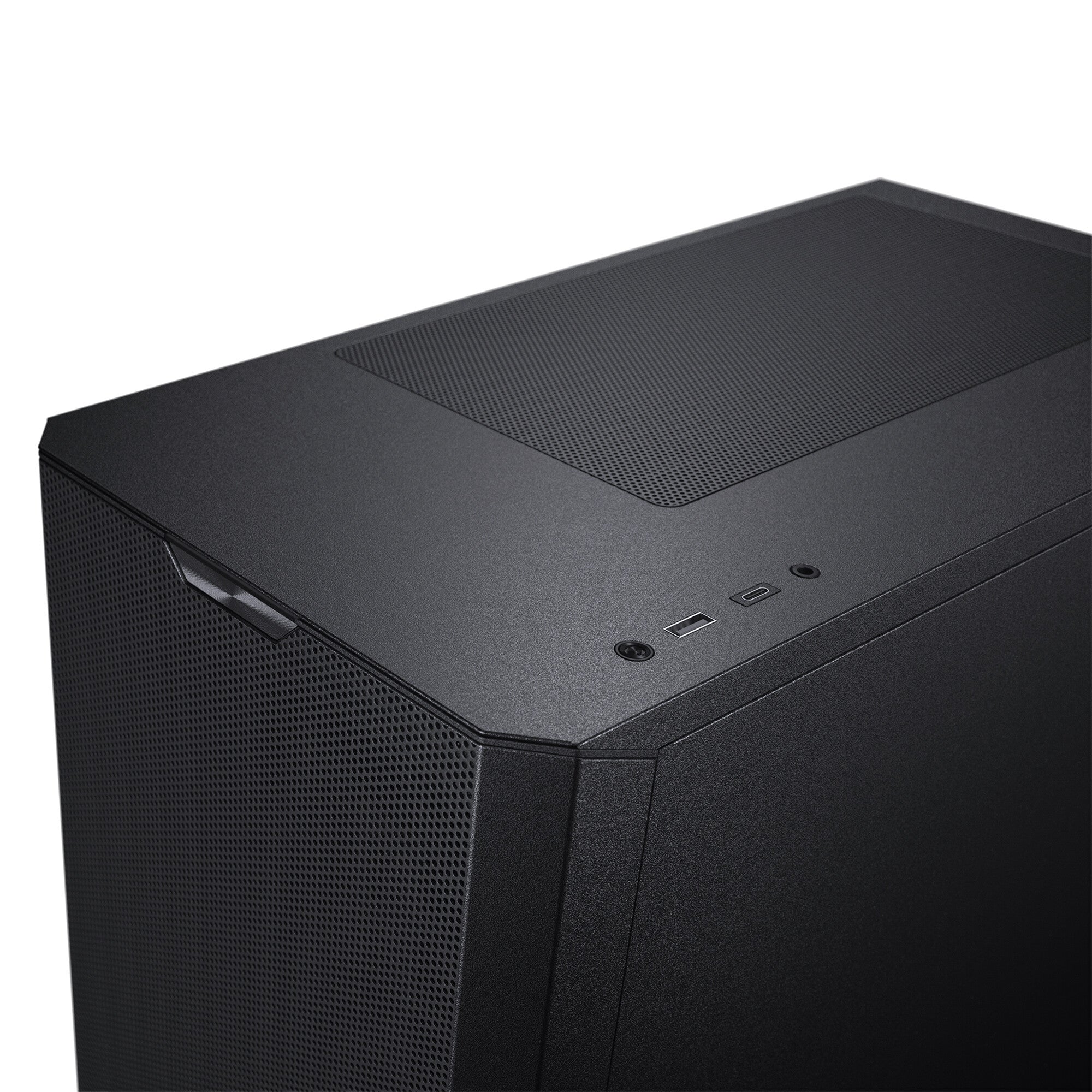

Easily accessible front I/O featuring a USB 3.0 Type A and Type C, Microphone/Headphone Combo, Power button, and Reset button.
Storage support with 3x dedicated SSD locations and a 3.5” HDD location.
| Design | |
|---|---|
| Maximum PSU length | 22 cm |
| Maximum graphics card length | 39 cm |
| Maximum CPU cooler height | 16.2 cm |
| On/off button | Yes |
| Reset button | Yes |
| Tempered glass panel(s) | Yes |
| Illumination location | Back, Case fans |
| Illumination colour | Blue, Green, Red |
| Illumination | Yes |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 3 |
| Number of 3.5" bays | 1 |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Product colour | Black |
| Material | Steel, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply location | Bottom |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 240 mm |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 360 mm |
| Top fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Front fans diameters supported | 120 mm |
| Number of front fans supported (max) | 3 |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Technical details | |
|---|---|
| Warranty period | 5 year(s) |
| Weight & dimensions | |
|---|---|
| Weight | 5.56 kg |
| Height | 465 mm |
| Depth | 400 mm |
| Width | 200 mm |
| Packaging data | |
|---|---|
| Package weight | 6.82 kg |
| Package height | 480 mm |
| Package depth | 513 mm |
| Package width | 280 mm |
