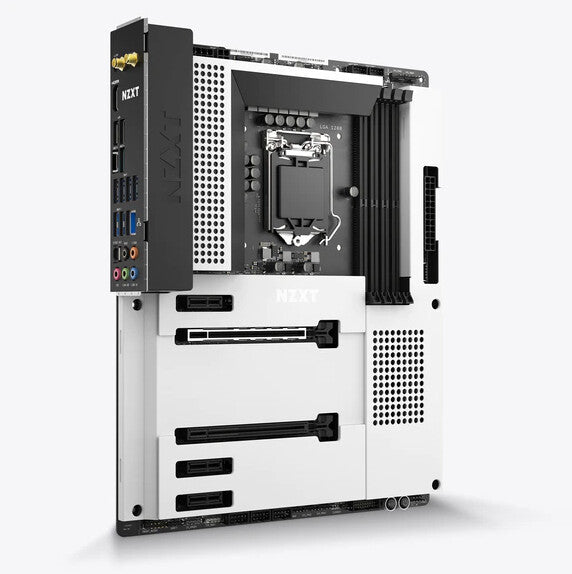

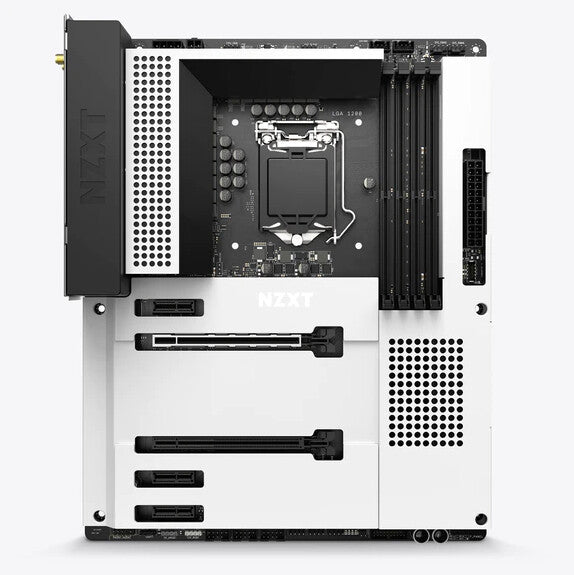

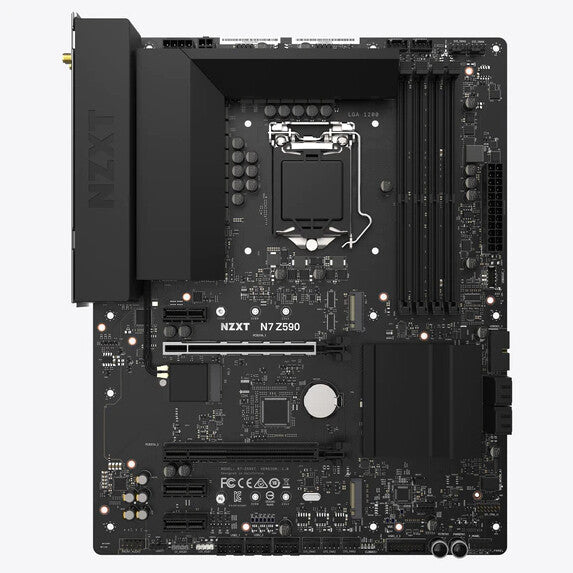

NZXT N7 Z590 Intel Z590 LGA 1200 (Socket H5) ATX
£169.99
Couldn't load pickup availability
- Digital RGB lighting control through NZXT CAM
- Digital fan control for fan profiles within NZXT CAM for seven independent fan channels

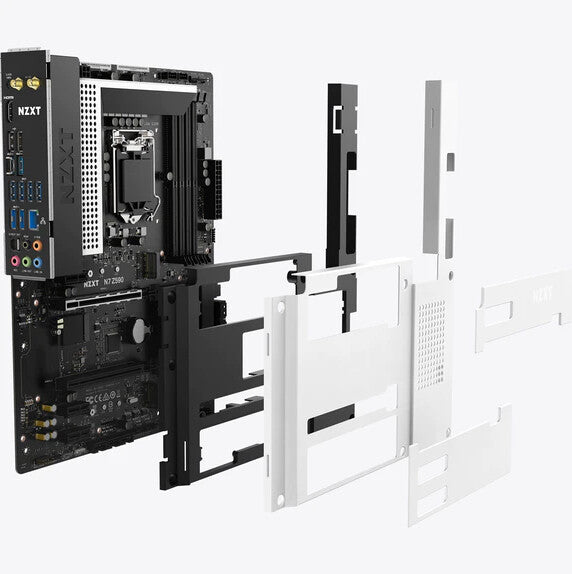

- Integrated rear I/O shield and efficient layout
- Compatible with Intel® 11th Generation Core™ i9, Core™ i7, Core™ i5, and Core™ i3 processors
- 12+2 DrMOS Power Phase Design
- Intel® Wifi 6E wireless connectivity and Bluetooth V5.2
- Intel® Optane™ Memory Ready
- Two M.2 connectors for storage devices
- Multi-GPU support with AMD CrossFireX™ Technology
- Supports memory overclocking up to 4266 MHz and Intel® XMP 2.0
- 8-channel high-definition audio
This motherboard enables a visually seamless backdrop for any build with all the features of the new Intel Z590 chipset.
Digital RGB lighting control through NZXT CAM
Digital fan control for fan profiles within NZXT CAM for seven independent fan channels
Integrated rear I/O shield and efficient layout
Compatible with Intel® 11th Generation Core™ i9, Core™ i7, Core™ i5, and Core™ i3 processors
12+2 DrMOS Power Phase Design
Intel® Wifi 6E wireless connectivity and Bluetooth V5.2
Intel® Optane™ Memory Ready
Two M.2 connectors for storage devices
Multi-GPU support with AMD CrossFireX™ Technology
Supports memory overclocking up to 4266 MHz and Intel® XMP 2.0
8-channel high-definition audio
| Processor | |
|---|---|
| Supported processor sockets | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket | LGA 1200 (Socket H5) |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3200 MHz |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Discrete graphics support | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Parallel processing technology support | 2-Way CrossFireX |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| 12V power connector | Yes |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of chassis fan connectors | 6 |
| CPU fan connector | Yes |
| Power fan connector | Yes |
| Number of EATX power connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 2.0 connectors | 3 |

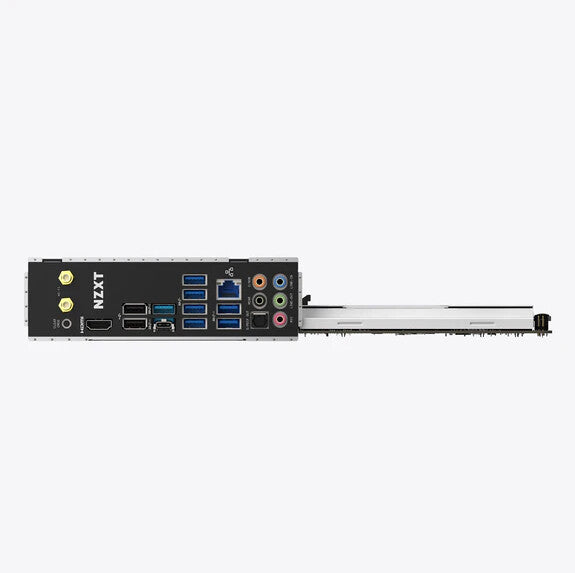

| Rear panel I/O ports | |
|---|---|
| WiFi-AP antenna jack | 2 |
| S/PDIF out port | Yes |
| HDMI version | 2.0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| Network | |
|---|---|
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64 |
| Cooling type | Passive |
| Audio output channels | 5.1 channels |
| Audio chip | Realtek ALC1220 |
| Motherboard chipset | Intel Z590 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 3 |
| BIOS | |
|---|---|
| Clear CMOS button | Yes |
| Processor special features | |
|---|---|
| Intel® Turbo Boost Technology | 3.0 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
|---|---|
| Height | 170 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
| Other features | |
|---|---|
| Weight | 1.5 kg |
