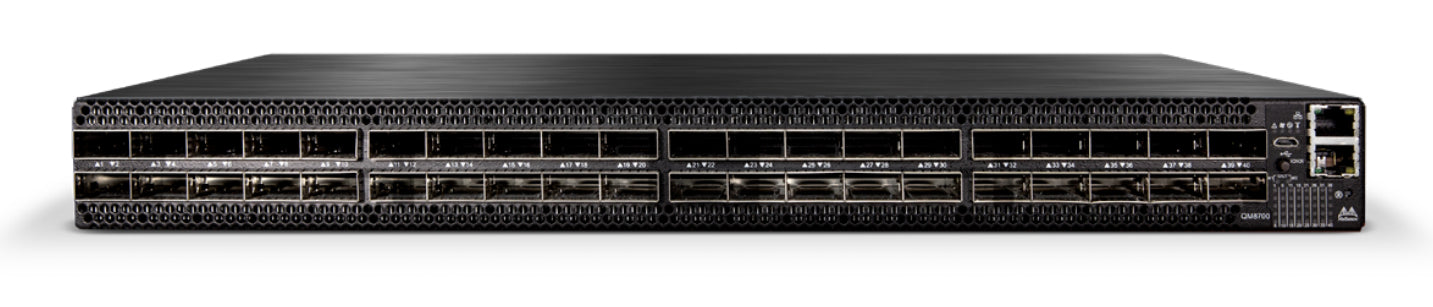

Mellanox Technologies MQM8700-HS2F network switch Managed Gigabit Ethernet (10/100/1000) 1U Black

Mellanox Technologies MQM8700-HS2F network switch Managed Gigabit Ethernet (10/100/1000) 1U Black

Nvidia
£19,953.99
Stock Available: 0
  • Managed IPv6
  • Configuring Location Settings (CLI)
  • Basic switching RJ-45 Ethernet ports quantity: 1 Console port: RS-232
  • 10G support
  • 1U Rack mounting

40-port Non-blocking Managed HDR 200Gb/s InfiniBand Smart Switch

Faster servers, combined with high-performance storage and applications that use increasingly complex computations are causing data bandwidth requirements to spiral upward. As servers are deployed with next generation processors, High-Performance Computing (HPC) environments and Enterprise Data Centers (EDC) will need every last bit of bandwidth delivered with Mellanox's next generation of HDR InfiniBand, high-speed, smart switches. Built with Mellanox's Quantum InfiniBand switch device, the QM8700 provides up to forty 200Gb/s ports, with full bi-directional bandwidth per port. These stand-alone switches are an ideal choice for top-of-rack leaf connectivity or for building small to extremely large sized clusters. QM8700 is the world's smartest network switch, designed to enable in-network computing through the Co-Design Scalable Hierarchical Aggregation and Reduction Protocol (SHARP) technology. The Co-Design architecture enables the usage of all active data center devices to accelerate the communications frameworks using embedded hardware, resulting in an order of magnitude application performance improvements.

Management features
Configuring Location Settings (CLI) Yes
Switch type Managed
Ports & interfaces
USB 2.0 ports quantity 1
Console port RS-232
Fiber optic connector QSFP56
Fiber ports quantity 40
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 1
Network
Port mirroring Yes
10G support Yes
Security
Security algorithms SNMP, SNMPv2, SNMPv3
Protocols
Management protocols IPv6
Design
LED indicators Activity, Link
Product colour Black
Form factor 1U
Rack mounting Yes
Power
Input current 4.5 A
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Operational conditions
Operating altitude 0 - 3200 m
Storage relative humidity (H-H) 10 - 90%
Operating relative humidity (H-H) 10 - 85%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Certificates
Certification CB, cTUVus, CE, CU, FCC, VCCI, ICES, RCM, RoHS
Logistics data
Harmonized System (HS) code 85176990
