• Dual independent scalers with seamless switching
• HDBaseT inputs and outputs
• Max. single output resolution 4K30 UHD (3840x2160)
• K–IIT XL™ PIP
• 2 microphone inputs, stereo speaker output
• Luma & chroma keying
• Two programmable user buttons
• Control options: IR RS–232, Ethernet with Web browser, front panel and OSD
• 4 HDMI Inputs, 2 HDBaseT inputs and 2 DVI–U connectors with configurable input type — HDMI, VGA, Component or Composite Video
• Size — Standard 19" (1U). Rack "ears" included

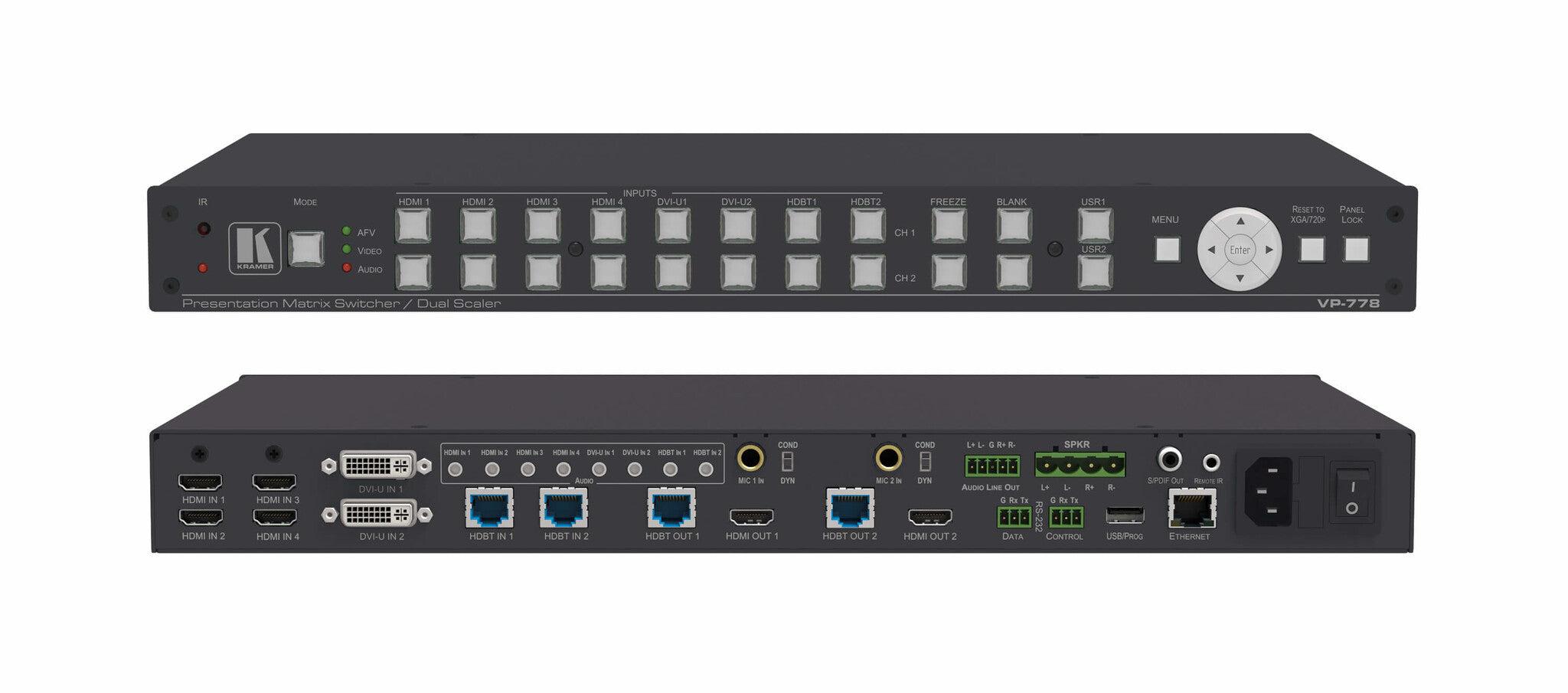

VP−778 is a presentation matrix switcher/scaler that can be configured as a single 4K output (4K@30Hz UHD [3840x2160]) or dual HD scaler with full PiP capabilities. It can scale to two independent HDMI outputs, each with a parallel HDBaseT output. VP−778 includes both analog and embedded audio inputs and outputs and audio DSP features. It also features two microphone inputs and digital & analog balanced stereo and amplified speaker outputs. VP−778 can be controlled using built−in web pages, RS−232 and IR.
