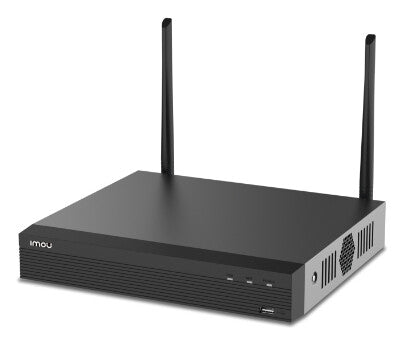

Imou NVR1108HS Black
Couldn't load pickup availability
- Video input channels: 8 channels
- 1920 x 1080 pixels
- Input bandwidth: 40 Mbit/s
- Wi-Fi 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- Maximum storage capacity: 8 TB HDD interface: SATA
- Ethernet LAN (RJ-45) ports: 1
- Black
Wireless Recorder
Plug and Play, Security Made Simple
1080P | H.265&H.264 | Up to 16TB | Auto Pairing | Wi-Fi Adaptive | Two-way Talk | ONVIF
1080P Decoding
Powered by the advanced decoding chip, the Wireless Recorder can decode real-time 1080P FHD recordings.
Smart H.265 Compression
With the Smart H.265 Compression, video quality remains the same as that of H.265 while radically reducing transmission bandwidth and data storage capacity requirements.
Easy Setup
The wireless recorder and cameras automatically pair after they're powered on.Add a new camera to the system with one click.
Reliable wireless connection
The Wireless Recorder features Camera Repeater technology, which allows for reliable wireless connection even for transmission through multiple walls, or at a long range over 100m. You won't need to worry about signal interference.
Two-way Talk
The built-in speaker and microphone with echo cancellation allows you to interact with visitors, or dissuade unwelcome guests.
Third-party camera access
Connect to third-party cameras through Onvif Profile S/G.
| Performance | |
|---|---|
| Recording modes | Manual, Schedule |
| Input bandwidth | 40 Mbit/s |
| Backup function | Yes |
| Video codecs | H.265+/H265/H.264+/H.264 |
| Audio codecs | G.711A/G.711U/PCM/G726 |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Audio formats supported | G.711 A-law, G.711u, G.726, PCM |
| Video motion detection | Yes |
| Two-way talk | Yes |
| Maximum resolution | 1920 x 1080 pixels |
| Supported resolutions | 1ch@6MP/2ch@4MP/4ch@1080P/8ch@720P |
| Video recording modes | 1080p |
| Video input channels | 8 channels |
| Wireless LAN features | |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Hard drive | |
|---|---|
| HDD interface | SATA |
| Maximum storage capacity | 8 TB |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Internal SATA ports quantity | 1 |
| Audio RCA outputs | 1 |
| Audio RCA inputs | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Power | |
|---|---|
| Output current | 1.5 A |
| Output voltage | 12 V |
| Power consumption (typical) | 10 W |
| System requirements | |
|---|---|
| Mobile operating systems supported | Android, iOS |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 45 °C |
| Technical details | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Weight & dimensions | |
|---|---|
| Weight | 824 g |
| Height | 44.7 mm |
| Depth | 247.3 mm |
| Width | 260.3 mm |
| Packaging content | |
|---|---|
| Packaging content | 1 x Screw Package1 x Mouse |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
