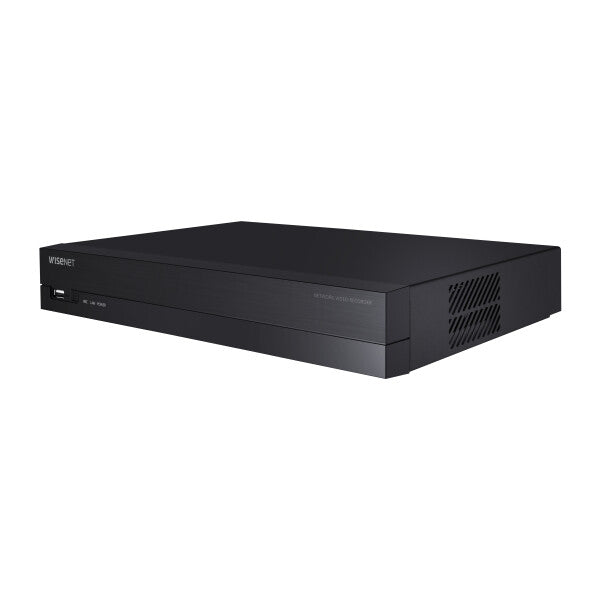

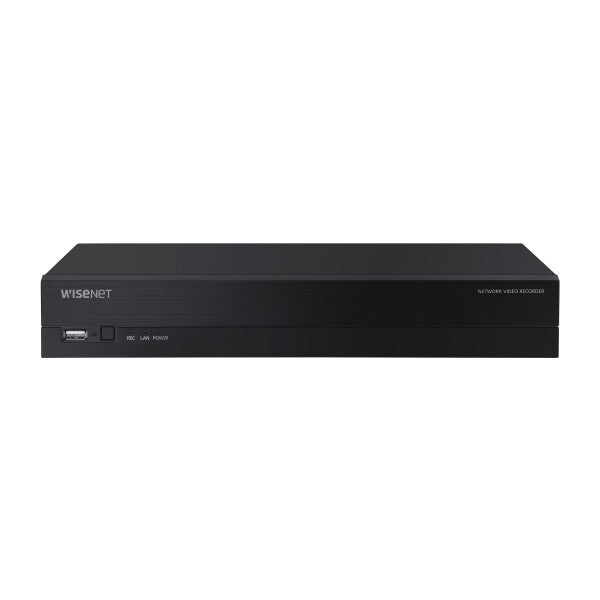

Hanwha XRN-420S network video recorder Black
£307.99
Couldn't load pickup availability
- Up to 4CH, 8MP camera supported
- H.265, H.264, MJPEG codec
- AI Search: Object Attribute (When integrated with Wisenet AI Camera)
- 50Mbps network camera recording
- Plug & play with 4 PoE ports (LAN, 10/100), 1 WAN (1Gbps)
- 1 HDD (Max. 6TB)
- HDMI / VGA local monitor output
- ARB supported
- P2P service (QR code connect) support for easy mobile app connection
| Performance | |
|---|---|
| Audio system | 2-way |
| PTZ control | Yes |
| Input bandwidth | 50 Mbit/s |
| Output bandwidth | 32 Mbit/s |
| Video codecs | H.265, H.264, MJPEG |
| Audio codecs | G.711, G.726, AAC |
| Maximum resolution | 3840 x 2160 pixels |
| Supported resolutions | 3840 x 2160, 1920x1080 |
| Alarm output channels | 2 |
| Alarm input channels | 4 |
| Video input channels | 4 channels |
| Wireless LAN features | |
|---|---|
| Wi-Fi | No |
| Hard drive | |
|---|---|
| HDD interface | SATA, SATA II, SATA III |
| Maximum storage capacity | 6 TB |
| Number of HDDs supported | 1 |
| HDD capacity | 0 GB |

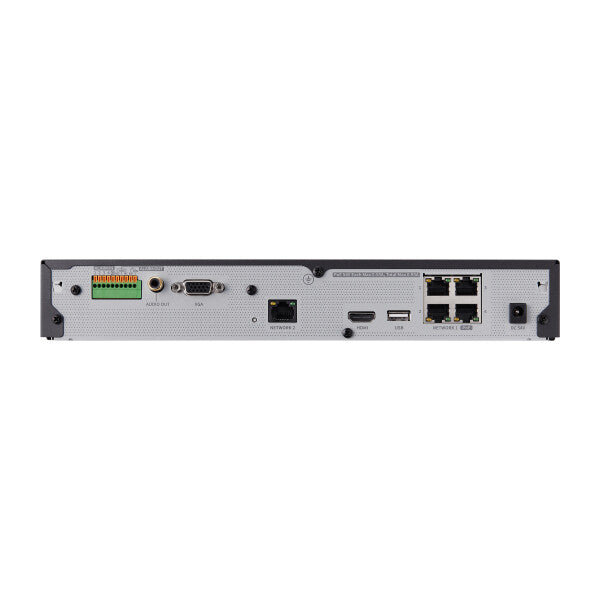

| Ports & interfaces | |
|---|---|
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) |
| Audio RCA outputs | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 4 |
| Features | |
|---|---|
| LED indicators | Yes |
| Reset button | Yes |
| Product colour | Black |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 67 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 - 85% |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.06 kg |
| Height | 47.1 mm |
| Depth | 208.4 mm |
| Width | 300 mm |
