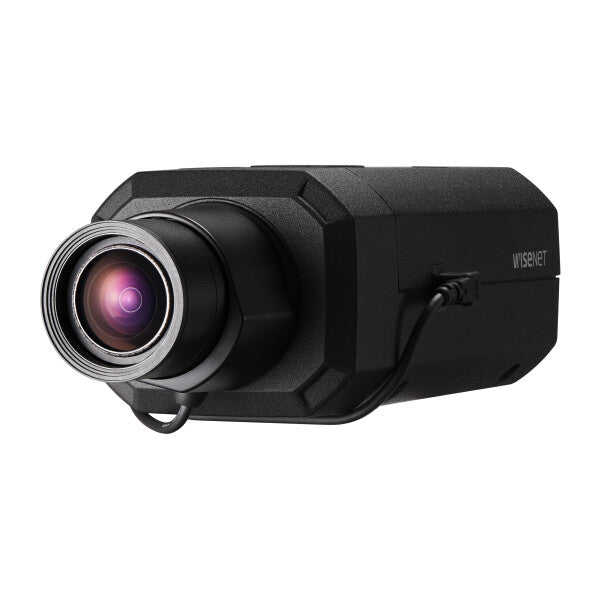

Hanwha XNB-9002 security camera Box IP security camera Indoor 3840 x 2160 pixels Ceiling/wall
£547.99
Couldn't load pickup availability
- Indoor IP security camera
- CMOS 25.4 / 2.8 mm (1 / 2.8") 3840 x 2160 pixels
- Wired Ethernet LAN
- Box Ceiling/wall
- Black
- 880 g
Wisenet X powered by Wisenet 7 network box camera, easy access to all ports, 4K @30fps, H.265/H.264/MJPEG, WiseStream II compression technology, extremeWDR, USB port for easy installation, advanced video analytics and sound classification, true D/N, dual SD card slots, hallway view, HLC, defocus detection, defog detection, DIS, 12VDC/24VAC/PoE. Advanced cybersecurity built-in.
| Performance | |
|---|---|
| Alarm input/output | Yes |
| Infrared (IR) cut-off filter | Yes |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Type | IP security camera |
| Design | |
|---|---|
| Housing material | Aluminium |
| Product colour | Black |
| Mounting type | Ceiling/wall |
| Form factor | Box |
| Camera | |
|---|---|
| Camera shutter speed | 1/5-1/12000 s |
| Camera shutter type | Electronic |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Minimum illumination | 0.005 lx |
| Image sensor | |
|---|---|
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Video | |
|---|---|
| Flip & mirror | Yes |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) | Yes |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 3840 x 2160 pixels |
| Audio | |
|---|---|
| Voice codecs | G.711, G.711ulaw, G.726 |
| Network | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast, Unicast |
| Number of users | 20 user(s) |
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Networking standards | IEEE 802.1x, IEEE 802.3af |
| Ethernet interface type | Gigabit Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Internal memory | 4000 MB |
| Flash memory | 512 MB |
| Maximum memory card size | 256 GB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| Composite video out | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Defocus, People counting |
| Security algorithms | EAP-LEAP, EAP-TLS, HTTPS, SSL/TLS |
| Power | |
|---|---|
| DC output voltage | 12 |
| Power consumption (Power over Ethernet (PoE)) | 12.95 W |
| Power consumption (max) | 13.5 W |
| AC input voltage | 24 V |
| Power source type | AC, DC, PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 90% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -50 - 60 °C |
| Operating temperature (T-T) | -10 - 55 °C |
| Weight & dimensions | |
|---|---|
| Weight | 880 g |
| Height | 67 mm |
| Depth | 165 mm |
| Width | 81 mm |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
