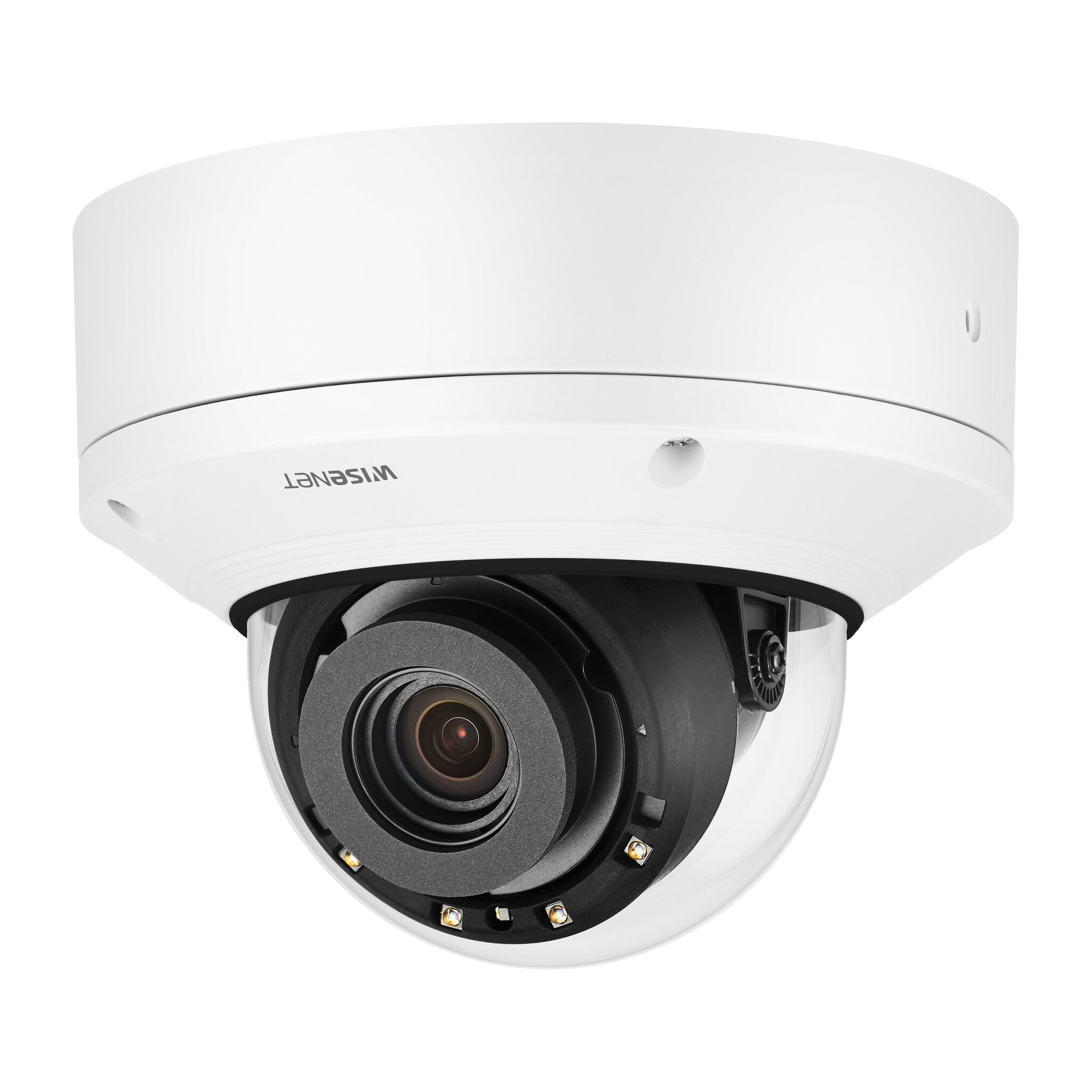

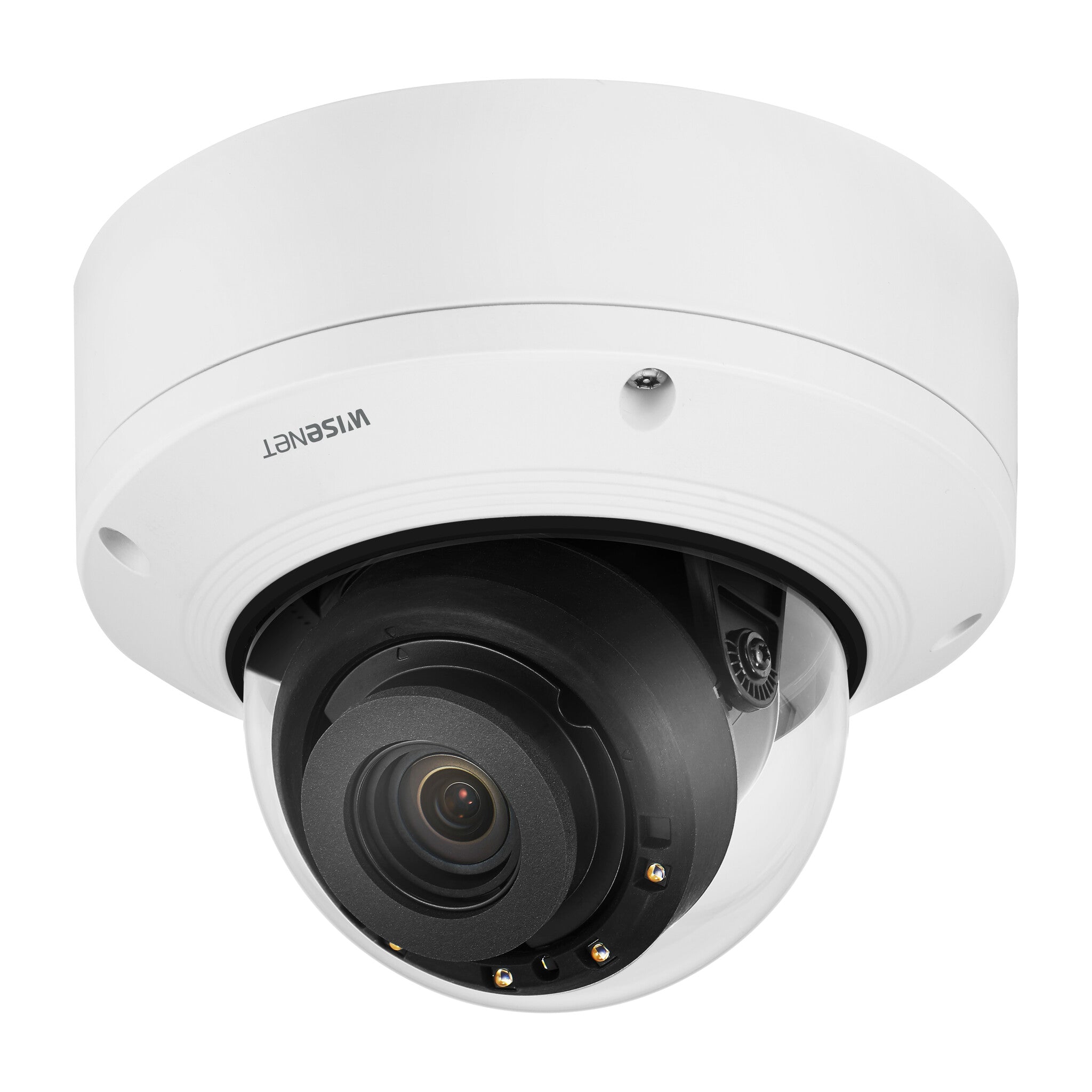

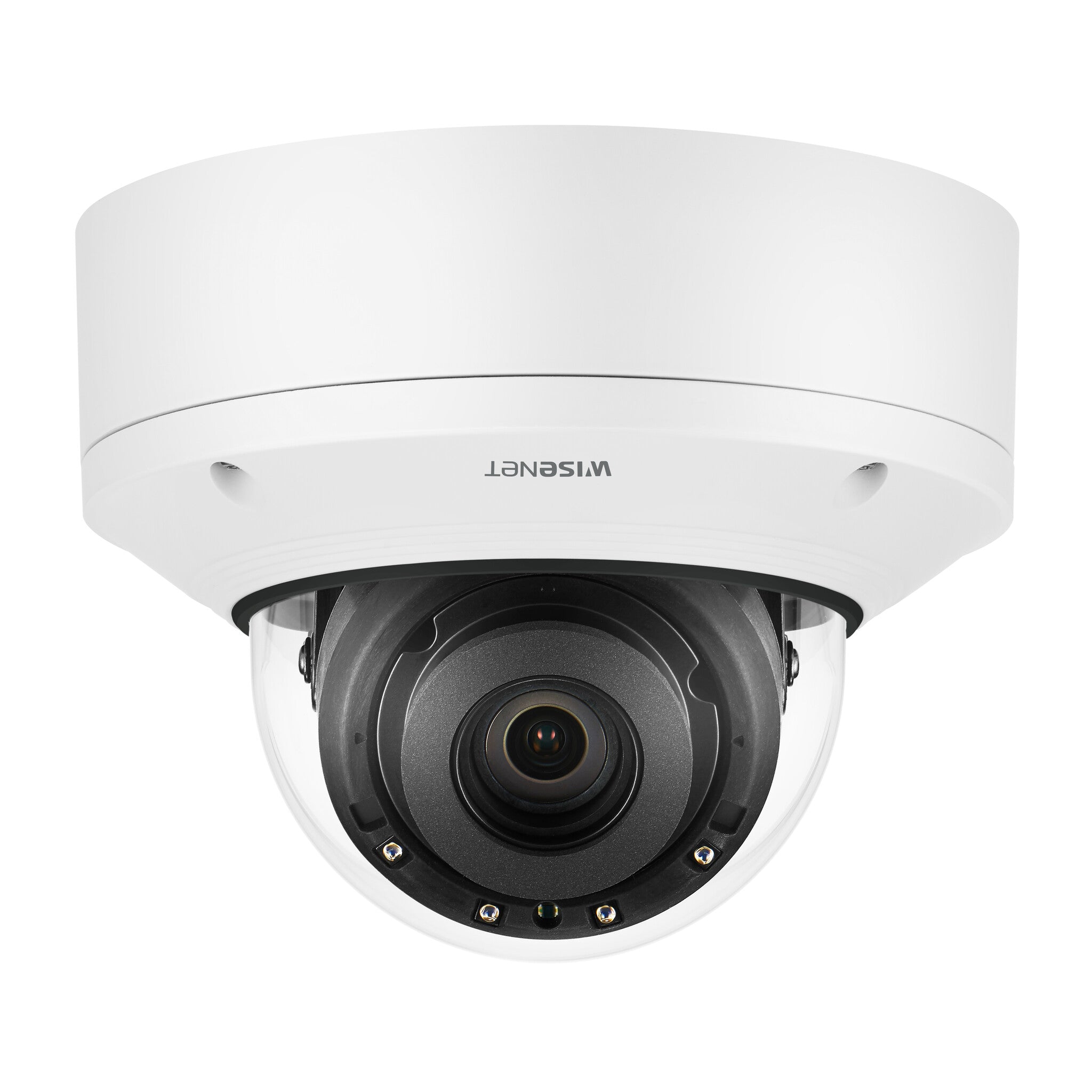

Hanwha Wisenet X Dome IP security camera Indoor & outdoor 2560 x 1920 pixels Ceiling
Couldn't load pickup availability
- Max. 5Megapixel resolution
- 0.07Lux@F1.4 (Color), 0Lux (B/W, IR LED on)
- Day & Night (ICR), WDR (150dB / 120dB)
- Hallway View, WiseStreamII Support
- Video & audio analytics, Audio playback
- DIS and shock detection with built-in gyro sensor
- Modular structure, PoE, 12VDC
- IP52, IK10
The most powerful chipset WISENET 5
Wisenet X series is supercharged by the most powerful chipset ever incorporated into a full camera range. The Wisenet 5 chip uses an all-new architecture that enables faster processing. That means you get the best video performance just as you need it.
Easy installation with modular structure and motorized PTRZ
Wisenet X PLUS cameras offer easy installation with their modular structure and motorized PTRZ. The product package has been renewed to save time and money in installation and maintenance.
Extended tilt range for greater flexibility
Extended tilt angle has been added for greater flexibility in placement and use cases of Wisenet X PLUS cameras.
Advanced DIS and shock detection with built-in gyro sensors
Wisenet X PLUS cameras have built-in gyro sensors to enable advanced DIS with reduced motion blur and shock detection which detects when the camera is hit.
High reliability in challenging environments
One of the most important features of a security camera is reliability in challenging environments. Wisenet X PLUS cameras offer high reliability by providing resistance to weather and impact with IP67, IP66, IP6K9K, and IK10+ ratings.
Audio playback on event
Audio playback feature responses to user-defined events to assist operators communicate with the public.
Optional accessories for various applications
A weather cap and the skin covers available in black and ivory would blend in with the surroundings of different kinds.
| Performance | |
|---|---|
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| International Protection (IP) code | IP52 |
| Housing material | Aluminium |
| Product colour | White |
| Mounting type | Ceiling |
| Form factor | Dome |
| Camera | |
|---|---|
| Camera shutter speed | 1/12000 s |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Pan range | 0 - 360° |
| Tilt angle range | -45 - 85° |
| Field of view (FOV) angle | 92.1° |
| Minimum illumination | 0 lx |
| Camera tilt control | Yes |
| Camera pan control | Yes |
| Image sensor | |
|---|---|
| Number of effective pixels (H x V) | 2616 x 1976 pixels |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Maximum aperture number | 1.3 |
| Number of lenses | 1 |
| Night vision | |
|---|---|
| Night vision distance | 50 m |
| Night vision | Yes |
| Video | |
|---|---|
| Image stabilizer | Yes |
| Noise reduction | Yes |
| Frame rate | 30 fps |
| Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2560 x 1440, 2560 x 1920 |
| Video compression formats | H.264, H.265, M-JPEG |
| Total megapixels | 6 MP |
| Maximum resolution | 2560 x 1920 pixels |
| Network | |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Maximum memory card size | 512 GB |
| Compatible memory cards | MicroSD (TransFlash), SDHC, SDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Motion sensor | Yes |
| Power | |
|---|---|
| DC output voltage | 12 |
| Power consumption (Power over Ethernet (PoE)) | 10.1 W |
| Power source type | DC, PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 90% |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -50 - 60 °C |
| Operating temperature (T-T) | -50 - 60 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.45 kg |
| Diameter | 16 cm |
| Height | 125 mm |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
