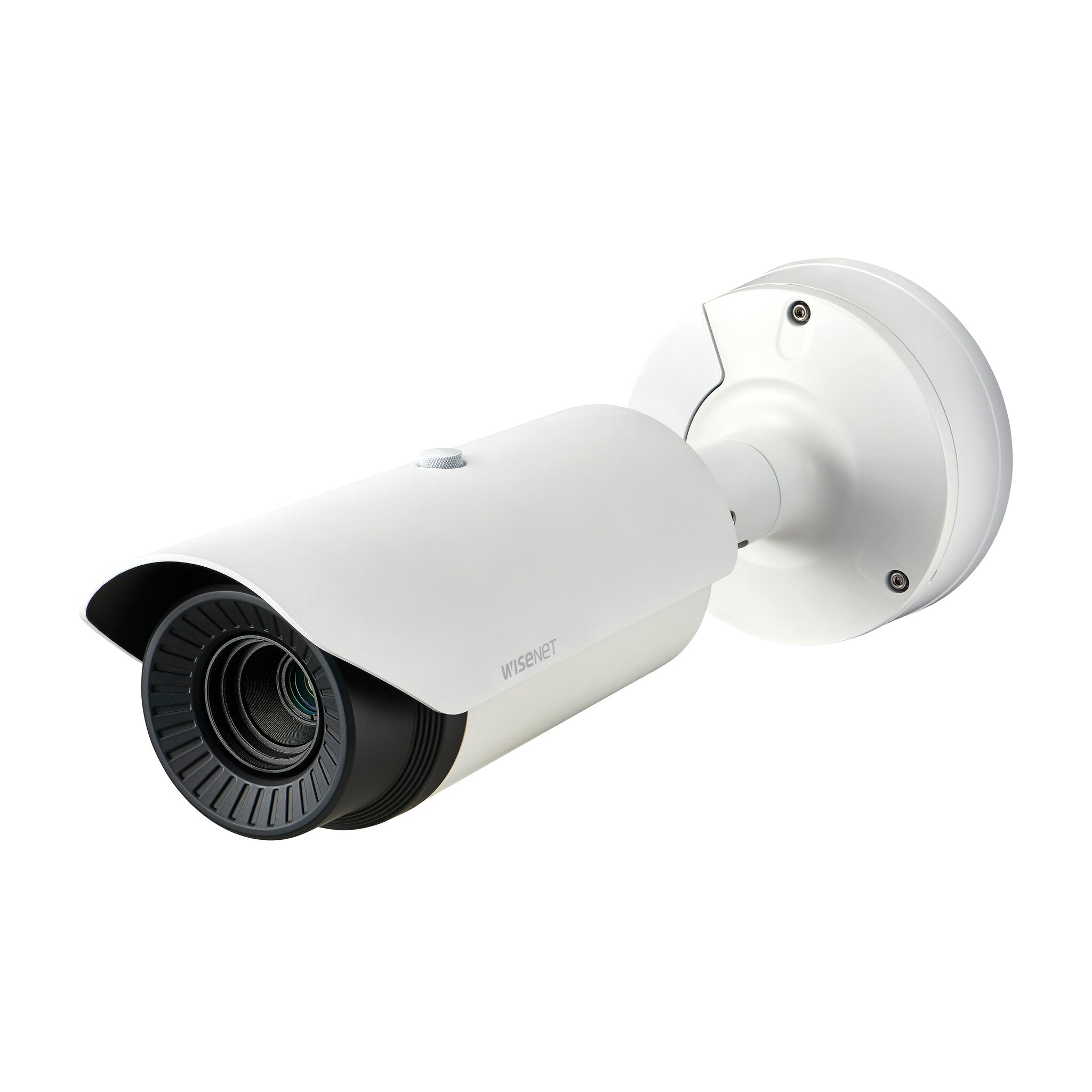

Hanwha TNO-3020T security camera Bullet IP security camera 320 x 240 pixels Wall
£2,167.99
Couldn't load pickup availability
- Max. 320 x 240 resolution support
- Built-in 4.7mm fixed lens
- H.265, H.264, MJPEG codec
- Max. 30fps@all resolutions (H.265, H.264, MJPEG)
- Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification Temperature detection, Shock detection
- Micro SD / SDHC / SDXC memory slot (Max. 256GB)
- Hallway View, WiseStreamII support
- PoE, 24VAC, 12VDC / IP66, NEMA4X, IK10
QVGA NW Thermal Camera
| Performance | |
|---|---|
| Certification | FCC, UL, CE, EAC |
| Thermal sensitivity (NETD) | 60 mK |
| Alarm input/output | Yes |
| Connectivity technology | Wired |
| Type | IP security camera |
| Design | |
|---|---|
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium |
| Product colour | White |
| Mounting type | Wall |
| Form factor | Bullet |
| Camera | |
|---|---|
| Lens viewing angle, diagonal | 65.3° |
| Lens viewing angle, vertical | 36.4° |
| Lens viewing angle, horizontal | 50° |
| Lens system | |
|---|---|
| Closest focusing distance | 1 m |
| Fixed focal length | 4.7 mm |
| Maximum aperture number | 1 |
| Fixed focus | Yes |
| Video | |
|---|---|
| Flip & mirror | Yes |
| Privacy masking | Yes |
| Image stabilizer | Yes |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Video compression formats | H.264, H.265 |
| Maximum resolution | 320 x 240 pixels |
| Audio | |
|---|---|
| Audio formats supported | AAC-LC, G.711, G.711 μ-law, G.726 |
| Network | |
|---|---|
| Streaming method | Multicast, Unicast |
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Networking standards | IEEE 802.1x, IEEE 802.3af |
| Ethernet interface type | Fast Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Maximum memory card size | 256 GB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| USB port | Yes |
| Composite video out | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| Security algorithms | EAP-LEAP, EAP-TLS |
| Management features | |
|---|---|
| Web-based management | Yes |
| Power | |
|---|---|
| DC output voltage | 12 |
| Power consumption (Power over Ethernet (PoE)) | 8.7 W |
| Power consumption (max) | 9.2 W |
| Power consumption (typical) | 8 W |
| AC input voltage | 24 V |
| Power source type | AC, DC, PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 90% |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -50 - 60 °C |
| Operating temperature (T-T) | -40 - 60 °C |
| System requirements | |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Weight & dimensions | |
|---|---|
| Weight | 2.51 kg |
| Diameter | 14.8 cm |
| Depth | 375.3 mm |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
