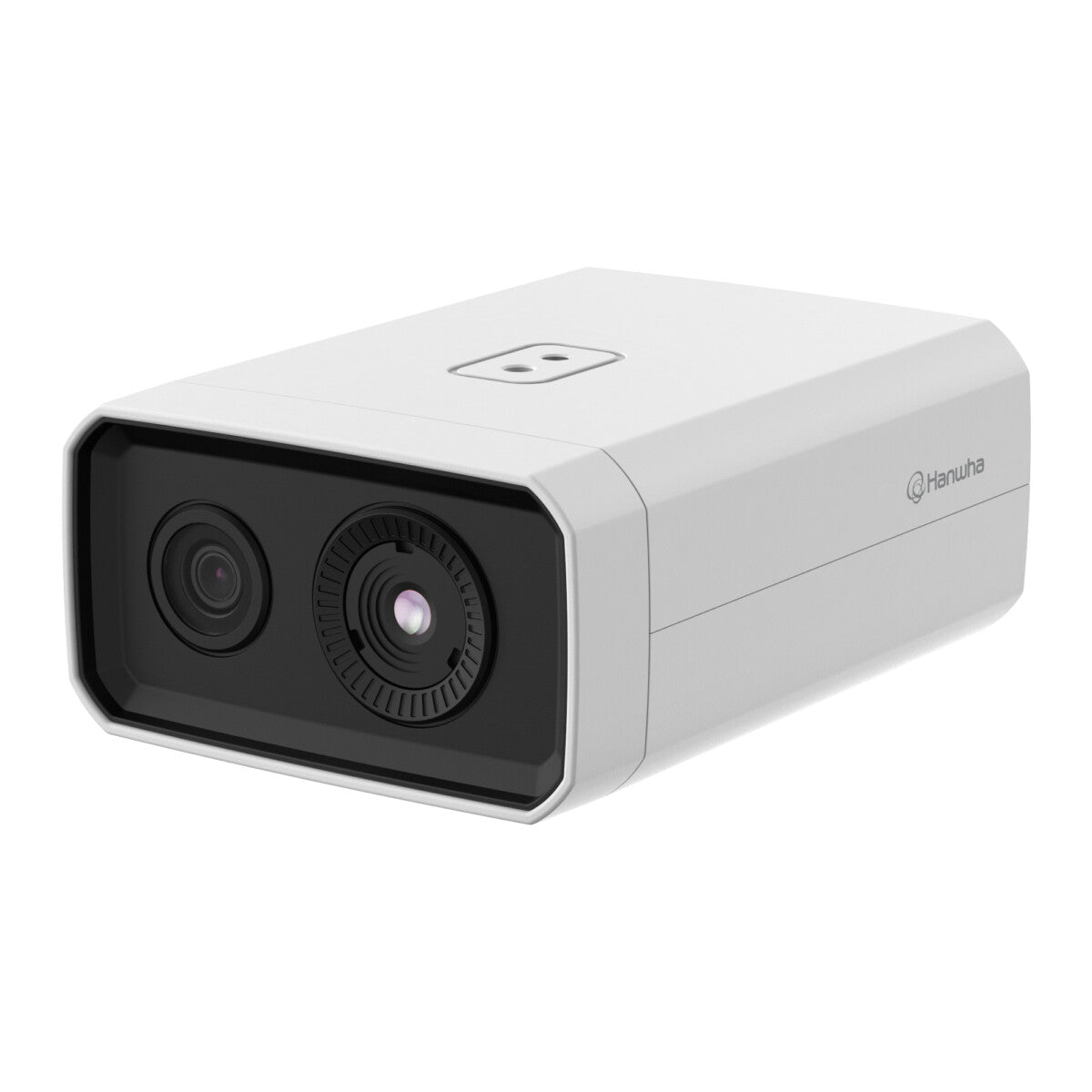

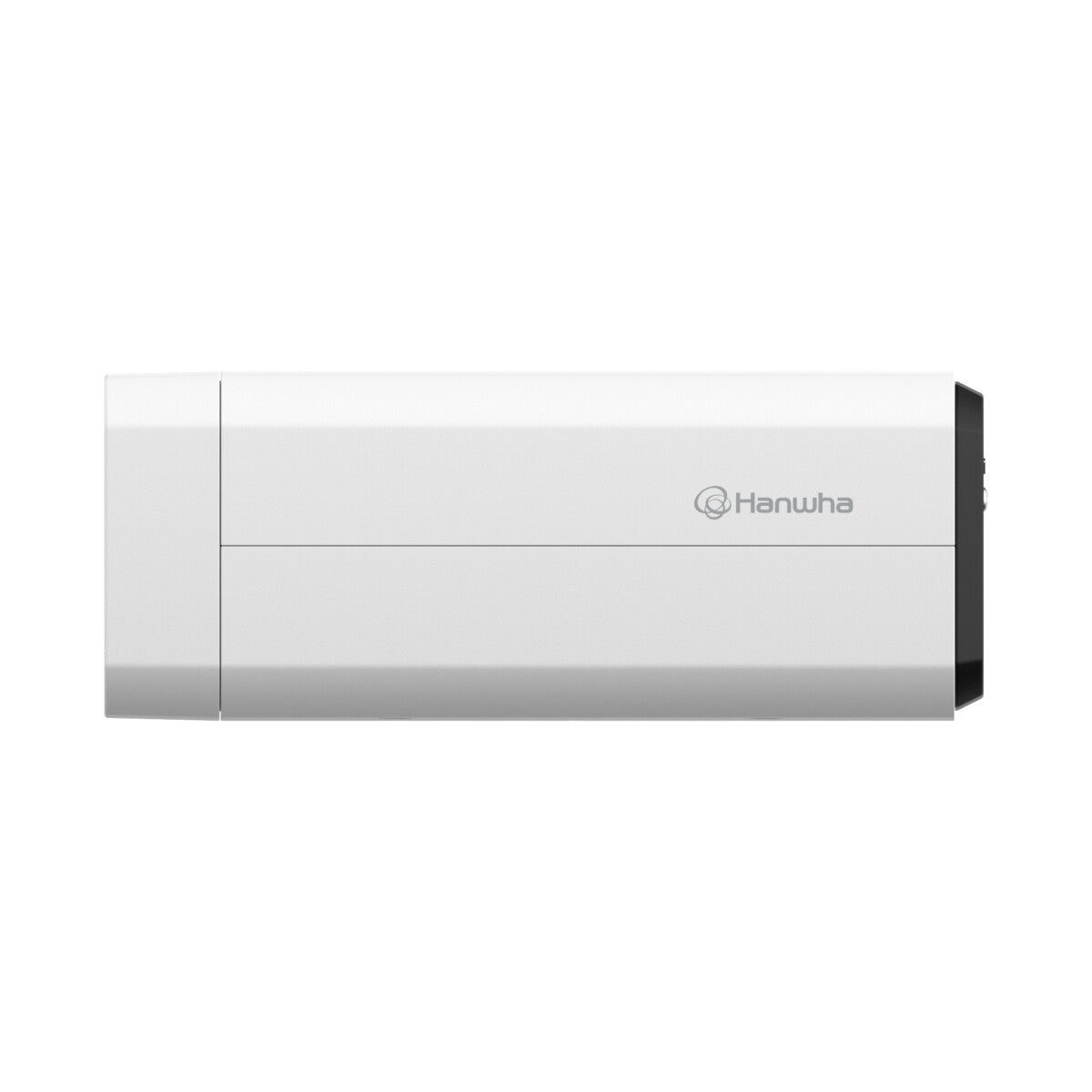

Hanwha TNM-C3622TDR security camera Box IP security camera Indoor 1920 x 1080 pixels Ceiling/wall
Couldn't load pickup availability
- Bi-spectrum monitoring with 2MP visible & QVGA thermal
- AI based Object classification with visible channel only (person)
- Remote Temperature Monitoring within -20 ~ 130°C range
- 6 of quadrangle ROI areas for temperature monitoring
- Compact and Light-weight for Indoor purpose
Radiometric Thermal camera
Radiometric thermal cameras provide visual monitoring of an object’s heat signature using various color palettes. They also measure the temperature data. These capabilities allow users to monitor potential problems caused by heat in objects of interest, enabling preventive action before issues escalate. This technology finds application in various vertical sectors, including monitoring electric vehicle (EV) charger stations for overheating issues.
Enhanced monitoring with thermal imaging
AI-based radiometric thermal cameras are ideal for monitoring critical areas. They see through darkness and fog and even detect heat signatures. This lets you monitor both what’s happening on the surface and potential problems like overheating equipment before they become serious issues. AI function is available on the visible channel only.
The best choice for indoor use
This compact AI radiometric thermal cameras are ideal for discreet and space-saving security monitoring indoors. These cameras offer easy installation with ceiling and wall mount options.
| Performance | |
|---|---|
| Languages support | Simplified Chinese, Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Turkish |
| Thermal sensitivity (NETD) | 50 mK |
| Number of languages | 16 |
| Alarm input/output | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Thermal module | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Type | IP security camera |
| Design | |
|---|---|
| Housing material | Aluminium |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Form factor | Box |
| Camera | |
|---|---|
| Camera shutter speed | 2~1/12000 s |
| Camera shutter type | Electronic |
| Camera pixel size | 12 µm |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Horizontal field of view (optical module) | 87.6° |
| Vertical field of view (optical module) | 46.4° |
| Vertical field of view (thermal module) | 36.4° |
| Horizontal field of view (thermal module) | 50° |
| Minimum illumination | 0.05 lx |
| Image sensor | |
|---|---|
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Fixed focal length (thermal module) | 4.7 mm |
| Fixed focal length | 4 mm |
| Aperture number (thermal module) | 1 |
| Maximum aperture number | 1.6 |
| Number of lenses | 1 |
| Video | |
|---|---|
| Flip & mirror | Yes |
| Back Light Compensation (BLC) | Yes |
| Privacy masking | Yes |
| Image stabilizer | Yes |
| Gain control type | Manual |
| Frame rate | 8 fps |
| Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Video compression formats | H.264, H.265, M-JPEG |
| Total megapixels | 2 MP |
| Maximum resolution | 1920 x 1080 pixels |
| Audio | |
|---|---|
| Audio detection | Yes |
| Audio formats supported | AAC-LC, G.711, G.726 |
| Network | |
|---|---|
| Streaming method | Multicast, Unicast |
| Number of users | 20 user(s) |
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), MQTT |
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| Ethernet interface type | Fast Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| RAM capacity | 4608 MB |
| Flash memory | 512 MB |
| Maximum memory card size | 256 GB |
| Compatible memory cards | MicroSD (TransFlash), SDHC, SDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |

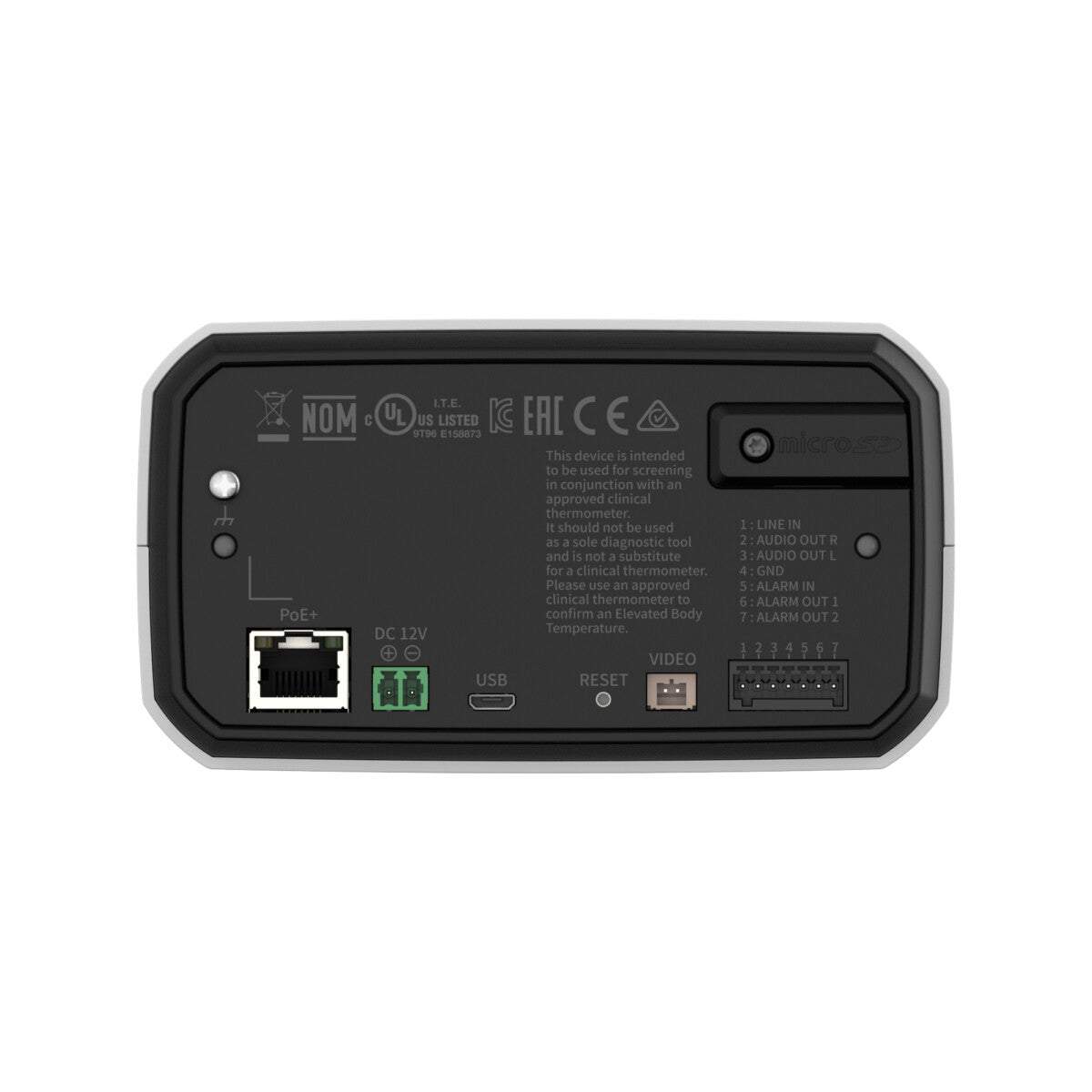

| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| Audit log | Yes |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Digest authentication | Yes |
| Temperature sensor | Yes |
| Alarm output channels | 2 |
| Alarm input channels | 1 |
| Power | |
|---|---|
| DC output voltage | 12 |
| Power consumption (Power over Ethernet (PoE)) | 17 W |
| Power consumption (max) | 14.5 W |
| Power consumption (typical) | 11 W |
| Power source type | DC, PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating temperature (T-T) | -10 - 55 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.7 kg |
| Height | 75 mm |
| Depth | 188.5 mm |
| Width | 135 mm |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
