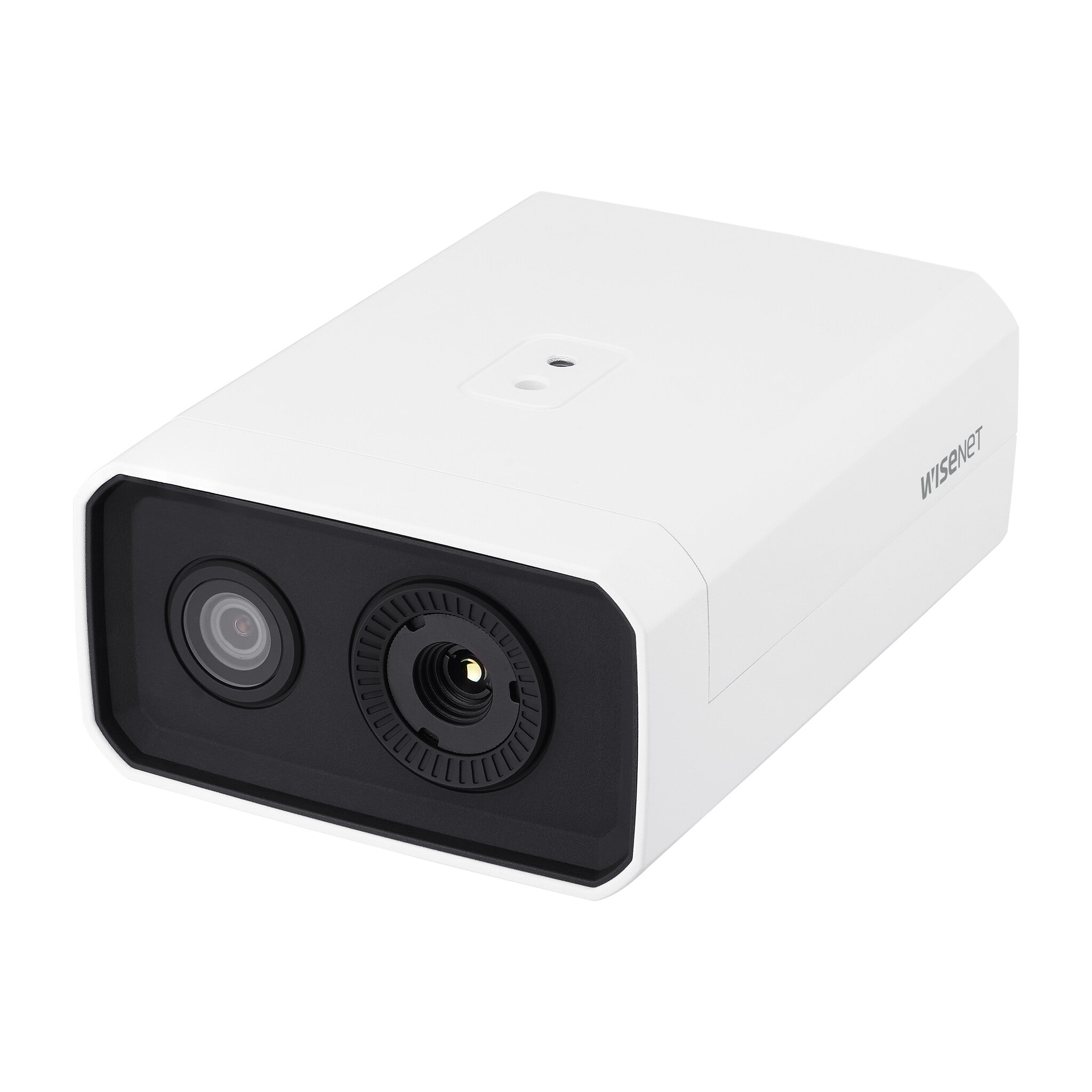

Detect people and objects 24/7 with thermal cameras
In challenging weather(fog, smoke, rain) or lighting conditions(complete darkness, backlight), it can be difficult to distinguish people or objects in a complex background by a visible camera or a human eye. For accurate monitoring purposes, a professional surveillance system is required. Wisenet thermal cameras are the excellent choice : they provide high contrast images based on temperature differences between the object and background, so that users can detect incidents more easily. The advanced thermal imaging technology provides high contrast to make the unseen details visible without additional lighting.
Long detection range up to 3,157m
The main task of the thermal camera is to detect events that occur at long distances. Wisenet thermal cameras are equipped with a 35/19/13mm lens(Horizontal FoV 17˚/32˚/49˚) to detect vehicles up to 3,157m away. The camera provides an image with high color contrast according to the temperature, so it can easily distinguish objects and background from a long distance. At closer range it can recognize the type of object or identify the characteristic by capturing details.
Secure a wide variety of applications
Wisenet thermal cameras can be a powerful tool when monitoring applications where there is very little light, due to their ability to create images based on heat. Thermal cameras are especially applicable in manufacturing and industrial facilities, air and seaports, and mining areas.
Enhanced video & audio analytics
Wisenet T thermal cameras offers reliable video and audio analytics for efficient monitoring. The featured analytics improves the overall security system’s efficiency by automatically notifying users when abnormal behavior is detected.
Improve bandwidth by up to 99% using WiseStream II
When Hanwha Techwin’s original video compression technology WiseStream II is combined with H.265 compression, the bitrate data data is reduced by up to 99% compared to current H.264 technology. The costs of configuring and maintaining the system are also greatly reduced, while still maintaining the same pixels and high quality.
Handover to PTZ
The handover feature allows a PTZ camera* to receive an alarm from a thermal camera operating on the same IP video surveillance system. Once the notification is received, the PTZ camera will zoom into the assigned camera pre-set location. With this feature, PTZ cameras support the thermal camera by providing high resolution images whenever a specific detail is required.
* XNP-6370RH/6320H/6320, PNP-9200RH
Positioning Camera
Broad thermal monitoring with positioning
The TNU-4051T / 4041T combines a thermal imaging camera and a positioning unit capable of monitoring a broad range, with its 360˚ endless pan and -90˚ to +40˚ tilt. In addition, the camera’s flexibility is increased by 300 preset positions, allowing users to save the settings for pan / tilt functions and automatically view the location desired.
Radiometric Camera
Temperature measurement to monitor incidents
The Wisenet thermal radiometric camera has added a feature to detect the temperature range of -20˚C to +130˚C. Alarms are generated and sent to users in case the temperature of three areas in the monitoring screen is above or below a defined value or the temperature increases or decreases beyond the preset range. In addition, the screen displays average/minimum/maximum temperature of the three areas for more thorough temperature measurement.
Selected temperature range displayed in vivid colors
Using hybrid color palette, the selected range of temperature can be displayed in vivid colors, helping users observe monitoring areas with greater ease. The temperature out of the defined range is expressed in white hot color of black and white, ensuring the camera covers the entire monitoring areas with thermal detection.
