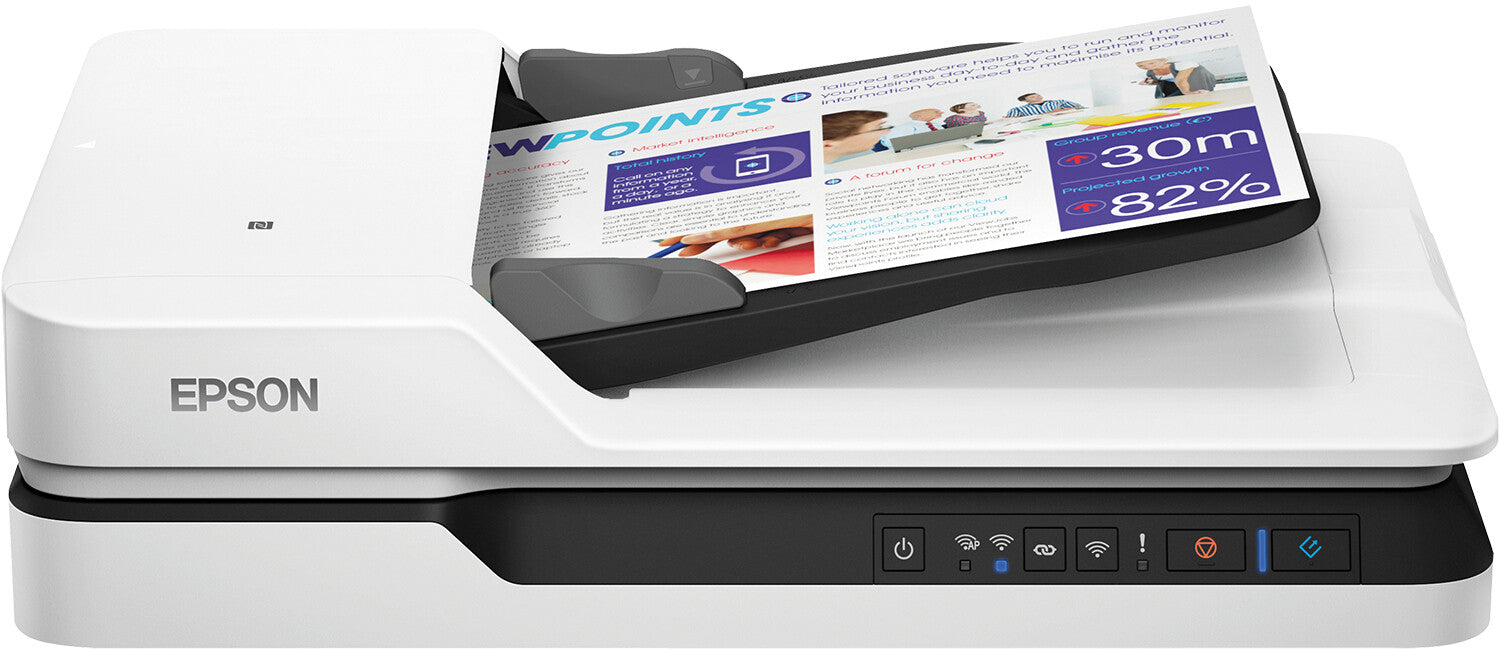

Epson WorkForce DS-1660W Flatbed scanner 1200 x 1200 DPI A4 Black, White
Couldn't load pickup availability
- Scanner type: Flatbed scanner 1200 x 1200 DPI
- Colour scanning Duplex scanning
- A4
- Maximum scan size: 210 x 3048 mm Sensor type: CIS
- USB port Wi-Fi Ethernet LAN
- Power supply type: AC
- Scanning noise level: 55 dB
Intelligent features
Smart colour and image adjustments, including auto crop, skew correction, blank page and background removal, with Epson's Image Processing Technology. With long document mode it's possible scan over three metres (3048mm) of paper single sided.
Flexible placement

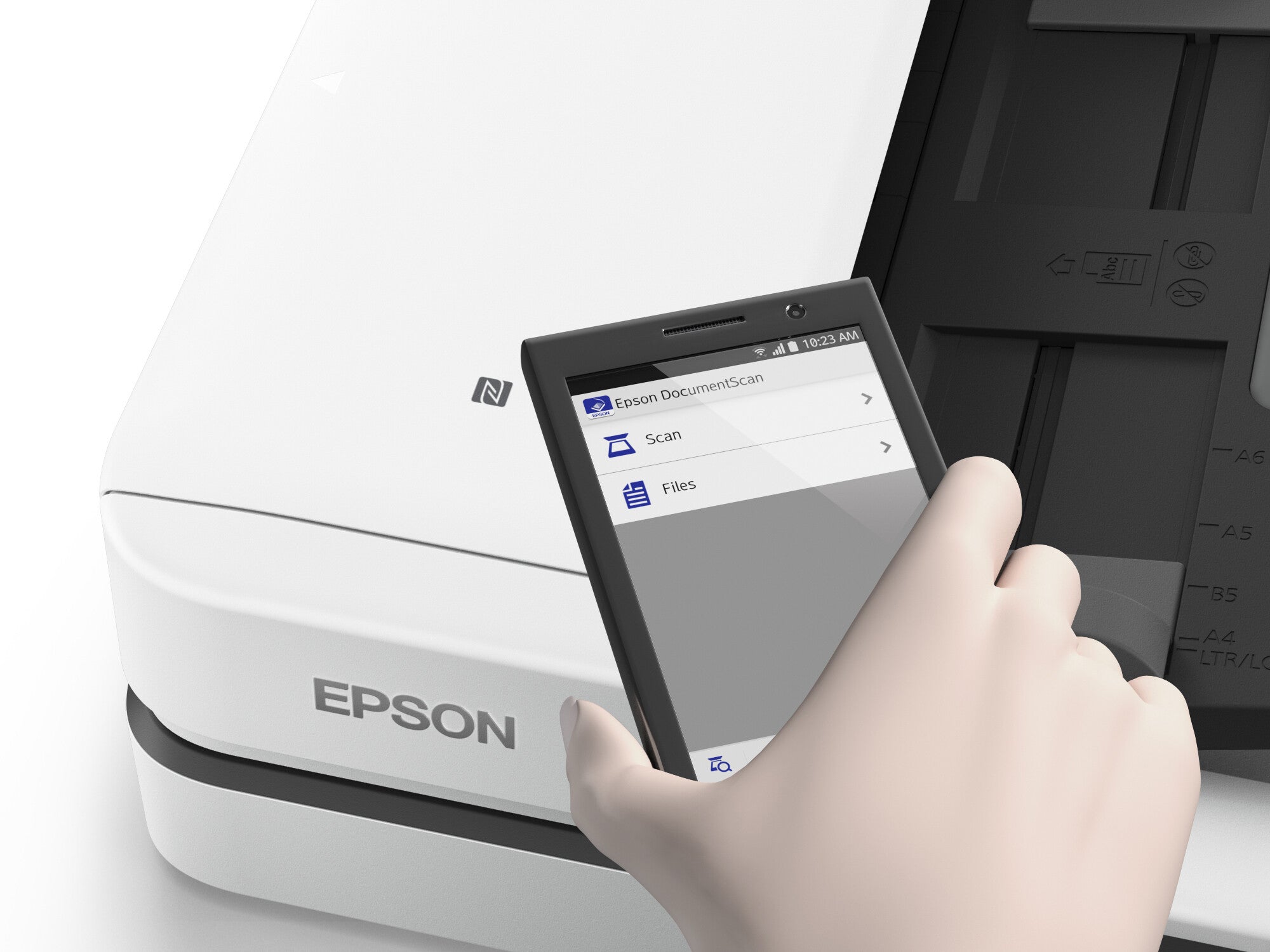

The Wi-Fi and Wi-Fi Direct connectivity on the DS-1660W provide extra convenience to organisations wanting to deploy a dedicated scanning solution that can be accessed easily by many people. With NFC enabled, use the Epson Scan App to take control with your mobile device - then edit and improve digital images before saving and sharing.
Boost your office efficiency
One of the fastest scanners in its class with a 25ppm scan speed. USB 3.0 connectivity means there is no slow down, even when scanning at 300dpi high resolution. Scan both sides of a page with double-sided scanning capability for greater convenience. Create up to 30 jobs with the optional network panel and scan directly to server locations, cloud services and Microsoft SharePoint. Included Epson software enables dual image output; scan once and send to two different destinations. The DS-1660W also encourages easy, one-touch scanning to folders, email, online storage accounts2 and more.
| Scanning | |
|---|---|
| ADF scan speed (colour, A4) | 25 ppm |
| ADF scan speed (b/w, A4) | 25 ppm |
| Output greyscale depth | 8 bit |
| Output colour depth | 24 bit |
| Input greyscale depth | 10 bit |
| Input colour depth | 30 bit |
| Duplex scanning | Yes |
| Colour scanning | Yes |
| Optical scanning resolution | 1200 x 1200 DPI |
| Enhanced scan resolution | 1200 x 1200 DPI |
| Maximum scan size | 210 x 3048 mm |
| Design | |
|---|---|
| Product colour | Black, White |
| Built-in display | No |
| Scanner type | Flatbed scanner |
| Performance | |
|---|---|
| Password protection | Yes |
| Scan drivers | TWAIN |
| Daily duty cycle (max) | 1500 pages |
| Scan file formats | JPG, PDF, TIFF |
| Light source | ReadyScan LED |
| Sensor type | CIS |
| Input capacity | |
|---|---|
| Auto document feeder (ADF) input capacity | 50 sheets |
| Paper handling | |
|---|---|
| Maximum scan area (ADF) | 210 x 3048 mm |
| Minimum scan area (ADF) | 89 x 127 mm |
| Auto Document Feeder (ADF) media weight | 50 - 120 g/m² |
| Legal | Yes |
| Letter | Yes |
| ISO B-series sizes (B0...B9) | B5 |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| Maximum ISO A-series paper size | A4 |
| Ports & interfaces | |
|---|---|
| Optional connectivity | Ethernet |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB port | Yes |
| Network | |
|---|---|
| Supported network protocols | TCP/IP, DHCP, DNS, SNMP, SLP |
| IPv6 support | Yes |
| Ethernet LAN | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Power | |
|---|---|
| Power supply type | AC |
| Weight & dimensions | |
|---|---|
| Weight | 3.9 kg |
| Height | 120 mm |
| Depth | 315 mm |
| Width | 451 mm |
| Packaging data | |
|---|---|
| Package weight | 4.84 kg |
| Package height | 405 mm |
| Package depth | 520 mm |
| Package width | 195 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Cables included | USB |
| General | |
|---|---|
| Product family | WorkForce |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 8.1, Windows 8.1 x64, Windows Vista, Windows Vista x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 20 - 80% |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84716070 |
