D-Link 10/100BaseTX to 100BaseFX (SC) Single-mode Media Converter (15km)
£33.99
Couldn't load pickup availability
- Wired
- 100 Mbit/s 15000 m
- Ethernet LAN (RJ-45) ports: 1
- Single-mode Fiber ports quantity: 2 FX, SC
- Black

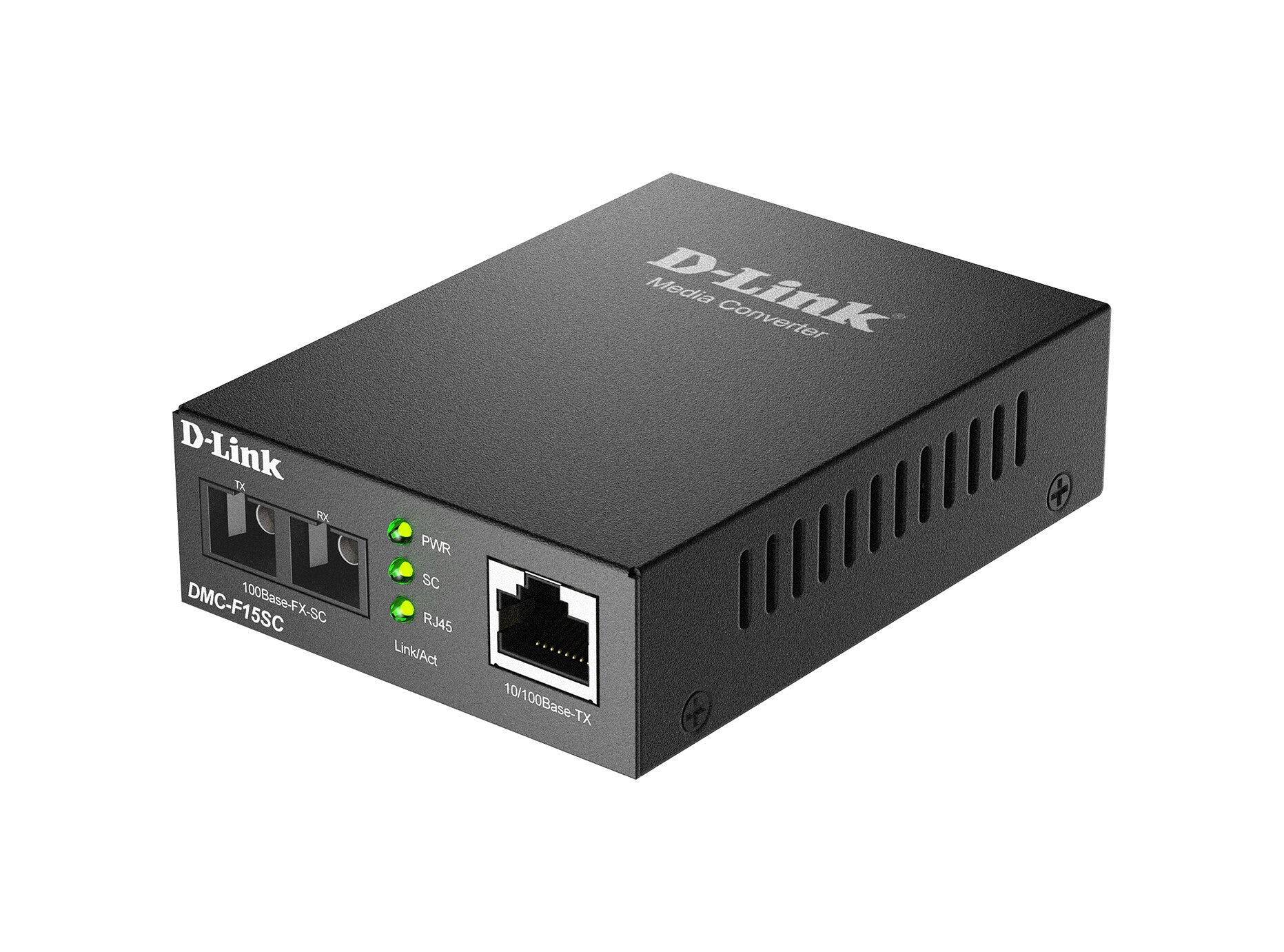

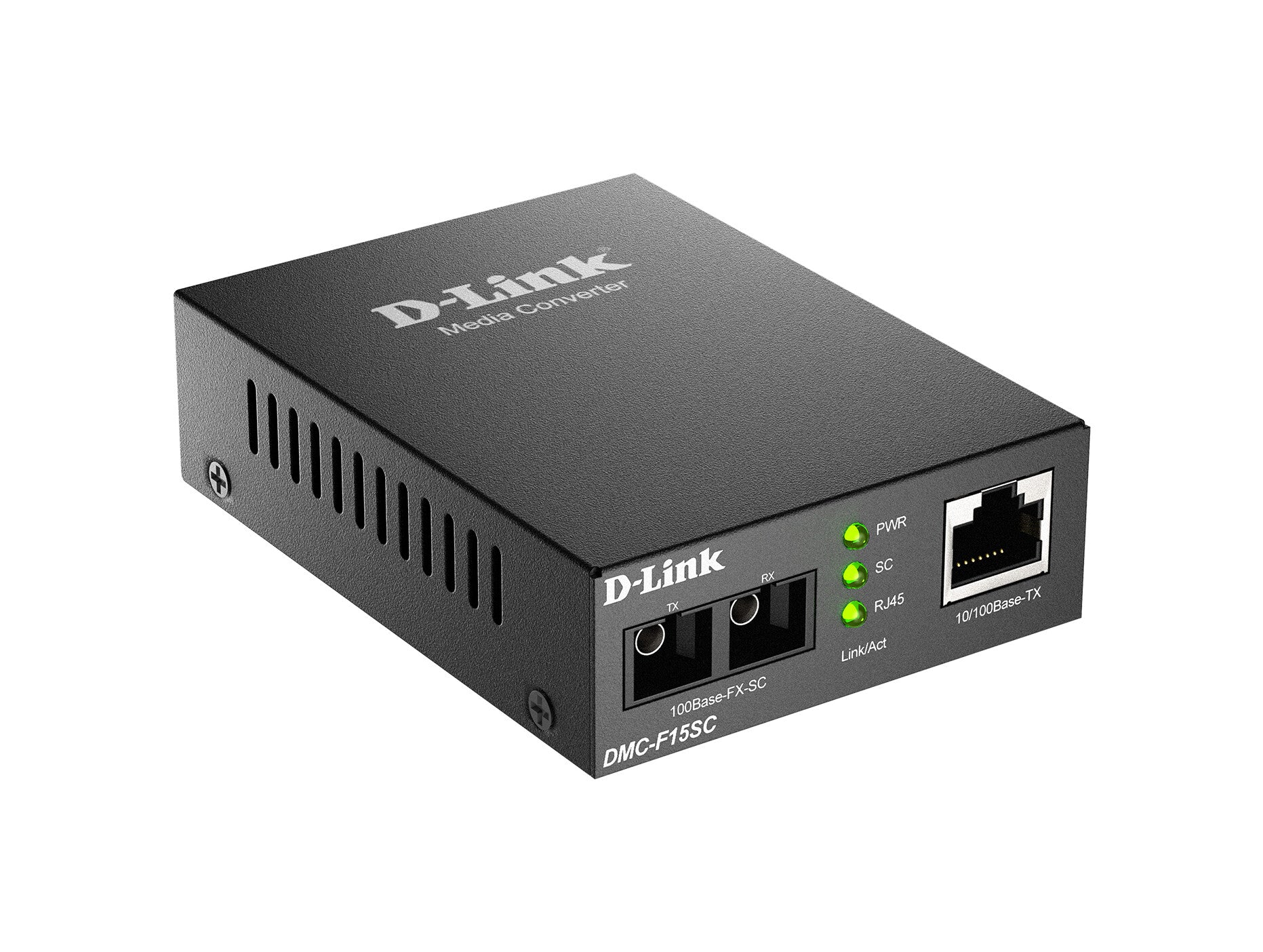

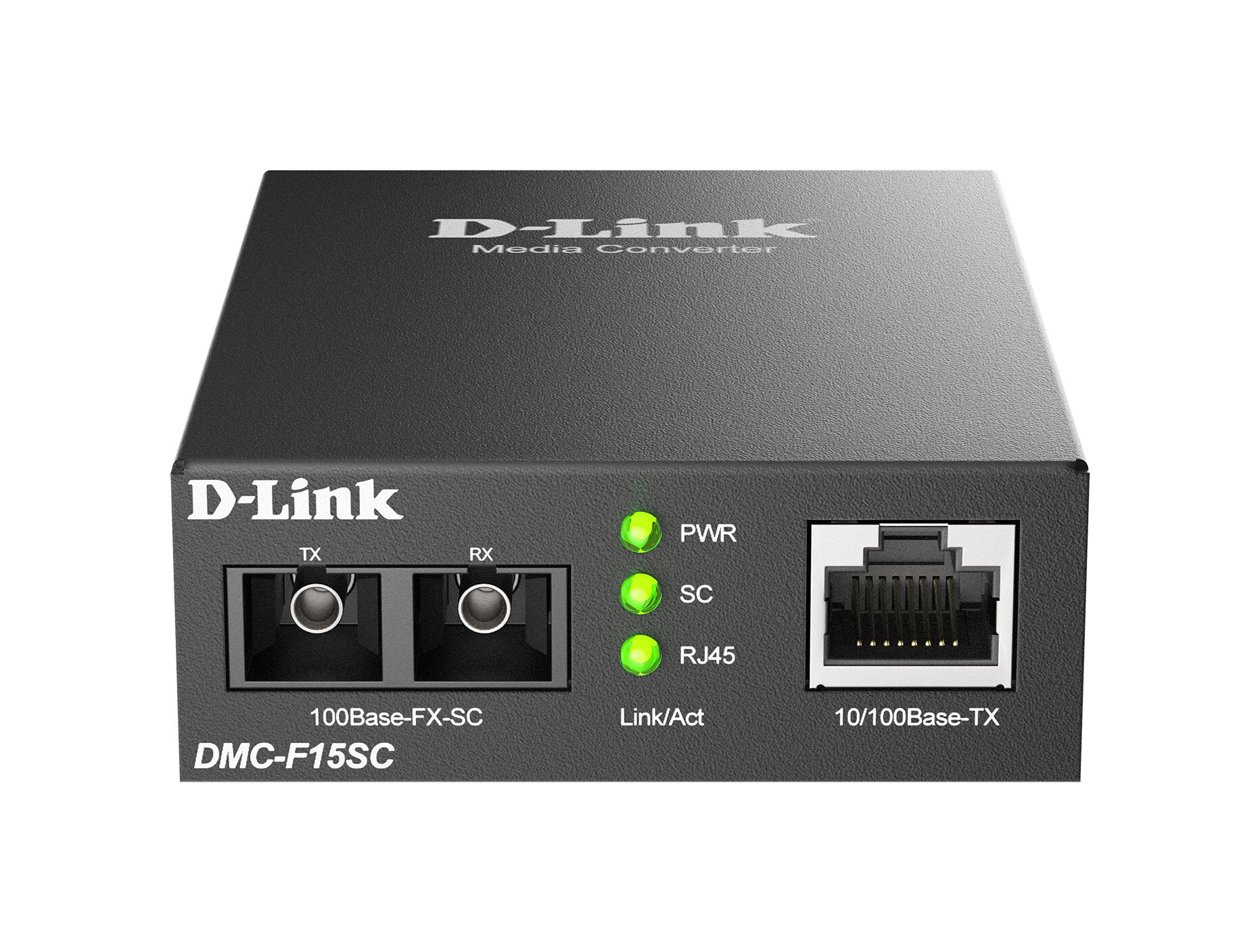

The DMC-F15SC is a standalone media converter designed to convert a twisted-pair 10/100Base- TX Fast Ethernet connection to a single-mode fibre 100Base-FX Fast Ethernet connection to extend a connection distance (up to 15 km) between two devices. This media converter is equipped with one RJ-45 for twisted-pair and one fibre optic SC port.
| Network | |
|---|---|
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Converter output interface | 100Base-FX |
| Converter input interface | 100Base-TX |
| Maximum data transfer rate | 100 Mbit/s |
| Performance | |
|---|---|
| Fiber mode structure | Single-mode |
| Maximum transfer distance | 15000 m |
| Features | |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
|---|---|
| Fiber optic connector | FX, SC |
| Fiber ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Power | |
|---|---|
| Power consumption (max) | 1.5 W |
| Input current | 0.55 A |

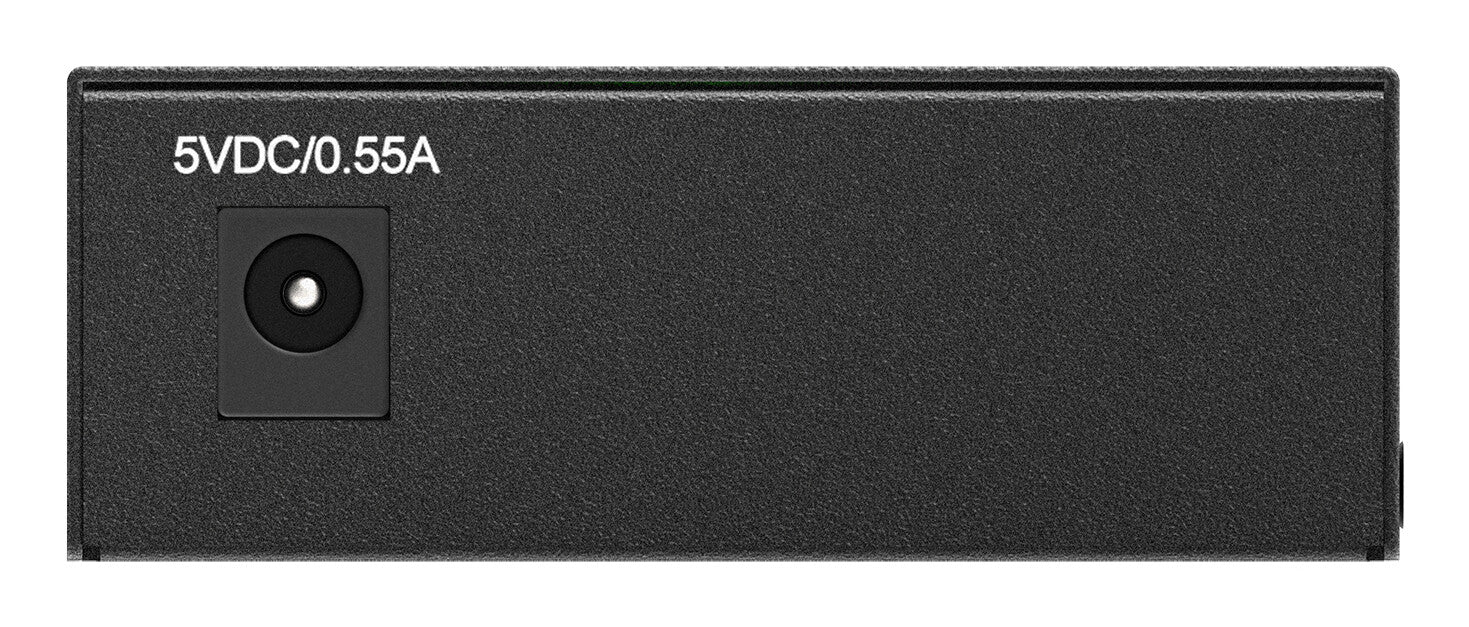

| Input voltage | 5 V |
| Weight & dimensions | |
|---|---|
| Weight | 134 g |
| Height | 26 mm |
| Depth | 70.5 mm |
| Width | 93.5 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Certificates | |
|---|---|
| Certification | LVDCE Class B |
