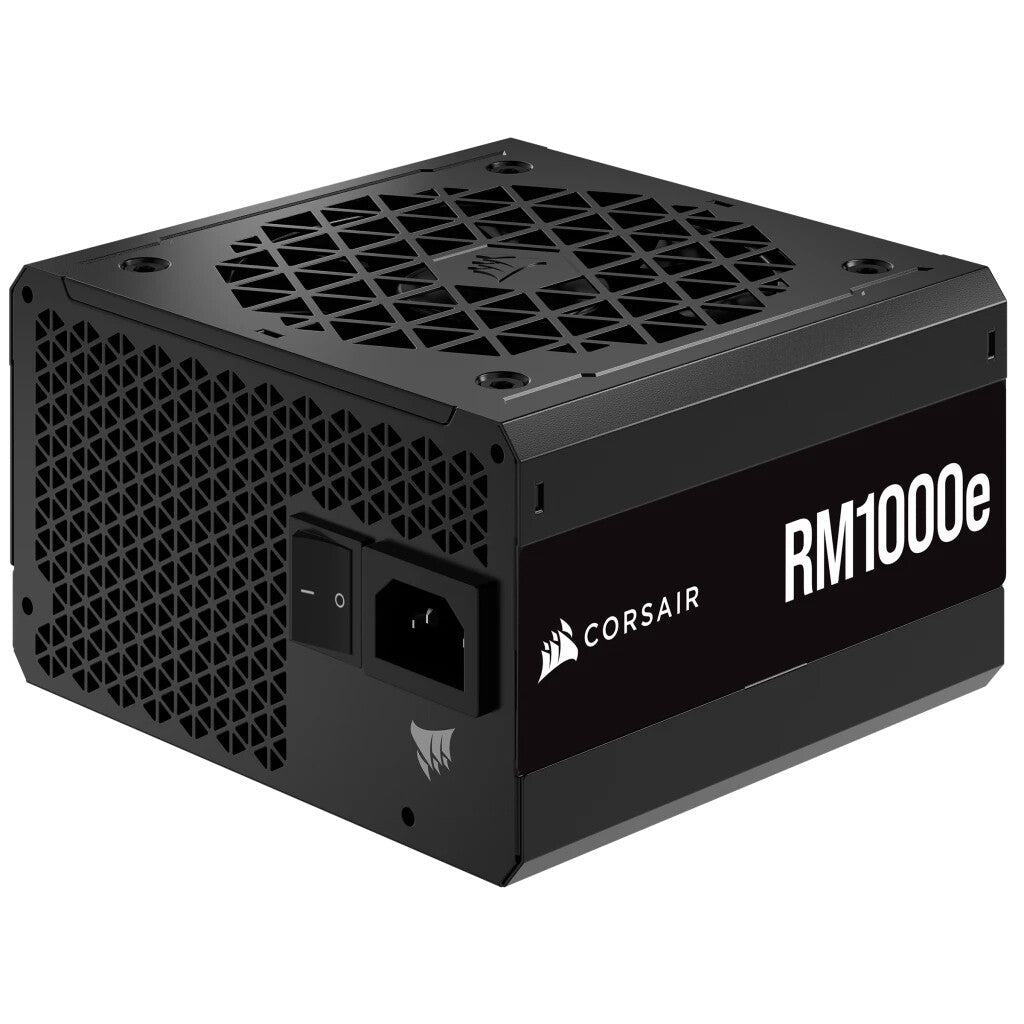

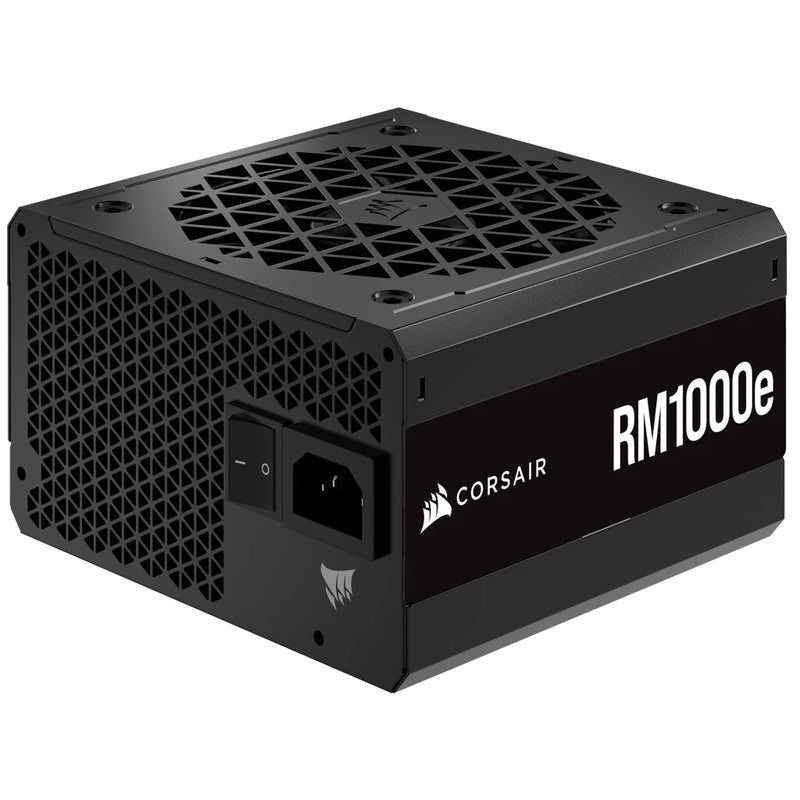

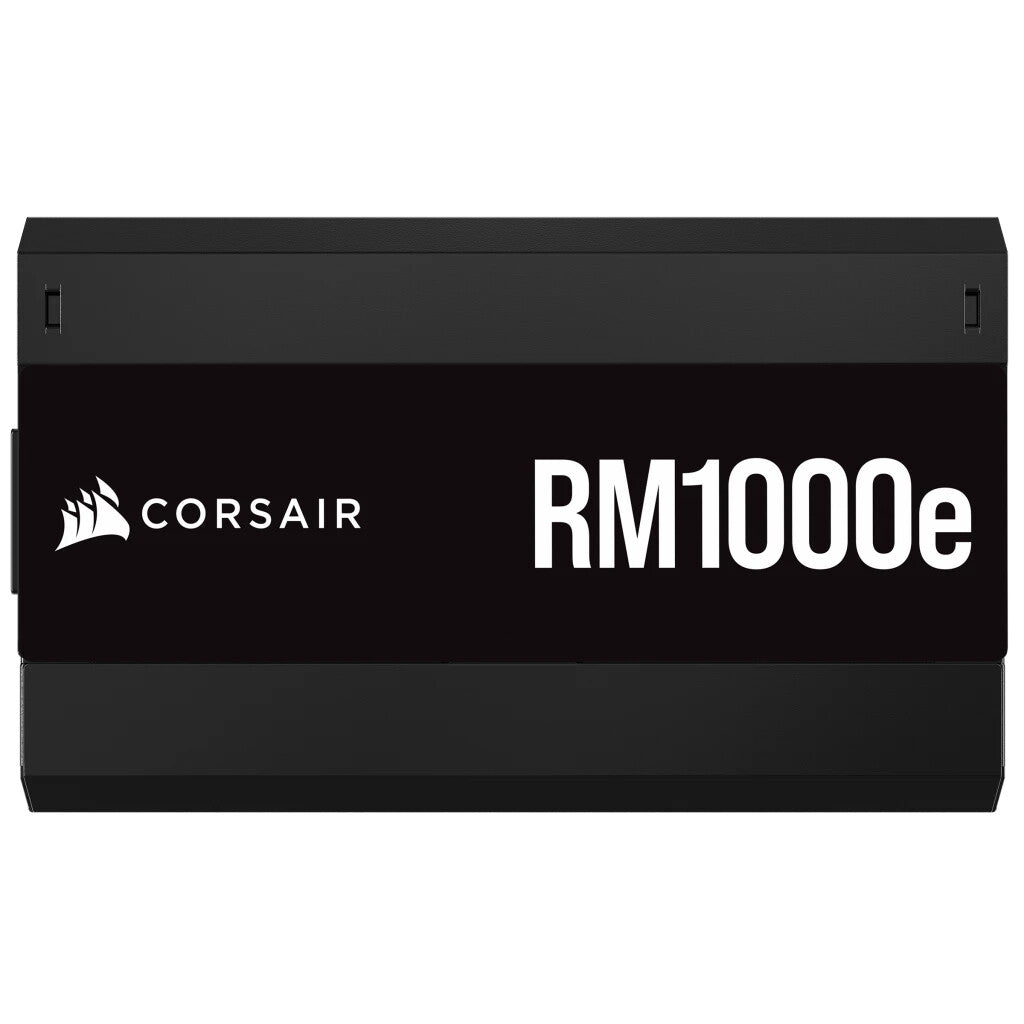

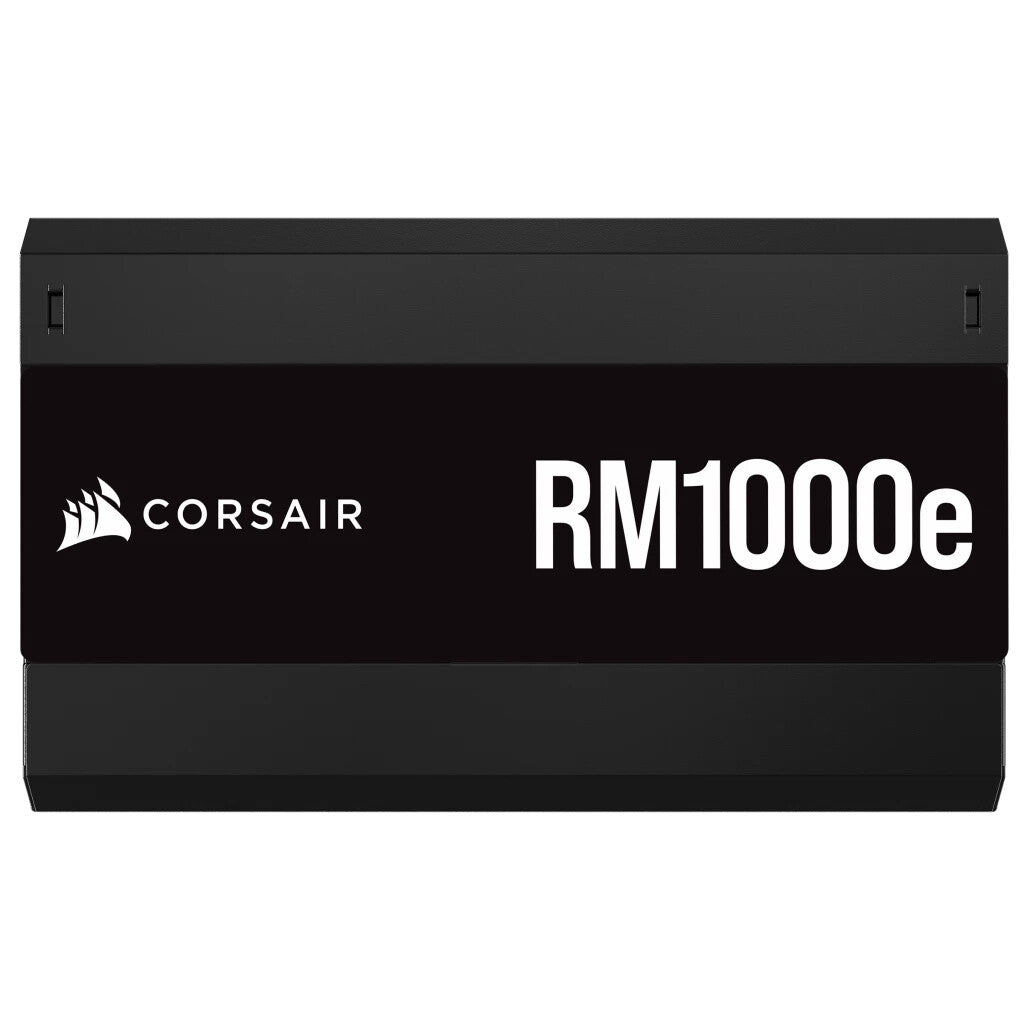

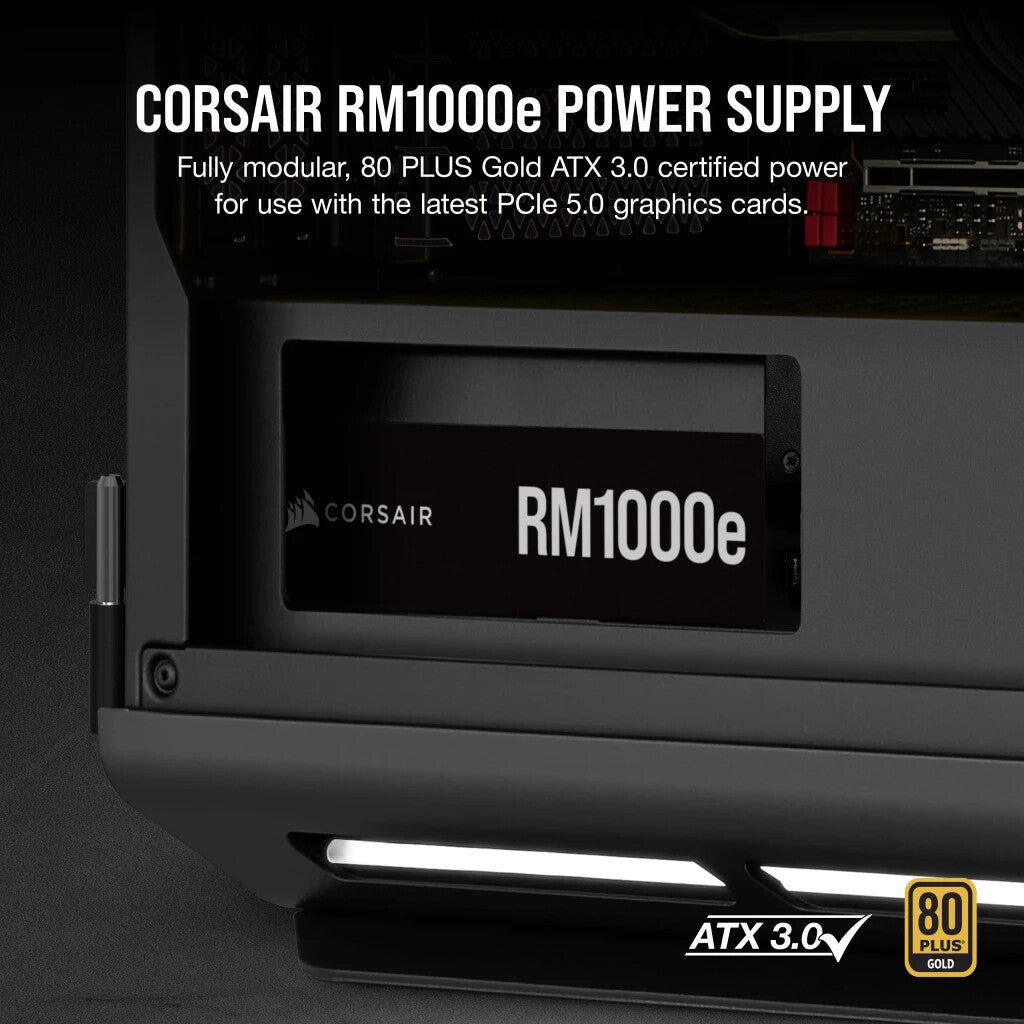

Corsair RM1000e power supply unit 1000 W 24-pin ATX ATX Black
Couldn't load pickup availability
- 1000 W 100 - 240 V 47 - 63 Hz
- Motherboard power connector: 24-pin ATX
- PC ATX 80 PLUS Gold
- Active
- Black

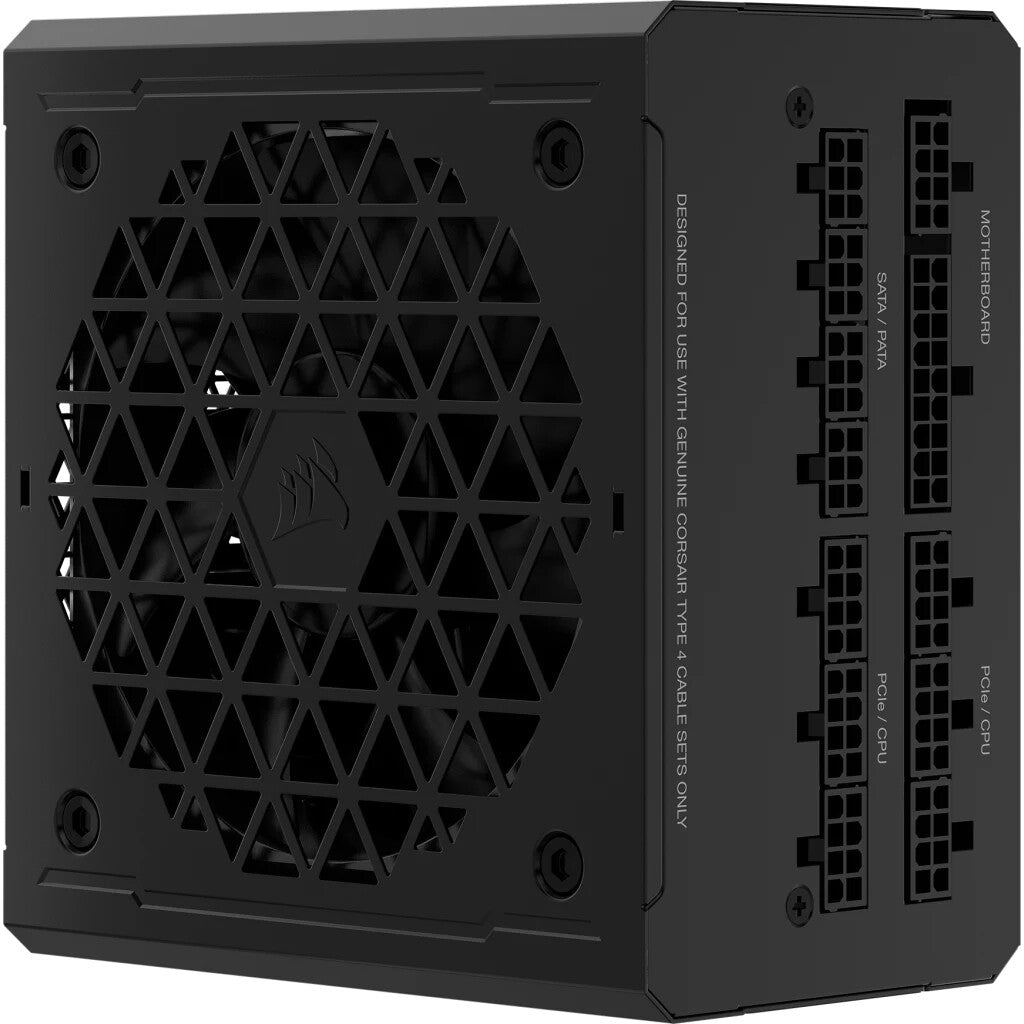

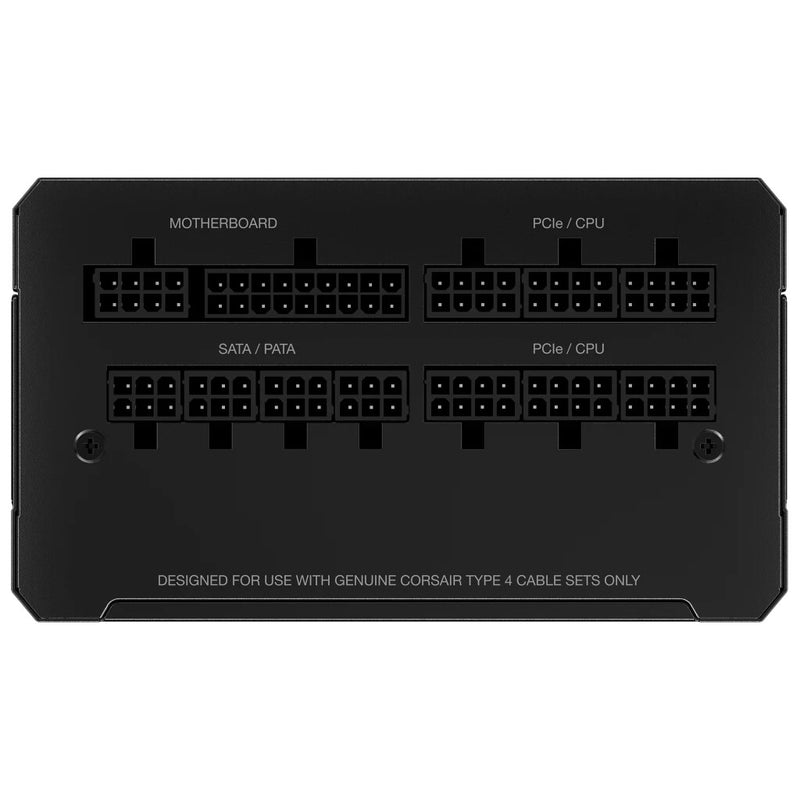

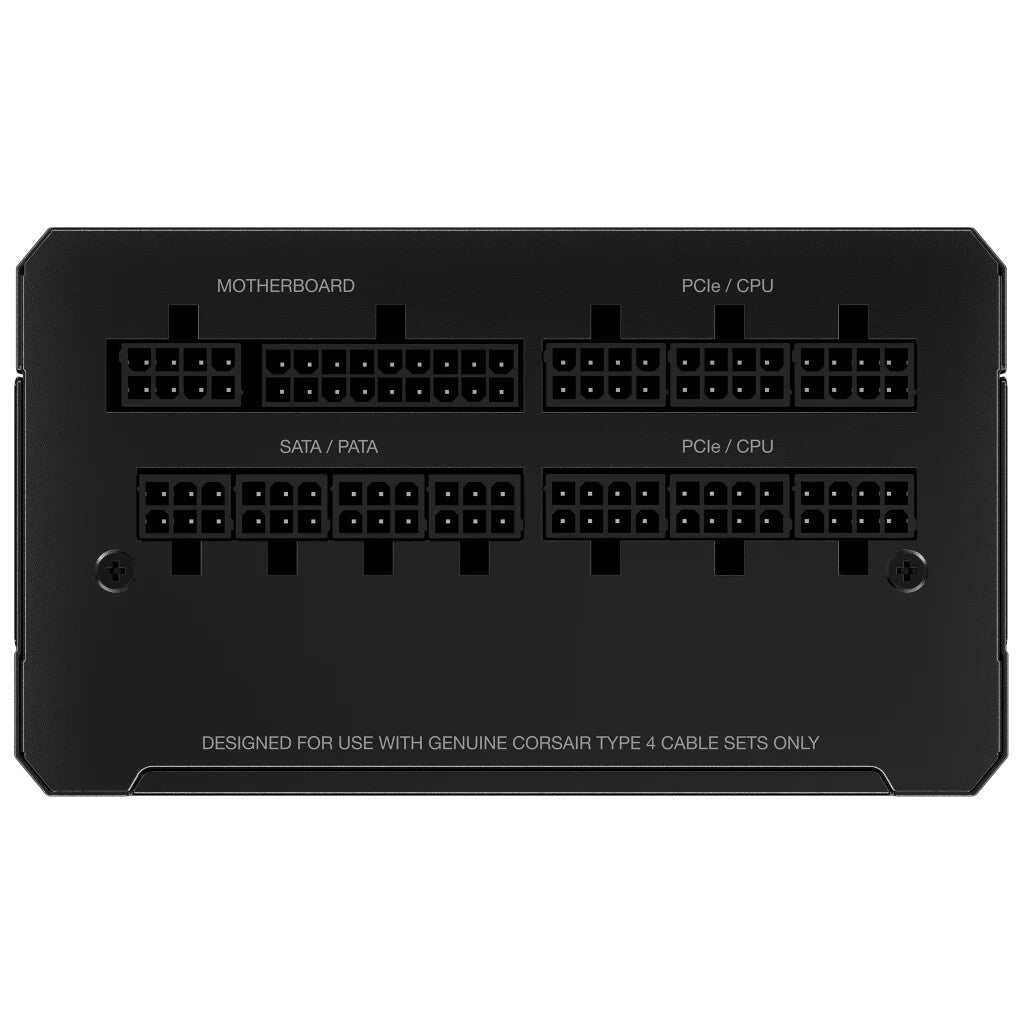

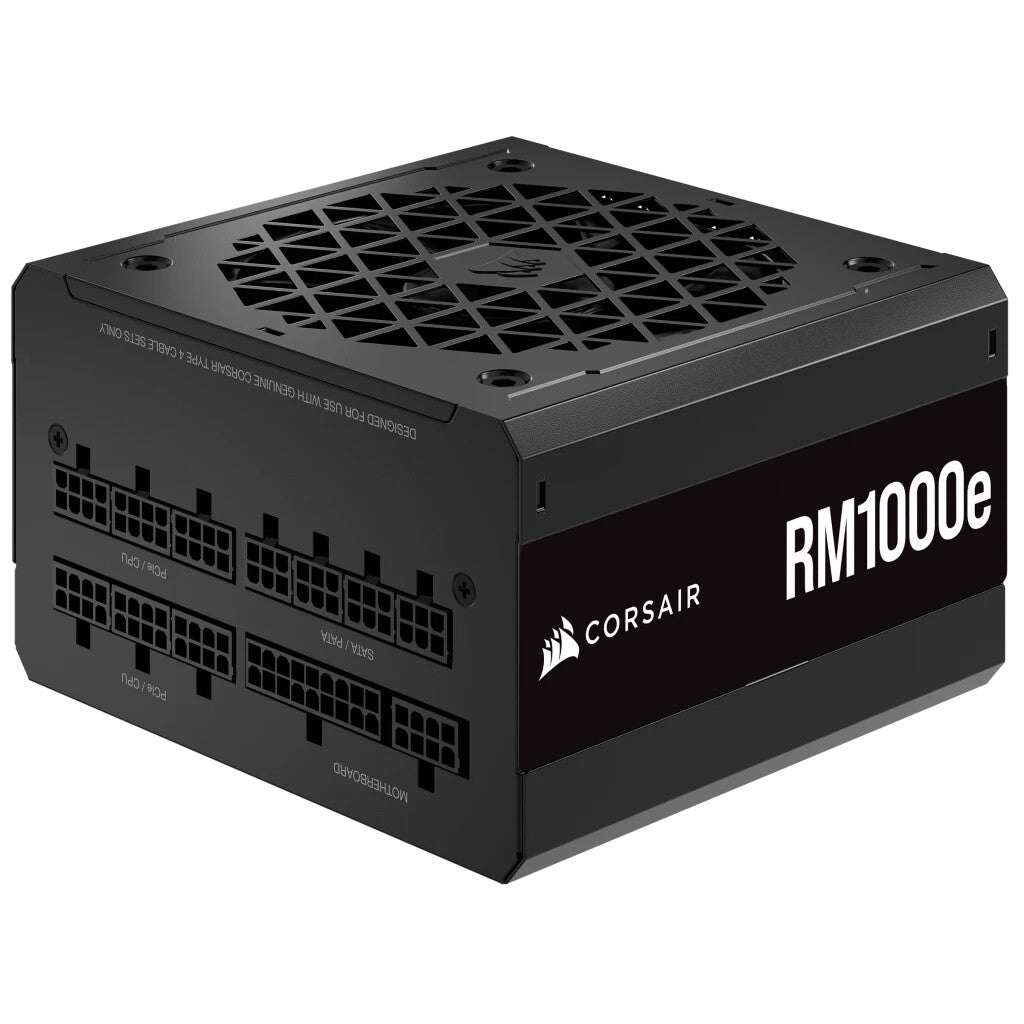

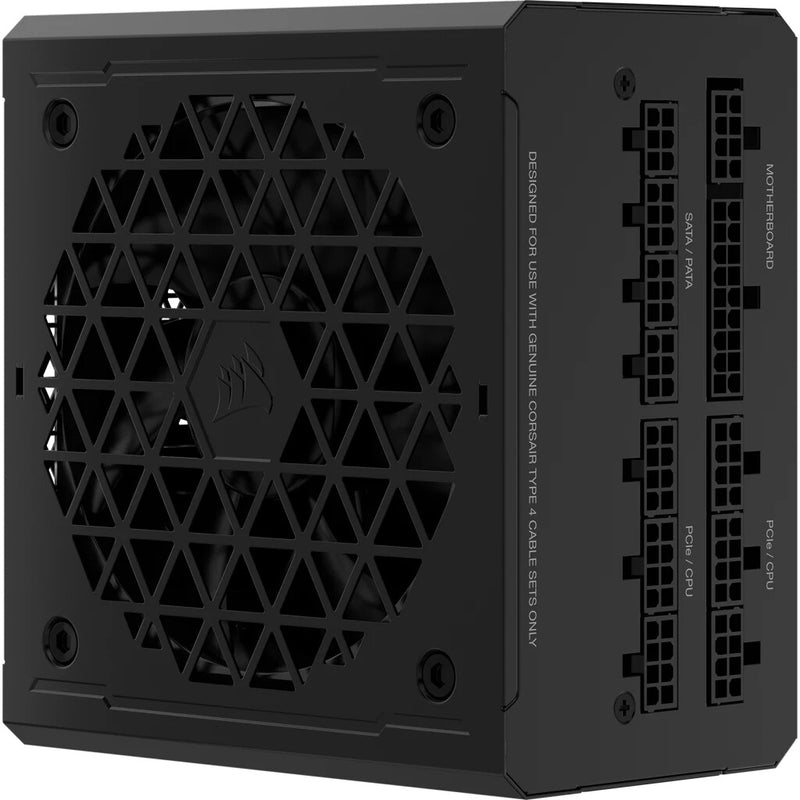

FULLY MODULAR CABLING
Keep cable clutter down by connecting only the cables your system needs and nothing else. Five universal 8-pin connectors can be used with any 8-pin cable, satisfying all the power needs of modern motherboards and GPUs.
ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMe Series PSUs are formally certified for ATX 3.0 compliance.

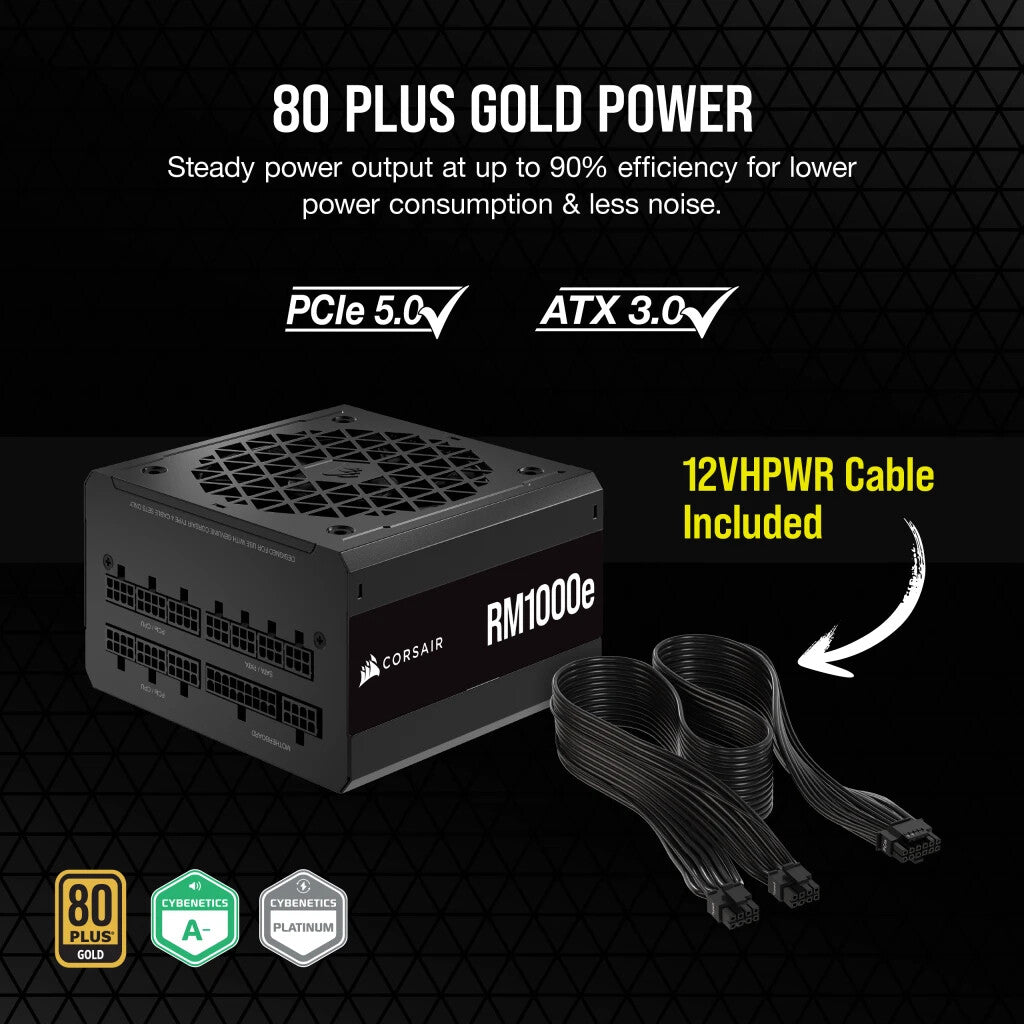

PCIe 5.0 12VHPWR GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
LOW NOISE OPERATION IN A COMPACT SIZE
Shorter than the traditional power supply, the RMe offers more cable space behind your PSU.

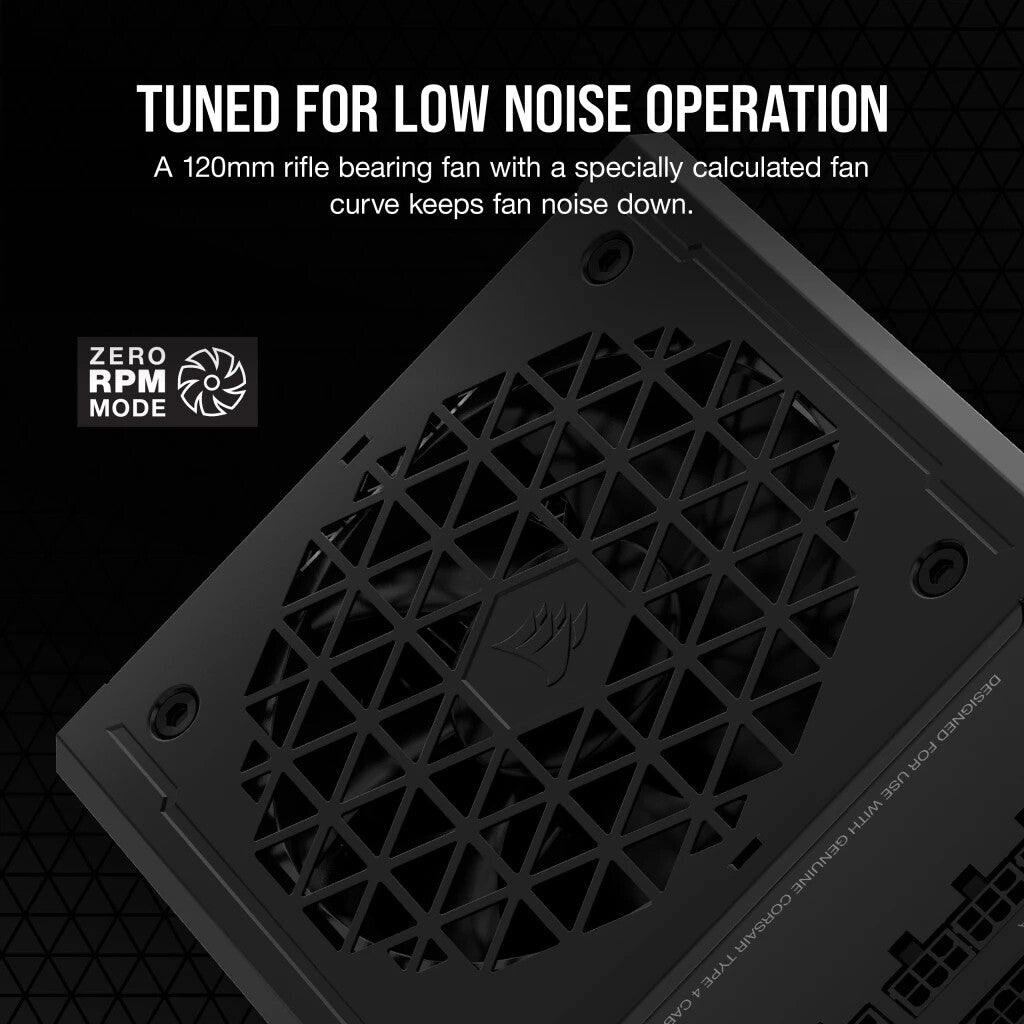

Includes Zero RPM Fan Mode for near-silent operation at lower loads.
TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RMe Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.
With precise timings, RMe supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.
| Power | |
|---|---|
| Efficiency | 90% |
| Max output current (+5Vsb) | 3 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (+5V) | 150 W |
| Combined power (+12V) | 1000 W |
| Combined power (+3.3V) | 150 W |
| Input current | 12 - 6 A |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 1000 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| ATX Power connector (24-pin) | Yes |
| PCI Express power cable length | 75 cm |
| PCI Express power connectors (6+2 pin) | 6 |
| EPS power connector (4+4 pin) | Yes |
| SATA power cable length | 800 mm |
| Number of PATA power connectors | 4 |
| Number of SATA power connectors | 7 |
| Motherboard power cable length | 61 cm |
| Motherboard power connector | 24-pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Silent mode | Yes |
| ATX version | 3.0 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Built-in display | No |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Product colour | Black |
| Certificates | |
|---|---|
| Compliance certificates | CE, Low Voltage Directive (LVD), RoHS, UKCA |
| Packaging content | |
|---|---|
| Cables included | AC |
| Weight & dimensions | |
|---|---|
| Weight | 3.05 kg |
| Height | 86 mm |
| Depth | 150 mm |
| Width | 140 mm |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
