£176.42

Stock Available: 0
  • 80 PLUS Gold Efficiency
  • 100% Japanese Capacitor
  • 140mm Silent Fan
  • High Temperature Resilience
  • Fully Modular Cabling

100% ATX 3.0 Compatible
Cooler Master took the initiative and continuously developing our first ATX3.0 Power Supply lineup. Compliant with ATX3.0 standard and 12VHPWR connectors, the MWE Gold 1050/1250 - V2 ATX3.0 can fully support the peak power drawn by the 40 series RTX graphic cards and whole system.

80 PLUS Gold Certified
Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold 1050/1250 - V2 ATX3.0 features 80 PLUS Gold certification, guaranteeing 90% efficiency at typical load.

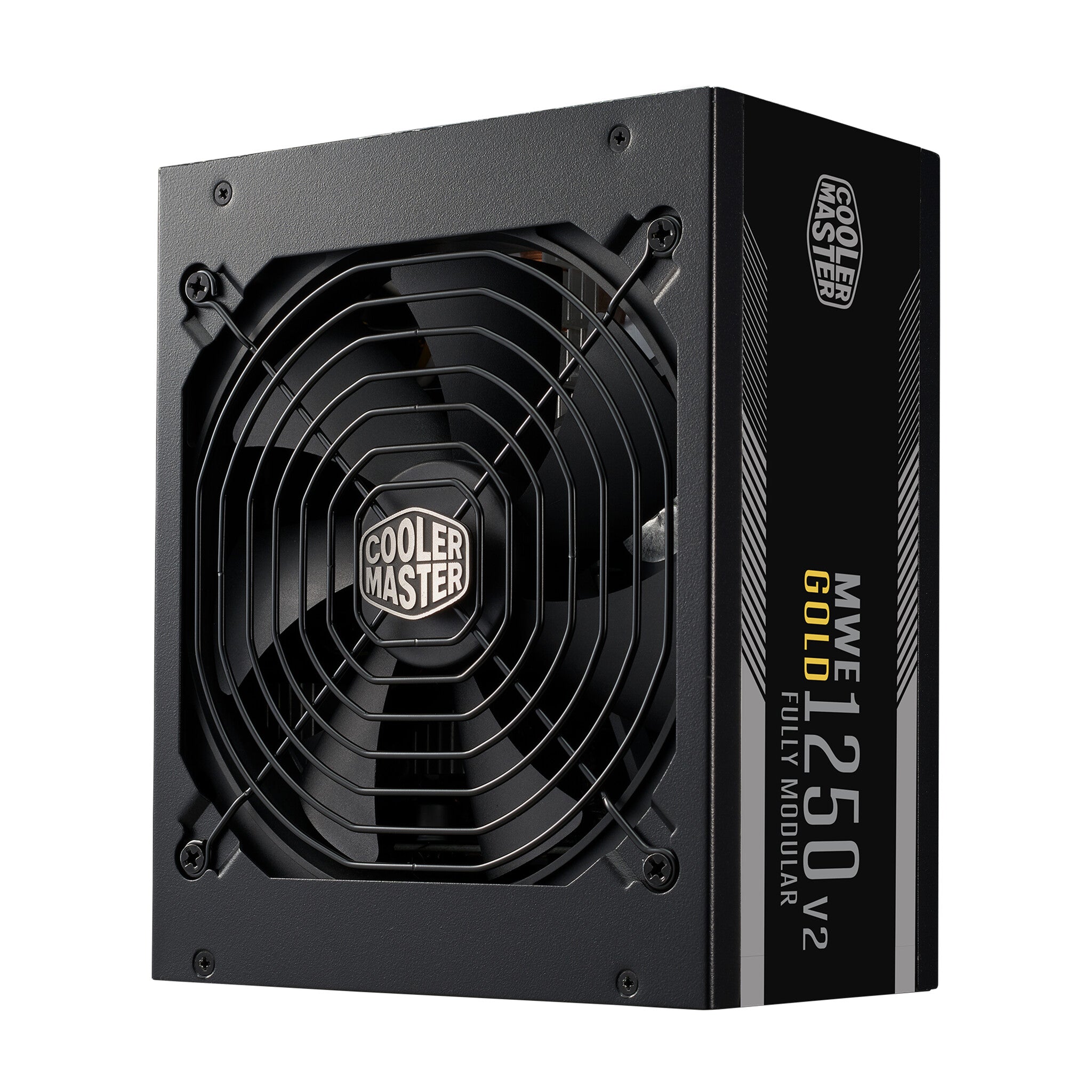

Quiet Cooling

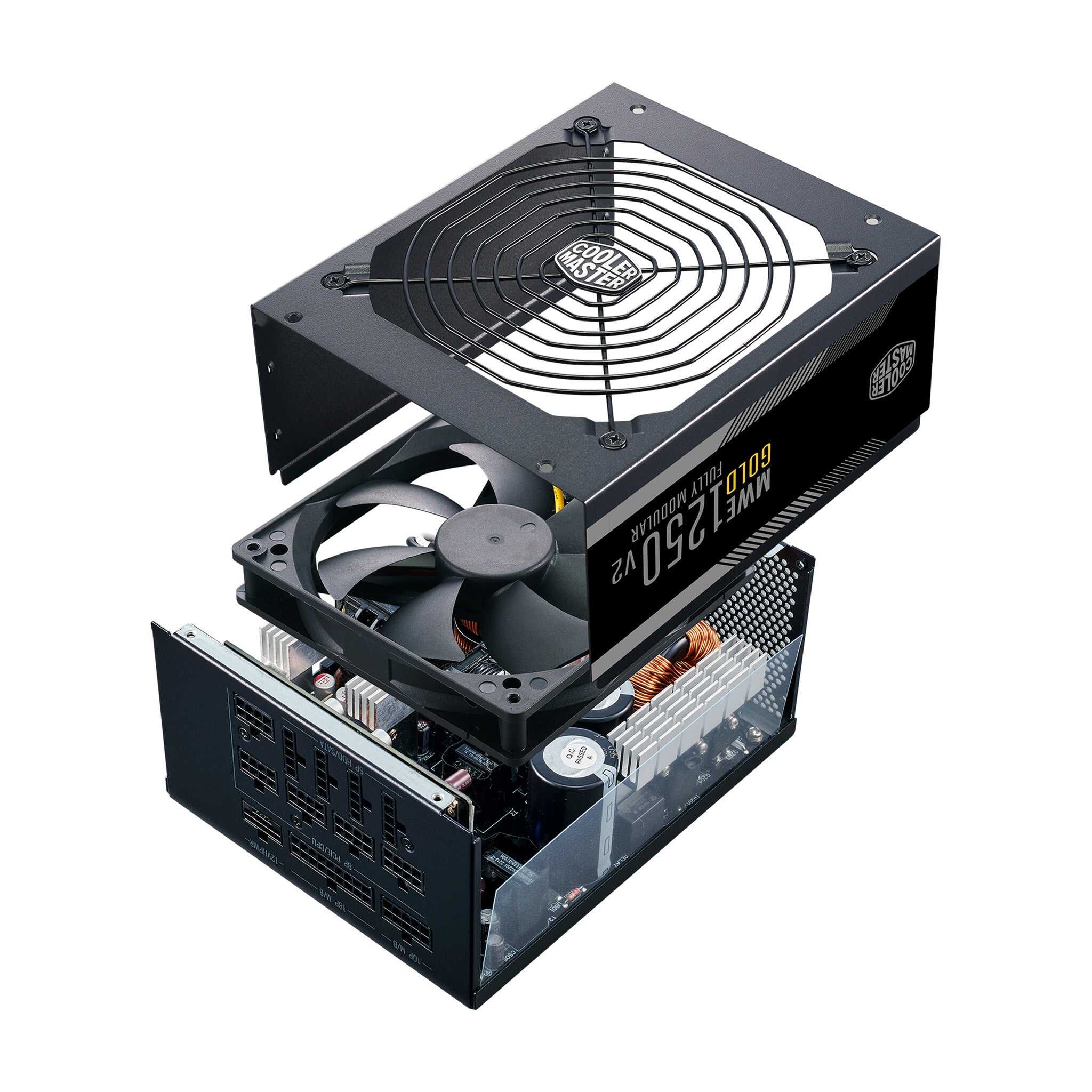

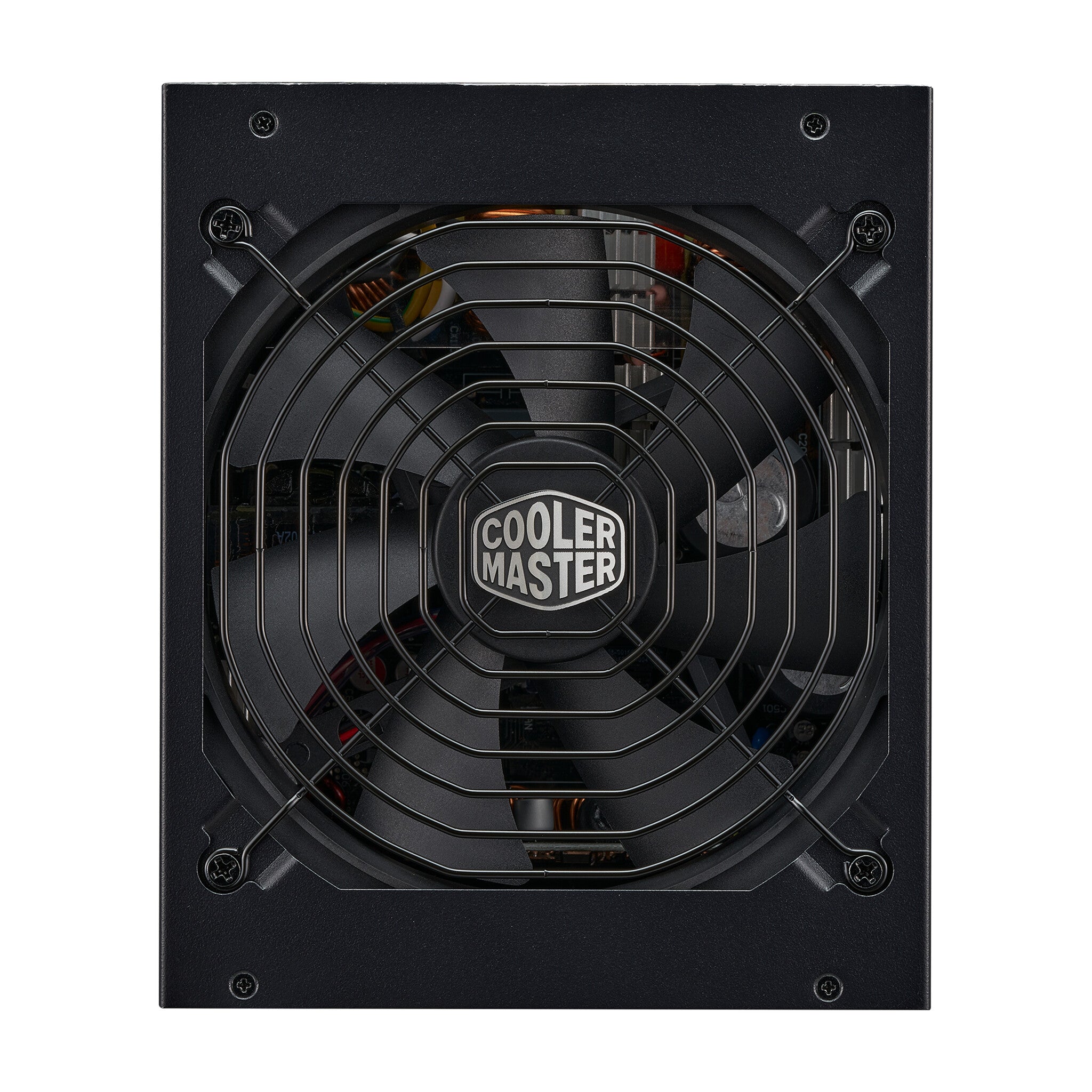

The MWE Gold 1050/1250 - V2 ATX3.0 has been optimized with an 140mm fan along with an advanced fluid-dynamic bearing(FDB) delivers quiet and effective cooling with a long lifespan. With Smart Thermal Control System(STCM), the fan will not spin until at 40% of rated output power to reduce noise.

Industrial-grade Temperature Resilience
The MWE Gold 1050/1250 - V2 ATX3.0 has improved to operate safely at up to 50 degrees Celsius ambient for high-end computer, overclocking and other high intensity applications. Such a high threshold greatly enhances the performance of your PSU and your system.

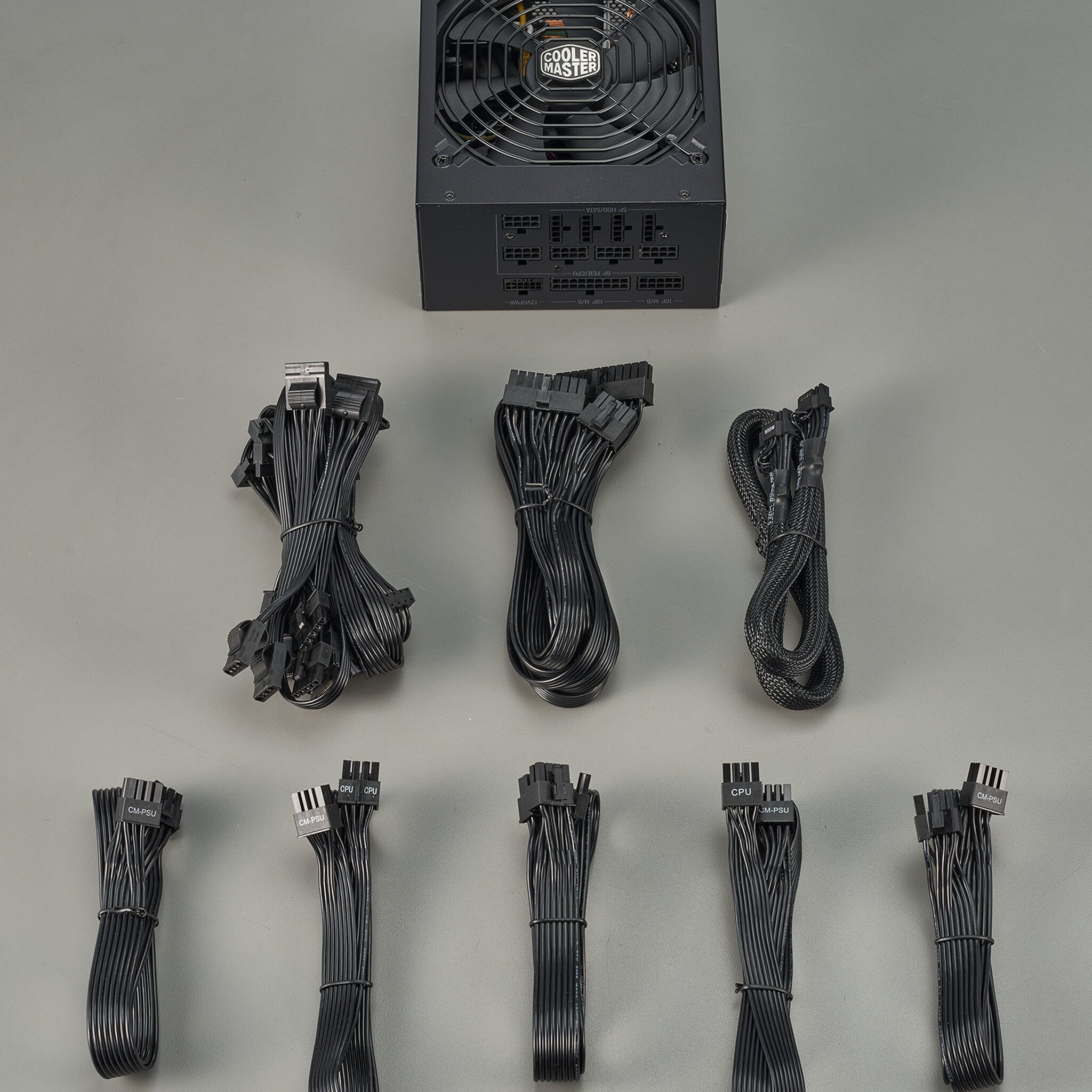

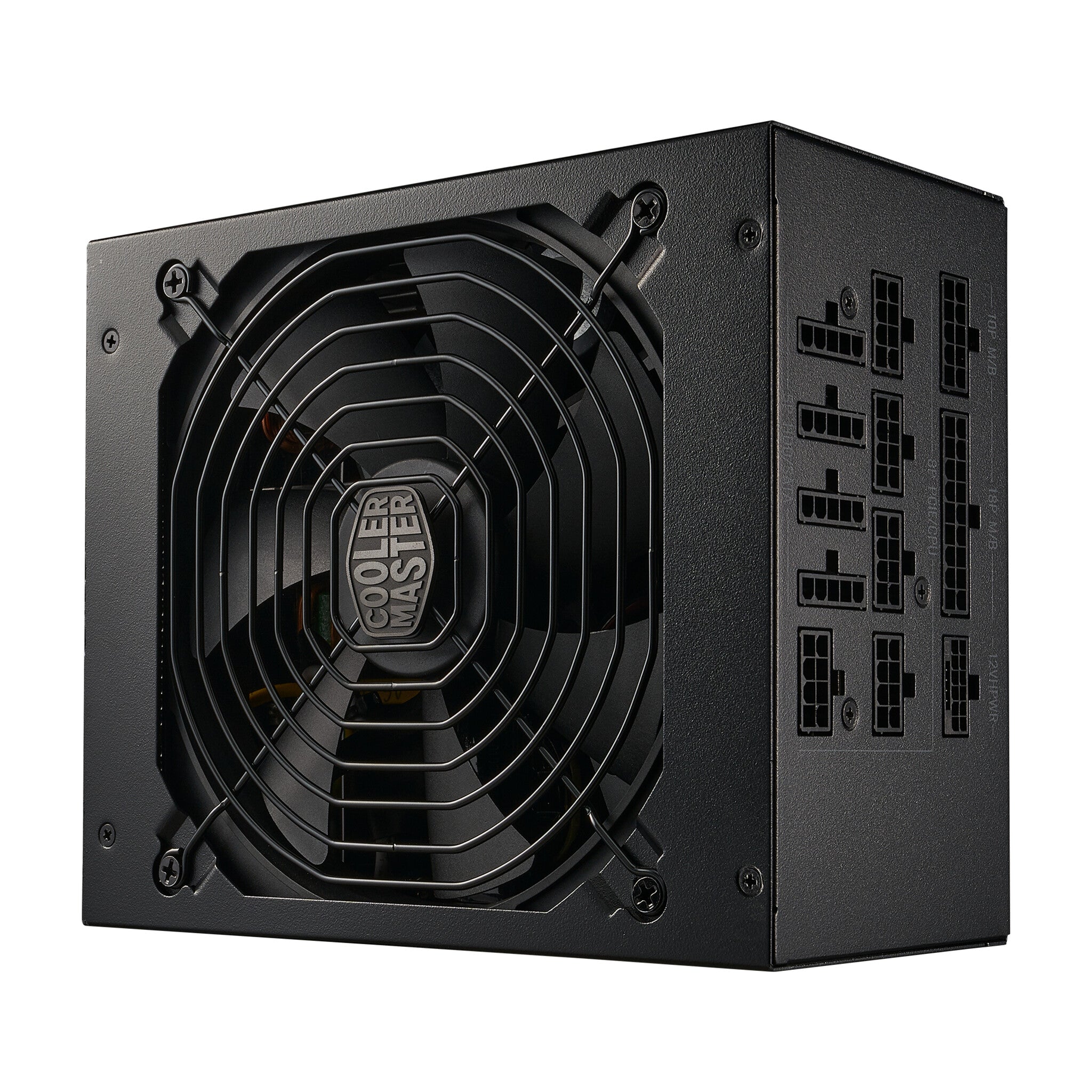

Fully Modular Cabling
The fully modular version of the MWE Gold 1050/1250 - V2 ATX3.0 comes with a set of flat black cables that can be customized to each user's individual needs. It's designed for easy cable management that each system only needs to include the cables required. This unused space within the chassis allows for reduced clutter, better airflow and aesthetic, thereby improving your system's overall cooling.

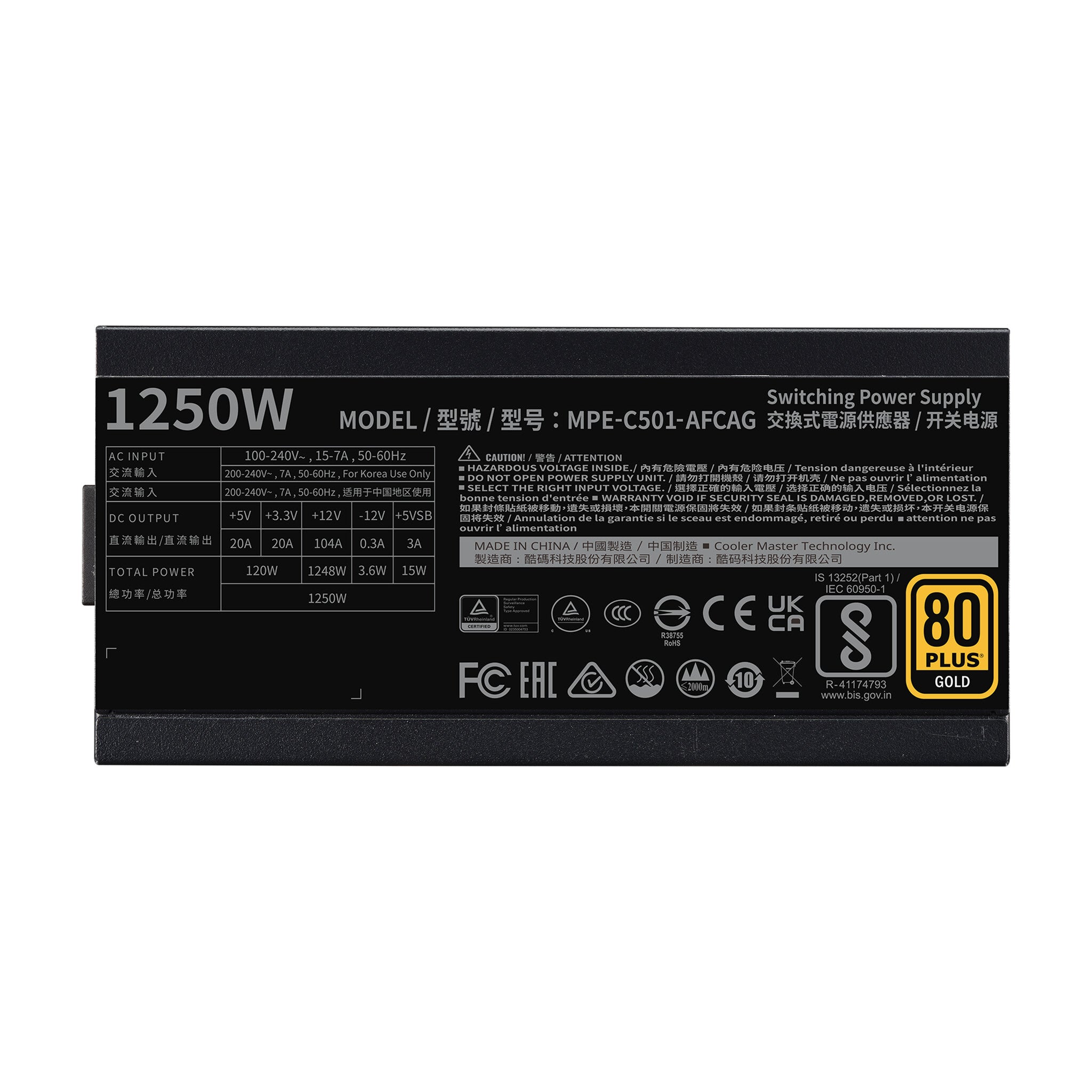

Power
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Hold time 16 ms
Efficiency 90%
Power Good signal delay range 100 - 150 ms
Max output current (+5Vsb) 3 A
Max output current (-12V) 0.3 A
Max output current (+5V) 20 A
Max output current (+12V) 104 A
Max output current (+3.3V) 20 A
Combined power (+5Vsb) 15 W
Combined power (-12V) 3.6 W
Combined power (+5V) 120 W
Combined power (+12V) 1248 W
Combined power (+3.3V) 120 W
Input current 7 - 15 A
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Total power 1250 W

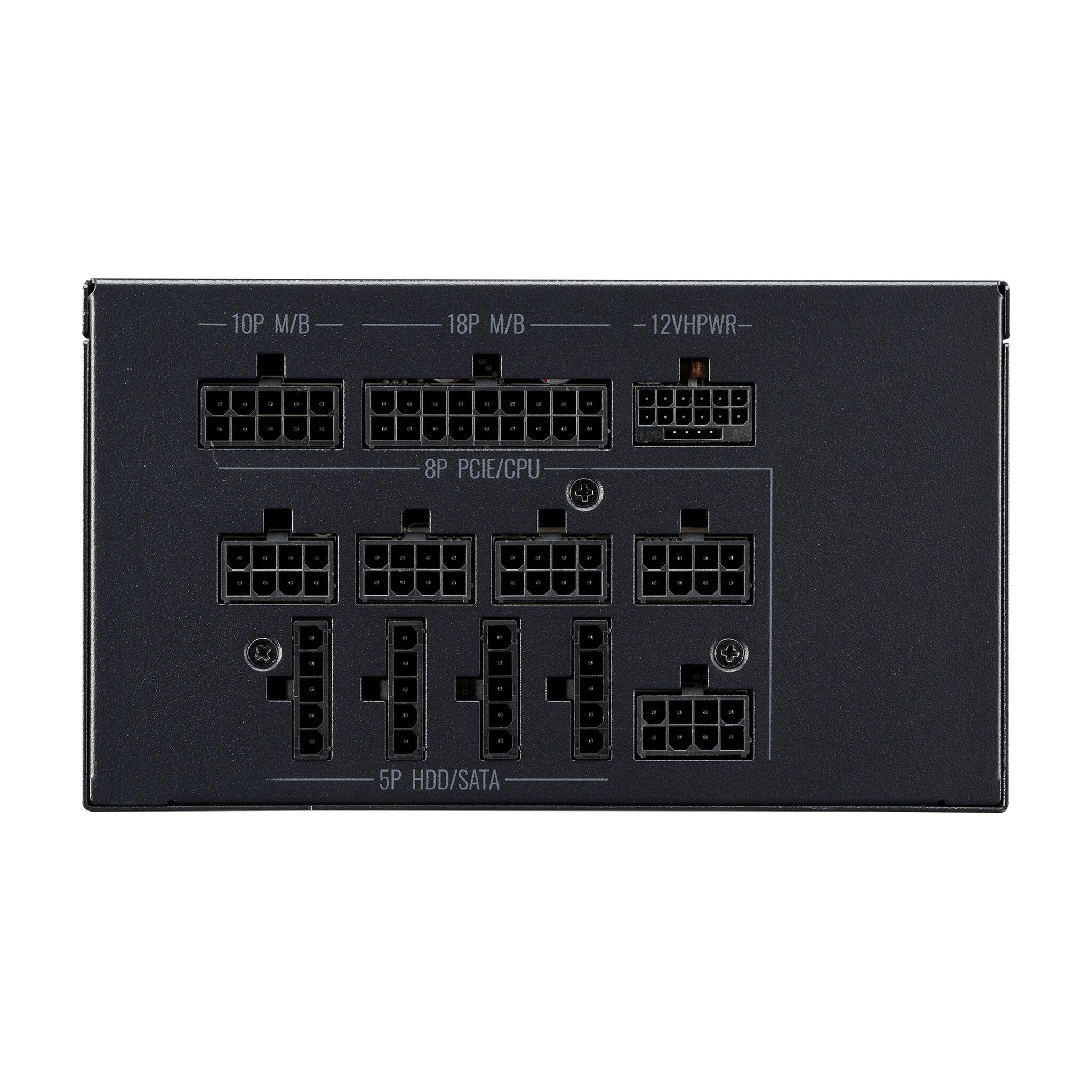

Ports & interfaces
Cabling type Fully-Modular
PCI Express power connectors (6+2 pin) 3
EPS power connector (4+4 pin) Yes
EPS power connector (8-pin) Yes
Peripheral (Molex) power cable length 500,620,740,860 mm
Peripheral (Molex) power connectors (4-pin) 4
SATA power cable length 500,620,740,860 mm
Number of SATA power connectors 12
Motherboard power cable length 65 cm
Motherboard power connector 24-pin ATX
Performance
Mean time between failures (MTBF) 100000 h
Bearing technology FDB
ATX version 3.0
80 PLUS certification 80 PLUS Gold
Power supply unit (PSU) form factor ATX
Purpose PC/Server
Design
Number of fans 1 fan(s)
Fan diameter 14 cm
Cooling type Active
Product colour Black
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Certificates
Certification ErP 2014 Lot 3
Compliance certificates CE, UKCA
Weight & dimensions
Weight 3.02 kg
Height 86 mm
Depth 180 mm
Width 150 mm
Packaging data
Package weight 3.42 kg
Package height 122 mm
Package depth 333 mm
Package width 197 mm
Technical details
Sustainability compliance Yes
Logistics data
Products per master (outer) case 4 pc(s)
Master (outer) case height 220 mm
Master (outer) case length 620 mm
Master (outer) case width 325 mm
Master (outer) cases per pallet 24 pc(s)
Other features
EPS cable length 65 cm
