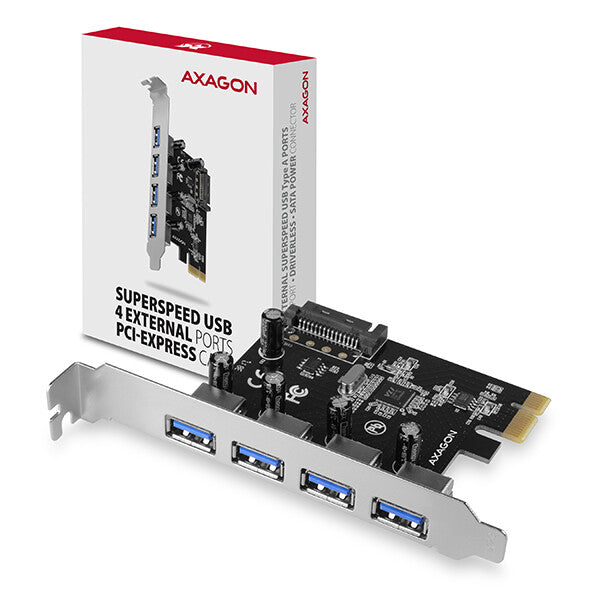

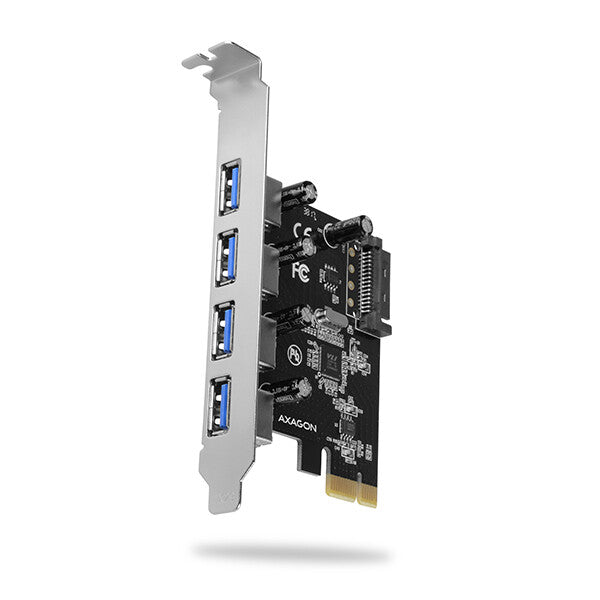

AXAGON PCEU-430VL PCI-Express card adds four high-speed USB 3.2 Gen 1 ports to your desktop.
All four SuperSpeed USB ports are taken out to the blank. Reliable PC power supply via SATA power connector.
The controller is fitted with a chipset of renowned VIA Labs and features proven seamless compatibility and UASP support.
Input:
• PCI-Express 2.0 interface, PCI-Express 1.0a / 1.1 / 2.1 / 3.0 compatible.
• Number of lines: (x1), compatible with x1 / x4 / x8 / x16 PCIe slots.
• A bandwidth of 1-Lane PCI-Express 2.0 bus is 5 Gb/s.
Output:

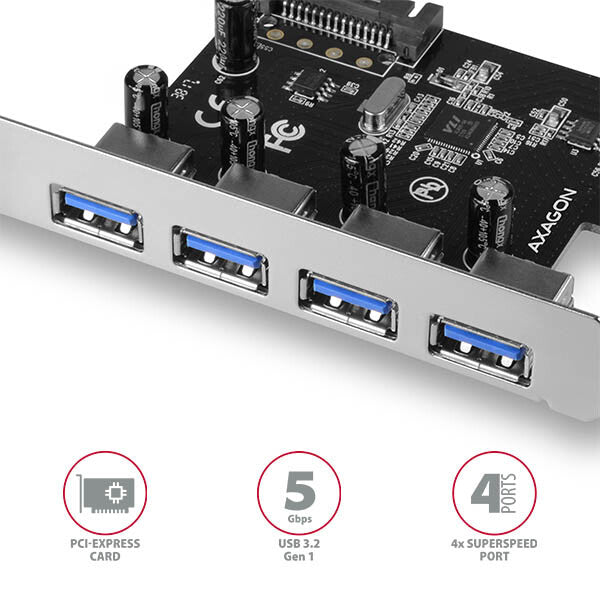

• 4x external USB 3.2 Gen 1 port with USB type A-F connectors.
• SuperSpeed USB - USB 3.2 Gen 1 interface (before USB 3.1 Gen 1 / USB 3.0).
• Compatible with USB 3.2 Gen 2, backward compatible with USB 2.0 a USB 1.1.
• Supports transmission rates 5000 / 480 / 12 / 1.5 Mb/s (super / high / full / low speed).
• When connected to a PCI-Express bus version 1.0, theor. transmission rate max. 2.500 Mb/s.
Other features:
• Full Plug and Play support.
• Support concurrent activity of SuperSpeed USB, USB 2.0 a USB 1.1 devices.
• Supports concurrent activity of USB 3.0, USB 2.0 and USB 1.1 devices.
• Compliant with the final official xHCI specification revision 1.0 by USB-IF.

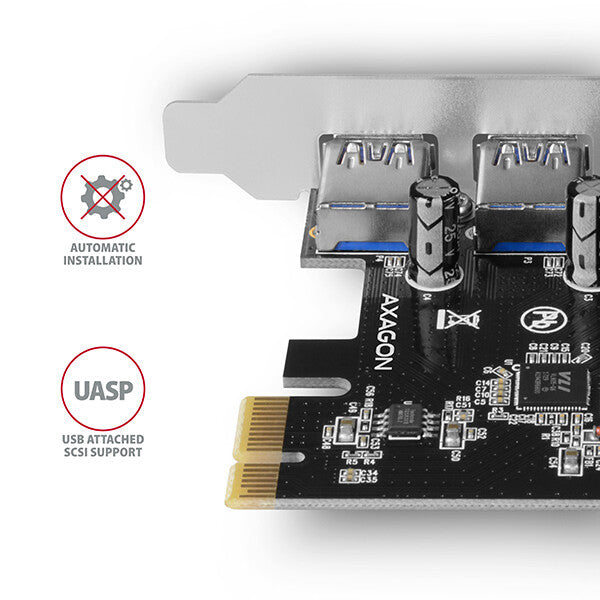

• Supports UASP (USB Attached SCSI) for faster data transmission in Windows 8 and later.
• Fully supports Hot Plug connecting and disconnecting of USB devices while running.
• Internal SATA power connector for PC controller power supply.

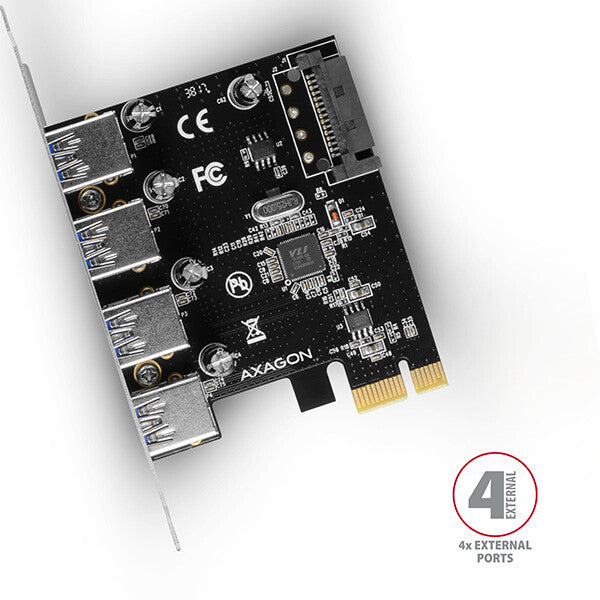

• VIA Labs VL805 chipset is used.
Supported operating systems:
• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32-and 64-bit Windows OS versions), Linux with kernel 2.6.31 and above.
Note: Drivers are only installed for Windows XP / Vista / 7. For Linux, Windows 8 / 8.1 / 10, Server 2012 / 2016 and later versions, no external drivers are required, they are already part of the operating system.

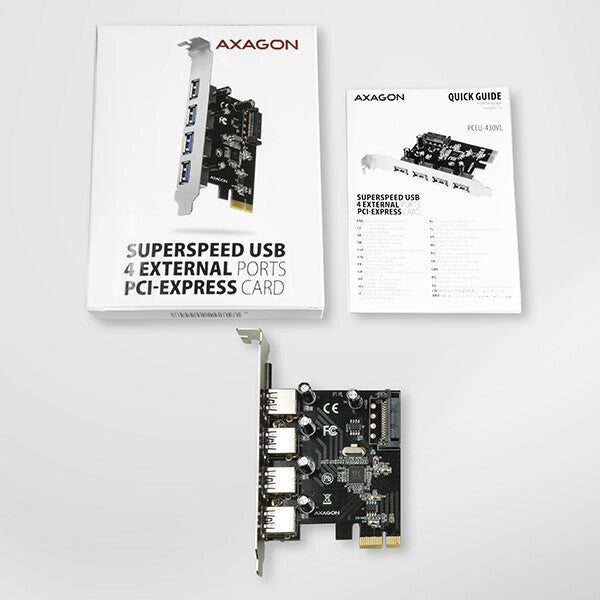

Package contains:
• PCI-Express controller with a standard blanking plug,

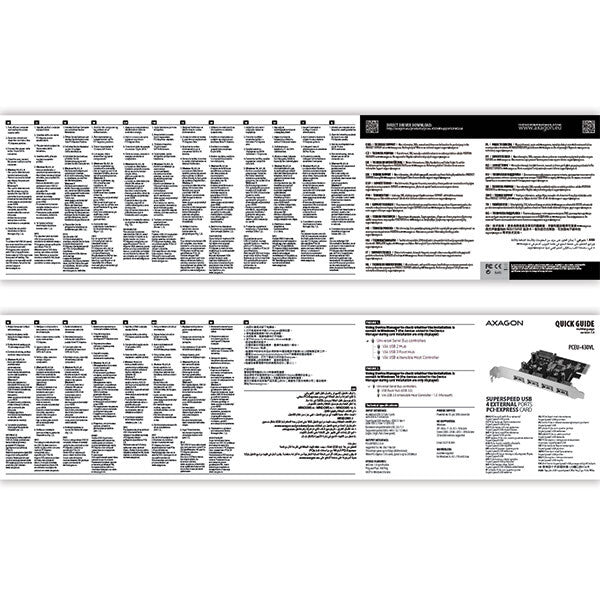

• printed installation guide CZ/DE/DK/ENG/ESP/FIN/FR/GR/HR/HU/IT/NL/PL/PT/RO/RU/SK/SWE/TR/BG/CN/ARA,

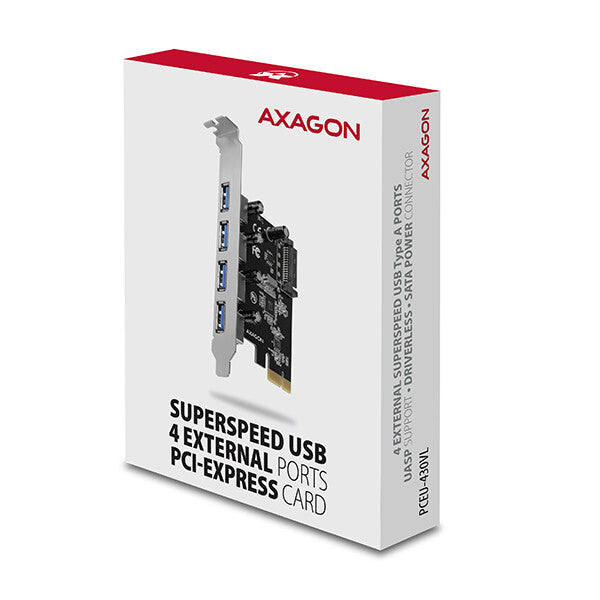

• packed in a cardboard box.
