ATEN CAMLIVE™+(HDMI to USB-C UVC Video Capture with PD3.0 Power Pass-Through)
£78.99
Couldn't load pickup availability
- Supports unencrypted 4K video input for 1080P capture
- Software free –plug & play designed for PC, Mac and Android platform

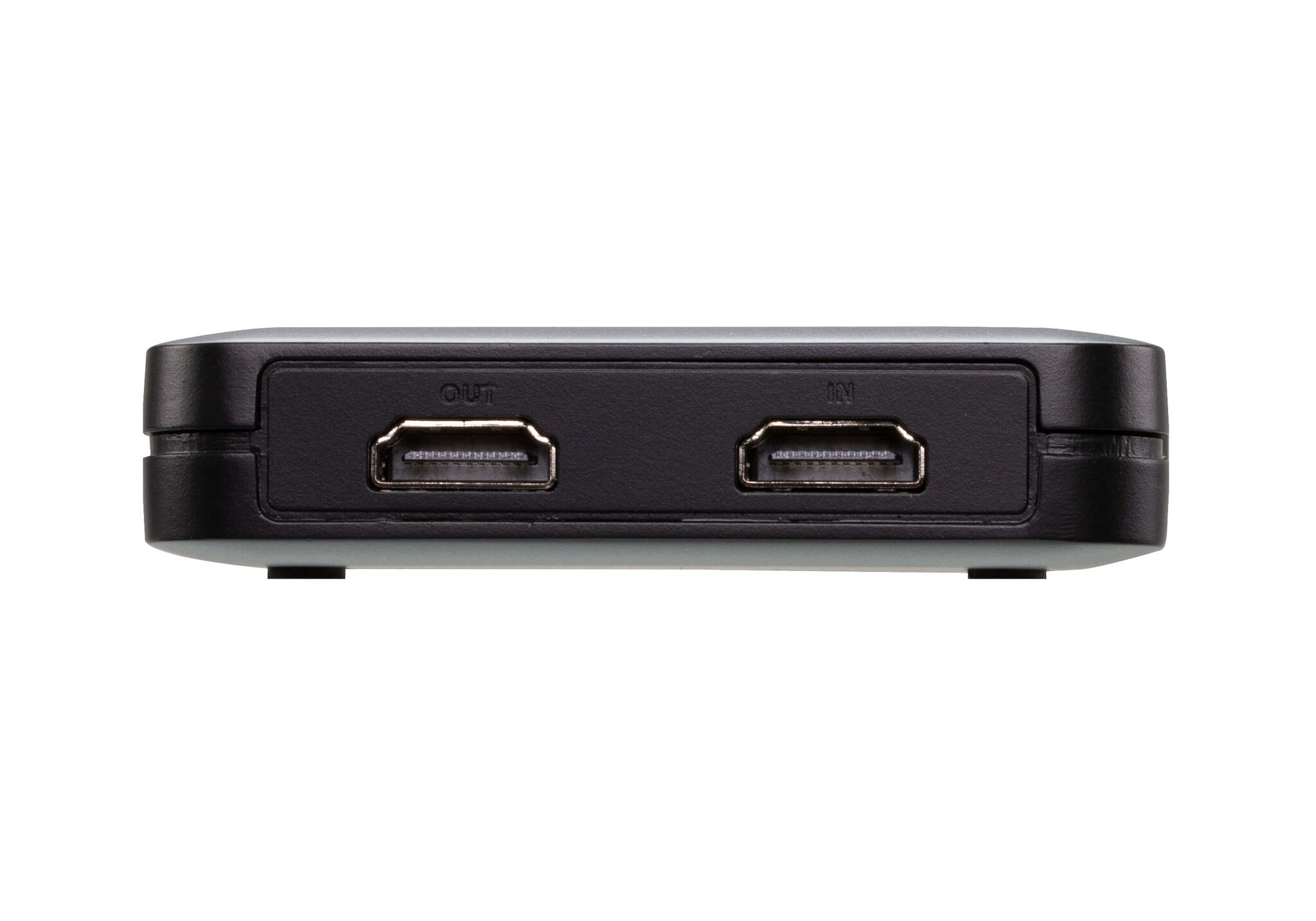

- HDMI loop-out –supports real-time HDMI video preview

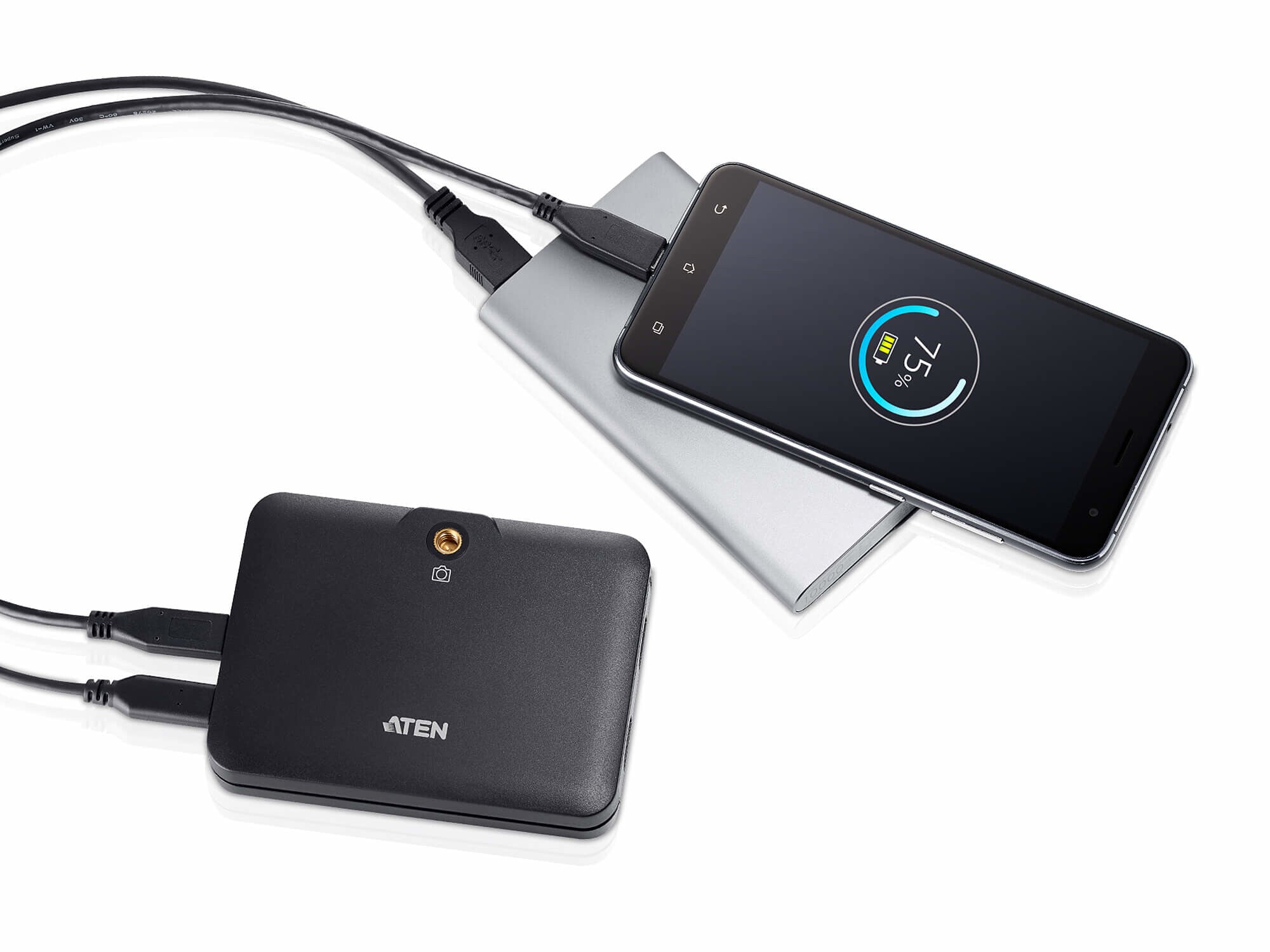

- Up to 60W power charging capability for laptop or Android phone –supports USB-C PD3.0 power profile include 5V/9V/15V/20V (additional USB-C power adapter is needed)
1x CAMLIVE™+HDMI to USB-C UVC Video Capture with Power Pass-Through
1x USB-C to USB-A Cable
1x USB-C to USB-C Cable

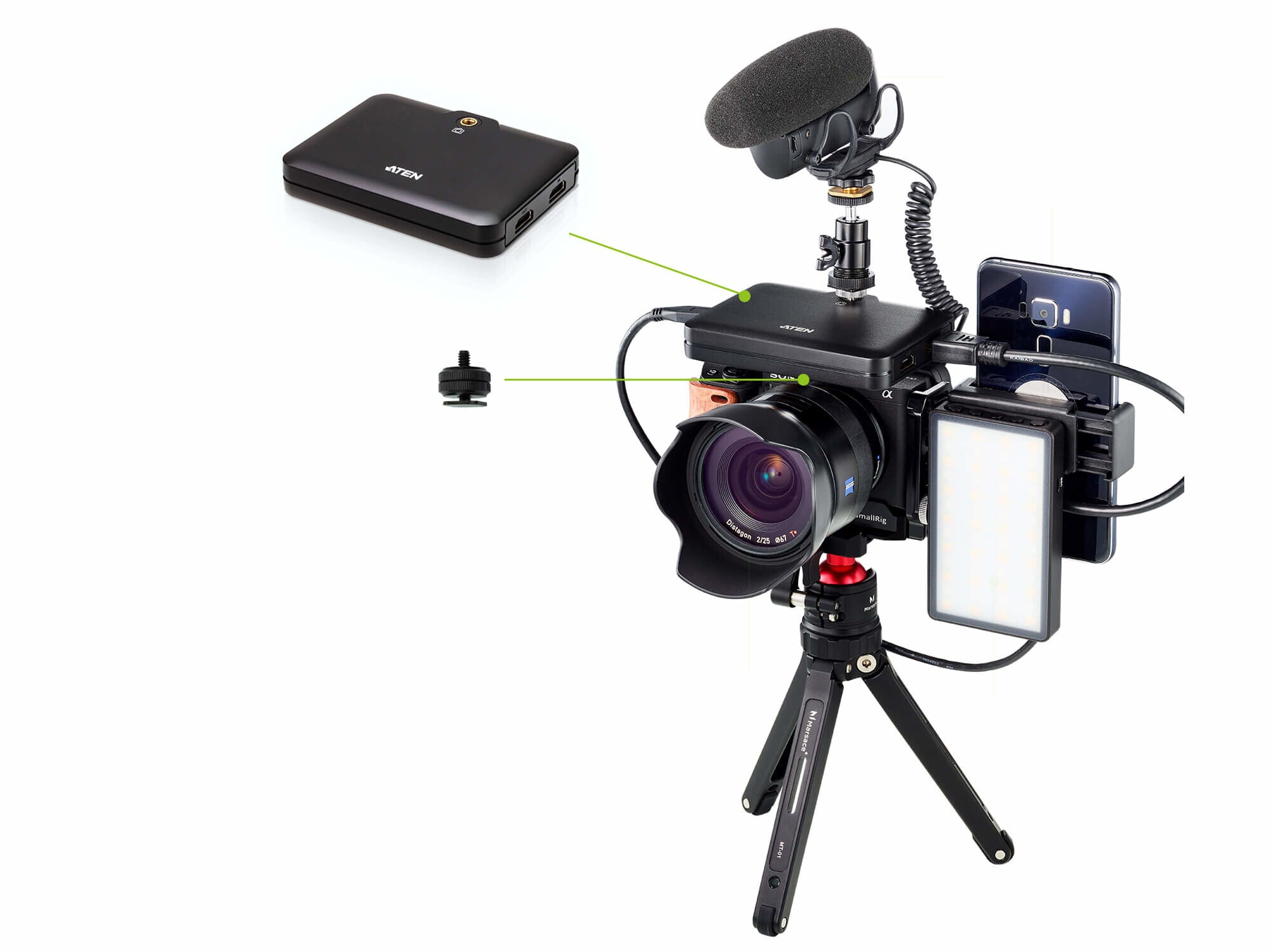

1x Camera Mount Adapter
1x Warranty Card
1x User Instructions
| Performance | |
|---|---|
| Housing material | Plastic |
| Plug and Play | Yes |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Internal | No |
| Product colour | Black |
| Video | |
|---|---|
| Supported video modes | 480p, 720p, 1080p, 2160p |
| Maximum frame rate | 60 fps |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| HDMI version | 2.0 |
| Number of HDMI outputs | 1 |
| HDMI in | 1 |
| HDMI ports quantity | 2 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-B |
| USB port | Yes |
| Power | |
|---|---|
| AC input voltage | 5 V |
| Software | |
|---|---|
| Other operating systems supported | Android |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10 |
| System requirements | |
|---|---|
| Minimum processor | Intel i3 Dual Core 2.8Ghz |
| Minimum RAM | 4000 MB |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 80% |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Other features | |
|---|---|
| Master (outer) case width | 326 mm |
| Master (outer) case height | 162 mm |
| Weight & dimensions | |
|---|---|
| Weight | 160 g |
| Height | 20 mm |
| Depth | 114.9 mm |
| Width | 84.9 mm |
| Packaging data | |
|---|---|
| Package height | 62 mm |
| Package width | 140 mm |
| Package depth | 193 mm |
| Package weight | 280 g |
| Logistics data | |
|---|---|
| Master (outer) case net weight | 1.6 kg |
| Master (outer) case gross weight | 3.42 kg |
| Harmonized System (HS) code | 85176990 |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case length | 345 mm |
