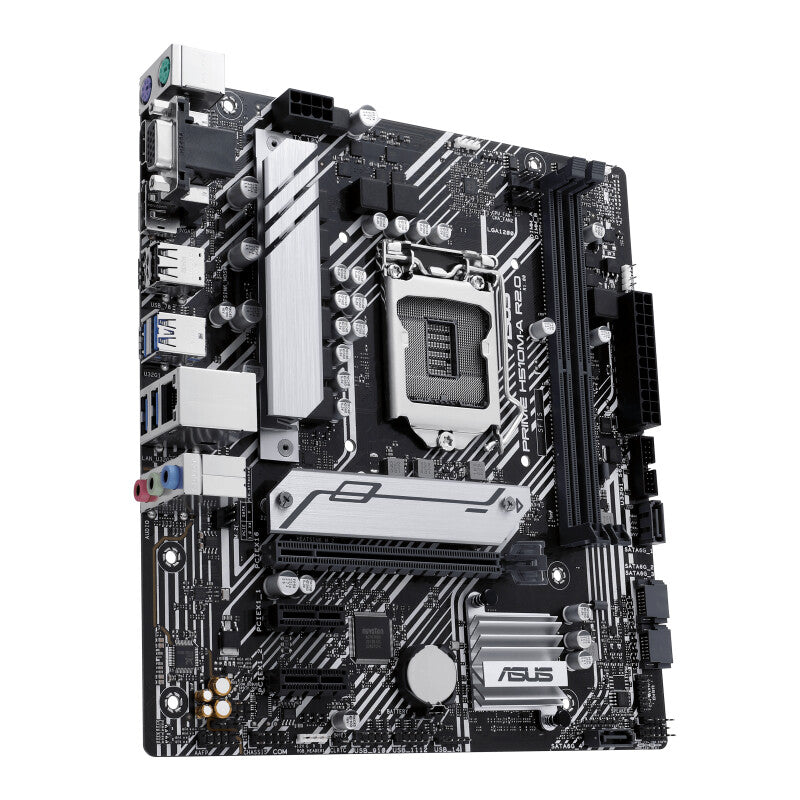

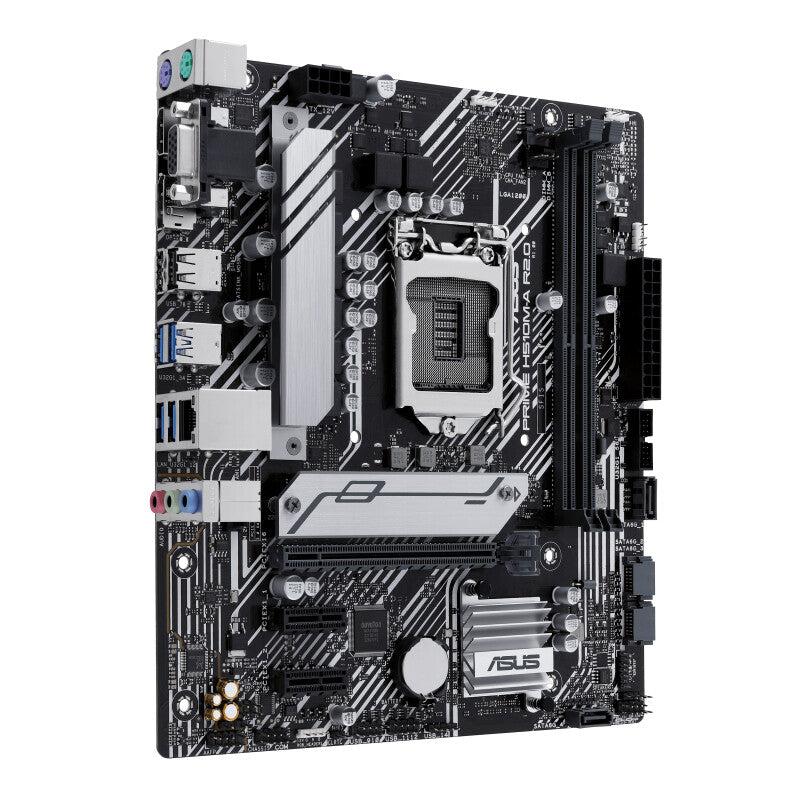

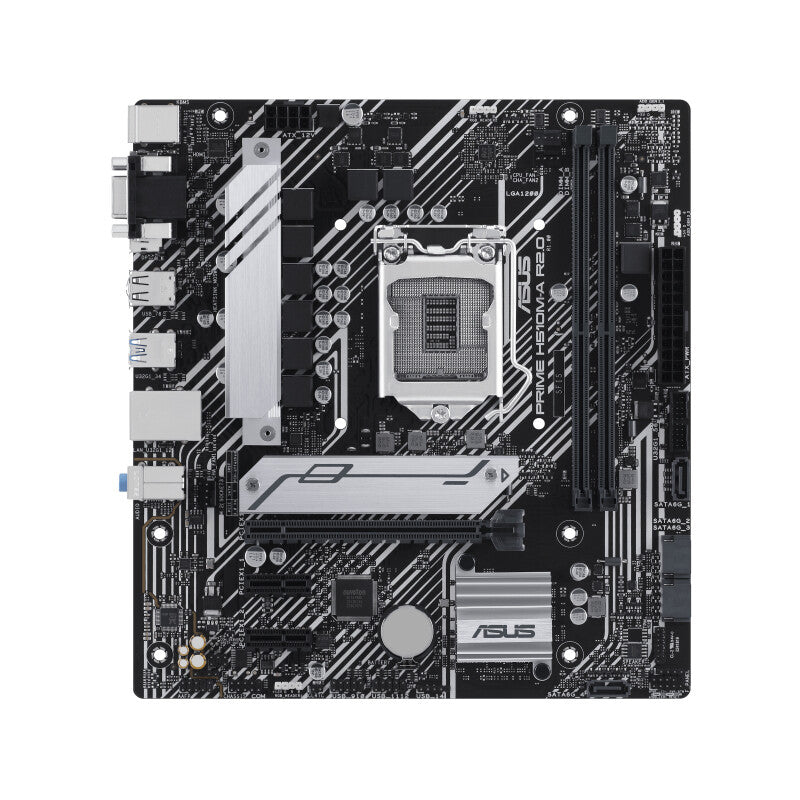

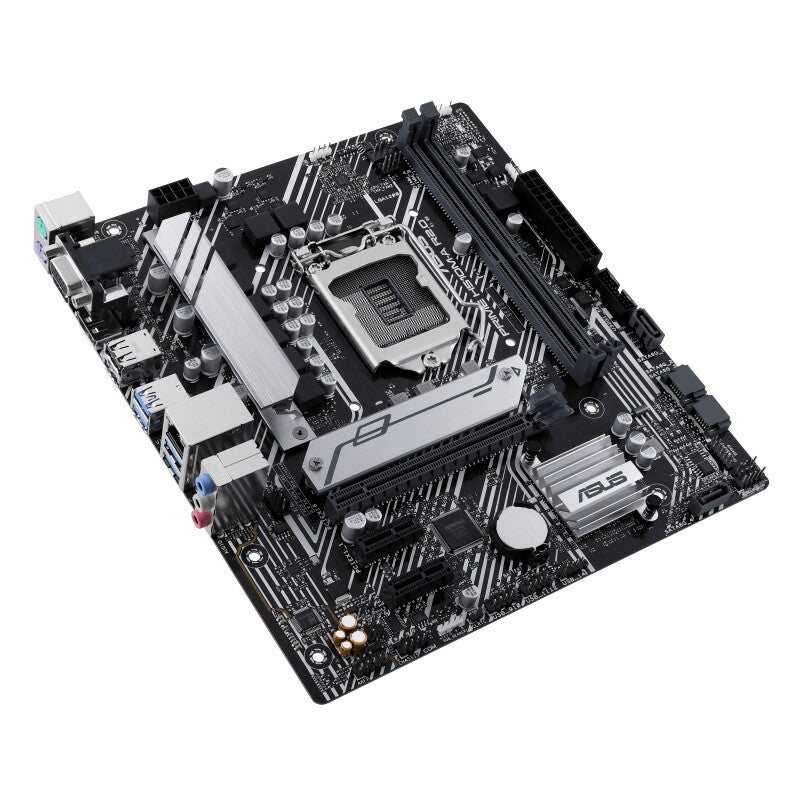

ASUS PRIME H510M-A R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX
Couldn't load pickup availability
- Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Processors
- Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink and Fan Xpert 2+
- Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1Gb Ethernet and USB 3.2 Gen 1
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware
- 5X Protection III: Multiple hardware safeguards for all-round protection
H510M-A R2.0
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 11th and 10th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME H510M-A R2.0 provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H510 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency
With the Energy Processing Unit (EPU), you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode.
COOLING
Prime H510 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 Heatsink
M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.
PERFORMANCE
Prime H510 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS H510 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Processor | |
---|---|
Supported processor sockets | LGA 1200 (Socket H5) |
Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
Processor socket | LGA 1200 (Socket H5) |
Processor manufacturer | Intel |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 64 GB |
Supported memory clock speed (max) | 3200 MHz |
Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200 MHz |
ECC сompatibility | Non-ECC |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 2 |
Supported memory types | DDR4-SDRAM |
Storage controllers | |
---|---|
Number of storage drives supported | 5 |
Number of HDDs supported | 4 |
Supported storage drive interfaces | M.2, SATA III |
Supported storage drive types | HDD & SSD |
Graphics | |
---|---|
Parallel processing technology support | Not supported |
Internal I/O | |
---|---|
RGB LED pin header | Yes |
Number of COM connectors | 1 |
TPM connector | Yes |
12V power connector | Yes |
EPS power connector (8-pin) | Yes |
Number of chassis fan connectors | 2 |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel audio connector | Yes |
Audio connector | Yes |
S/PDIF out connector | Yes |
Number of SATA III connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 2.0 connectors | 3 |

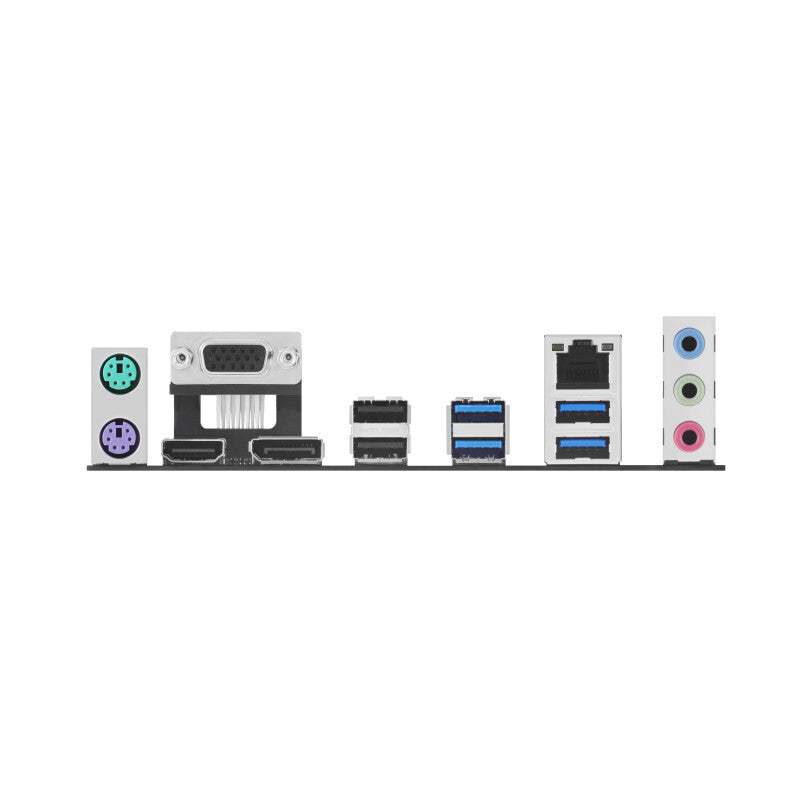

Rear panel I/O ports | |
---|---|
Microphone in | Yes |
Headphone outputs | 1 |
Line-in | Yes |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
VGA (D-Sub) ports quantity | 1 |
PS/2 ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 2.0 ports quantity | 2 |
Network | |
---|---|
Wi-Fi | No |
Ethernet interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Windows operating systems supported | Windows 10 x64 |
Audio output channels | 7.1 channels |
Motherboard chipset | Intel H510 |
Motherboard chipset family | Intel |
Motherboard form factor | micro ATX |
Component for | PC |
Expansion slots | |
---|---|
Number of M.2 (M) slots | 1 |
PCI Express x1 (Gen 3.x) slots | 2 |
BIOS | |
---|---|
BIOS memory size | 128 Mbit |
BIOS type | UEFI AMI |
Packaging data | |
---|---|
Package weight | 1.03 kg |
Package height | 51.5 mm |
Package depth | 270 mm |
Package width | 260 mm |
Weight & dimensions | |
---|---|
Depth | 211 mm |
Width | 226 mm |

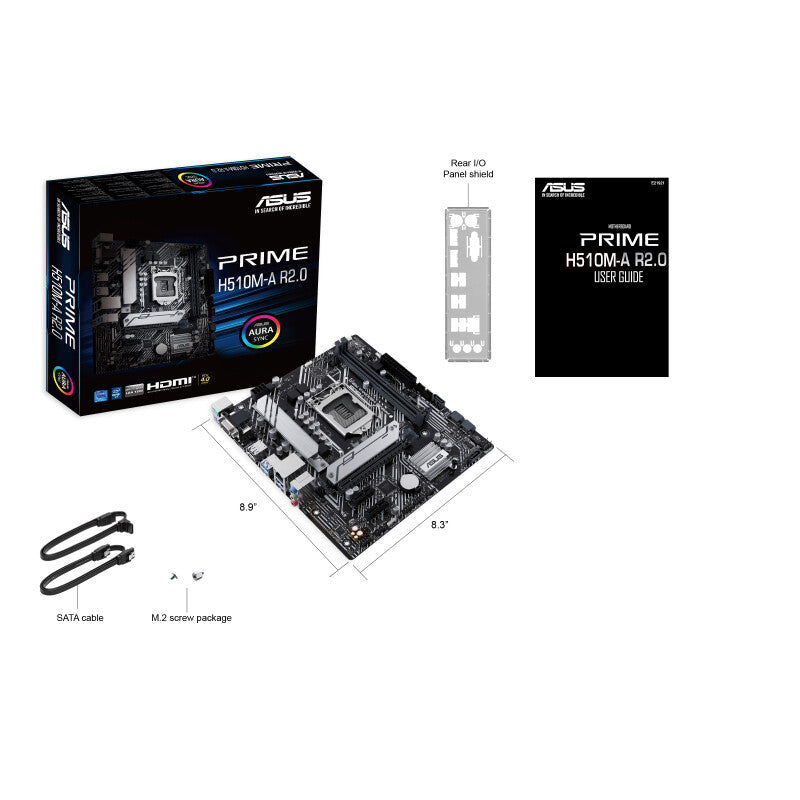

Packaging content | |
---|---|
Cables included | SATA |
