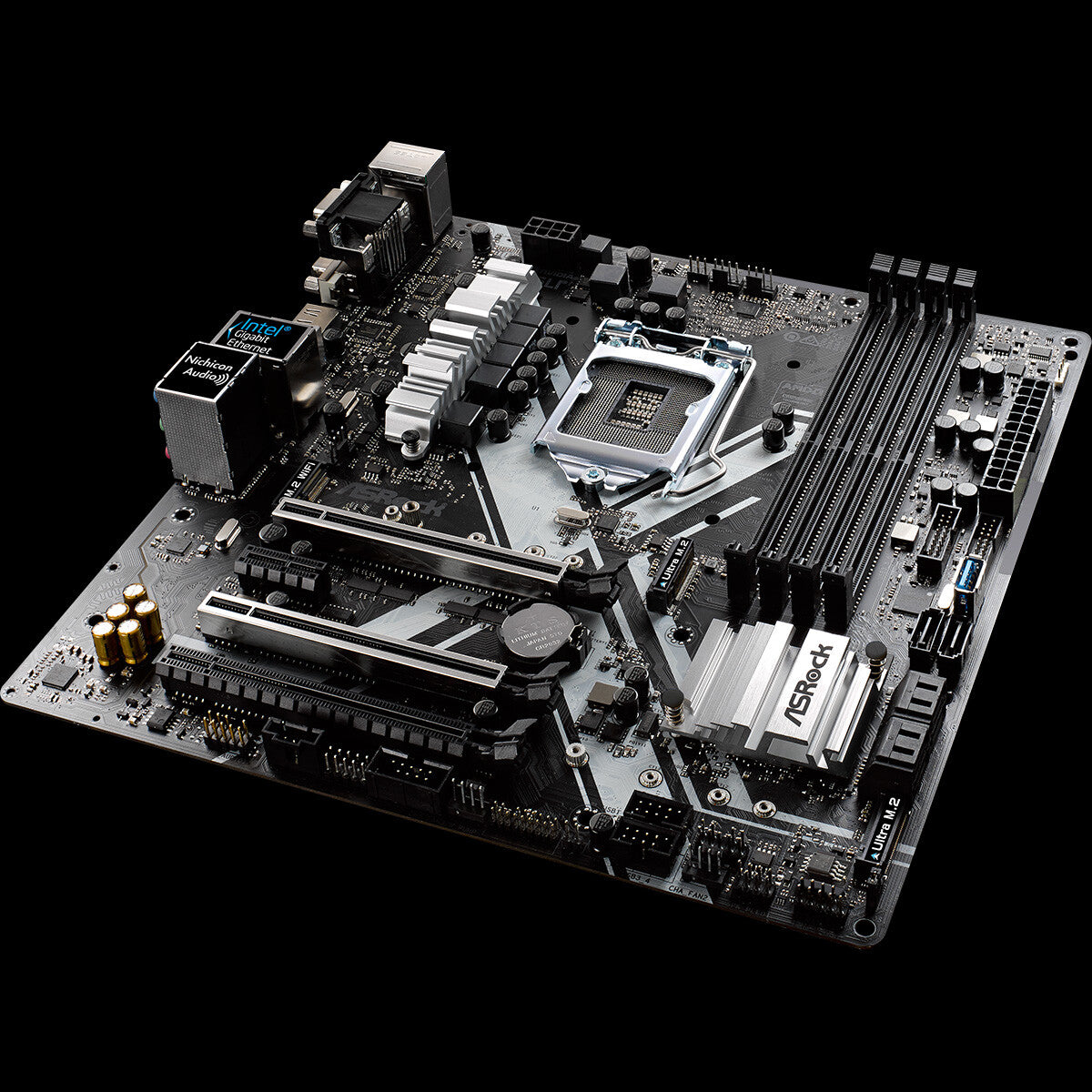

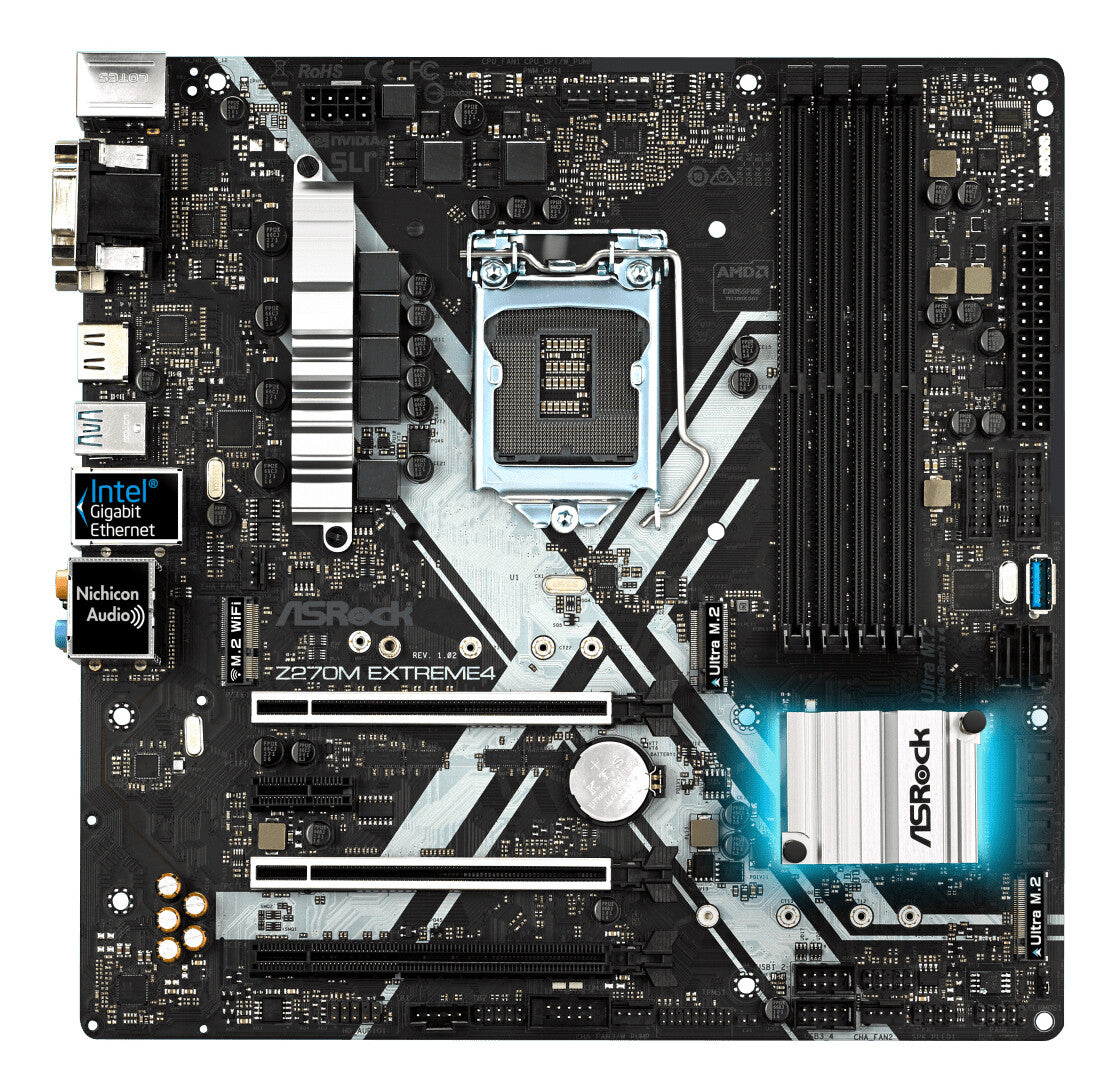

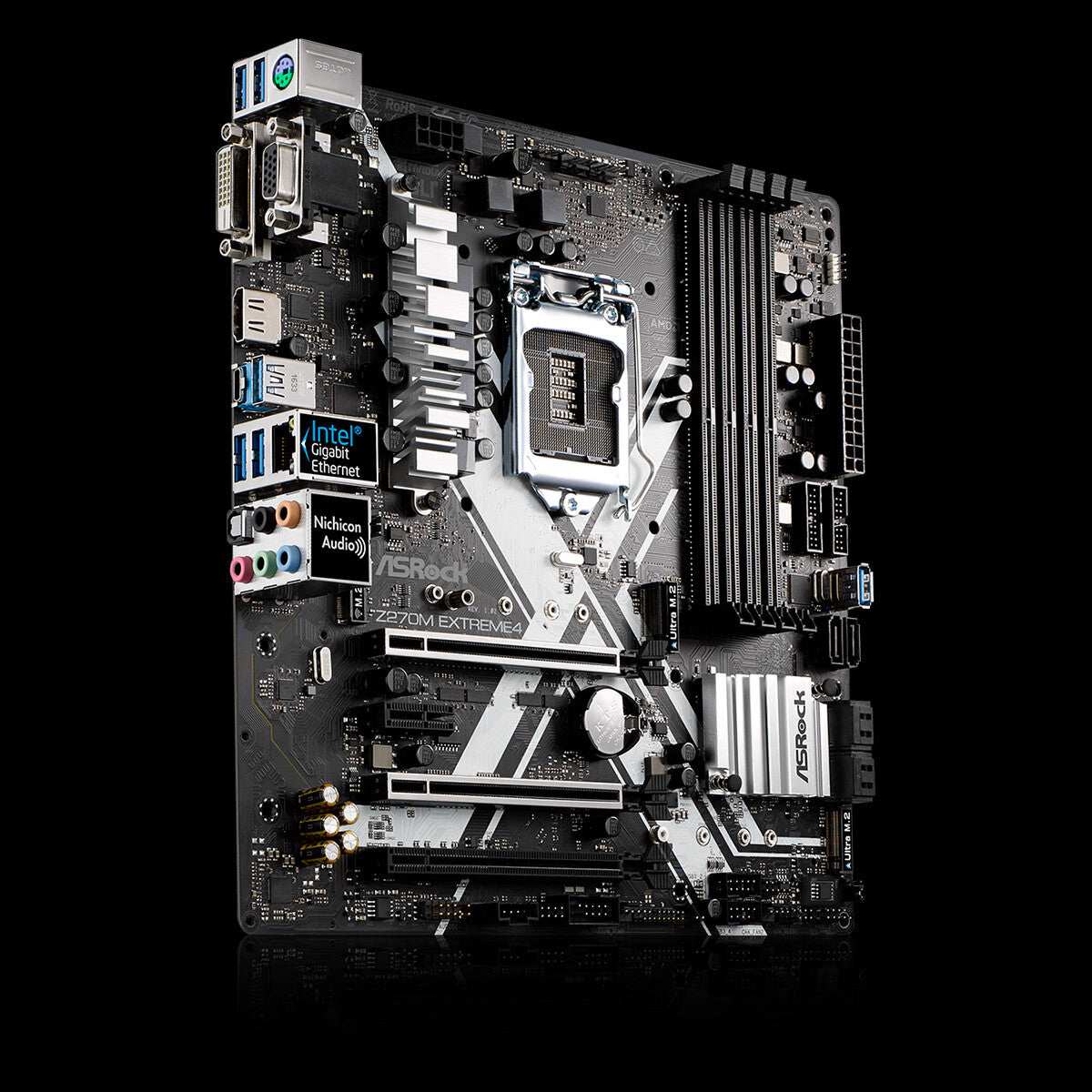

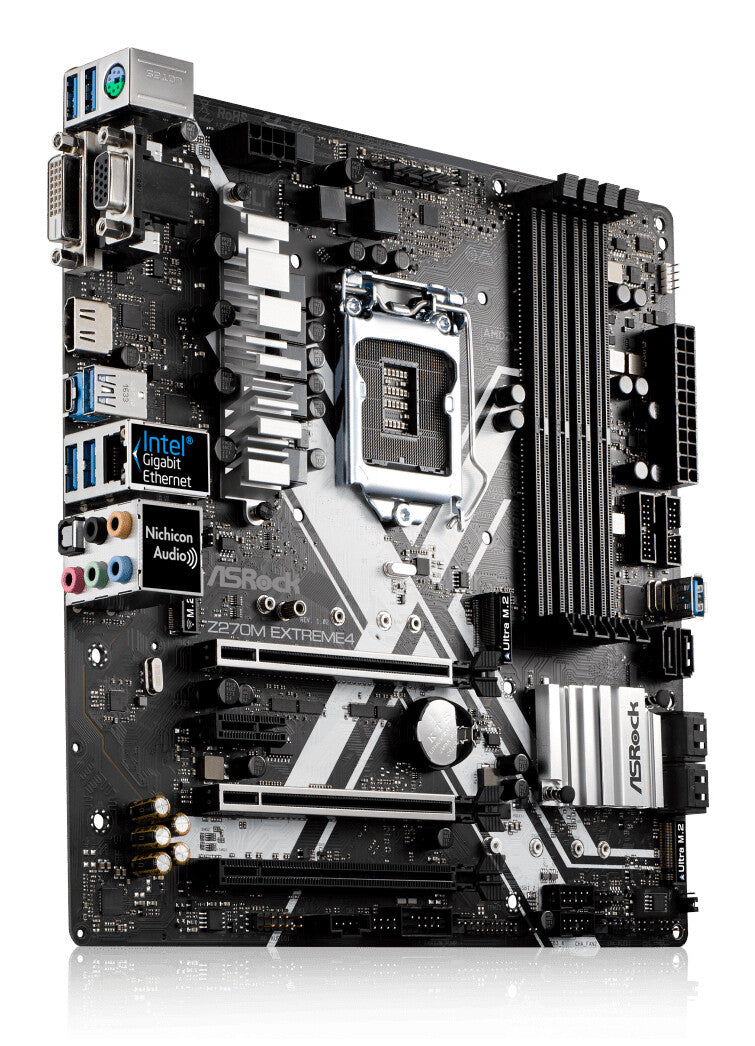

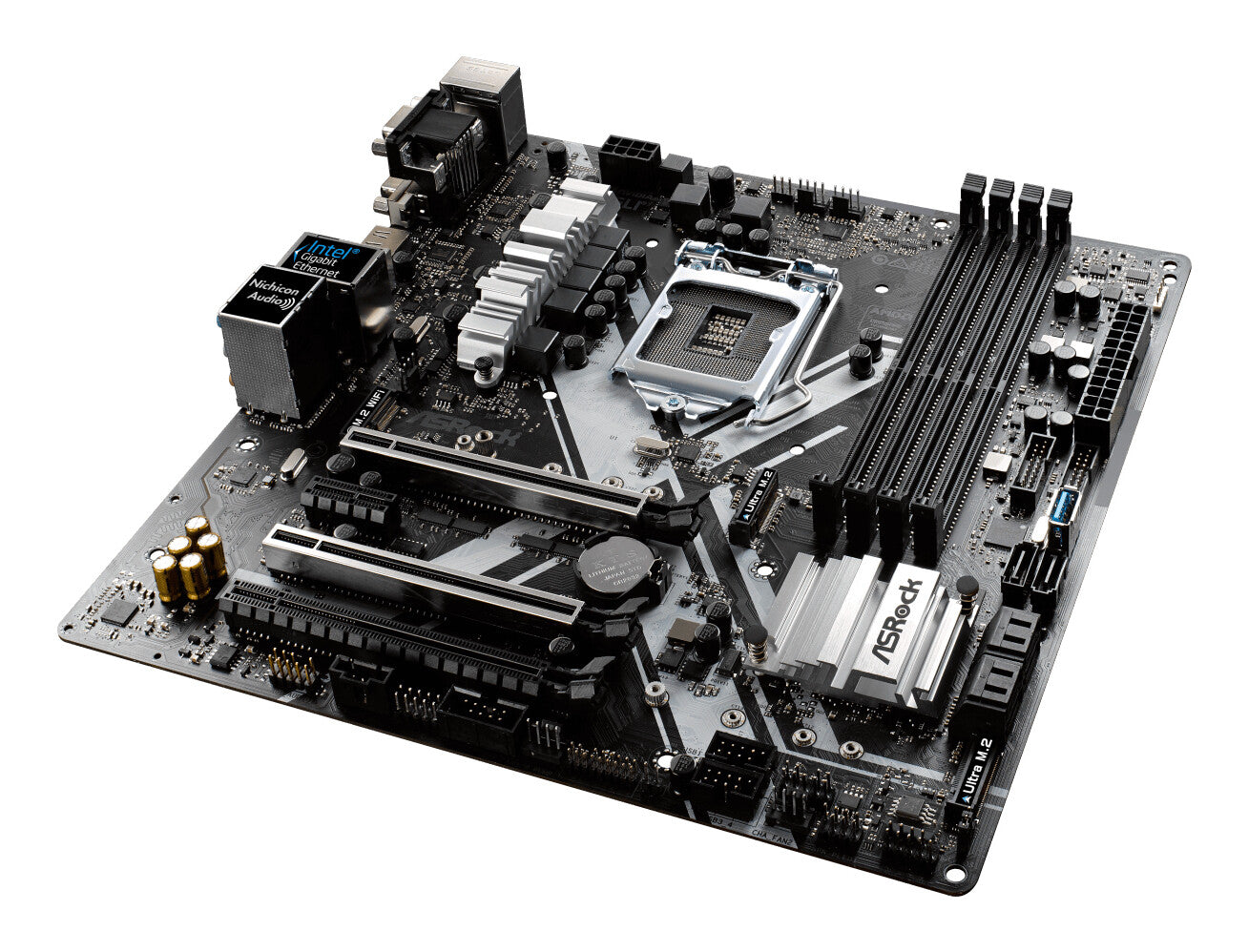

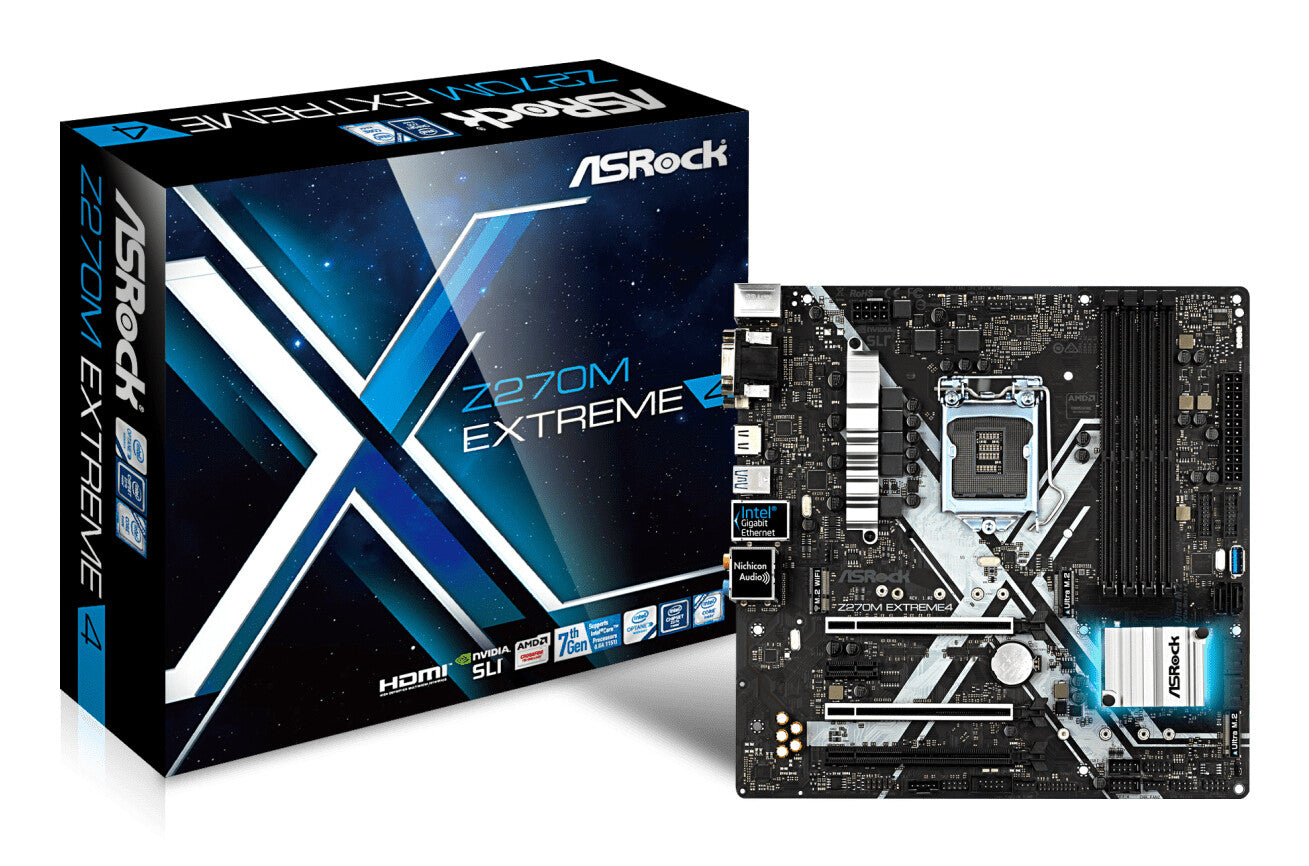

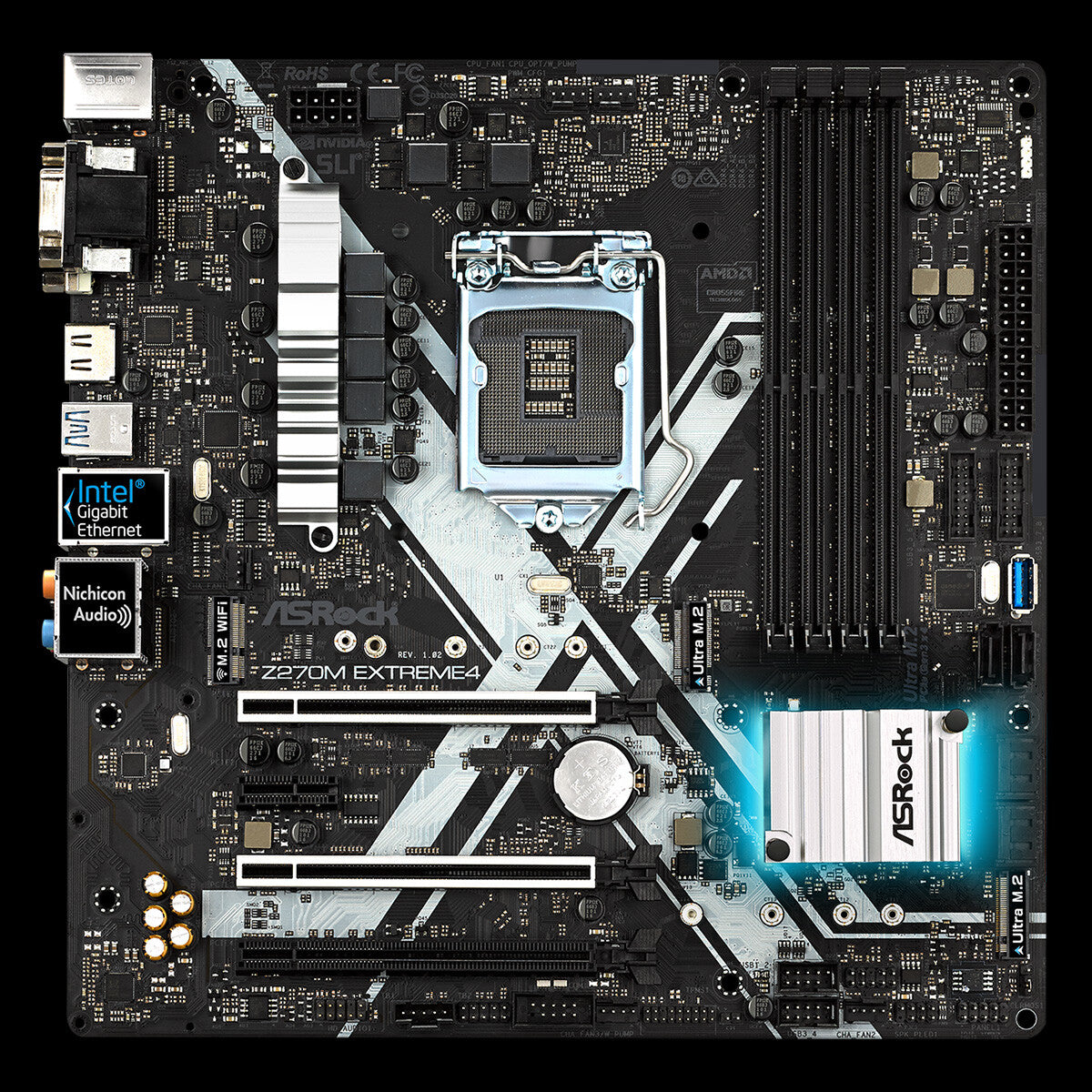

• Micro ATX
• ASRock Super Alloy
• Supports 7th and 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1151)
• Supports DDR4 3600+(OC)
• 3 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 (Key E)
• NVIDIA® Quad SLI™, AMD Quad CrossFireX™

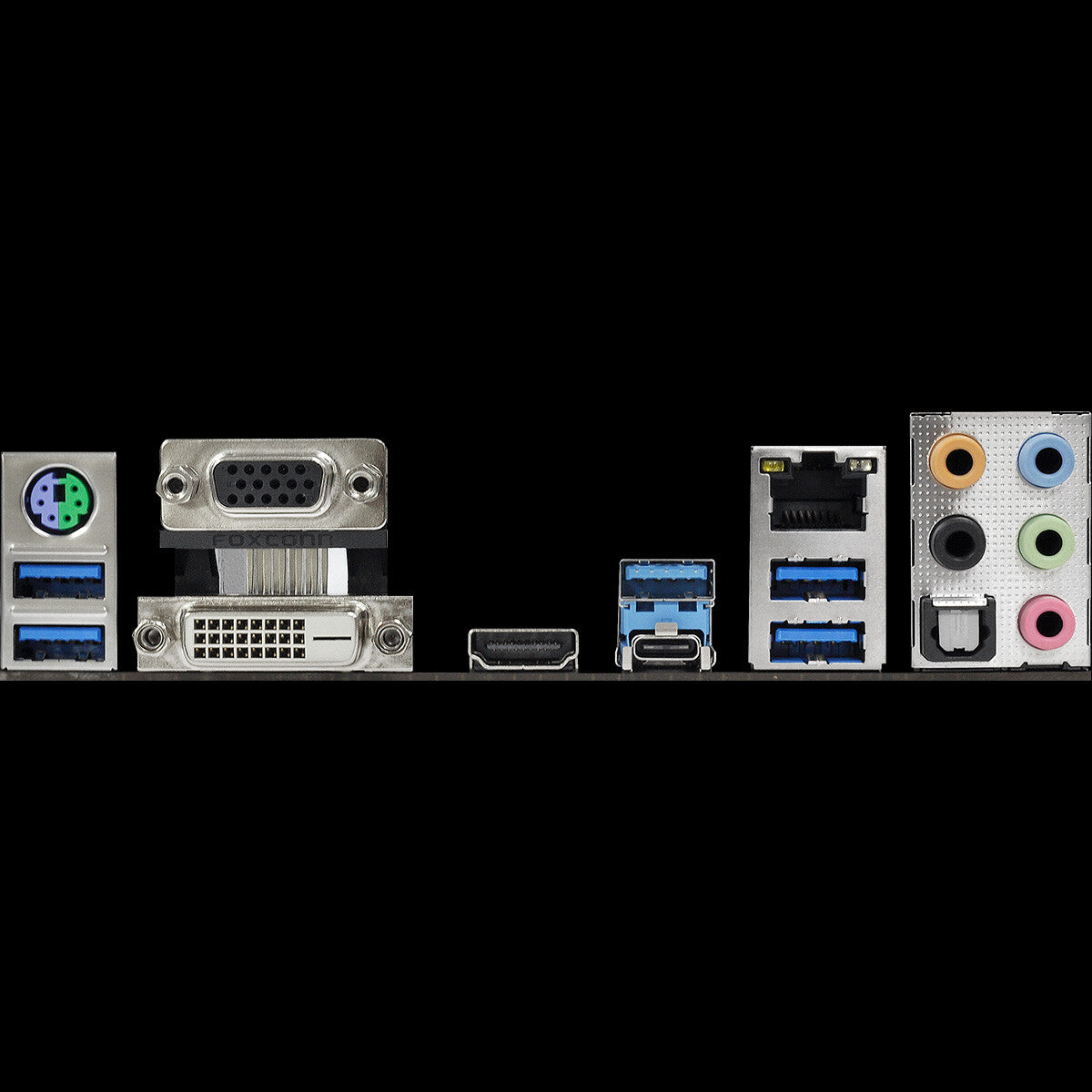

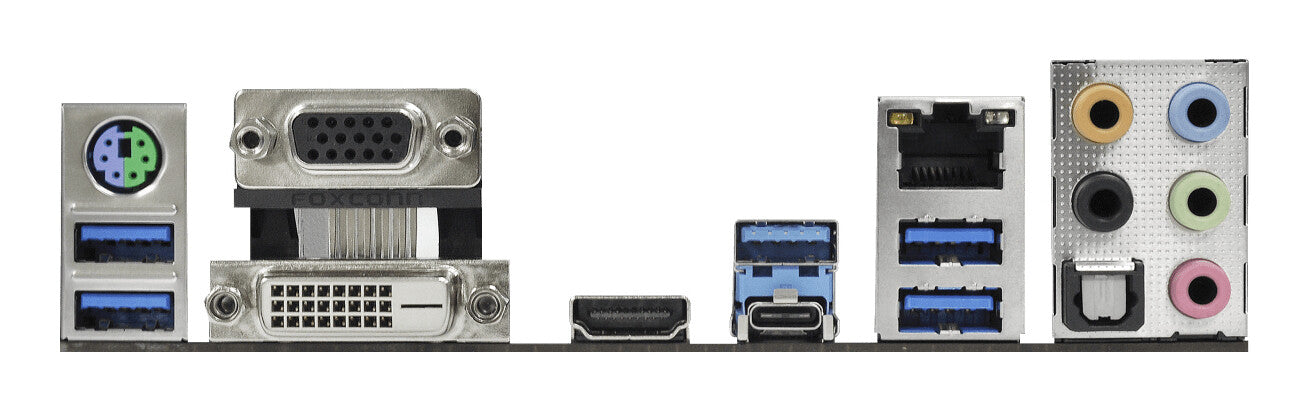

• Graphics Output Options: HDMI, DVI-D, D-Sub
• Supports Triple Monitor
• 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound™ 4 & DTS Connect
• 6 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
• 2 USB 3.1 Gen2 10Gb/s (1 Type-A + 1 Type-C), 9 USB 3.1 Gen1 (4 Front, 4 Rear, 1 Vertical Type A)
• Intel® Gigabit LAN
• ASRock RGB LED
• Intel® Optane™ Memory Ready

Armor Your VR Machine
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready motherboards are definitely the one you’re looking for. The premium qualify is assured by rigorous testing during development. The sturdy components and rock-slid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.

AURA RGB LED
Build your own colorful lighting system! AURA RGB LED and header allows users to connect LED strip and create their unique PC style easily. The ASRock AURA RGB LED utility can be downloaded directly or from an all-in-one utility ASRock Live Update & APP Shop!

Dual Ultra M.2 For SSD
Two of the world’s fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to 32Gb/s transfer speed, it also supports SATA3 6Gb/s M.2 modules.

2 PCI-E STEEL SLOT :
Tailor-made for multiple VGA cards
Adopts PCI-E Steel Slot, which is built with more solder points on the PCB for better performance and preventing any signal interference with graphics cards. Allows your graphics cards with enhanced signals and to be well-installed in the PCI-Express slot.

Dual USB 3.1 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.1 ports built on the rear i/o for supporting next generation USB 3.1 devices and to deliver up to 10 Gbps data transfer rates.

Purity Sound 4
It's time to enjoy the most purified audio performance with ultra high definition. Purity Sound4 is a combination of several hardware, software audio solutions. 7.1 CH HD audio with the latest Realtek ALC1220 audio codec, individual PCB layers for R/L audio channel, 120dB SNR DAC and other technologies to deliver the crispest sound effects.

- 120dB SNR DAC
- Gold Audio connector
- TI® NE5532 Premium Headset Amplifier
- Individual PCB Layers for R/L Audio Channel
- Impedance Sensing on Front Out port
- PCB Isolate Shielding
- Pure Power-In
- Nichicon Fine Gold Series Audio Caps

Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redenes a new standard of high performance and responsiveness.

Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Premium 45A Power Choke
Compared to traditional chokes, ASRock’s premium 45A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Nichicon 12K Black Caps
A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.

Matte Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Hyper BCLK Engine II
An additional external base clock generator which provides a wider range of frequencies and more precise clock waveforms.

User friendly UEFI & EZ Mode
ASRock UEFI is the smoothest, slickest mouse-controlled BIOS has been improved to make it even more friendly. Advanced mode provides a more comprehensive environment that is designed for overclockers and power users who want maximum control over their PC’s hardware. EZ mode is a dashboard which contains multiple readings of the system’s current status. You can check the most crucial information of your system, such as CPU speed, DRAM frequency, SATA information, fan speed, etc.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 1.5A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.

A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
