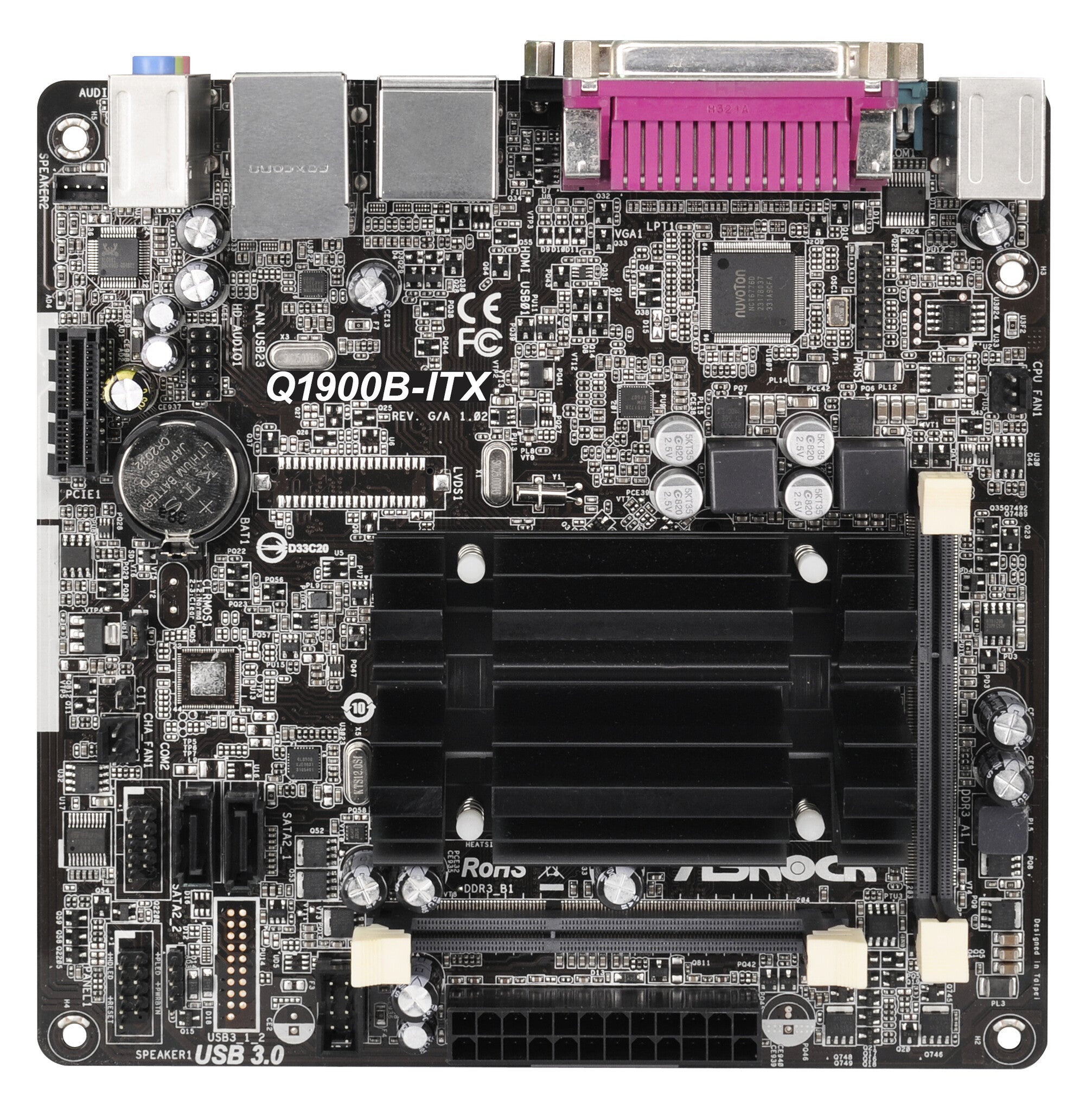

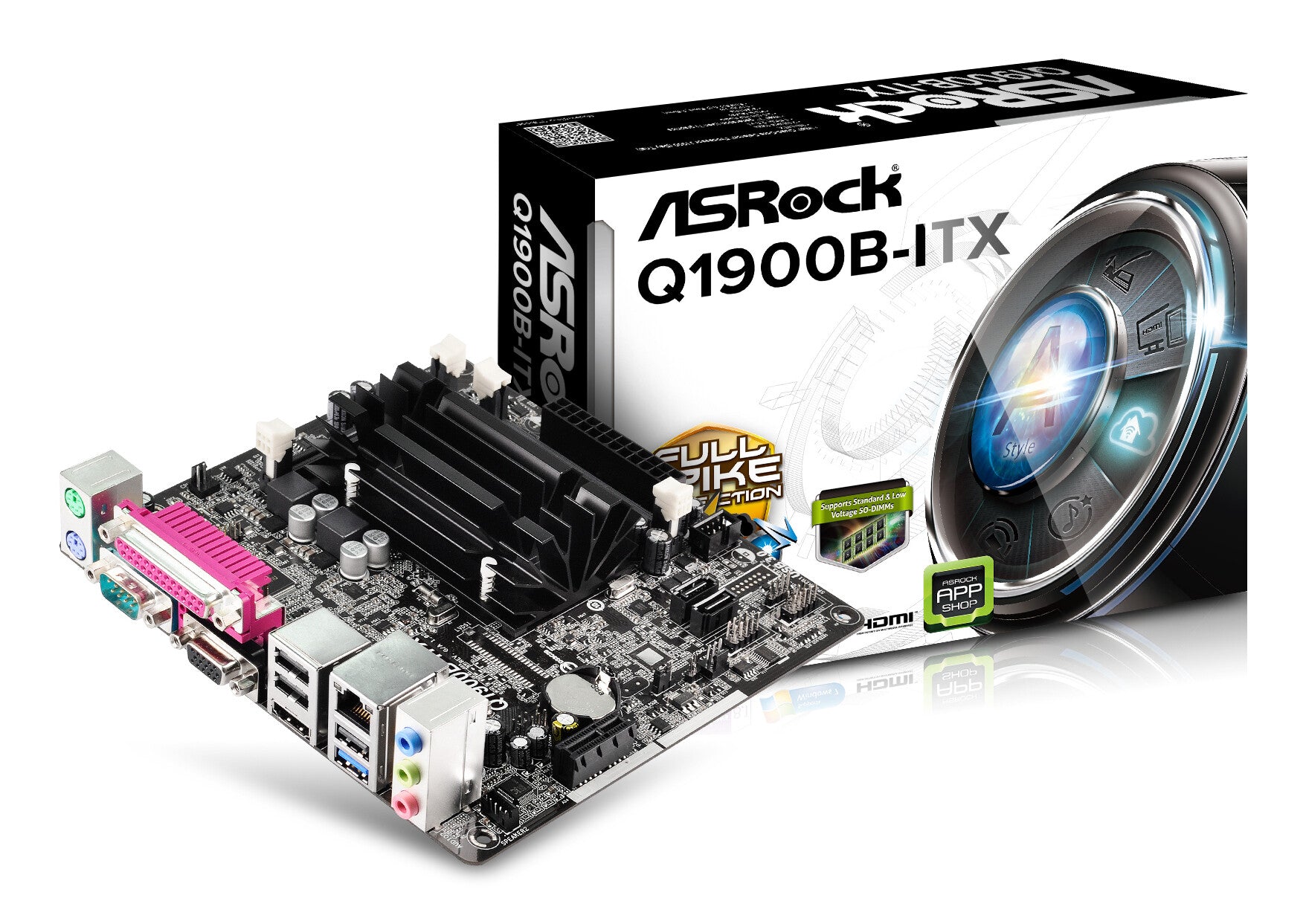

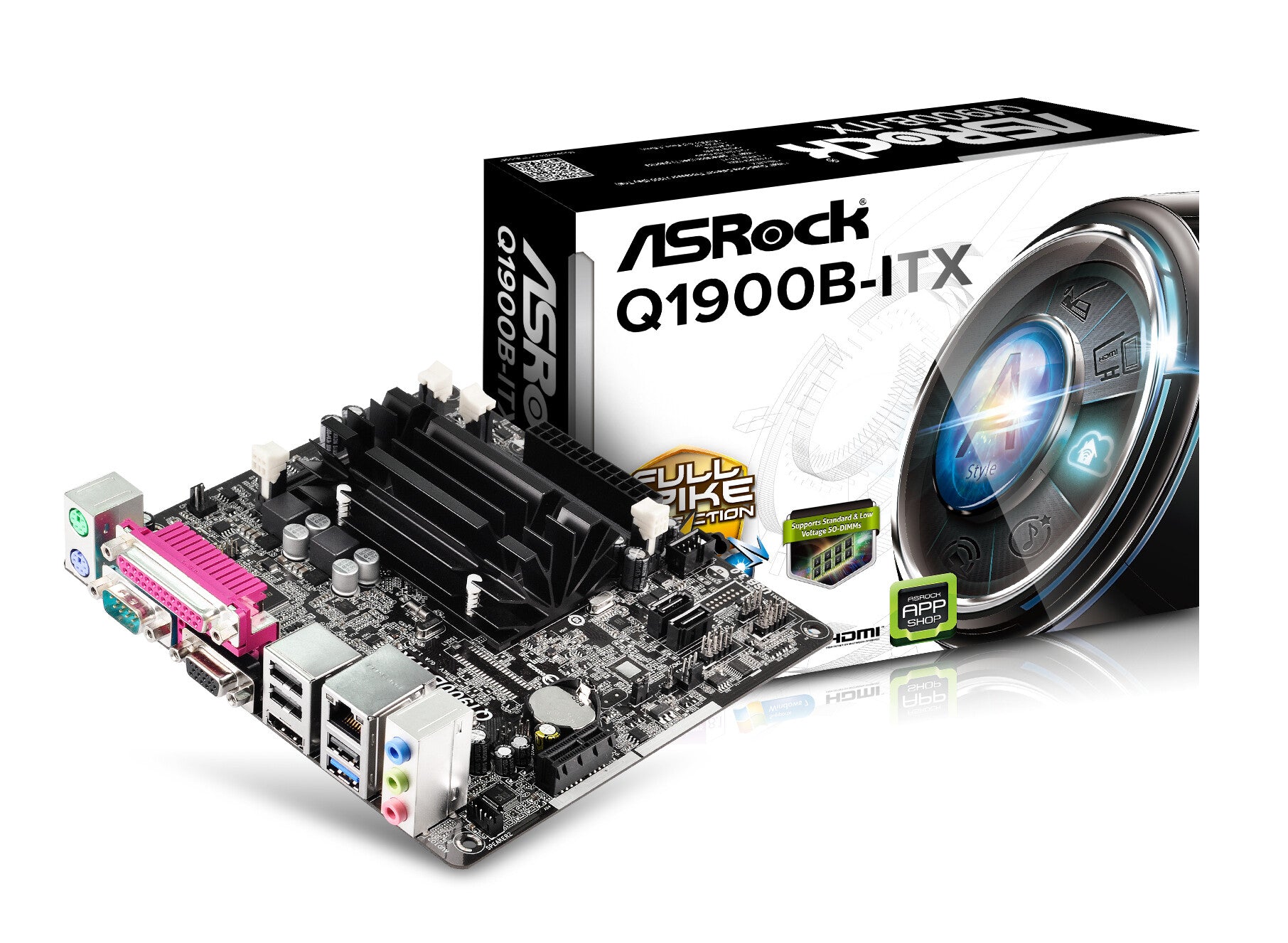

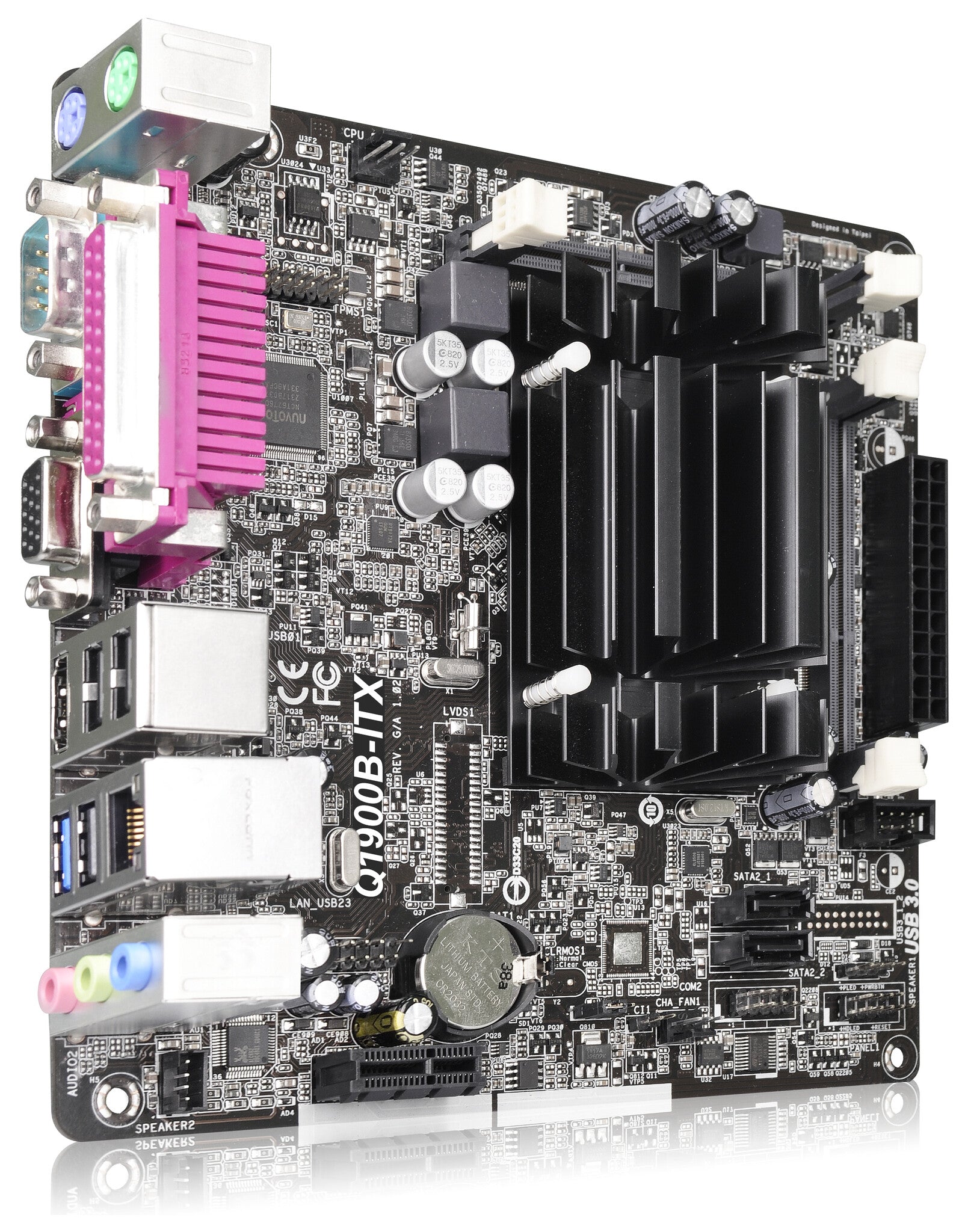

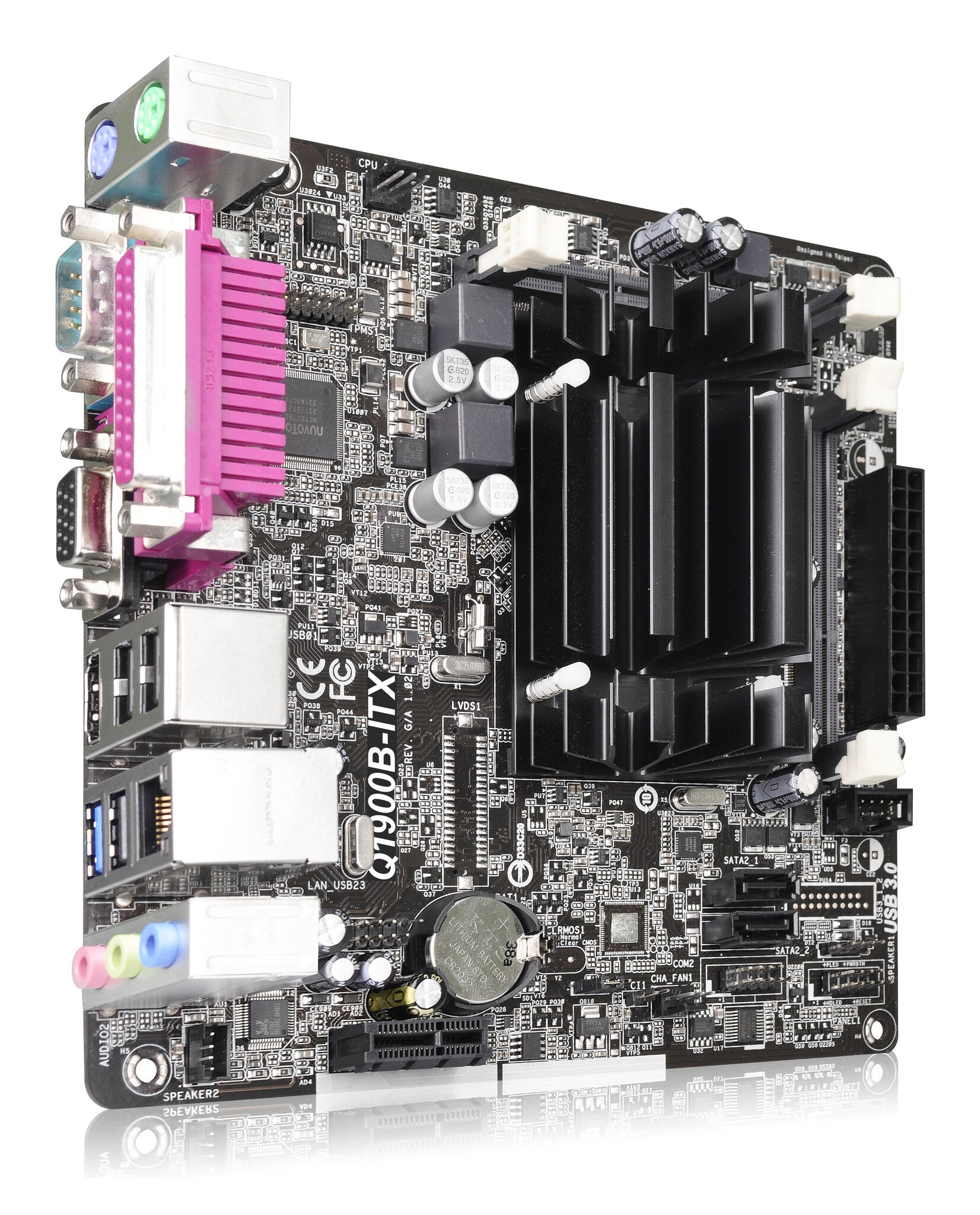

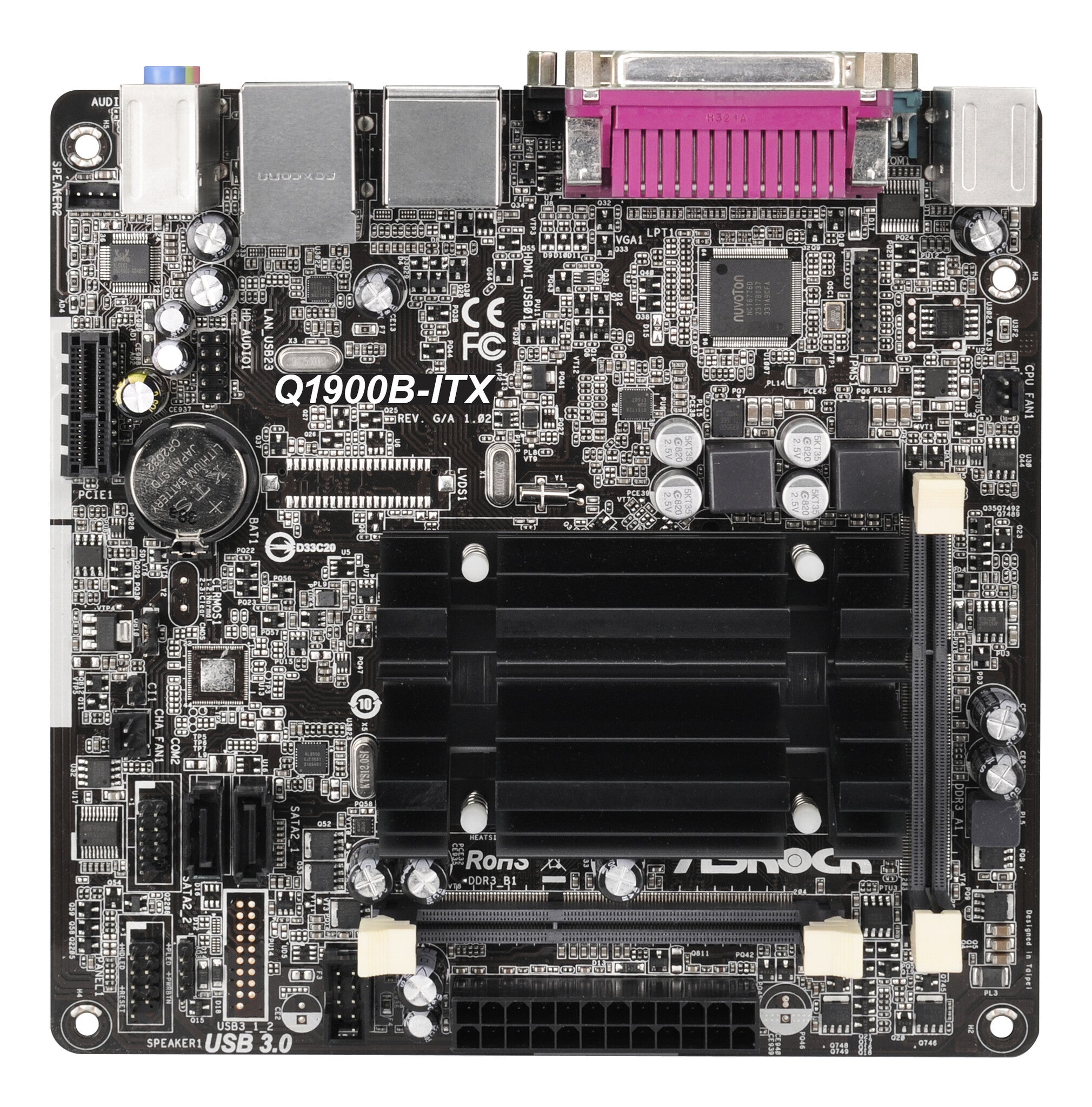

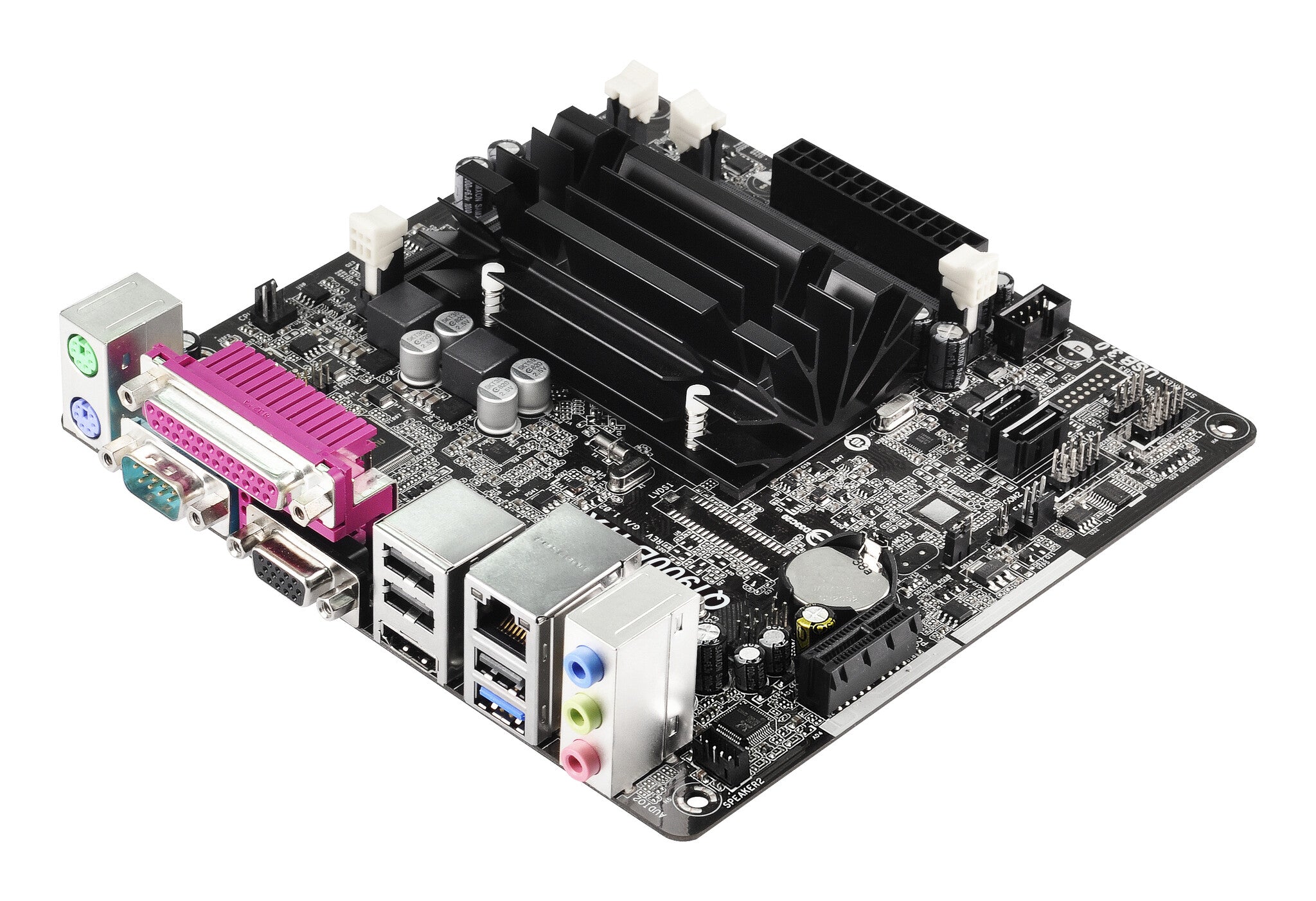

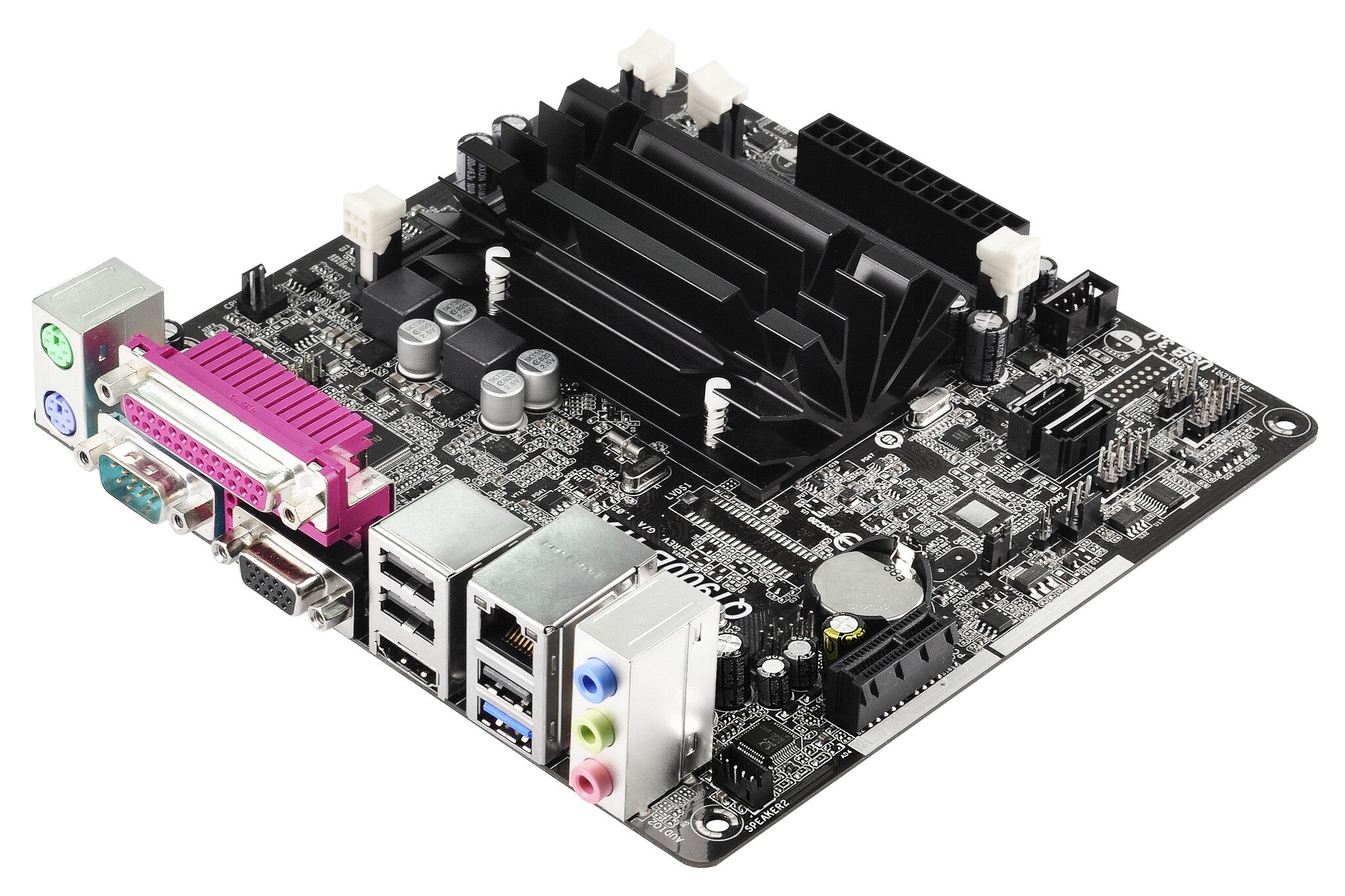

Asrock Q1900B-ITX motherboard mini ITX
£87.99
Couldn't load pickup availability
- Intel J1900
- Mini PC mini ITX Realtek ALC662 5.1 channels
- DDR3-SDRAM 2 SO-DIMM Maximum internal memory: 16 GB
- SATA II
- Intel HD Graphics
- BIOS type: UEFI AMI 64 Mbit ACPI version: 1.1
| Processor | |
|---|---|
| Processor model | J1900 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 16 GB |
| Supported memory clock speeds | 1066,1333 MHz |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR3-SDRAM |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | SATA II |
| Graphics | |
|---|---|
| DirectX version | 11 |
| HDCP | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Graphics card | HD Graphics |
| Graphics card family | Intel |
| Internal I/O | |
|---|---|
| TPM connector | Yes |
| Chassis intrusion connector | Yes |
| Number of chassis fan connectors | 1 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| Number of SATA connectors | 2 |
| Number of SATA II connectors | 2 |
| USB 2.0 connectors | 1 |

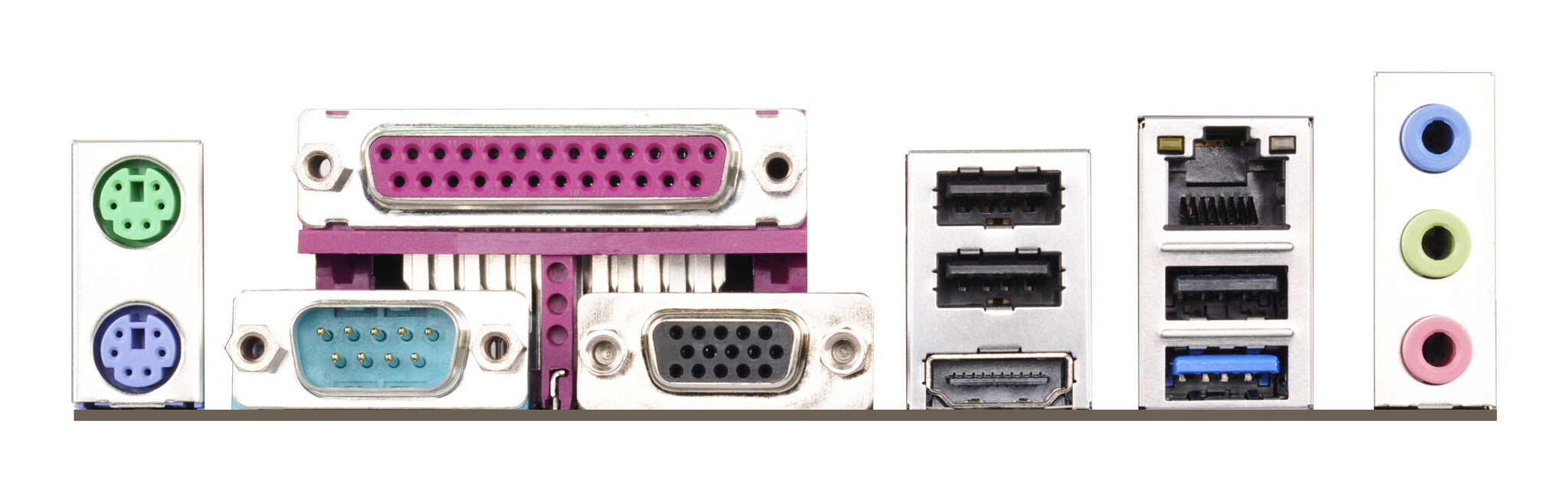

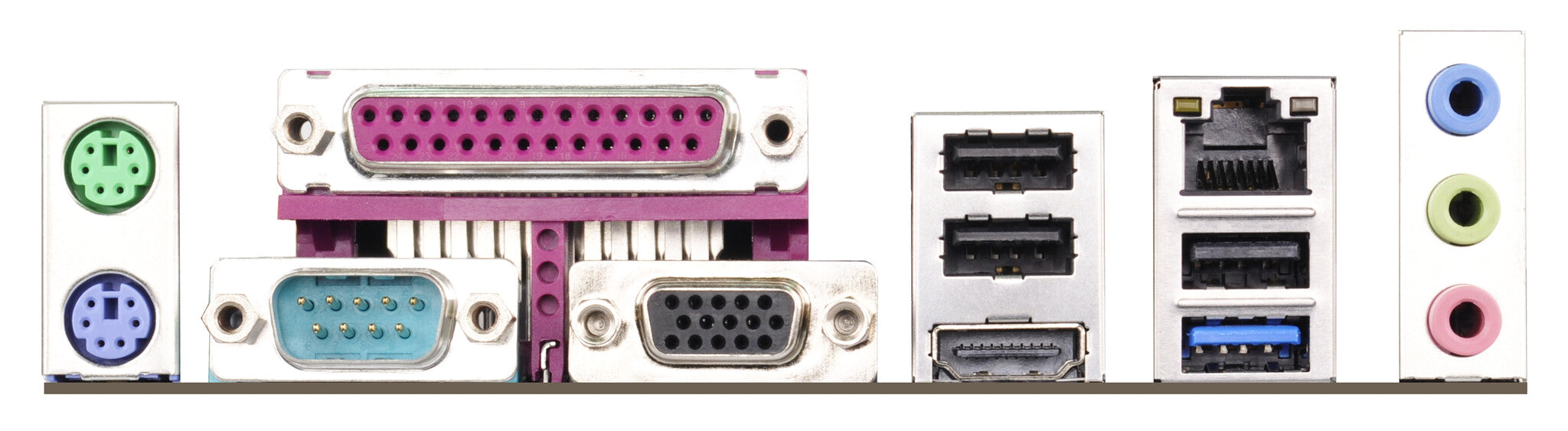

| Rear panel I/O ports | |
|---|---|
| Serial ports quantity | 1 |
| Parallel ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 3 |
| Network | |
|---|---|
| Bluetooth | No |
| Wake-on-LAN ready | Yes |
| LAN controller | Realtek RTL8111GR |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Certification | - FCC, CE, WHQL- ErP/EuP ready |
| Windows operating systems supported | Yes |
| Power source type | ATX |
| Audio output channels | 5.1 channels |
| Audio chip | Realtek ALC662 |
| Motherboard chipset family | Intel |
| Motherboard form factor | mini ITX |
| Component for | Mini PC |
| Expansion slots | |
|---|---|
| PCI Express x1 slots | 1 |
| BIOS | |
|---|---|
| ACPI version | 1.1 |
| BIOS memory size | 64 Mbit |
| BIOS type | UEFI AMI |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Packaging content | |
|---|---|
| Trial software | AntiVirus Software, Start8 |
| Drivers included | Yes |
| Cables included | SATA |
| Other features | |
|---|---|
| Quick installation guide | Yes |
