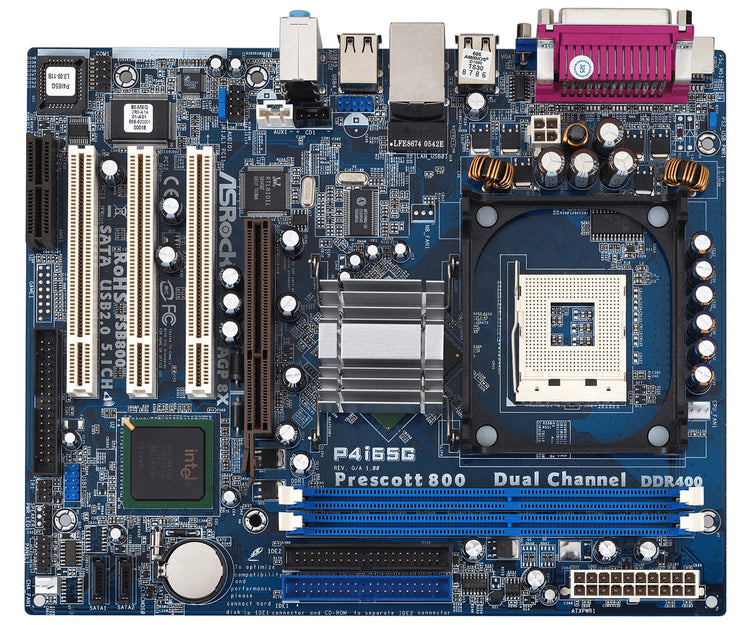

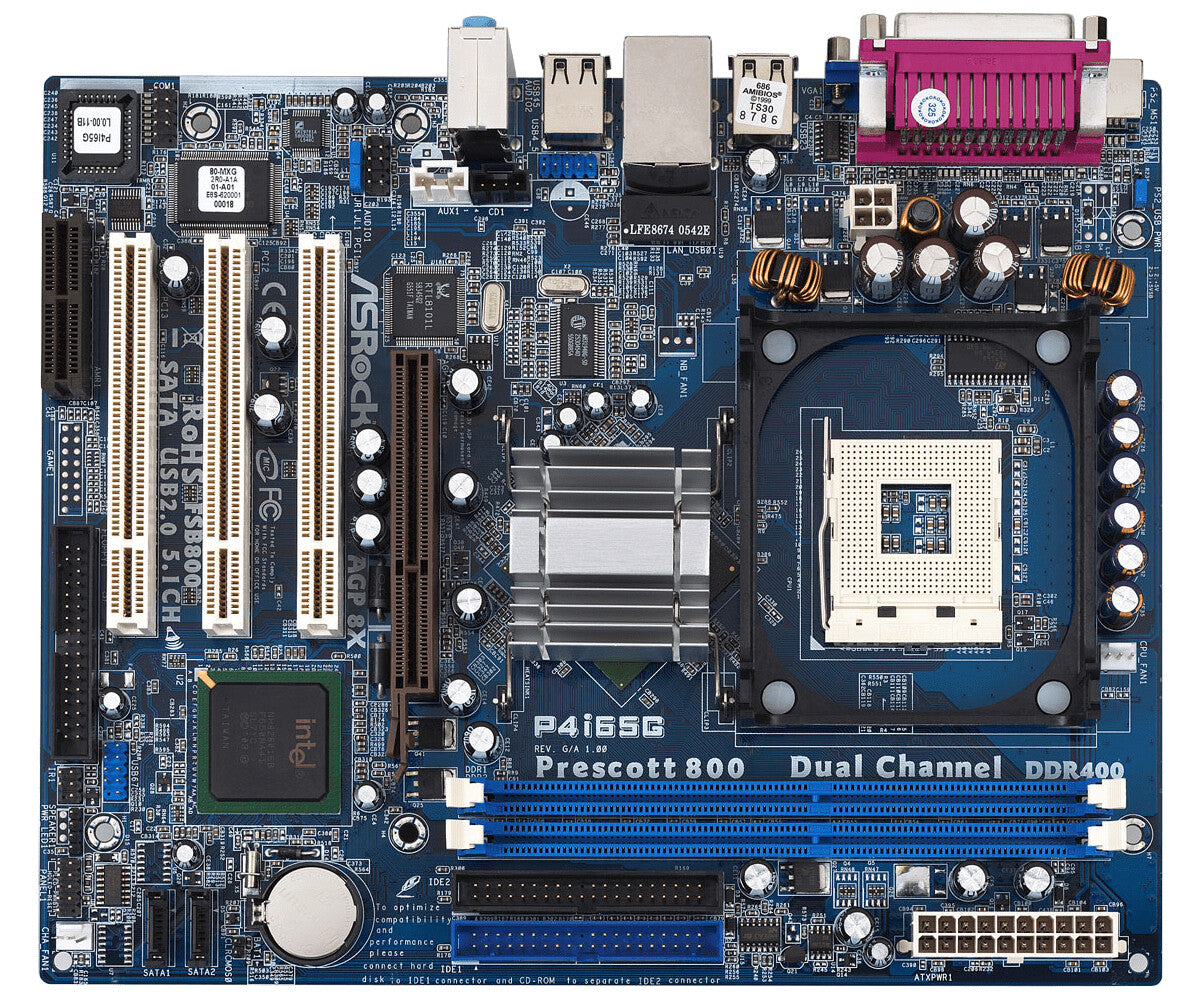

Asrock P4i65G Intel® 865G Socket 478 micro ATX
£79.99
Couldn't load pickup availability
- Intel Socket 478 Intel® Celeron® D, Intel® Pentium® 4
- PC micro ATX Intel® 865G 5.1 channels
- DDR-SDRAM DIMM Maximum internal memory: 2 GB
- Parallel ATA, SATA
- Intel 64
- BIOS type: AMI 32 Mbit ACPI version: 1.1
- Fast Ethernet
- FSB800/533MHz processor, and H-T Technology
- Supports Dual Channel DDR400 (DDR x 2 DIMMs)
- Untied Overclocking : During Overclocking, FSB enjoys better margin due to fixed AGP/ PCI Buses
- 1 x AGP 8X slot
- Supports Integrated Intel Extreme Graphics 2 and DirectX 8.0
- Hybrid Booster - Safe Overclocking Technology
- 2 ports of SerialATA 1.5Gb/s, 2 ATA100 IDE ports
- 5.1 Channel Audio, 10/100 Ethernet LAN
- ASRock I/O Plus: 6 ready-to-use USB2.0 ports
| Processor | |
|---|---|
| Processor system buses supported | 400,533,800 MHz |
| Compatible processor series | Intel® Celeron® D, Intel® Pentium® 4 |
| Processor socket | Socket 478 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 2 GB |
| Supported memory clock speeds | 266,333,400 MHz |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Supported memory types | DDR-SDRAM |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | Parallel ATA, SATA |
| Graphics | |
|---|---|
| DirectX version | 8.0 |
| Graphics card family | Intel |
| On-board graphics card | Yes |
| Parallel processing technology support | Not supported |
| Maximum graphics card memory | 64 MB |
| Internal I/O | |
|---|---|
| Number of COM connectors | 1 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Chassis intrusion connector | Yes |
| Number of chassis fan connectors | 1 |
| CPU fan connector | Yes |
| Number of EATX power connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| CD/AUX audio in | Yes |
| Front panel audio connector | Yes |
| Number of Parallel ATA connectors | 2 |
| Number of SATA connectors | 2 |
| USB 2.0 connectors | 2 |
| Rear panel I/O ports | |
|---|---|
| Parallel ports quantity | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 6 |
| Network | |
|---|---|
| LAN controller | Realtek RTL8101L |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Cooling type | Passive |
| Power source type | ATX |
| Audio output channels | 5.1 channels |
| Motherboard southbridge | Intel ICH5 |
| Motherboard chipset | Intel® 865G |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| PCI slots | 3 |
| BIOS | |
|---|---|
| ACPI version | 1.1 |
| BIOS memory size | 32 Mbit |
| BIOS type | AMI |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
|---|---|
| Depth | 198 mm |
| Width | 244 mm |
| Packaging content | |
|---|---|
| Drivers included | Yes |
| Cables included | SATA |
| Other features | |
|---|---|
| Floppy disk drive connector | Yes |
| AGP x8 slots | 1 |
| Audio Modem Rise (AMR) slot | Yes |
| Quick installation guide | Yes |
