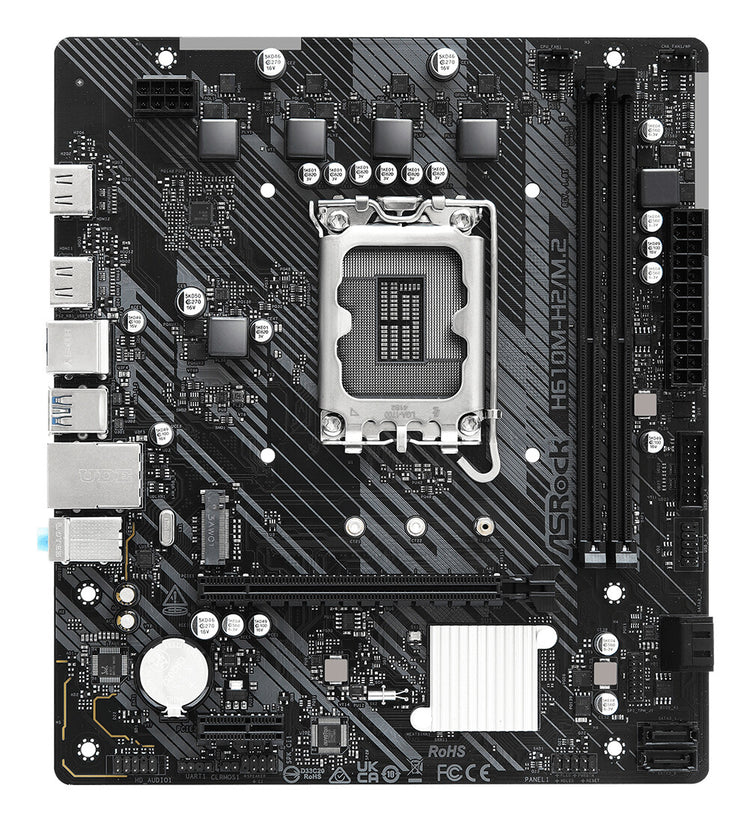

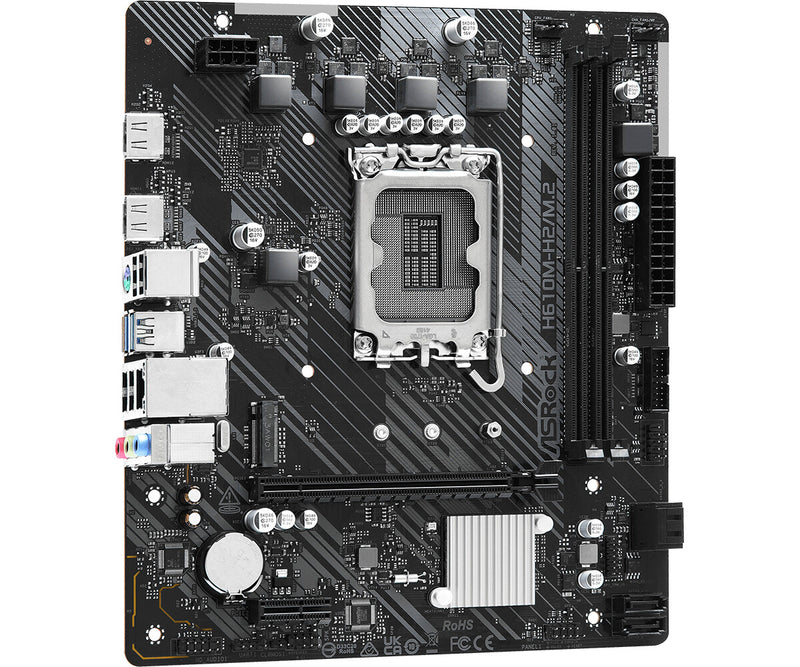

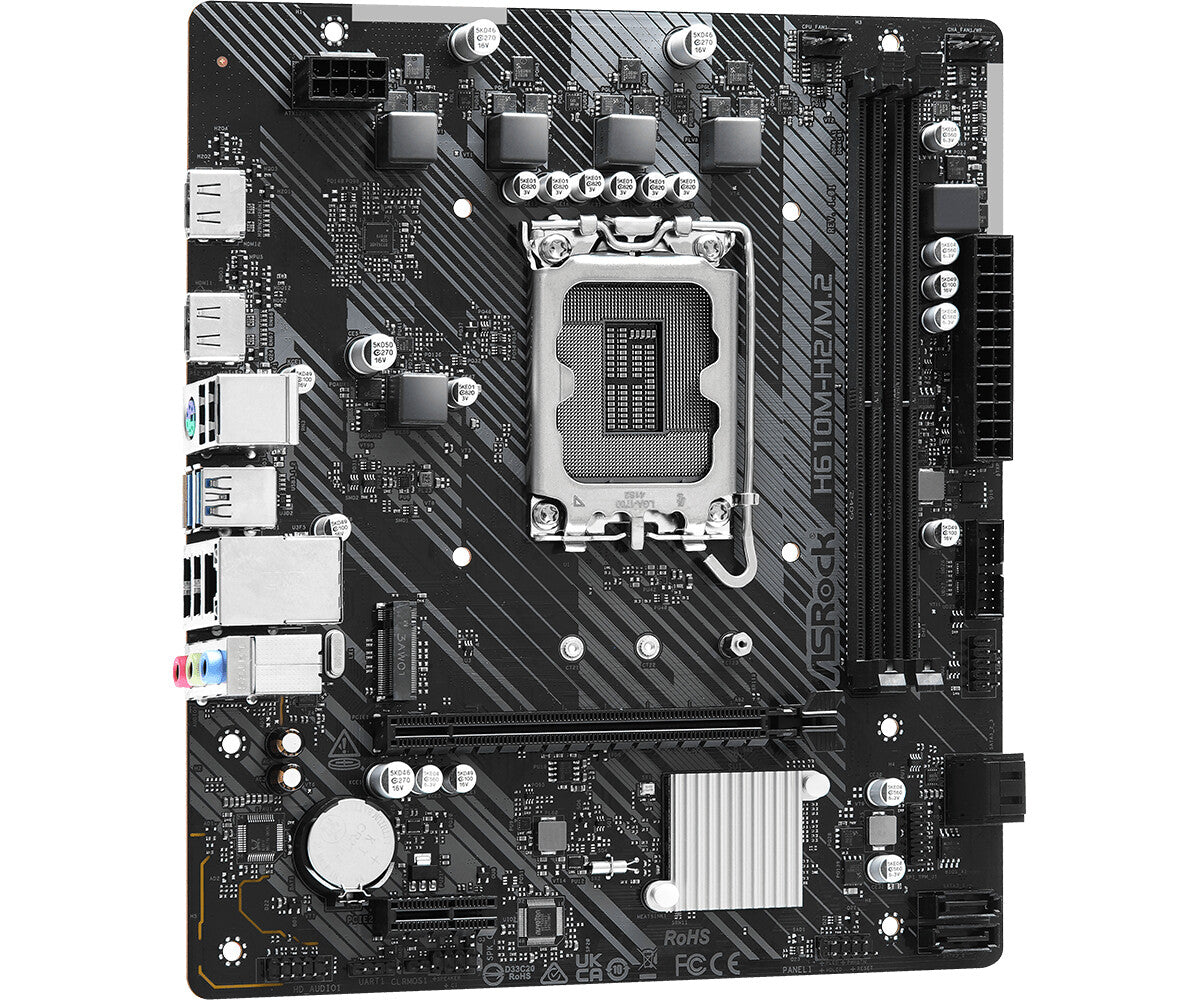

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• 3+1+1 Phase Power Design
• 2 x DDR4 DIMMs
• Supports Dual Channel, up to 3200
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
• Graphics Output Options: 2 HDMI
• Realtek ALC897 7.1 CH HD Audio Codec
• 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
• 4 USB 3.2 Gen1 (2 Rear, 2 Front)
• 6 USB 2.0 (4 Rear, 2 Front)
• Realtek Gigabit LAN
• Supports ASRock Auto Driver Installer

Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.

Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
- step1: Install Auto Driver Installer
- step2: Update drivers needed
- step3: Done!

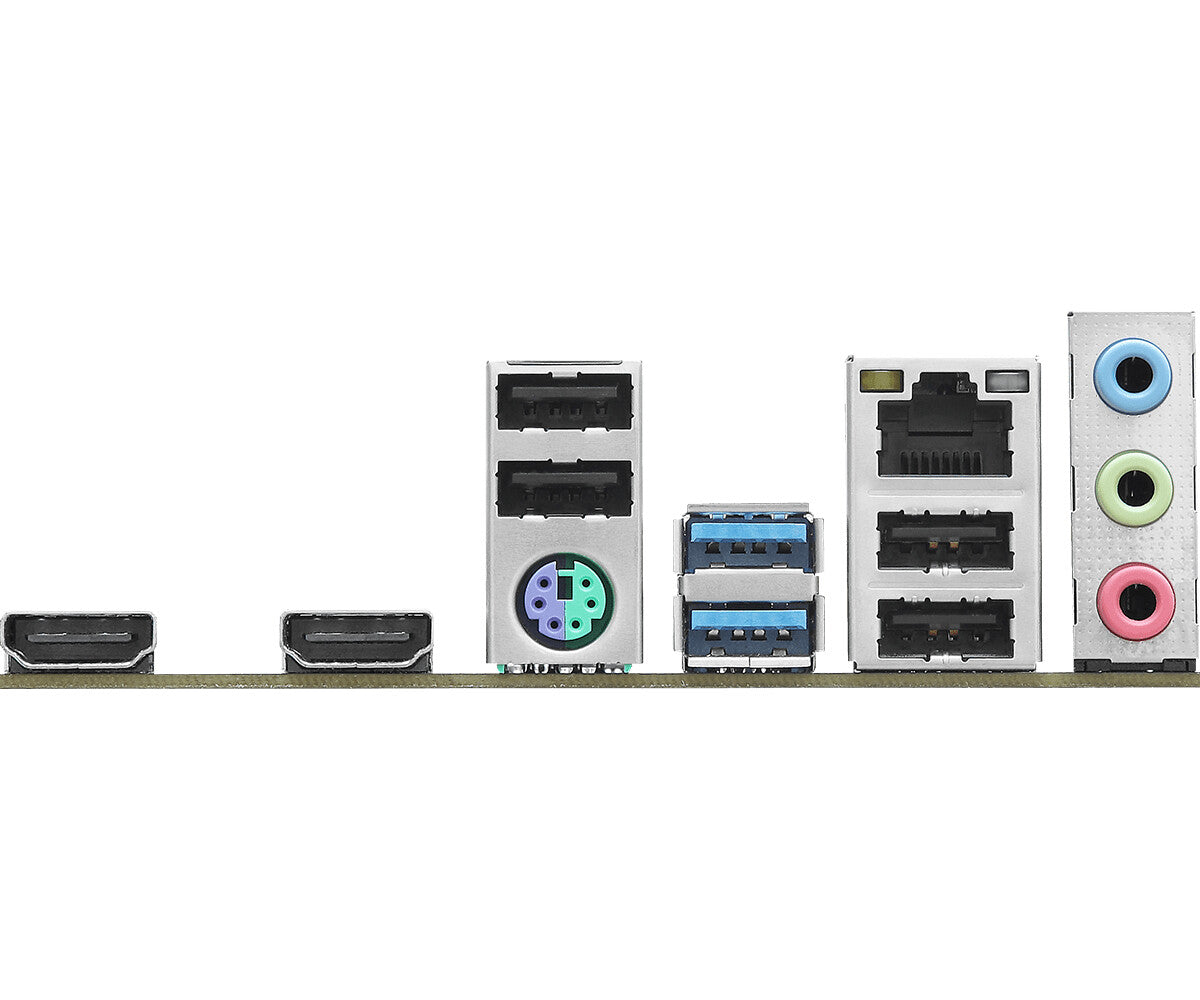

Dual HDMI Outputs
Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.

HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
