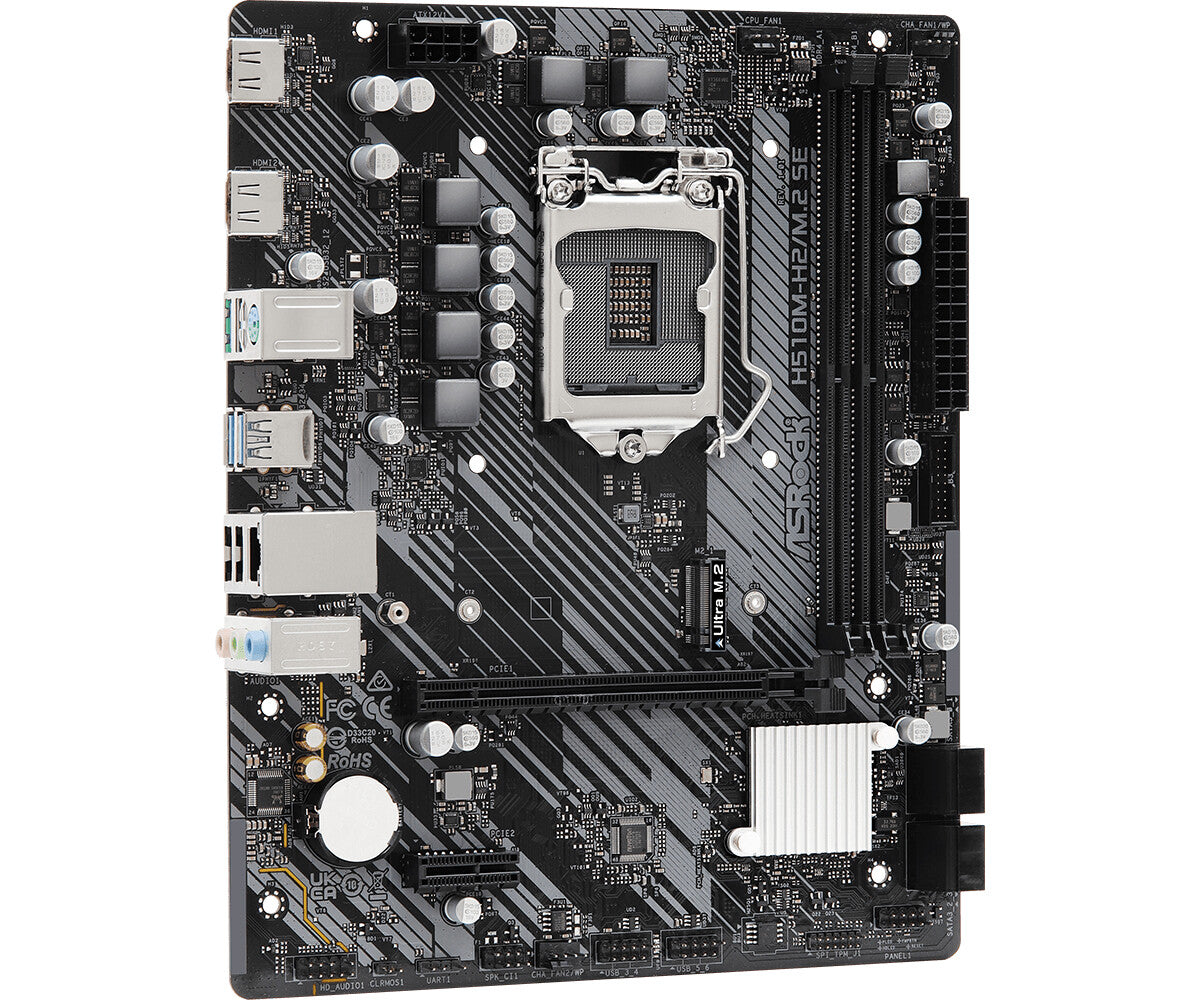

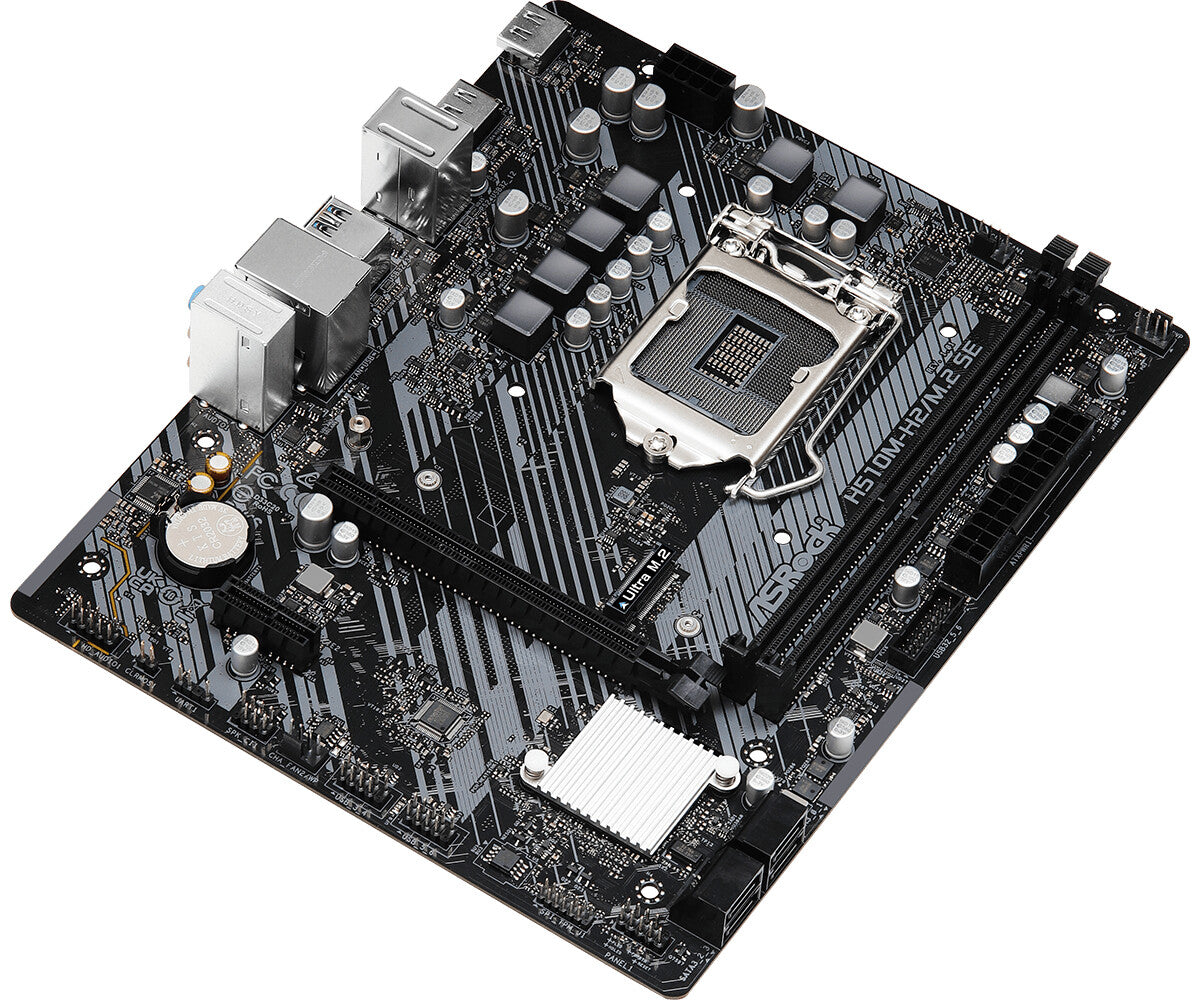

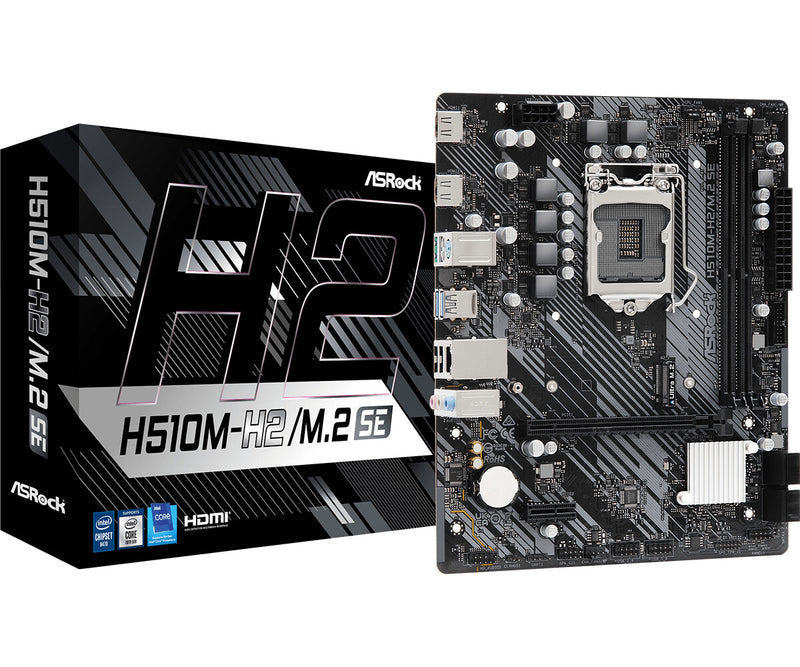

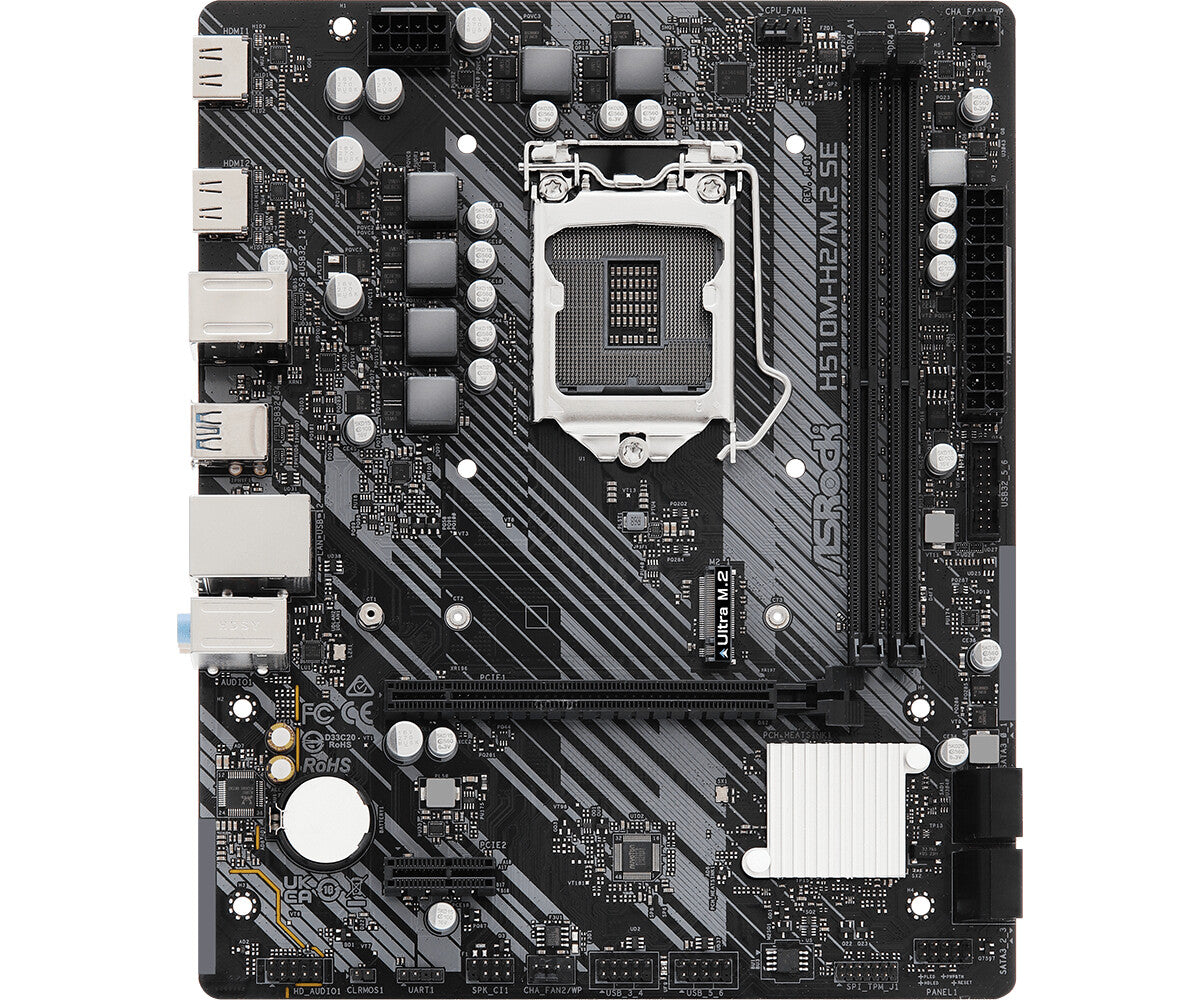

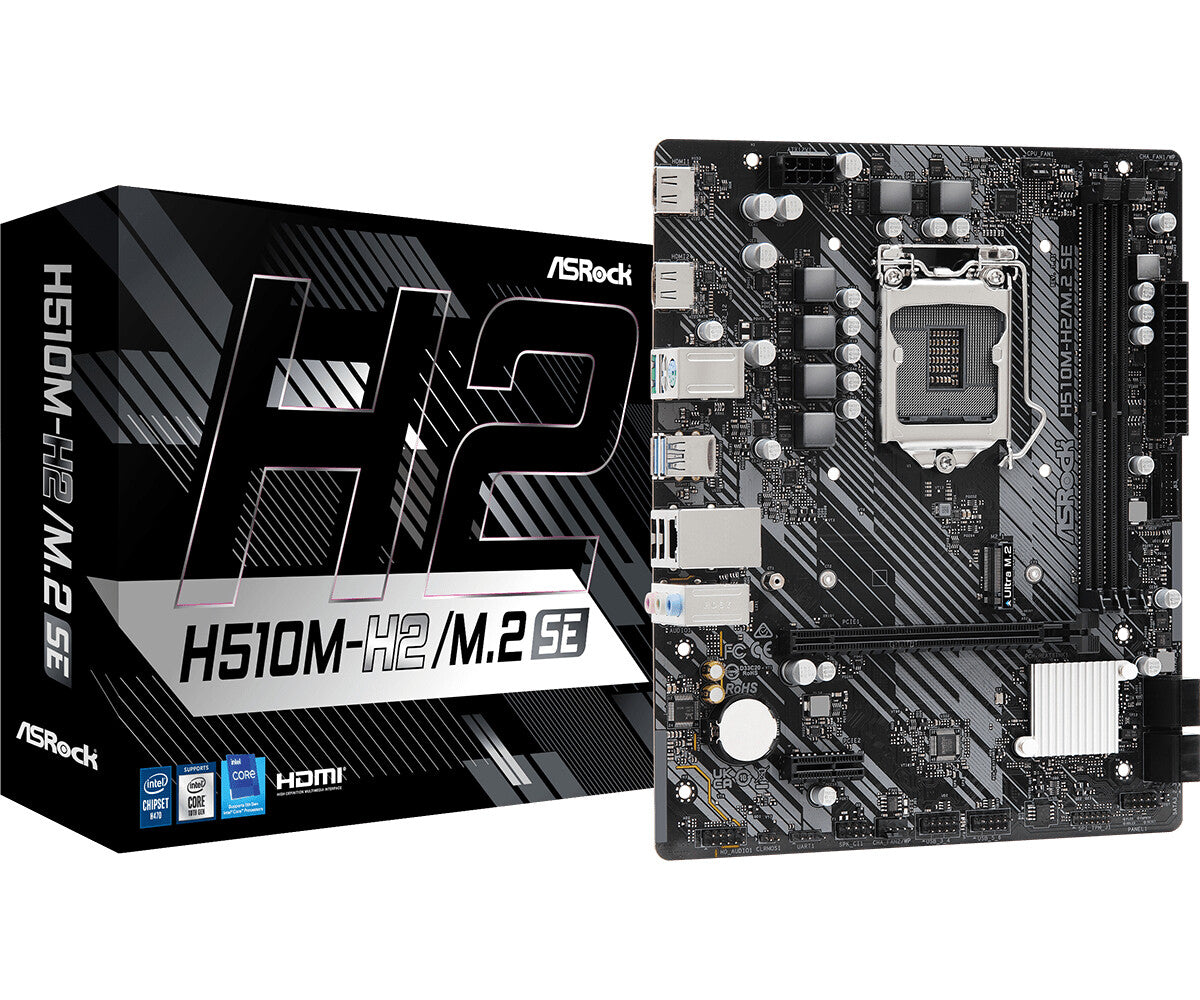

Asrock H510M-H2/M.2 SE Intel H470 LGA 1200 (Socket H5) micro ATX
Couldn't load pickup availability
- Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200)
- 4 Power Phase Design
- Supports DDR4 3200 MHz*
- Intel® H470 Chipset
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: 2 HDMI
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 6 USB 3.2 Gen1 (4 Rear, 2 Front)
- 6 USB 2.0 (2 Rear, 4 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer
Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
Dual HDMI Outputs
Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
- step1: Install Auto Driver Installer
- step2: Update drivers needed
- step3: Done!
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
| Processor | |
|---|---|
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket | LGA 1200 (Socket H5) |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3200 MHz |
| ECC сompatibility | ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| TPM connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |

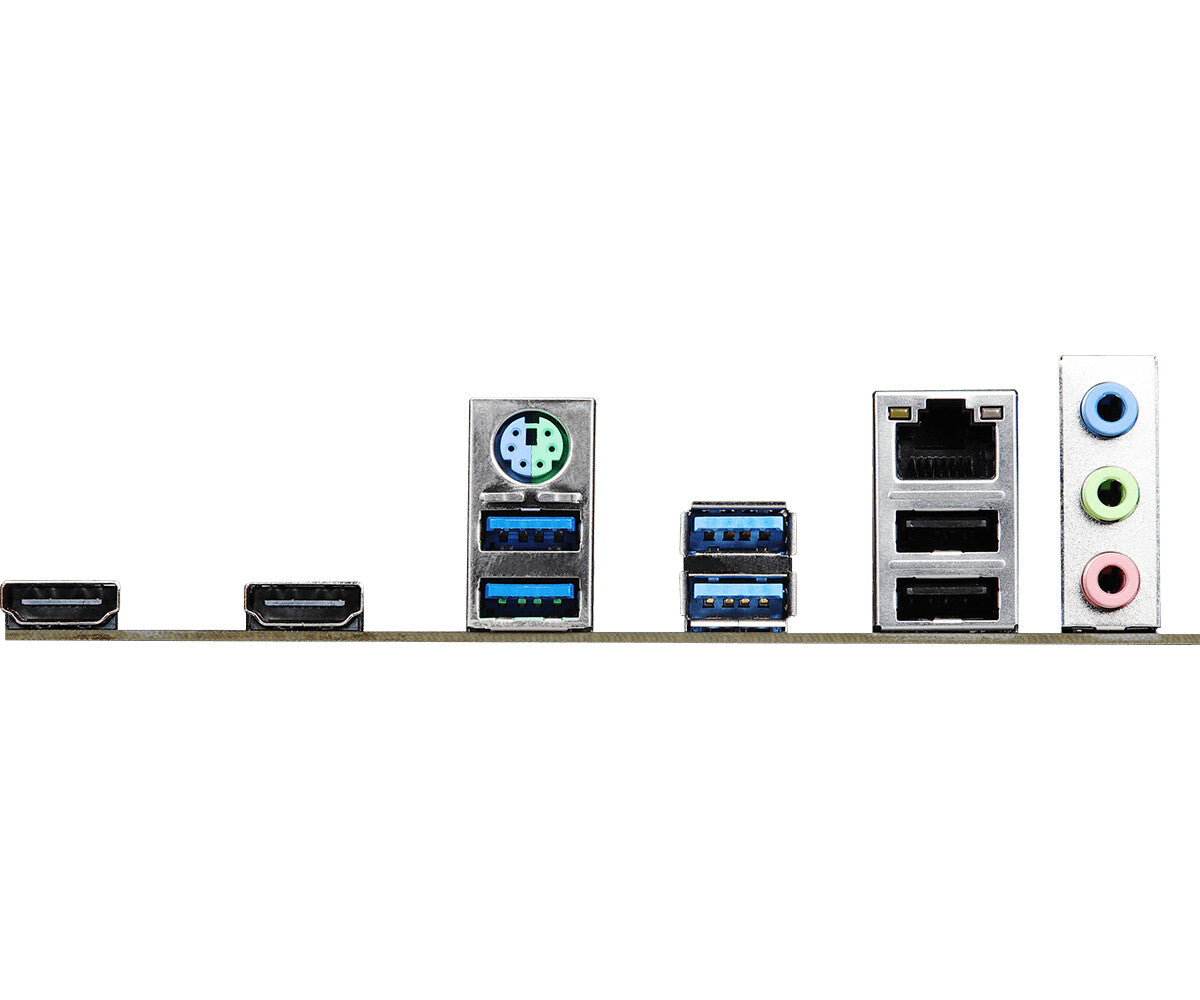

| Rear panel I/O ports | |
|---|---|
| Microphone in | Yes |
| Line-in | Yes |
| HDMI ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi | No |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Motherboard chipset | Intel H470 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| BIOS | |
|---|---|
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Weight & dimensions | |
|---|---|
| Depth | 187 mm |
| Width | 231 mm |
| Packaging content | |
|---|---|
| Screws included | Yes |
| Cables included | SATA |
