Asrock B250M-HDV Intel® B250 LGA 1151 (Socket H4) micro ATX
£77.99
Couldn't load pickup availability
- Intel LGA 1151 (Socket H4) Intel® Celeron®, Intel® Pentium®
- PC micro ATX Intel® B250 7.1 channels
- DDR4-SDRAM 2 DIMM Maximum internal memory: 32 GB
- 1024
- BIOS type: UEFI AMI 128 Mbit ACPI version: 6.0
| Processor | |
|---|---|
| Intel Core i3/i5/i7/i9 series | i3-6xxx, i5-6xxx, i7-6xxx |
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Processor socket | LGA 1151 (Socket H4) |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 32 GB |
| Supported memory clock speeds | 2133,2400 MHz |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR4-SDRAM |
| Graphics | |
|---|---|
| DirectX version | 12.0 |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum graphics card memory | 1024 MB |
| Internal I/O | |
|---|---|
| Number of chassis fan connectors | 2 |
| Power fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of SATA III connectors | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |

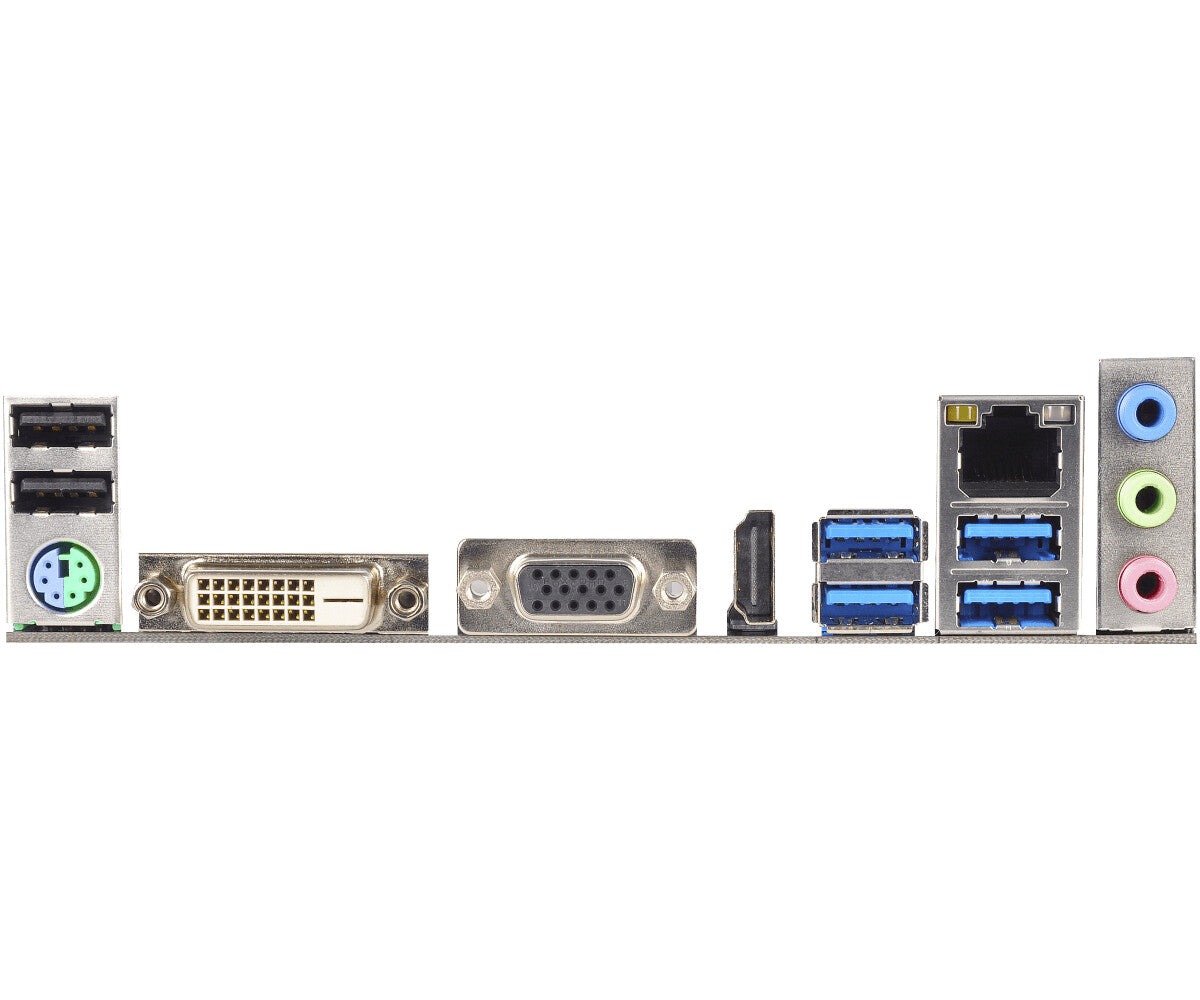

| Rear panel I/O ports | |
|---|---|
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |
| LAN controller | Intel® I219-V |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Certification | FCC, CE, WHQL |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise x64, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64 |
| Power source type | ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel® B250 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| BIOS | |
|---|---|
| ACPI version | 6.0 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Processor special features | |
|---|---|
| Intel® Optane™ Memory Ready | Yes |
| Intel Extreme Memory Profile (XMP) | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
|---|---|
| Depth | 183 mm |
| Width | 226 mm |
| Packaging content | |
|---|---|
| Bundled software | APP Charger, XFast LAN |
| Cables included | SATA |
| Other features | |
|---|---|
| Azalia Digital Header (ADH) connector | No |
