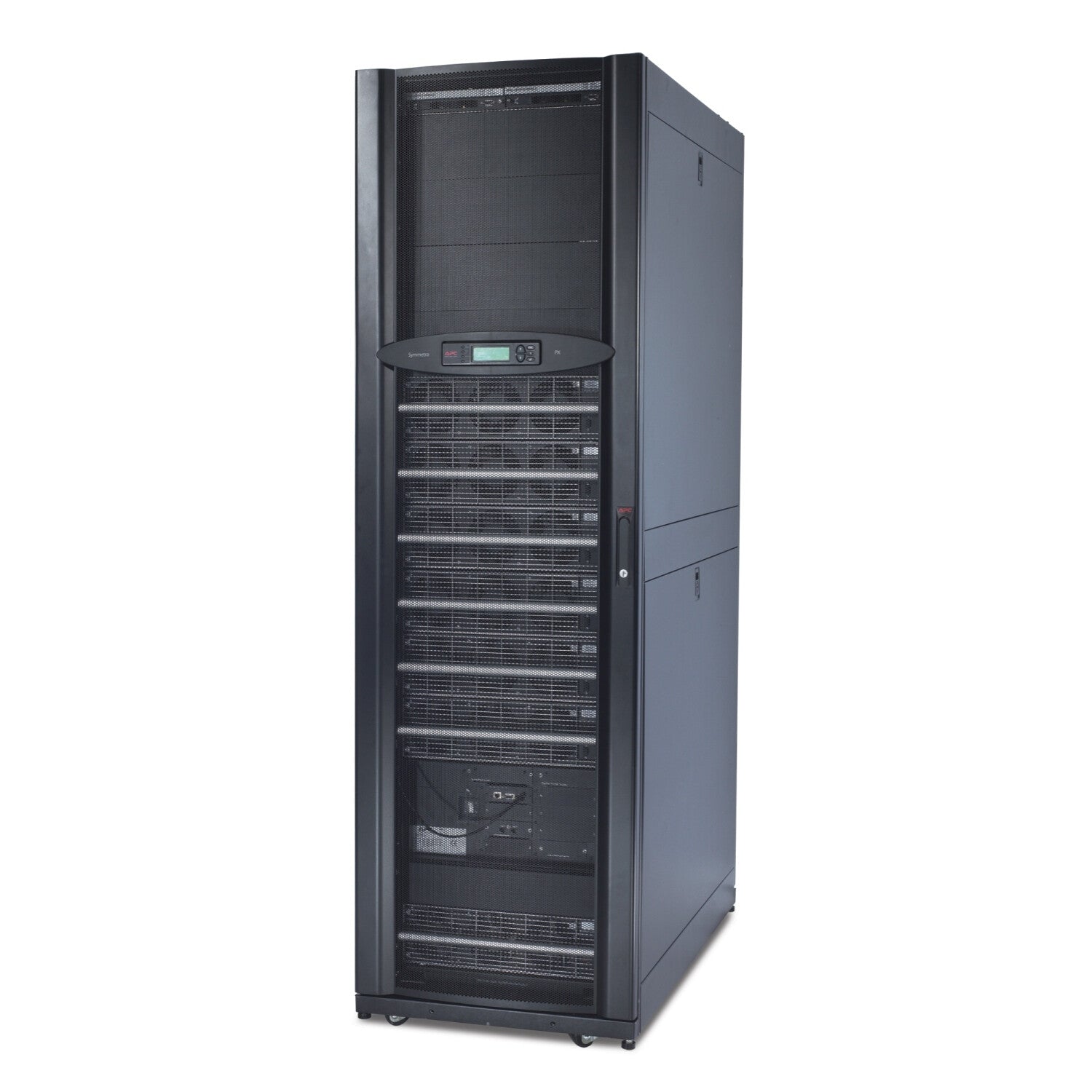

APC SY96K160H-NB uninterruptible power supply (UPS) Double-conversion (Online) 160 kVA 160000 W
£39,886.99
Couldn't load pickup availability
- Double-conversion (Online)
- 160 kVA 160000 W
- Waveform: Sine
- Tower Black
SY96K160H-NB Features
- Symmetra PX 96kW Scalable to 160kW, without Bypass, Distribution, or Batteries, 400V
- A high-efficiency, modular 3-phase UPS that offers internal redundancy for your data center requirements. With scalable power, this UPS grows with your data center up to 160kW/kVA. Pair with the Classic Battery Cabinet and the Wall-Mount or 300mm Maintenance Bypass Panel to complete your power protection solution. Please click here for Classic Battery Cabinet runtime information. Suitable for small to medium data centers or individual zones of large data centers.
- Includes: Network Management Card, Start-Up Service, User Manual
| Features | |
|---|---|
| Audible alarm modes | Alarm when on battery, Low battery alarm |
| Audible alarm(s) | Yes |
| Power protection features | Overload, Short circuit |
| Noise level | 63 dB |
| Input current Total Harmonic Distortion (THD) | 5% |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Emergency Power Off (EPO) | Yes |
| Input power factor | 0.99 |
| Efficiency | 95% |
| Number of output phases | 3 |
| Maximum current | 197 A |
| Output frequency regulation | +/- 3 Hz |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 415 V |
| Output operation voltage (min) | 230 V |
| Input frequency | 40/70 Hz |
| Input operation voltage (max) | 477 V |
| Input operation voltage (min) | 340 V |
| Waveform | Sine |
| Output power | 160000 W |
| Output power capacity | 160 kVA |
| UPS topology | Double-conversion (Online) |
| Ports & interfaces | |
|---|---|
| SmartSlot | Yes |
| RS-232 ports | 1 |
| AC outlet types | Hard Wire 5-wire (3PH + N + G) |
| Design | |
|---|---|
| International Protection (IP) code | IP20 |
| LED indicators | Yes |
| Display type | LCD |
| Rack capacity | 42U |
| Product colour | Black |
| Form factor | Tower |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 1000 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Certification | EN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, ISO 14001, ISO 9001, VFI-SS-111 |
| Packaging content | |
|---|---|
| Manual | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 496 kg |
| Height | 1991 mm |
| Depth | 1070 mm |
| Width | 600 mm |
| Packaging data | |
|---|---|
| Package weight | 547 kg |
| Package height | 2140 mm |
| Package depth | 1210 mm |
| Package width | 848 mm |
