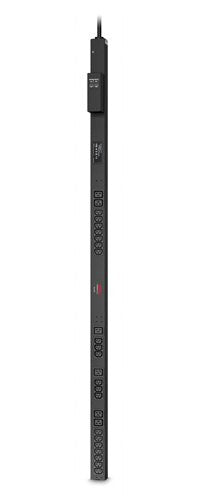

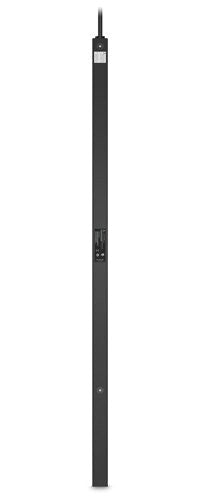

APC AP6009A power distribution unit (PDU) 26 AC outlet(s) Black
Couldn't load pickup availability
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
| Design | |
|---|---|
| Product colour | Black |
| Mounting | Vertical |
| PDU types | Basic |
| Ports & interfaces | |
|---|---|
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | IEC309 |
| AC outlets quantity | 26 AC outlet(s) |
| Features | |
|---|---|
| Cable length | 3.05 m |
| Power | |
|---|---|
| Power protection features | Overload |
| Nominal output voltage | 230 V |
| Maximum current | 32 A |
| AC input frequency | 50 - 60 Hz |
| Nominal input voltage | 230 V |
| Certificates | |
|---|---|
| Certification | CE, EAC, IRAM, VDE, REACH |
| Compliance certificates | RoHS |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -15 - 65 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 6.18 kg |
| Height | 1626 mm |
| Depth | 43 mm |
| Width | 56 mm |
| Packaging data | |
|---|---|
| Package height | 1875 mm |
| Package depth | 135 mm |
| Package width | 226 mm |
| Package weight | 8 kg |
