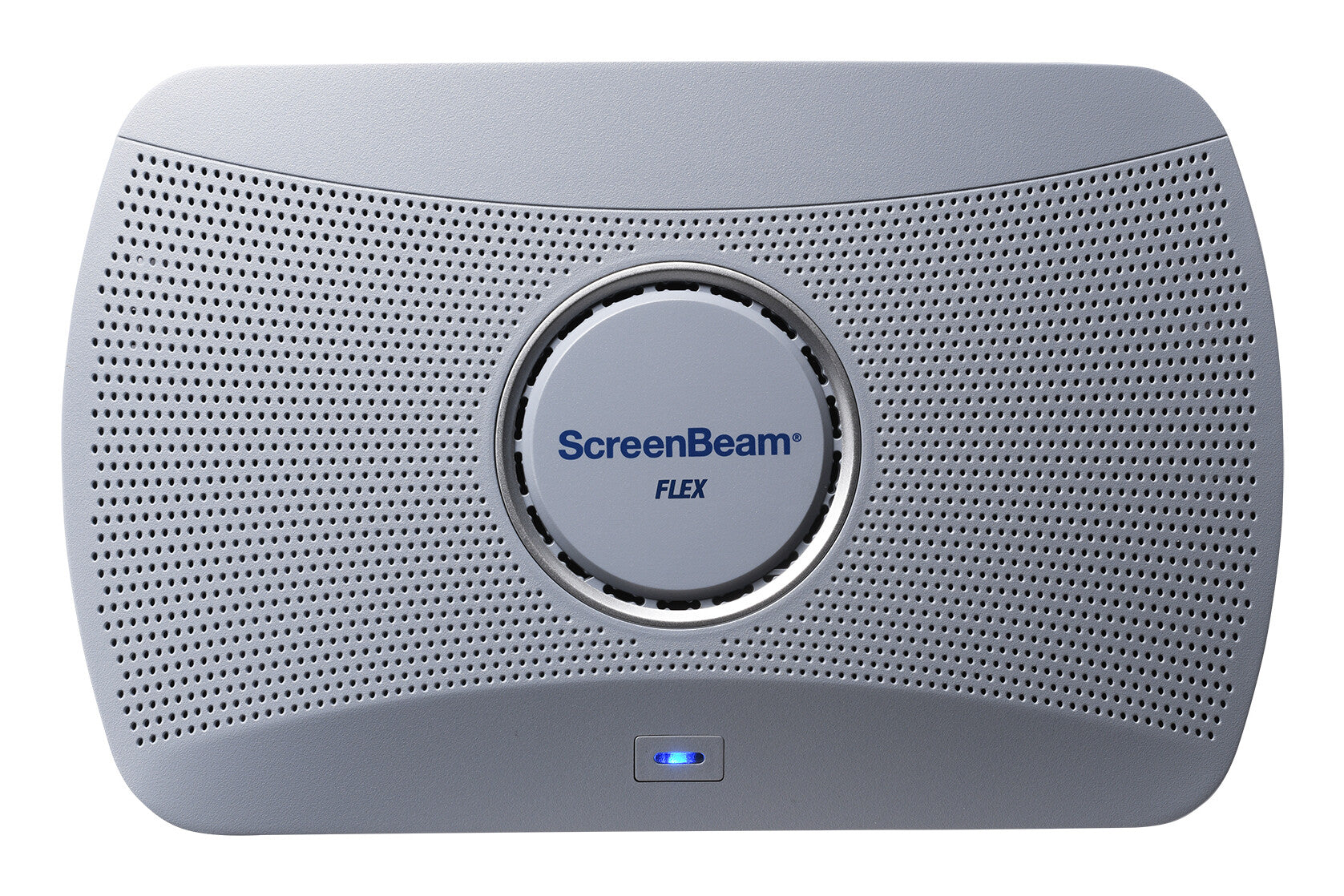

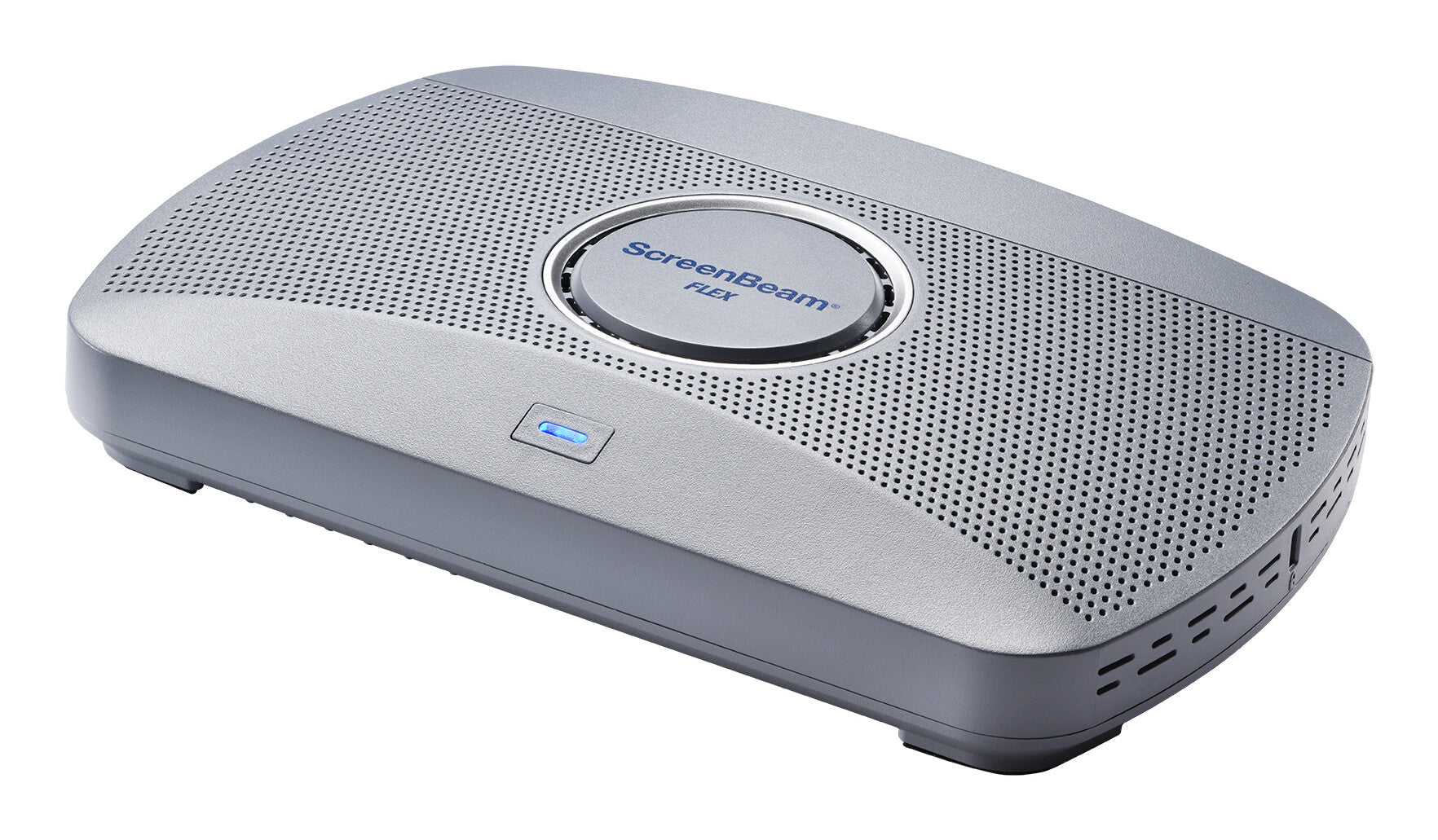

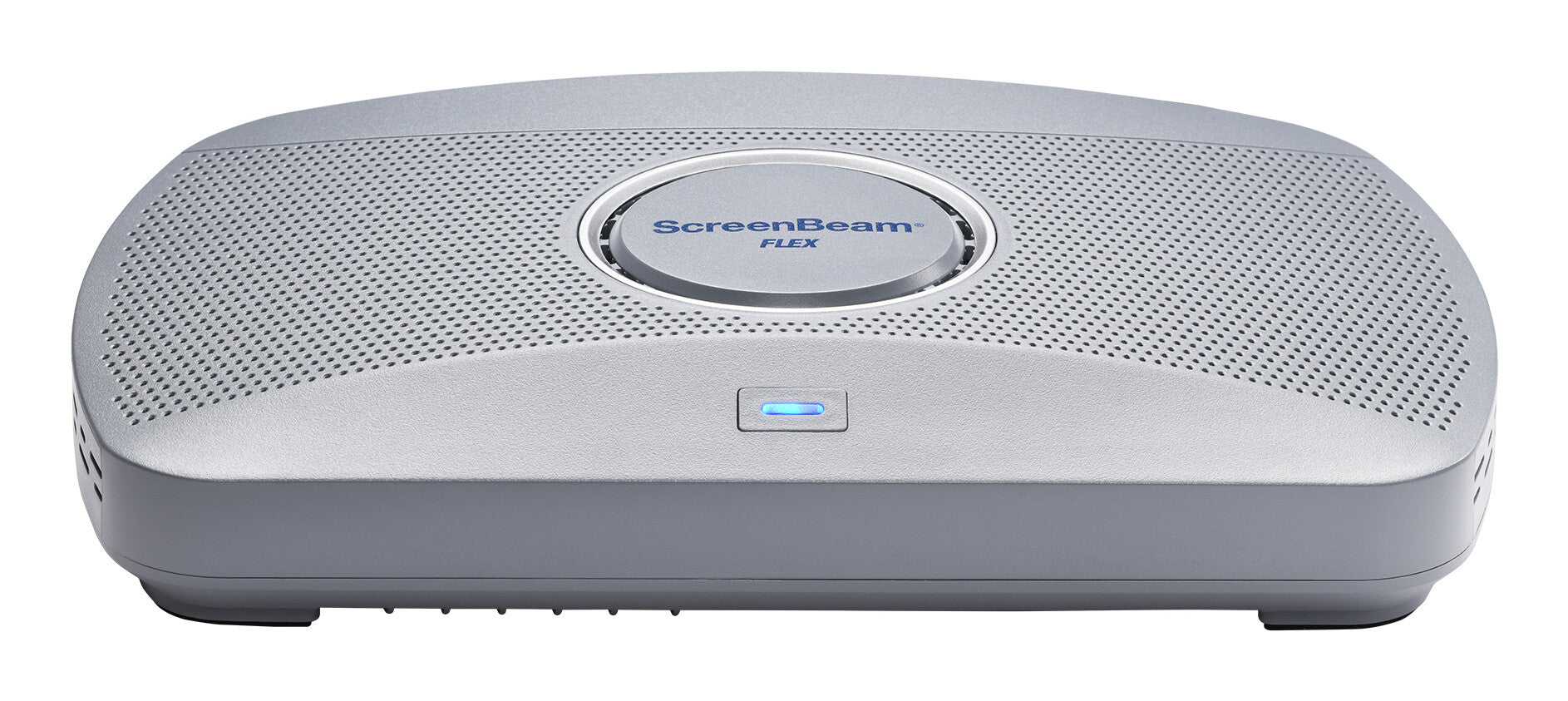

ScreenBeam Flex wireless presentation system HDMI + USB Type-A Desktop
Couldn't load pickup availability
ScreenBeam FLEX delivers 4K wireless presentation, multi-user display, touch/inking support, and digital signage—empowering SMBs and higher ed to affordably turn any space into a secure, dynamic collaboration hub.
App-less and dongle-less screen mirroring
Screen sharing from any device without the need to download an app or keep dongle nearby. ScreenBeam leads with OS-native Wi-Fi Miracast, AirPlay and Google Cast for familiarity and mitigate user training.
Extended desktop
Windows and macOS users can mirror desktop or extend screen to ensure content privacy.
Touch display support
Windows users can markup content directly on room displays, instantly capturing changes in Microsoft Office 365 applications.
Multi-Network architecture
No need to choose an internal or external network connection for your wireless display solution. ScreenBeam can connect to both simultaneously, without compromising the security of your internal network.
Multi-View
Up to four presenters in-room can share content simultaneously during a meeting making it easier for real-time editing of materials.
Quick Switch
Presenters do not need to disconnect to allow the next presenter to assume control eliminating time-wasting delays and keeping meetings on track.
Signage Player
Idle displays in classrooms and meeting spaces can be optimized to convey information with integrated HTML-based digital signage capability.
HDMI Input
Combines wireless display and HDMI® switching in a single device for a fully functional for wired and wireless connections.
Centralized Management
ScreenBeam CMS Enterprise included for monitor, manage, and update.
| Design | |
|---|---|
| Certification | FCC, RED, RoHS, UL |
| Product colour | White |
| Form factor | Desktop |
| Features | |
|---|---|
| Miracast | Yes |
| Google Cast | Yes |
| AirPlay mirroring | Yes |
| Network | |
|---|---|
| Supported network protocols | IEEE 802.1x, WPA-PSK (TKIP), WPA2-PSK (AES), PEAP-MSCHAPv2, EAP-TLS |
| Networking standards | IEEE 802.1x |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Dual-band | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |

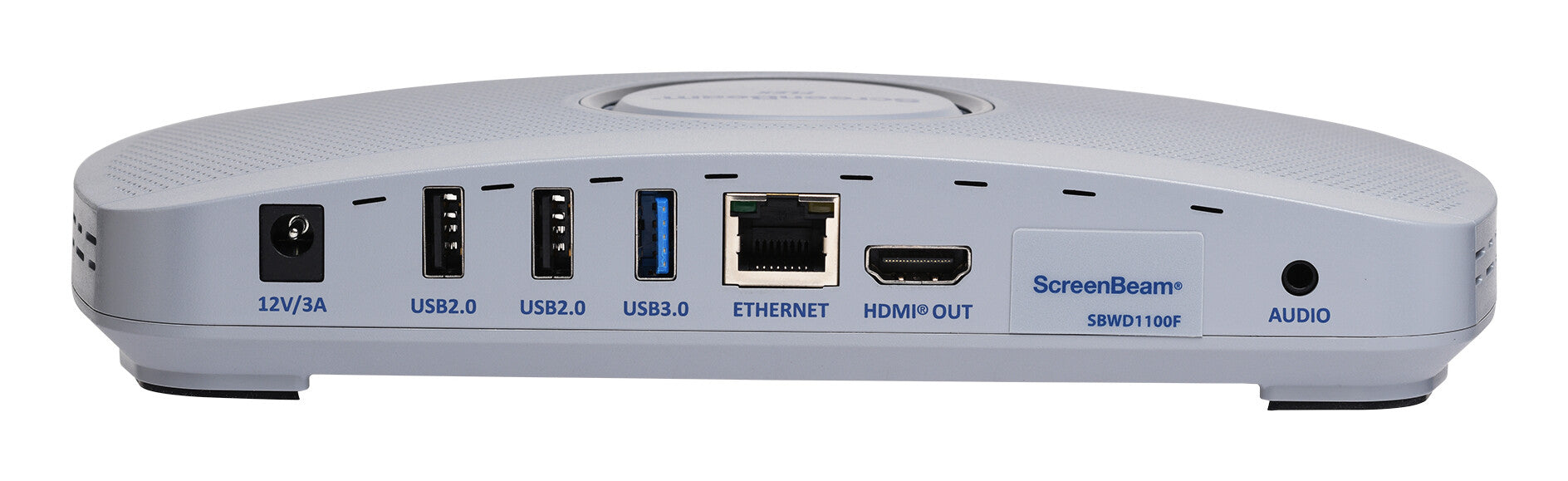

| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of HDMI outputs | 1 |
| Interface | HDMI + USB Type-A |
| Power | |
|---|---|
| Power consumption (typical) | 8.4 W |
| Power consumption (max) | 24.8 W |
| Input current | 3 A |
| Input voltage | 12 DC |
| Power source type | DC |
| System requirements | |
|---|---|
| Mobile operating systems supported | Android 8.0, Android 8.1, Android 9.0, iOS 13, iOS 13.4, iOS 14, iOS 14.5, iOS 15, iOS 16 |
| Other operating systems supported | ChromeOS |
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 11 |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | 20 - 85 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 453.5 g |
| Height | 37.5 mm |
| Depth | 144 mm |
| Width | 220 mm |
| Packaging content | |
|---|---|
| Cables included | HDMI |
