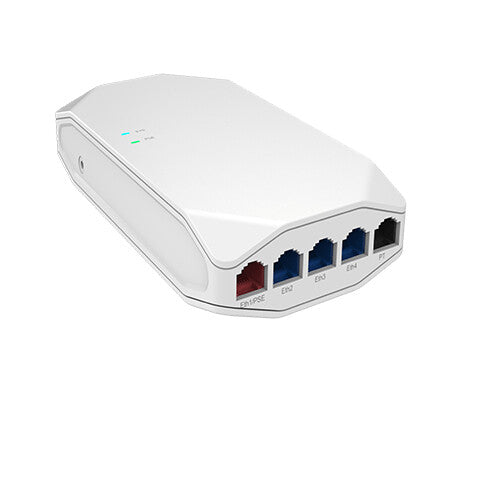

Alcatel-Lucent Enterprise AP1301H 1201 Mbit/s White Power over Ethernet (PoE)

Alcatel-Lucent Enterprise AP1301H 1201 Mbit/s White Power over Ethernet (PoE)

Back to the Office
£5,736.99
Stock Available: 0
  • Delivers enterprise grade security and scales with simplicity.
  • Security is enforced at every step allowing unparalleled scale in network capacity.
  • Cloud enabled with OmniVista Cirrus Network Management as a Service.
  • Powers a secure, resilient, and scalable cloud-based network management platform; Hassle-free network deployment and easy service rollout with advanced analytics.
  • On-premises deployment with OmniVista 2500 Network Management System (NMS).
  • Simplified plug-and-play deployment, zero-touch provisioning, role-based access, a built-in customizable captive portal.
  • Quality of service (QoS) for unified communication apps: supports finely tuned, parameters to differentiate and provide appropriate QoS for each application.
  • RF management: RDA technology automatically assigns channels (DFS) and power settings (TPC) ensures access points stay clear of all radio frequency interference (RFI) sources to deliver reliable, high-performance WLAN.

This versatile Wi-Fi 6 Access Point is designed for vertical industries such as hotels, classrooms, dormitories, clinics, remote office/home office. It provides exceptional connectivity, coverage and performance for end-users.

The OmniAccess Stellar AP1301H is powered with dual radios 2.4Ghz/5Ghz band serving high density Wi-Fi clients. An integrated Bluetooth/Zigbee radio makes it ideal for broad scope of IoT end points and applications like location analytics and building automation.

Features
Bluetooth version 5.0
Bluetooth Yes
Cabling technology 10/100/1000Base-T(X)
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ac
Frequency band 2.400 to 2.4835; 5.150 to 5.250; 5.250 to 5.350; 5.470 to 5.725; 5.725 to 5.850 GHz
Ethernet LAN data rates 10,100,1000 Mbit/s
Maximum data transfer rate 1201 Mbit/s
5 GHz Yes
2.4 GHz Yes
Security
Security algorithms AES, TKIP, WEP, WPA2, WPA3, WPA3-SAE
Ports & interfaces
DC-in jack Yes
USB connector type USB Type-C
USB 2.0 ports quantity 1
Ethernet LAN (RJ-45) ports 5
Power
Power consumption (typical) 25 W
DC voltage range 48 V
Power over Ethernet (PoE) Yes
Design
LED indicators Yes
Reset button Yes
Product colour White
Placement Desk
Antenna
Antenna gain level (max) 4.41 dBi
Antennas quantity 2
Antenna features Integrated antenna
Antenna direction type Omni-directional
Antenna type Internal
Certificates
Certification CB Scheme Safety, cTUVus, Wi-Fi CERTIFIED Wi-Fi 6, Passpoint R3, FCC, CE Marked, EN 60601-1-1 & EN 60601-1-2, RoHS, REACH, WEEE, EMI and susceptibility (Class B), 2014/35/EU Low Voltage Directive, 2014/30/EU EMC Directive, 2011/65/EU RoHS Directive, 2014/53/EU Radio Equipment Directive, EN 55032, IEC/EN 60950 and 62368, EN 300 328, EN 301 893, EN 301 489-1, EN 301 489-17, SRRC, CCC
Weight & dimensions
Weight 320 g
Height 162.5 mm
Depth 29 mm
Width 86 mm
Packaging content
Quantity per pack 1 pc(s)
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 45 °C
Operating relative humidity (H-H) 5 - 95%
