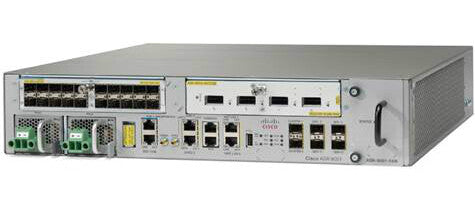

Cisco ASR 9001 wired router Grey

Cisco ASR 9001 wired router Grey

Cisco
£44,648.99
Stock Available: 0

The Cisco ASR 9001 is a compact, high-capacity, provider-edge router that delivers 120 Gbps of nonblocking, full-duplex fabric capacity in a 2-rack-unit (2RU) form factor.

Part of the Cisco ASR 9000 Series, the ASR 9001 is based on the same Cisco IOS XR Software image and delivers the same features and services, allowing customers to standardize on the same Cisco IOS-XR image.

The Cisco ASR 9001 has an integrated route switch processor (RSP) and two modular bays, which support 1 Gigabit Ethernet, 10 Gigabit Ethernet, and 40 Gigabit Ethernet modular port adapters. The base chassis has four integrated 10 Gigabit Ethernet enhanced Small Form-Factor Pluggable (SFP+) ports, a GPS input for Stratum 1 clocking, BITS ports, and management ports.

Network
Ethernet LAN data rates 1000,10000 Mbit/s
Management features
Quality of Service (QoS) support Yes
Ports & interfaces
USB ports quantity 1
Installed SFP modules quantity 4
Protocols
Supported network protocols IPv4, IPv6, L3VPN
Features
Electromagnetic compatibility FCC Class A, ICES 003 Class A, AS/NZS 3548 Class A, CISPR 22 (EN55022) Class A, VCCI Class A, BSMI Class A, IEC/EN 61000-3-2: Power Line Harmonics, IEC/EN 61000-3-3: Voltage Fluctuations and Flicker, EN 50121-4: Railway EMC
Safety UL/CSA/IEC/EN 60950-1, IEC/EN 60825 Laser Safety, ACA TS001, AS/NZS 60950, FDA: Code of Federal Regulations Laser Safety
Design
On/off switch Yes
LED indicators Yes
Rack capacity 2U
Rack mounting Yes
Product colour Grey
Power
AC input frequency 50 - 60 Hz
AC input voltage 90 - 265 V
Power source type AC, DC
Power consumption (typical) 425 W
Operational conditions
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity (H-H) 10 - 85%
Storage temperature (T-T) -5 - 55 °C
Operating temperature (T-T) 5 - 40 °C
Weight & dimensions
Weight 13.7 kg
Height 88.2 mm
Depth 470 mm
Width 442 mm
