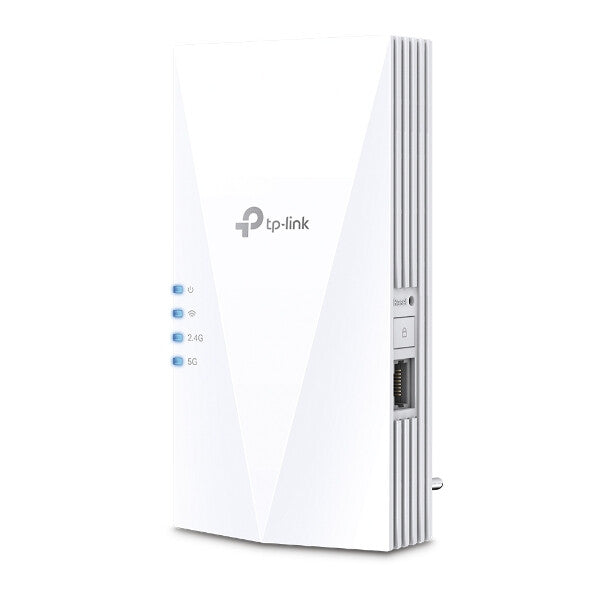

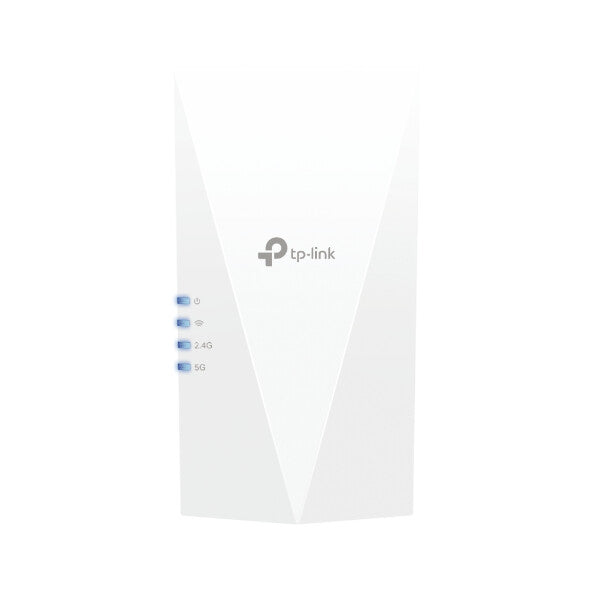

TP-Link RE500X network extender Network transmitter & receiver White 1000 Mbit/s
Couldn't load pickup availability
- RE500X comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion
- Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage
- Gigabit Ethernet Port – Provides faster-wired connections to smart TVs, computers and gaming consoles
- Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
- AP Mode – Creates a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
- TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device
- Ultimate Compatibility – Extends the range of any Wi-Fi router or wireless access point
Eliminate Dead Zones with Powerful WiFi
AX1500 WiFi 6 Range Extender
Life in the fast lane with advanced WiFi6
WiFi 6 comes with it all: faster speeds, lower latency, and more connections. It also features 25% faster data throughput compared with last-gen WiFi thanks to 1024-QAM. With this speed boost, experience high-speed and stable WiFi throughout your rooms.
4 high-performance amplifiers, we got you covered
Enjoy 4K streaming and gaming in whatever room you’re in thanks to RE500X’s 4 high-performance amplifiers. Whether you’re sharing a pad with friends or living in your forever home, RE500X sends out strong signals to those hard-to-cover areas.
Tri-Core 1.5 GHz CPU
Many full-blown routers only have dual-core and below
OneMesh™
Roaming Redefined
Stop searching around for full bars. OneMesh™ is a simple way to form a Mesh network with a single WiFi name for seamless whole-home coverage. Just connect RE500X to an OneMesh™ router.
Wide.
Wider.
Widest.
Keep your internet focused on a single room or blanket an entire floor with WiFi by picking between 3 strength levels on the Tether app.
OFDMA
More efficient data.
Orthogonal Frequency Division Multiple Access helps integrate the data of different end devices for higher efficiency.
Beamforming
Strong, targeted WiFi.
Find the direction of your phone or laptop, and accelerate your signal strength.
DIY WiFi
Every home is different. That’s why our AX range extender provides you with a flexible array of options to custom create your own high-speed WiFi.
Built-In
Access Point Mode
RE500X is more than a wireless range extender. Simply plug an Ethernet cable into its Ethernet port, and easily turn your wired internet connection into a 2×2 MU-MIMO dual band wireless access point.
Control at Your Fingertips
Set up and manage your WiFi through the TP-Link Tether app from your phone (Android, iOS), including TP-Link routers and range extenders.
| Performance | |
|---|---|
| Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| WPS push button | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Data transfer rate | 1200 Mbit/s |
| Type | Network transmitter & receiver |
| Antenna | |
|---|---|
| Transmitting power (CE) | 2.4 GHz ≤20dBm, 5 GHz ≤30dBm |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Network | |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK |
| Wi-Fi data rate (max) | 1200 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
|---|---|
| Reset button | Yes |
| Quantity per pack | 1 pc(s) |
| LED indicators | Yes |
| Product colour | White |
| Power | |
|---|---|
| Power consumption (max) | 10 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 149 mm |
| Depth | 36 mm |
| Width | 78 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Packaging data | |
|---|---|
| Package weight | 350 g |
| Package height | 97 mm |
| Package depth | 125 mm |
| Package width | 202 mm |
| Package type | Box |
| Certificates | |
|---|---|
| Compliance certificates | CE, RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
