C2G 4-Port HDMI[R] Splitter 4K30
Couldn't load pickup availability

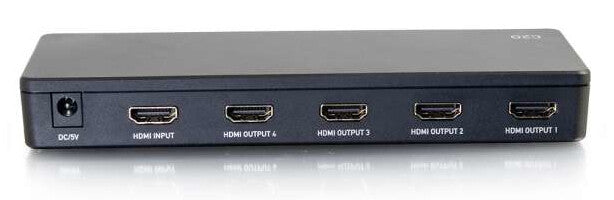

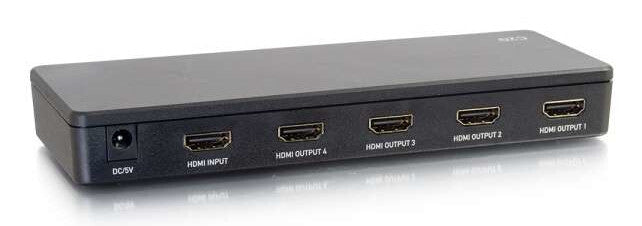

- One HDMI input and four HDMI outputs
- Supports resolutions up to 3840 x 2160 at 30hz
- HDCP 1.4 Compliant
- Supports 340MHz/3.4Gbps per channel
- Supports 3D formats
- Supports 8, 10 & 12bit per channel deep colour
- Supports DTS-HD, Dolby TrueHD, DTS, Dolby AC3 & DSD Audio

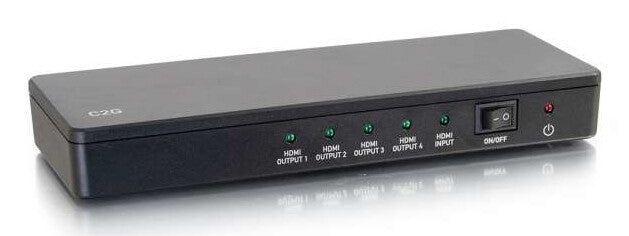

The 4-Port HDMI Splitter 4K30 is a 1-Input 4-Output splitter supporting up to 4k30 video, ideal for applications utilising the HDMI 1.4 standard. A perfect solution for connecting a computer, Blu-ray[TM] player, gaming console, media server, or A/V receiver to four HDMI displays.
The HDMI splitter is HDCP 1.4 compliant and supports exceptional 4K UltraHD resolutions up to 3840 x 2160 at 30hz, handling total HDMI data rates up to 10.2Gbps.
| Ports & interfaces | |
|---|---|
| Video out | 4x HDMI |
| Video port type | HDMI |
| Video ports quantity | 4 |
| Features | |
|---|---|
| Supported video modes | 480p, 576p, 1080i, 1080p |
| Maximum resolution | 3840 x 2160 pixels |
| Power | |
|---|---|
| Output current | 1 A |
| Output voltage | 5 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
|---|---|
| Dimensions (WxDxH) | 67.5 x 180 x 24.8 mm |
| Weight | 130 g |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
