• One audio/video input to 8 audio/video outputs via Cat 5e cable
• Supports local display + 8 remote displays
• Supports up to 225 MHz bandwidth
• Uses Cat 5e cable to extend displays up to 300 m
• Superior video quality – up to 1920 x 1200@60Hz
• Audio enabled (mono)
• Built-in 8KV/15KV ESD protection
• Rack-mountable

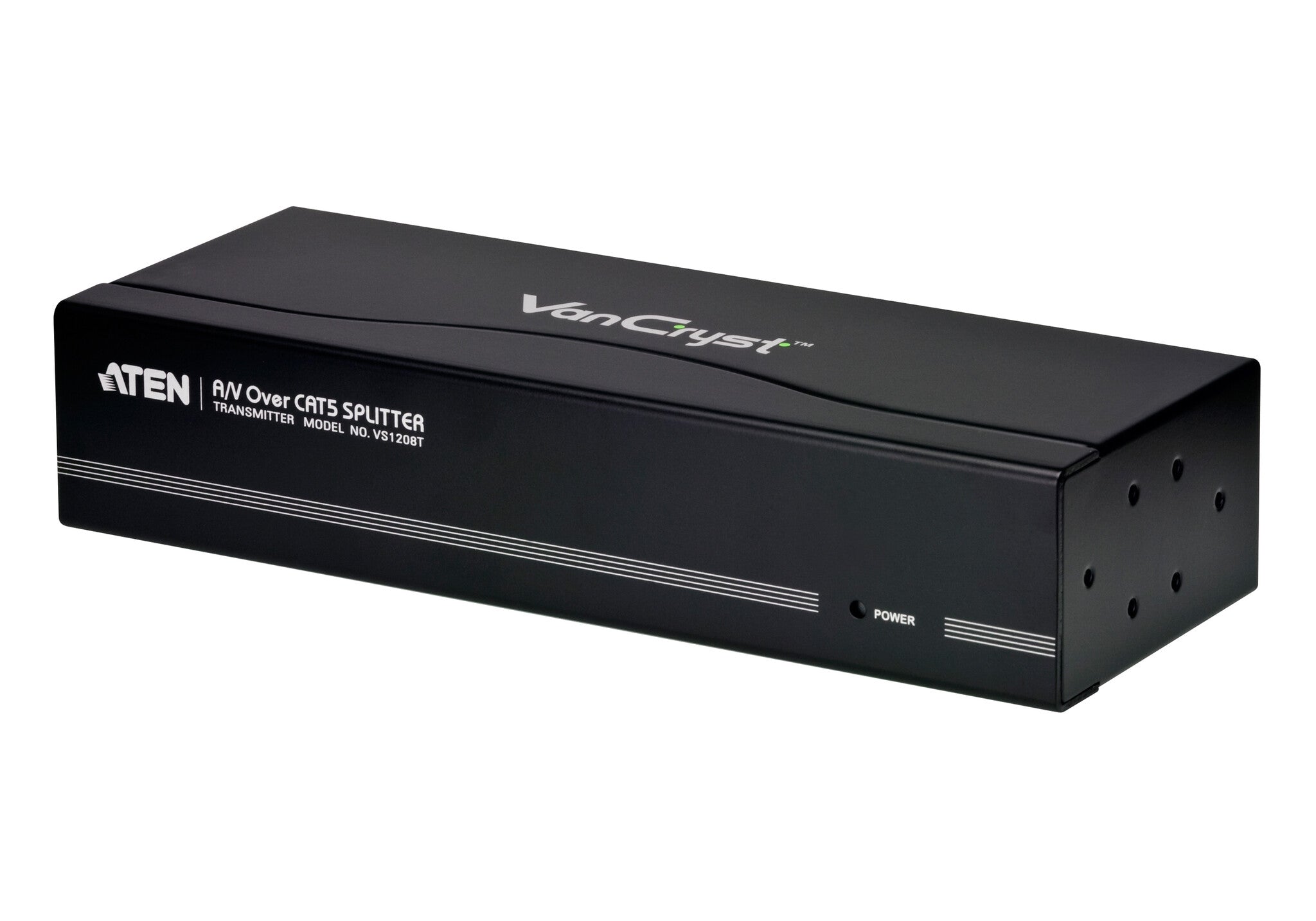

The VS1208T A/V Over Cat 5 Splitter is a splitter designed to connect one source to 8 displays over a long distance. Incorporating suggested compatible receivers*, the VS1208T A/V Over Cat 5 Splitter can be a complete solution ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations located up to 300 m away from the source.

* Suggested Compatible Receiver Units:
VE170R A/V Over Cat 5 Receiver
VE170RQ A/V Over Cat 5 Receiver with Deskew
VE172R A/V Over Cat 5 Receiver with Cascade
