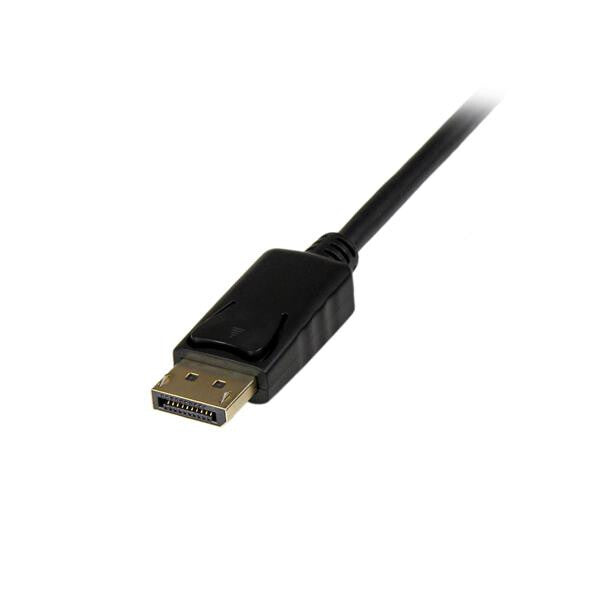

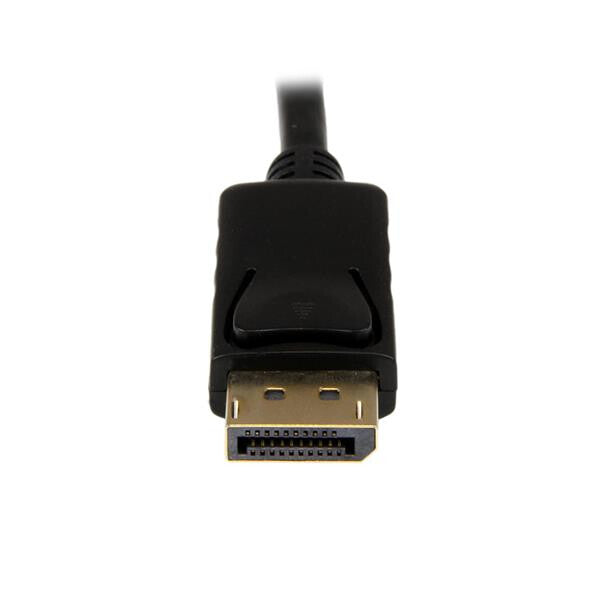

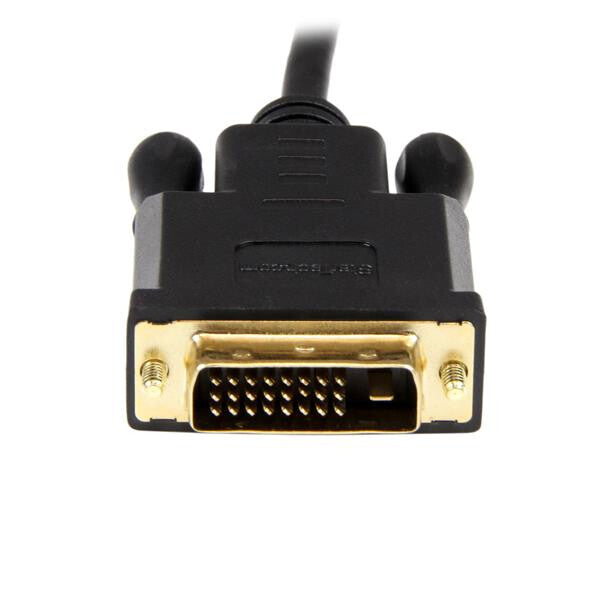

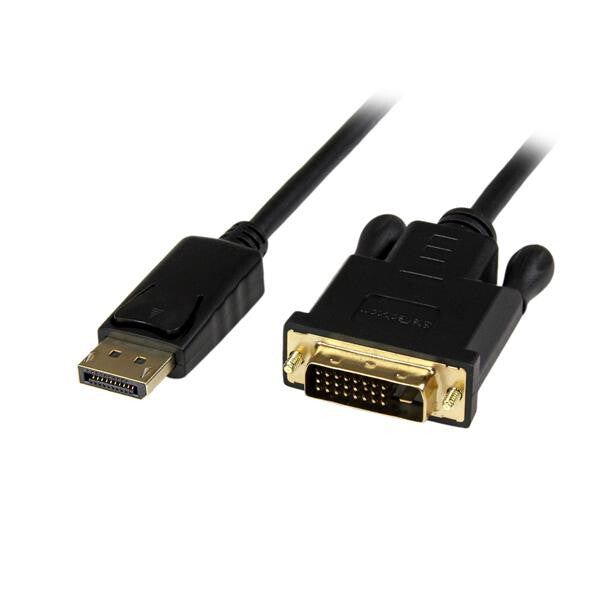

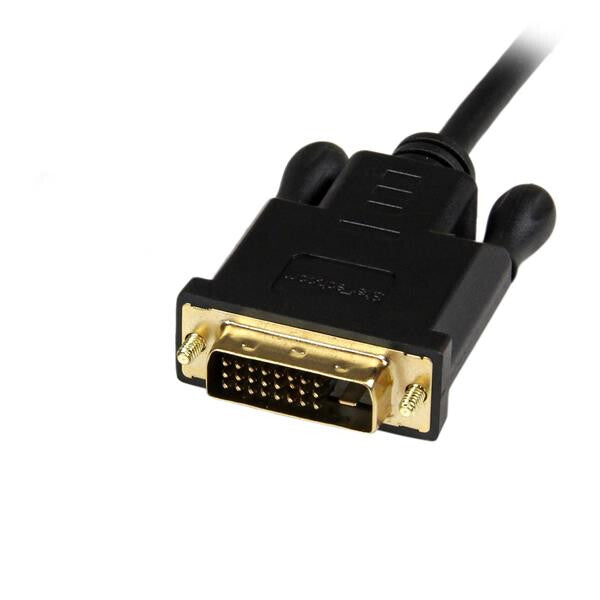

StarTech.com 3ft (1m) DisplayPort to DVI Cable - 1080p Video - Active DisplayPort to DVI Adapter Cable - DisplayPort to DVI-D Cable Converter Single Link - DP 1.2 to DVI Monitor Cable
Couldn't load pickup availability
- 0.9 m
- DisplayPort Straight Male
- DVI-D Straight Male
- 1920 x 1200 pixels
- Black
- 1 pc(s)
Eliminate excess cable clutter with a short 3ft DisplayPort to DVI active adapter
The DP2DVIMM3BS 3ft active DisplayPort to DVI converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a nearby DVI monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.
For guaranteed compatibility with virtually any DisplayPort output the active DisplayPort to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the DP2DVIMM3BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to DVI without sacrificing video quality.
The DP2DVIMM3BS is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note:
This adapter is not compatible for use with the Apple Cinema Display.
The StarTech.com Advantage
| Features | |
|---|---|
| Converter type | Active video converter |
| Plug and Play | Yes |
| Chipset | Parade - PS171 |
| Product colour | Black |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Maximum resolution | 1920 x 1200 pixels |
| Dual Link DVI | No |
| DisplayPort version | 1.2 |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | DVI-D |
| Connector 1 | DisplayPort |
| Cable length | 0.9 m |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 40 - 85% |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 60 °C |
| Certificates | |
|---|---|
| Certification | CE, FCC, REACH |
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Height | 15 mm |
| Depth | 915 mm |
| Width | 40 mm |
| Weight | 74.9 g |
| Packaging data | |
|---|---|
| Package weight | 91.6 g |
| Package height | 15 mm |
| Package depth | 222 mm |
| Package width | 197 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 220 pc(s) |
| Master (outer) case height | 435 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case width | 420 mm |
| Harmonized System (HS) code | 84733080 |
