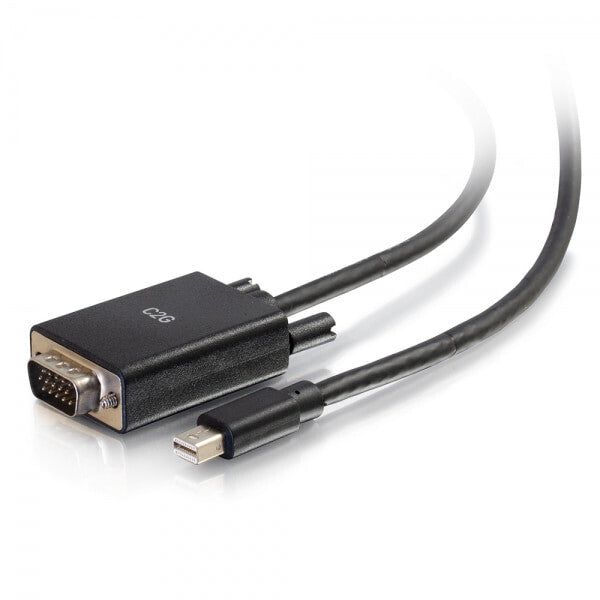

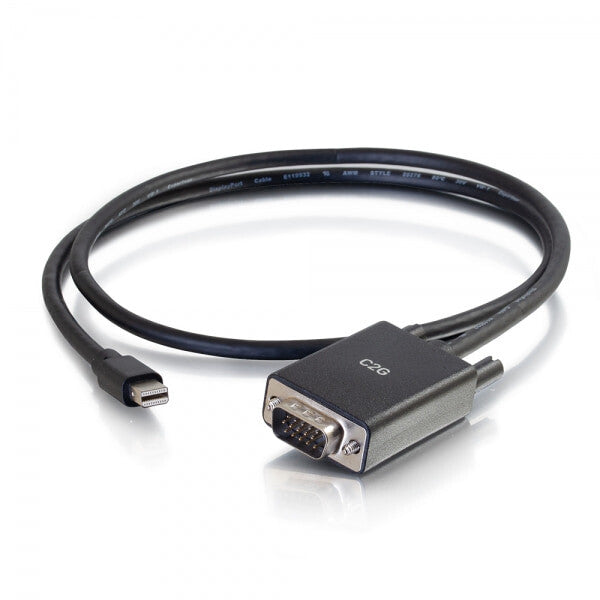

C2G 3ft Mini DisplayPort[TM] Male to VGA Male Active Adapter Cable - Black
C2G 3ft Mini DisplayPort[TM] Male to VGA Male Active Adapter Cable - Black
C2G 3ft Mini DisplayPort[TM] Male to VGA Male Active Adapter Cable - Black
C2G 3ft Mini DisplayPort[TM] Male to VGA Male Active Adapter Cable - Black

C2G 3ft Mini DisplayPort[TM] Male to VGA Male Active Adapter Cable - Black

C2G
£36.99
Stock Available: 0
  • VGA resolutions up to 1920 x 1200
  • Adapter in cable form factor
  • Active Mini DisplayPort to VGA conversion
  • Plug and Play — no driver required

The Mini DisplayPort Male to VGA Male Active Adapter Cable allows you to connect the Mini DisplayPort or Thunderbolt[TM] 2 output of a PC or Mac[R] to a projector or display which accepts a VGA input ― making it an ideal solution for the office, work space applications, or home use.

Convenience
The cable form factor of this adapter provides a simple and convenient solution that eliminates the need for a separate adapter and cable, reducing possible failure points.

Performance
This cable is a simple plug and play solution and carries an active video signal, supporting high-definition resolutions up to 1920 x 1200, allowing it to deliver a high quality video image to the connected display.

Features
Connector gender Male/Male
Plug and Play Yes
AWG wire size 30
Jacket material Polyvinyl chloride (PVC)
Chipset RTD2166
Attenuation (max) 5.02dB@100-450MHz; 7.69dB@1GHz;12.595dB@2GHz, 17.495dB@3GHz;22.395dB@4GHz, 27.295dB@5GHz;32.195dB@6GHz, 37.095dB@7GHz
Return loss (min) 15.00@100~675MHz; 12.90@7GHz;9.20@2GHz, 7.04@3GHz;5.5@4GHz, 4.31@5GHz;3.33@6GHz, 2.51@7GHz
Impedance 100 Ω
Product colour Black
Voltage rating 30 V
Supported graphics resolutions 1920 x 1200 (WUXGA)
Maximum resolution 1920 x 1200 pixels
Connector contacts plating Nickel/Gold
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Male
Connector 1 gender Male
Connector 2 VGA (D-Sub)
Connector 1 Mini DisplayPort
Cable length 0.9 m
Operational conditions
Storage temperature (T-T) -25 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Certificates
Certification CE
Compliance certificates RoHS
Weight & dimensions
Weight 70 g
Packaging content
Quantity per pack 1 pc(s)
Logistics data
Harmonized System (HS) code 84733080
