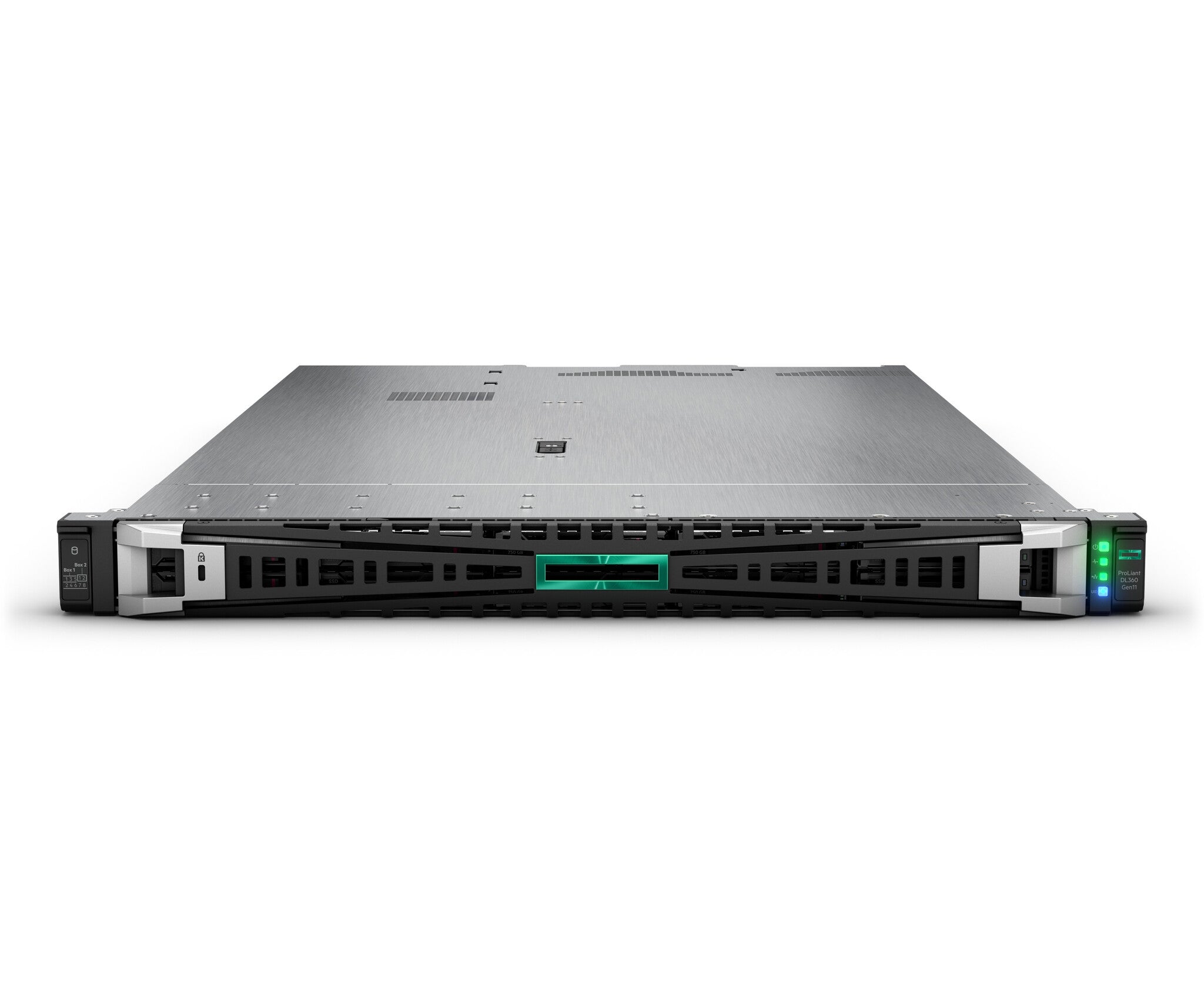

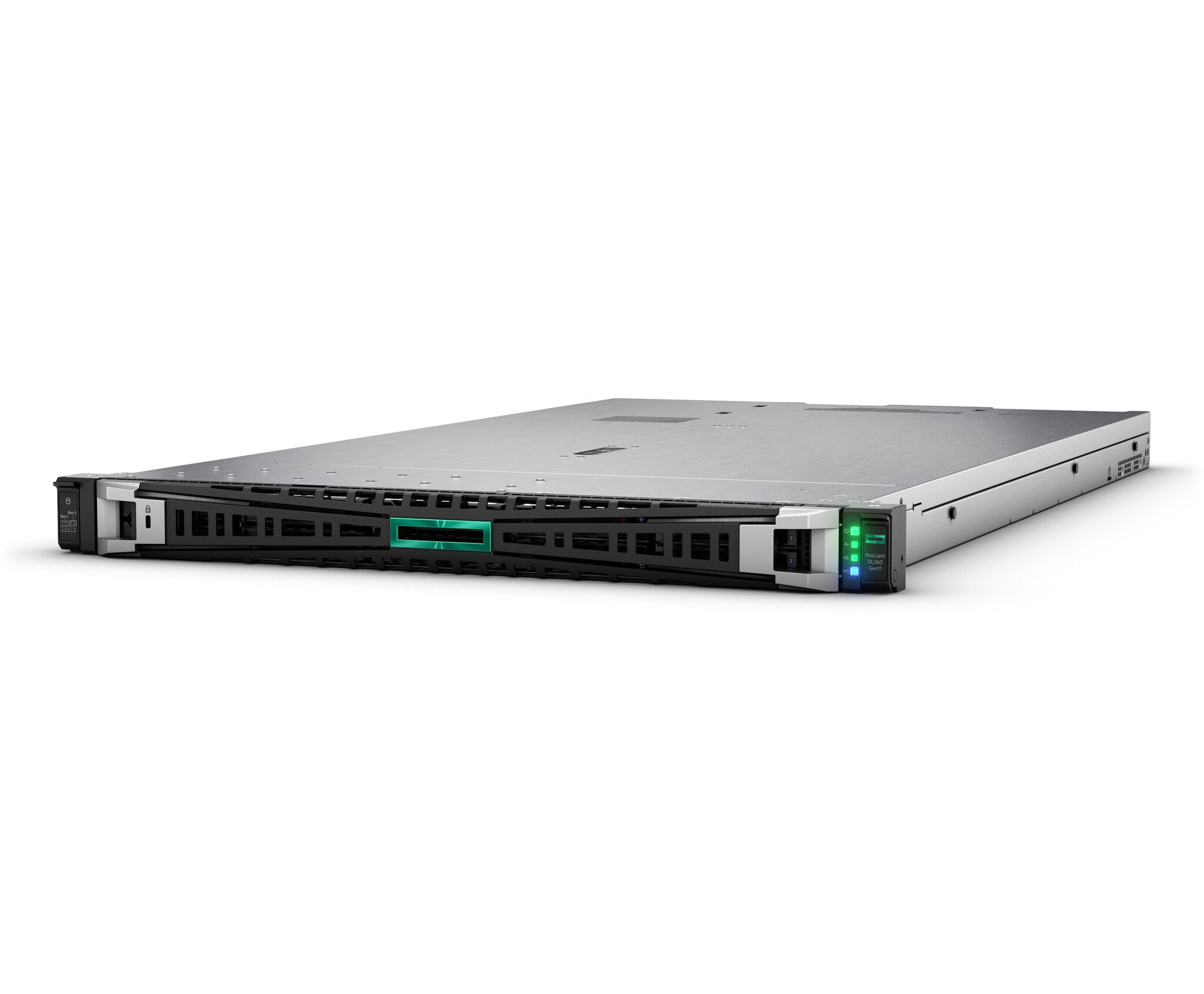

HPE ProLiant DL360 Gen11 4510 2.4GHz 12c 1P 2x32GB-R 4LFF 2x960GB SSD NC BCM5719 2x800W PS EU Server
Couldn't load pickup availability
- Intel Xeon Silver 4510 2.4 GHz
- 64 GB 5600 MHz DDR5-SDRAM 2 x 32
- 1.92 TB
- Rack (1U) 800 W
Are you looking for a scalable, compute-dense solution for hybrid cloud or other data workloads in a virtualized and containerized environment? The HPE ProLiant DL360 Gen11 server is a rack-optimized, 1U 2P solution that delivers exceptional compute performance, upgraded high-speed data transfer rate, and memory depth at 2P compute capability. Powered by 4th and 5th Gen Intel Xeon Scalable Processors with up to 64 cores, 8 TB of memory, and 20 EDSFF drives as well as increased memory bandwidth and high-speed PCIe Gen5 I/O, the HPE ProLiant DL360 Gen11 server is a perfect solution for Electronic Design Automation (EDA), CAD, and VDI. The HPE ProLiant 360 Gen11 server is engineered to optimize IT with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.
What is new supporting point:
Includes the new HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly, from anywhere.
Supports up to three single-wide (SW) GPUs[1] to accelerate graphic intense workloads.
Supports Liquid Cooling Modules for highest thermal design points (TDPs).
Powered by 5th Gen Intel Xeon Scalable Processors that supports up to 64 cores & 385W, and 16 DIMMs for up to 8 TB of high bandwidth DDR5 memory up to 5600 MHz.
16 DIMMs per processor for up to 8 TB total DDR5 memory per server with increased performance, High Bandwidth Memory (HBM) support, and lower power requirements.
Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2 x16 PCIe Gen5 and 2 OCP slots.
| Processor | |
|---|---|
| Bus type | OPI |
| Configurable TDP-down | 4.5 W |
| Number of processors installed | 1 |
| Processor cache | 30 MB |
| Processor cores | 12 |
| Processor frequency | 2.4 GHz |
| Processor model | 4510 |
| Processor family | Intel Xeon Silver |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | Yes |
| Memory clock speed | 5600 MHz |
| Memory layout (slots x size) | 2 x 32 GB |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 64 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| Hot-Plug support | Yes |
| Supported RAID controllers | Embedded SATA controller |
| RAID support | Yes |
| Supported SSD sizes | 3.5" |
| SSD interface | SATA III |
| SSD capacity | 960 GB |
| Supported HDD sizes | 3.5" |
| HDD interface | SATA |
| HDD capacity | 960 GB |
| Number of HDDs installed | 2 |
| Total storage capacity | 1.92 TB |
| Maximum storage capacity | 20 TB |
| Graphics | |
|---|---|
| On-board graphics card | Yes |
| Network | |
|---|---|
| LAN controller | Broadcom BCM5719 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 4 |
| Design | |
|---|---|
| Rack mounting | Yes |
| Product colour | Grey |
| Chassis type | Rack (1U) |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Remote administration | iLO 6 ASIC |
| Software | |
|---|---|
| Compatible operating systems | Microsoft Windows ServerVMware ESXiRed Hat Enterprise Linux (RHEL)SUSE Linux Enterprise Server (SLES)Canonical UbuntuOracle Linux and Oracle VMSAP Linux |
| Operating system installed | No |
| Processor special features | |
|---|---|
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Smart Response Technology version | 1.00 |
| CPU configuration (max) | 1 |
| Power | |
|---|---|
| Power supply input voltage | 100 - 240 V |
| Number of main power supplies | 2 |
| Number of redundant power supplies installed | 1 |
| Number of redundant power supplies supported | 2 |
| Power supply | 800 W |
| Redundant power supply (RPS) support | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
|---|---|
| Weight | 32.3 kg |
| Depth | 990 mm |
| Height | 241 mm |
| Width | 600 mm |
