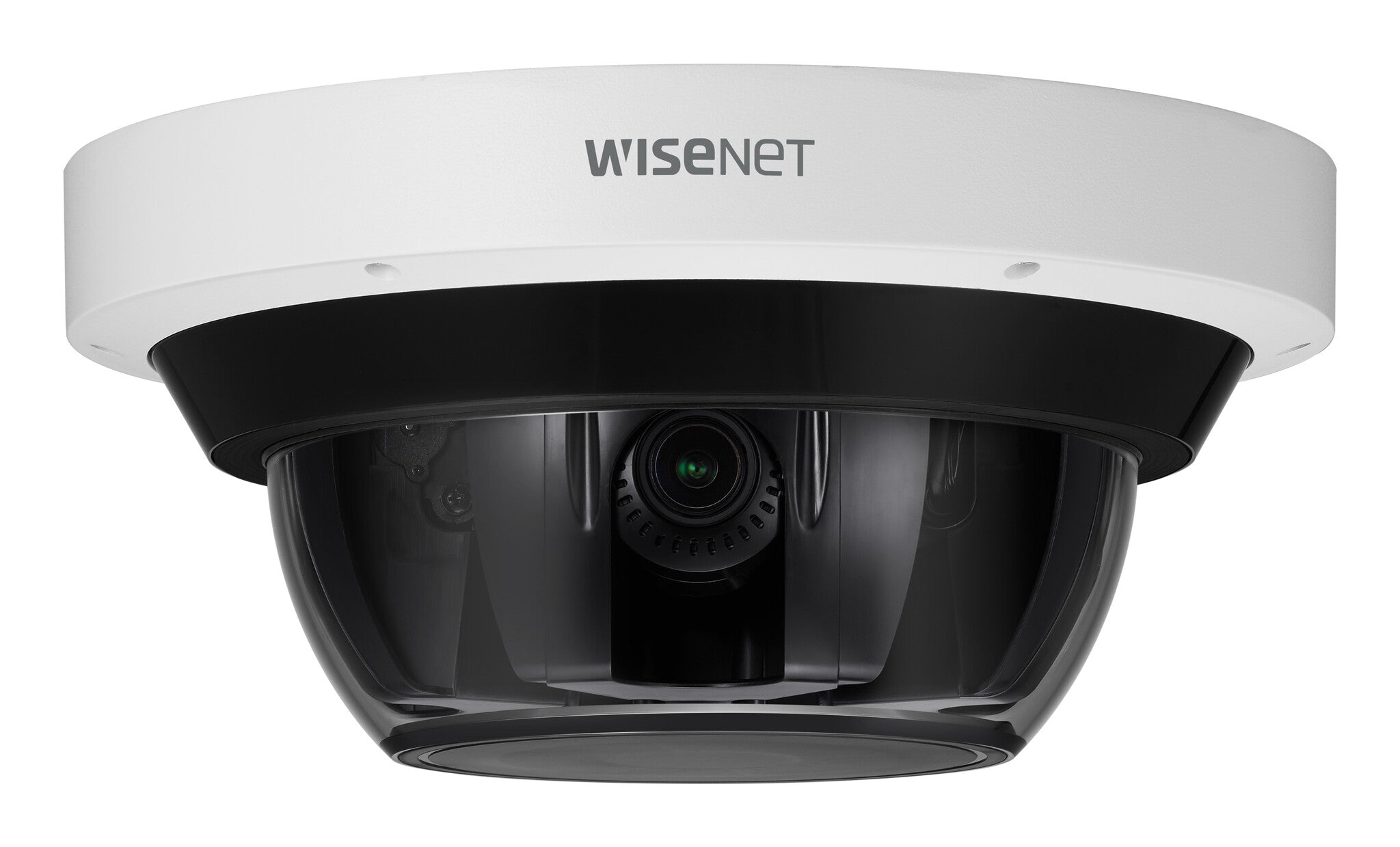

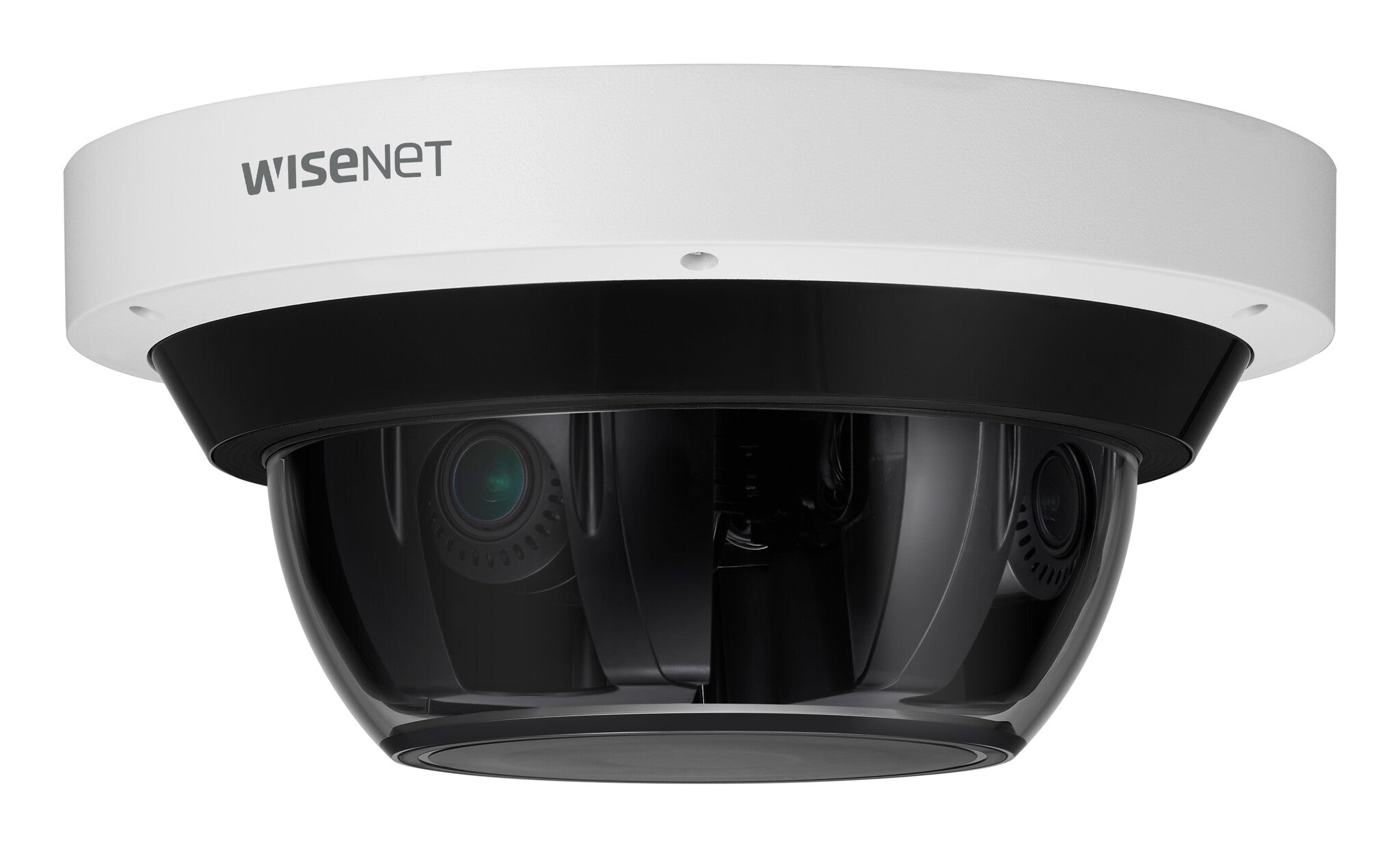

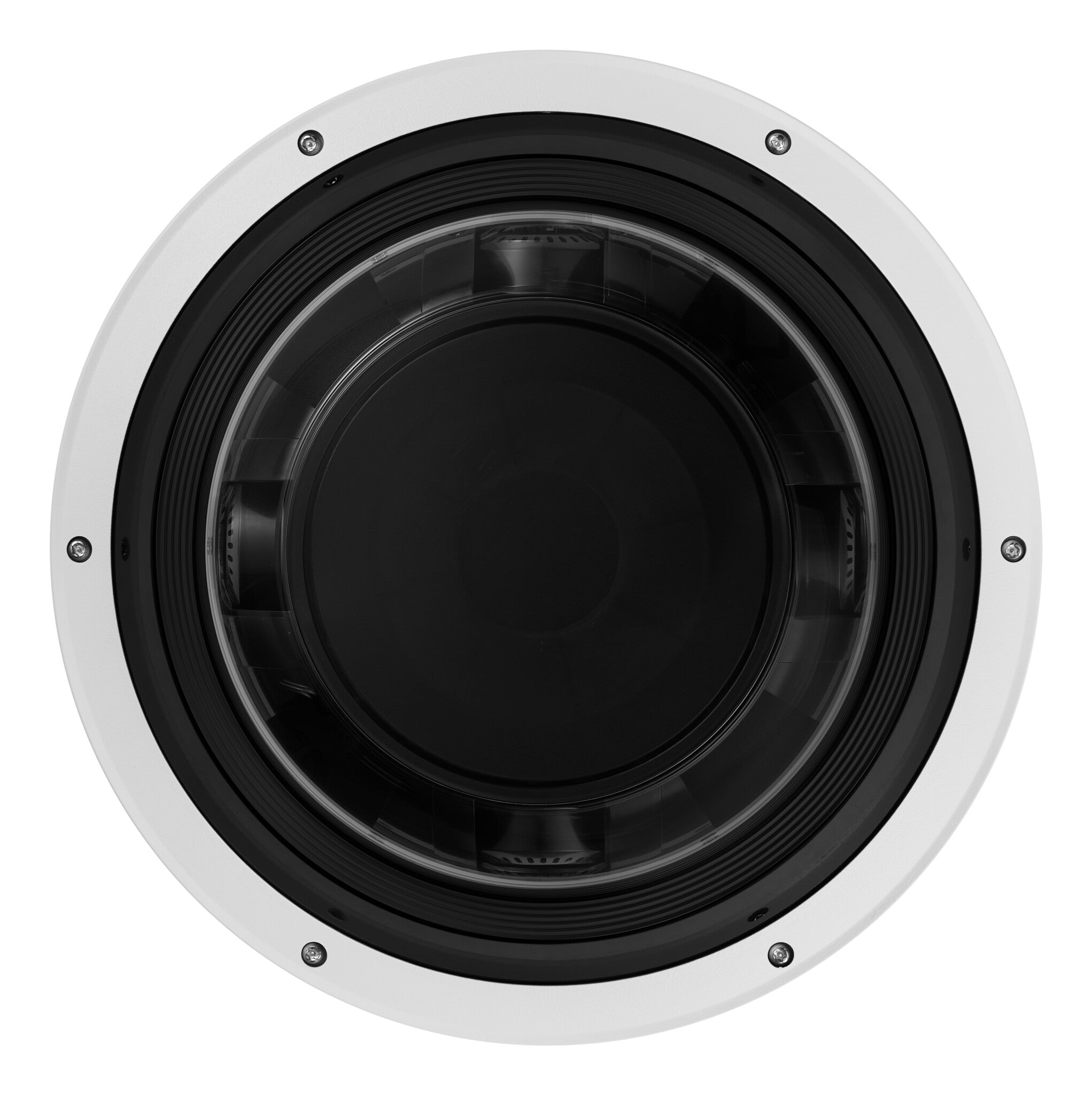

Hanwha PNM-9085RQZ1 security camera Dome IP security camera Outdoor 2616 x 1976 pixels Ceiling
£1,845.99
Couldn't load pickup availability
- Motorised PTRZ support
- Maximum 30fps@5MP(H.265, H.264)
- 4.13~9.4mm(2.3x) motorised varifocal lens
- IR viewable length : 30m(98.43ft)
- H.265, H.264, MJPEG codec, Multi streaming
- Video analytics, WiseStreamⅡ
- IP66, IK10, NEMA4X
| Performance | |
|---|---|
| Alarm input/output | Yes |
| Infrared (IR) cut-off filter | Yes |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| PTZ modes | Preset point |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium |
| Product colour | White |
| Mounting type | Ceiling |
| Form factor | Dome |
| Camera | |
|---|---|
| Camera shutter speed | 2 - 1/12000 s |
| Camera shutter type | Electronic |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Pan range | 0 - 360° |
| Tilt angle range | 35 - 80° |
| Lens viewing angle, diagonal | 113 - 46° |
| Lens viewing angle, vertical | 65 - 28° |
| Lens viewing angle, horizontal | 88 - 37° |
| Angle of rotation | 90° |
| Minimum illumination | 0.11 lx |
| Camera tilt control | Yes |
| Camera pan control | Yes |
| Image sensor | |
|---|---|
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Closest focusing distance | 1.2 m |
| Maximum aperture number | 2.67 |
| Minimum aperture number | 1.92 |
| Focus | Motorized |
| Focal length range | 4.13 - 9.4 mm |
| Optical zoom | 2.3x |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Night vision | |
|---|---|
| LED type | IR |
| Night vision distance | 30 m |
| Night vision | Yes |
| Video | |
|---|---|
| Flip & mirror | Yes |
| Back Light Compensation (BLC) | Yes |
| Privacy masking | Yes |
| Image stabilizer | Yes |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) | Yes |
| Noise reduction | Yes |
| Video streaming | Yes |
| Video intelligence analytic | Yes |
| Frame rate | 30 fps |
| Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2560 x 1440, 2560 x 1920 |
| Video compression formats | H.264, H.265 |
| Total megapixels | 5 MP |
| Maximum resolution | 2616 x 1976 pixels |
| Audio | |
|---|---|
| Voice codecs | G.711, G.711ulaw, G.726 |
| Audio formats supported | AAC-LC, ADPCM |
| Network | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast, Unicast |
| Number of users | 20 user(s) |
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Networking standards | IEEE 802.1x |
| Ethernet interface type | Gigabit Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| RAM capacity | 5000 MB |
| Flash memory | 1250 MB |
| Maximum memory card size | 1 TB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Anti-flicker | Yes |
| Video motion detection | Yes |
| IP address filtering | Yes |
| Security algorithms | EAP-LEAP, EAP-TLS |
| Power | |
|---|---|
| DC output voltage | 12 |
| Power consumption (Power over Ethernet (PoE)) | 45 W |
| Power consumption (max) | 45 W |
| Power consumption (typical) | 33.7 W |
| Power source type | DC, PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 90% |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -50 - 60 °C |
| Operating temperature (T-T) | -40 - 55 °C |
| Weight & dimensions | |
|---|---|
| Weight | 5.2 kg |
| Diameter | 31.5 cm |
| Height | 145.9 mm |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
