ASUS ROG -THOR-1200P3-MIKU power supply unit 1200 W 20+4 pin ATX ATX Multicolour
Couldn't load pickup availability
- Co-branded edition combines unbeatable ROG performance and sci-fi-inspired aesthetics with the signature blue-green and pink Hatsune Miku color scheme
- GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation.
- "GPU-First" voltage sensing with patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance.

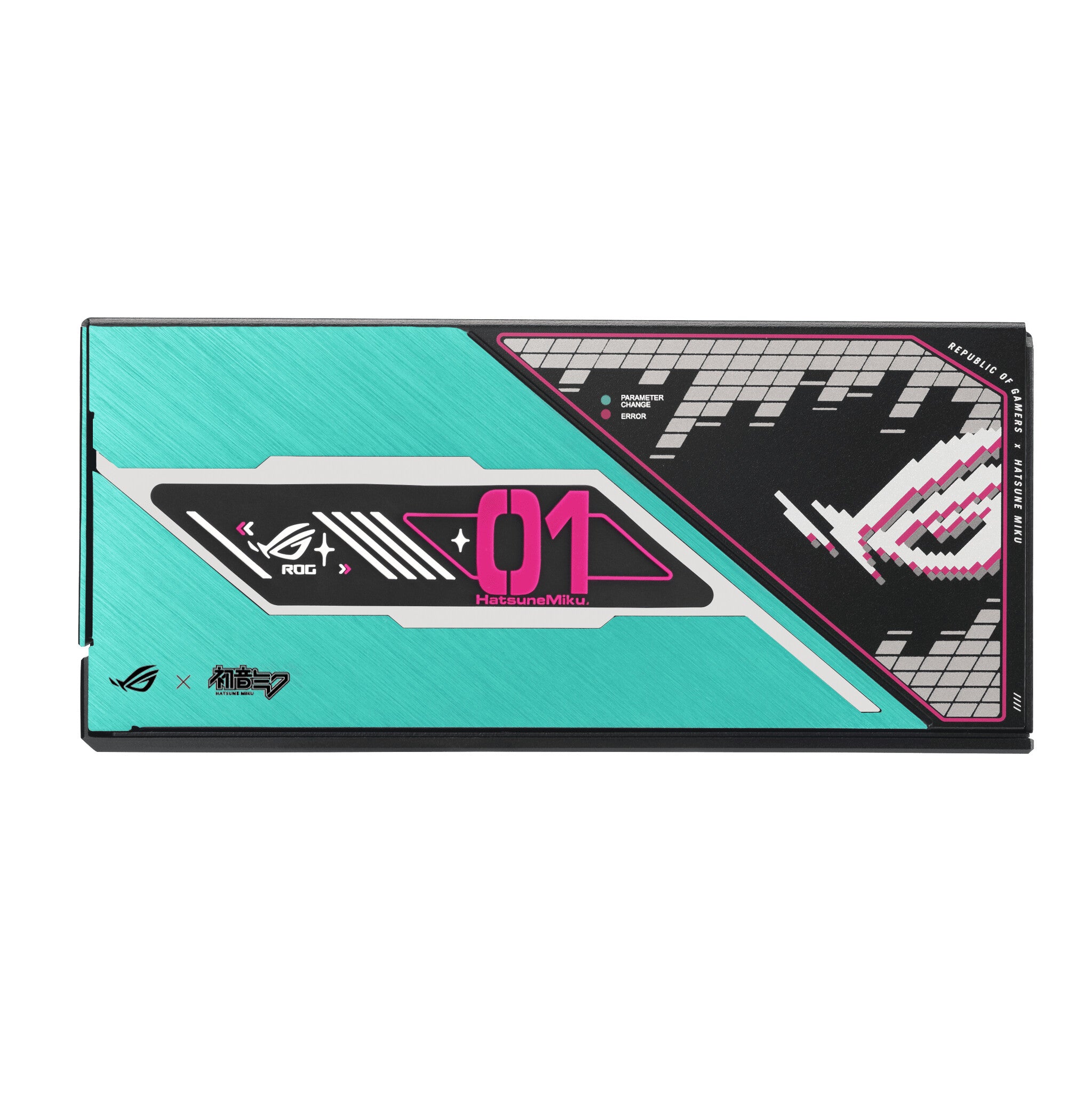

- Magnetic OLED display shows a real-time power draw and can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
- Turbo Mode: Premium components and a fine-tuned fan curve unlock support for extended power excursions.
- ROG heatsinks and a fully aluminum enclosure synergize for superior cooling, keeping your system thermals under control.
- Dual-ball-fan bearings can last up to twice as long as sleeve bearing designs.
- ATX 3.1 compatible: ROG Thor Platinum III Hatsune Miku Edition is compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation for the latest hardware.
- Lambda A++ Certification: Certified low noise levels, below 15 dB.
- Etched modular cables with a pliable premium material ensure effortless cable management and exceptional safety.
- 80 PLUS & Cybenetics Platinum certified: ROG Thor III Hatsune Miku Edition utilizes low-ESR capacitors and premium components for industry-leading power efficiency.
Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1200W Platinum III Hatsune Miku Edition delivers unmatched performance and rock-solid stability for your ultimate PC build
Feel the Beat,
In-Game Feats
ROG continues its collaboration with virtual pop star Hatsune Miku with a complete gaming system centered around ROG's sci-fi aesthetics and Miku's signature blue-green, pink-color scheme. The collection combines Hatsune Miku’s signature style with superior ROG performance, premium quality, and versatile functionality for competitive gameplay or daily tasks. Products include a motherboard, graphics card, PC case, all-in-one cooler, SSD enclosure, power supply, monitor, and apparels, enabling gamers to create an entire gaming setup that exudes the vibrant Miku aesthetic.
| Power | |
|---|---|
| Power protection features | Overheating, Over current, Over power, Over voltage, Short circuit, Under power |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 25 A |
| Max output current (+12V) | 100 A |
| Max output current (+3.3V) | 30 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 125 W |
| Combined power (+12V) | 1200 W |
| Combined power (+3.3V) | 125 W |
| Power Factor Correction (PFC) type | Active |
| AC input voltage | 100 - 240 V |
| Total power | 1200 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| CPU power cable length | 100 cm |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power cable length | 75 cm |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power cable length | 400,150 mm |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| SATA power cable length | 400,120 mm |
| Number of SATA power connectors | 7 |
| Motherboard power cable length | 61 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 120000 h |
| Bearing technology | DBB |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| Illumination | Yes |
| Cooling type | Active |
| Product colour | Multicolour |
| General | |
|---|---|
| Product family | ROG |
| Packaging content | |
|---|---|
| Packaging content | Power cord x 1Motherboard power cable x 1 (610mm)CPU cable x 2 (1000mm)PCI-E Gen 5 16-pin cable x 1 (750mm)PCI-E cable 1-to-1 x 4 (750mm)SATA cable 1-to-4 x 1 (400+120+120+120mm)SATA cable 1-to-3 x 1 (400+120+120mm)Peripheral cable 1-to-3 x 2 (400+150+150mm)Addressable RGB cable x 1 (800mm)ROG sticker x 1ROG cable tie x 6Chassis screws package x 1Cable tie x 12Thank you card x 1User manual x 1 |
| Cables included | CPU, PCIe, SATA, Peripheral (Molex) |
| Weight & dimensions | |
|---|---|
| Weight | 2.37 kg |
| Height | 86 mm |
| Depth | 150 mm |
| Width | 190 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 5.21 kg |
| Package height | 127 mm |
| Package depth | 241 mm |
| Package width | 379 mm |
