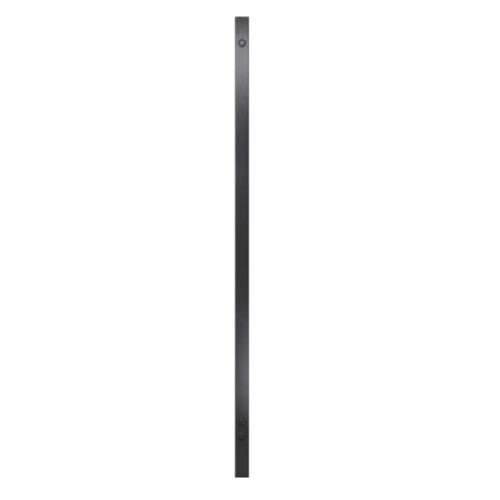

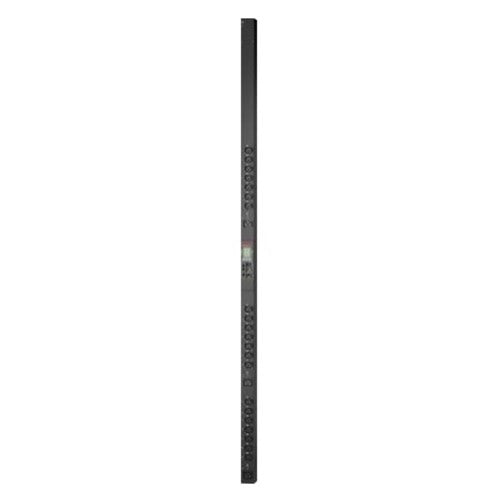

DELL AB555865 power distribution unit (PDU) 24 AC outlet(s) 0U Black
£1,344.99
Couldn't load pickup availability
- Single-phase Switched 0U Black
- LCD
- 24 AC outlet(s) C13 coupler, C19 coupler
With industry leading reliability, manageability, and security, APC Switched Rack PDU's provide advanced load management plus on/off outlet level power cycling and sequencing control.
| Design | |
|---|---|
| Display | LCD |
| Product colour | Black |
| Mounting | Vertical |
| Rack capacity | 0U |
| Type | Single-phase |
| PDU types | Switched |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | IEC 60309 |
| AC outlets quantity | 24 AC outlet(s) |
| Features | |
|---|---|
| Cable length | 3 m |
| Daisy chain | Yes |
| Power | |
|---|---|
| Maximum input current per phase | 16 A |
| Load capacity | 3700 VA |
| Maximum current | 16 A |
| AC input frequency | 50/60 Hz |
| Nominal input voltage | 220 - 240 V |
| Certificates | |
|---|---|
| Certification | EN 61000-3-2, ICES-003, VDE, EN 61000-3-3, EN55024, FCC 15 A, EAC, RCM, EN 55022 A |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 15240 m |
| Operating altitude | 0 - 3048 m |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | -5 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 5.61 kg |
| Height | 1794 mm |
| Depth | 46 mm |
| Width | 55 mm |
| Packaging data | |
|---|---|
| Package height | 2002 mm |
| Package depth | 114 mm |
| Package width | 165 mm |
| Package weight | 8.59 kg |
