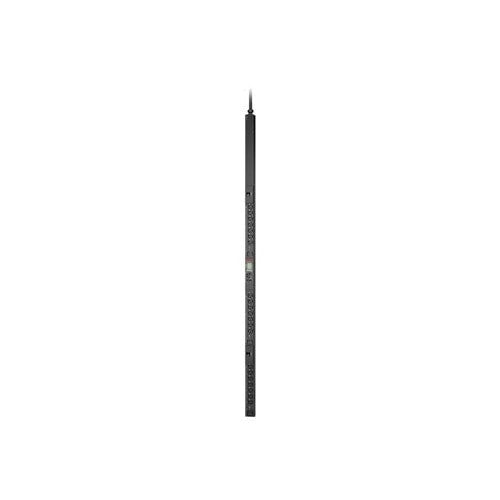

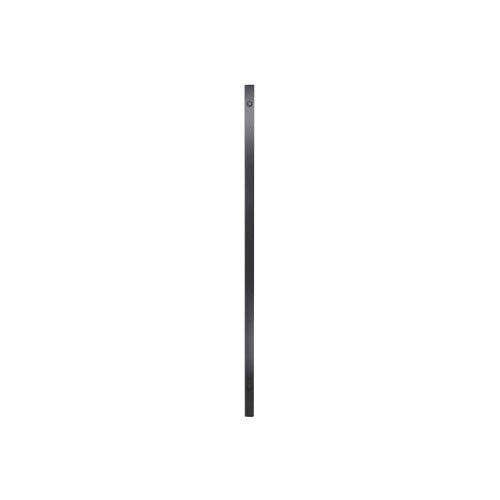

DELL AB515460 power distribution unit (PDU) 24 AC outlet(s) 0U Black
DELL AB515460 power distribution unit (PDU) 24 AC outlet(s) 0U Black
DELL AB515460 power distribution unit (PDU) 24 AC outlet(s) 0U Black
DELL AB515460 power distribution unit (PDU) 24 AC outlet(s) 0U Black

DELL AB515460 power distribution unit (PDU) 24 AC outlet(s) 0U Black

DELL
£1,431.99
Stock Available: 0

Switched Rack PDUs enable advanced, customizable power control and active monitoring for datacenter and edge environments. Remote outlet level control allows on/off power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets to reduce downtime. Outlet power sequencing and grouping allow users to specify the order of device power up or down to avoid circuit overload due to inrush current and/or load shed to conserve energy. Power metering provides real-time remote monitoring of connected loads with alarms to warn of potential overloads. Users can access, configure, and control Switched Rack PDUs through secure Web or SNMP and are fully compatible with EcoStruxure IT.

Design
On/off switch No
Product colour Black
Mounting Vertical
Rack capacity 0U
Type Single-phase
PDU types Switched
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
AC outlet types C13 coupler, C19 coupler
Power plug IEC 60309
AC outlets quantity 24 AC outlet(s)
Features
Cable length 3.05 m
Power
Load capacity 7400 VA
Maximum current 32 A
AC input frequency 50/60 Hz
Nominal input voltage 220-240 V
Certificates
Certification EN 61000-3-2, VDE, EN 61000-3-3, EAC, RCM, EN 55022 A
Operational conditions
Non-operating altitude 0 - 15240 m
Operating altitude 0 - 3048 m
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -25 - 65 °C
Operating temperature (T-T) -5 - 45 °C
Weight & dimensions
Weight 7.34 kg
Height 1829 mm
Depth 46 mm
Width 56 mm
Packaging content
Rack mount kit Yes
Packaging data
Package height 2040 mm
Package depth 124 mm
Package width 165 mm
Package weight 9.95 kg
