Phanteks Polar ST5 Processor Heatsink/Radiator 12 cm Black 1 pc(s)
Couldn't load pickup availability

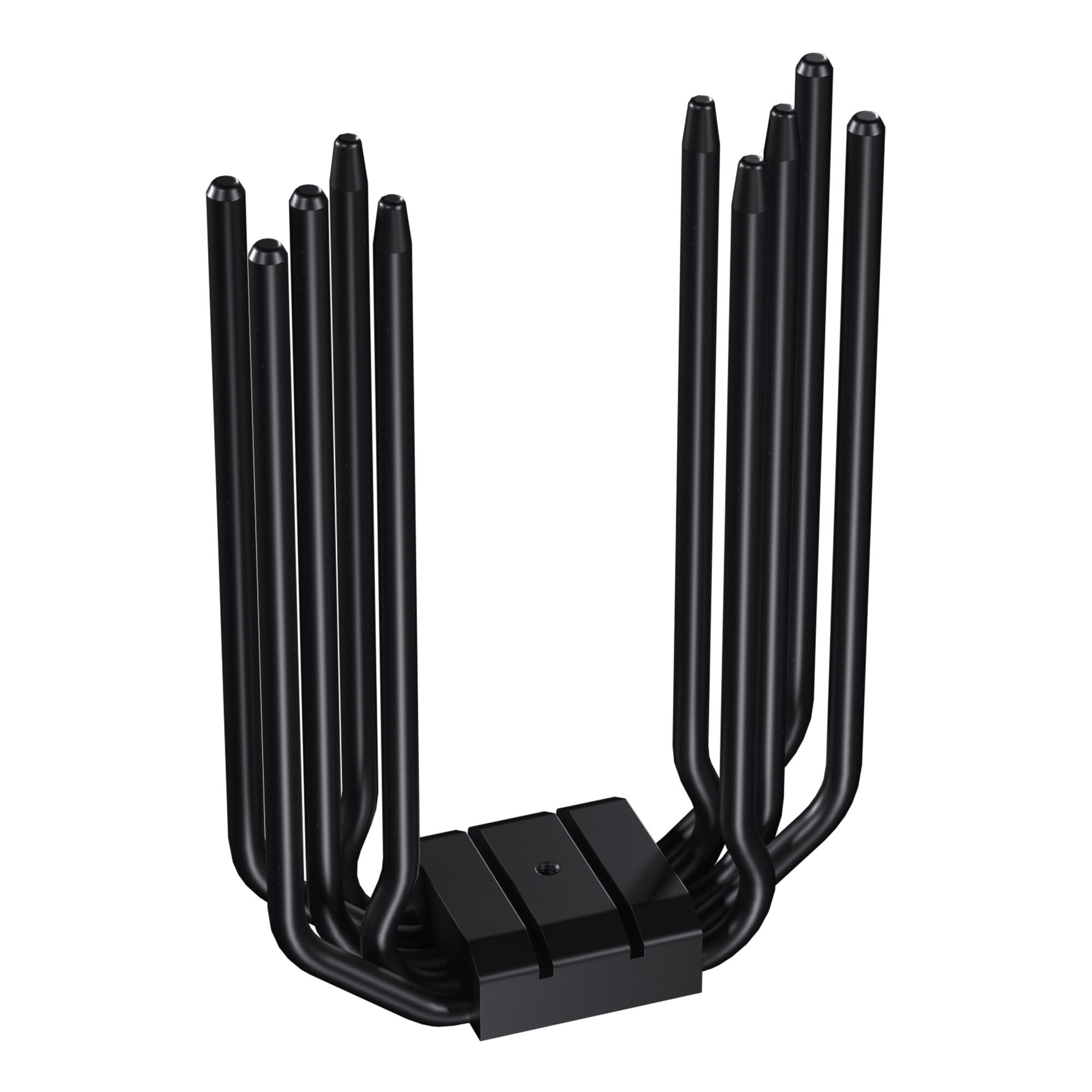

- High quality sintered powder copper heat pipes
- Each component is carefully chosen to add as much cooling performance to create CPU coolers with exceptional value
- Solid mounting system made of high quality steel
- Four heat pipes directly touch the CPU heatspreader
- High performance M25-120 fan with wide RPM range
- Effective design there are no RAM clearance issues
- Sleek design that always matches your build
- Comes with the high performing M25 fan
- Precise RPM control through PWM with a wide RPM range
- Excellent low noise performance
- High cooling capacity at 2000 RPM
Performance with exceptional value
The Phanteks Polar CPU coolers are made to perform with high quality materials where it matters. All Polar CPU coolers use the best sintered powder heat pipes and come with the high performing M25 fan. Each component is carefully chosen to add as much cooling performance to create CPU coolers with exceptional value.
The Polar ST5 CPU cooler that can handle even the most recent high-end processors. The large copper base optimizes heat transfer for larger CPUs with large and/or multiple dies and comes with 5 sintered powder copper heat pipes to transfer large amounts of heat.
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 30000 h |
| Fan speed (max) | 2000 RPM |
| Fan static pressure | 2.67 mmH2O |
| Fan speed (min) | 400 RPM |
| Quantity per pack | 1 pc(s) |
| Maximum air pressure | 2.67 mmH2O |
| Maximum airflow | 84.26 cfm |
| Noise level (high speed) | 35.7 dB |
| Rotational speed (max) | 2000 RPM |
| Rotational speed (min) | 400 RPM |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Fan diameter | 12 cm |
| Type | Heatsink/Radiator |
| Suitable location | Processor |
| Design | |
|---|---|
| Number of heat pipes | 5 |
| Number of fins | 54 |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Package weight | 963 g |
| Heat pipes diameter | 6 mm |
| Fan thickness | 2.5 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Weight | 766 g |
| Height | 154 mm |
| Depth | 125 mm |
| Width | 75 mm |
| Technical details | |
|---|---|
| Warranty period | 5 year(s) |
