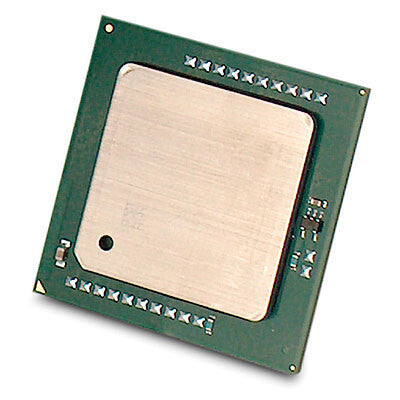

HPE Intel Xeon E5-2680 v4 processor 2.4 GHz 35 MB Smart Cache
£2,399.99
Couldn't load pickup availability
- Intel® Xeon® E5 v4 E5-2680V4 2.4 GHz
- 35 MB Smart Cache LGA 2011-v3
- Processor cores: 14 14 nm 64-bit 120 W
- Maximum internal memory supported by processor: 1.54 TB DDR4-SDRAM
Options, accessories, services and support for all your HP and Compaq products.
| Processor | |
|---|---|
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| Number of QPI links | 2 |
| Bus type | QPI |
| Stepping | M0 |
| Thermal Design Power (TDP) | 120 W |
| Processor cache type | Smart Cache |
| Processor cache | 35 MB |
| Processor boost frequency | 3.3 GHz |
| Processor operating modes | 64-bit |
| System bus rate | 9.6 GT/s |
| Processor threads | 28 |
| Processor series | Intel Xeon E5-2600 v4 |
| Component for | Server/workstation |
| Processor lithography | 14 nm |
| Processor socket | LGA 2011-v3 |
| Processor cores | 14 |
| Processor base frequency | 2.4 GHz |
| Processor model | E5-2680V4 |
| Processor family | Intel® Xeon® E5 v4 |
| Memory | |
|---|---|
| ECC | Yes |
| Memory channels | Quad-channel |
| Memory clock speeds supported by processor | 1600,1866,2133,2400 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Maximum internal memory supported by processor | 1.54 TB |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Features | |
|---|---|
| Scalability | 2S |
| Embedded options available | Yes |
| CPU configuration (max) | 2 |
| Physical Address Extension (PAE) | Yes |
| Supported instruction sets | AVX 2.0 |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 40 |
| Market segment | Server |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor special features | |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Demand Based Switching | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel® OS Guard | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Conflict-Free processor | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel Flex Memory Access | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Operational conditions | |
|---|---|
| Tcase | 86 °C |
| Other features | |
|---|---|
| Compatibility | XL1X0R GEN9 |
