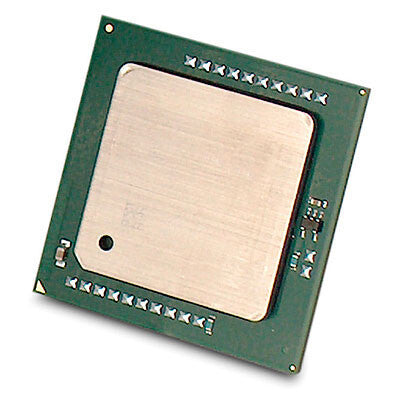

HPE Intel Pentium G4600 processor 3.6 GHz 3 MB L3
£142.99
Couldn't load pickup availability
- Intel Pentium G G4600 3.6 GHz
- 3 MB L3 LGA 1151 (Socket H4)
- Processor cores: 2 14 nm 64-bit 51 W
- Maximum internal memory supported by processor: 64 GB DDR3L-SDRAM, DDR4-SDRAM
- On-board graphics card Intel® HD Graphics 630
Options, accessories, services and support for all your HP and Compaq products.
| Processor | |
|---|---|
| Bus type | DMI3 |
| Stepping | S0 |
| Thermal Design Power (TDP) | 51 W |
| Processor cache type | L3 |
| Processor cache | 3 MB |
| Processor operating modes | 64-bit |
| System bus rate | 8 GT/s |
| Processor threads | 4 |
| Processor series | Intel Pentium G4600 Series For Desktop |
| Component for | Server/workstation |
| Cooler included | No |
| Processor lithography | 14 nm |
| Processor socket | LGA 1151 (Socket H4) |
| Processor cores | 2 |
| Processor base frequency | 3.6 GHz |
| Processor model | G4600 |
| Processor family | Intel Pentium G |
| Memory | |
|---|---|
| ECC | Yes |
| Memory channels | Dual-channel |
| Memory voltage supported by processor | 1.35 V |
| Memory clock speeds supported by processor | 1333,1600,2133,2400 MHz |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM |
| Maximum internal memory supported by processor | 64 GB |
| Graphics | |
|---|---|
| On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (HDMI) | 24 Hz |
| On-board graphics card maximum resolution (DisplayPort) | 4096 x 2304 pixels |
| On-board graphics card maximum resolution (eDP - Integrated Flat Panel) | 4096 x 2304 pixels |
| On-board graphics card maximum resolution (HDMI) | 4096 x 2304 pixels |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card outputs supported | DisplayPort, Embedded DisplayPort (eDP), HDMI |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card model | Intel® HD Graphics 630 |
| On-board graphics card | Yes |
| Features | |
|---|---|
| Scalability | 1S |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Thermal solution specification | PCG 2015C |
| Supported instruction sets | SSE4.1, SSE4.2 |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 16 |
| Market segment | Desktop |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor special features | |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Secure Key | Yes |
| Intel Clear Video Technology | Yes |
| Intel TSX-NI | No |
| Intel® OS Guard | Yes |
| Intel® vPro™ Platform Eligibility | No |
| Conflict-Free processor | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Operational conditions | |
|---|---|
| Tjunction | 100 °C |
| Other features | |
|---|---|
| Compatibility | DL20 GEN9 |
