  • Six individually addressable hub-mounted RGB LEDs
  • Specially designed fan blades and outer ring produce an exceptionally uniform glow
  • LLS (Long Life Sleeve) bearings provide silent operation with a long lifespan
  • Integrated vibration-damping corners made from high-quality synthetic rubber
  • Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency

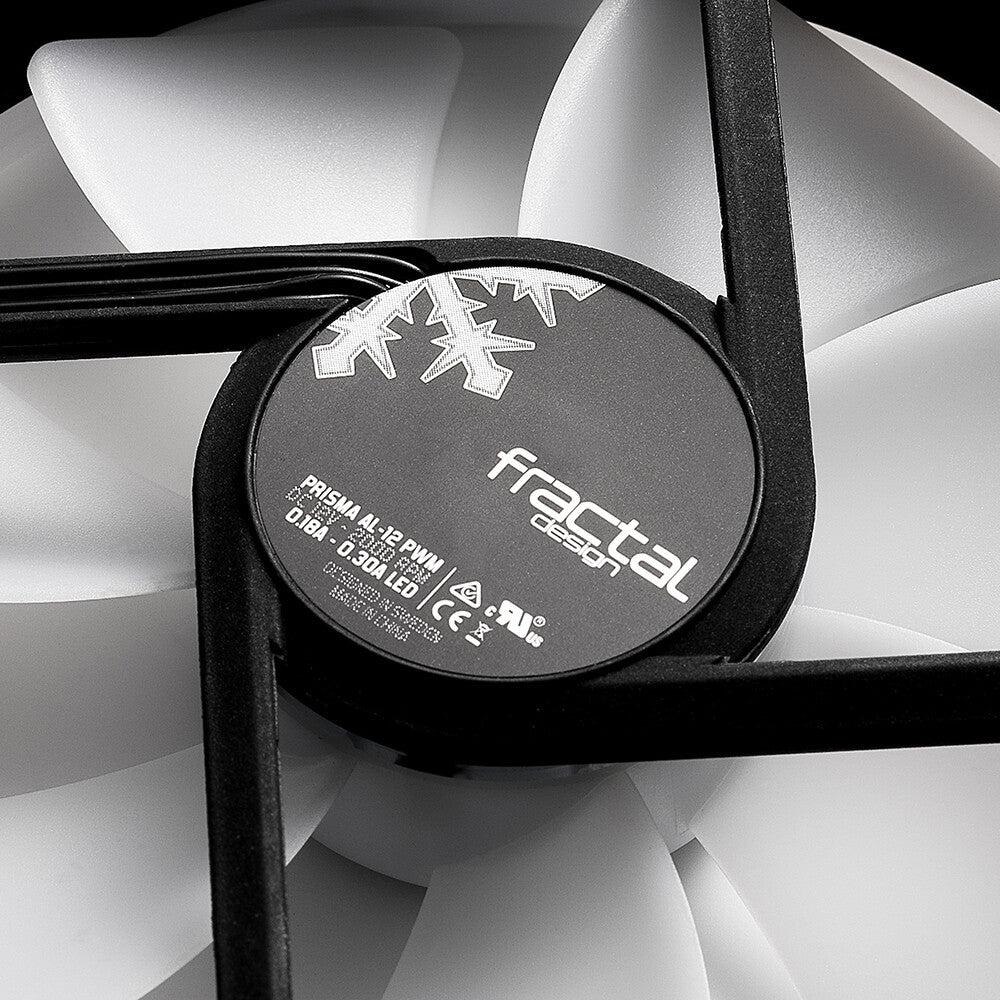

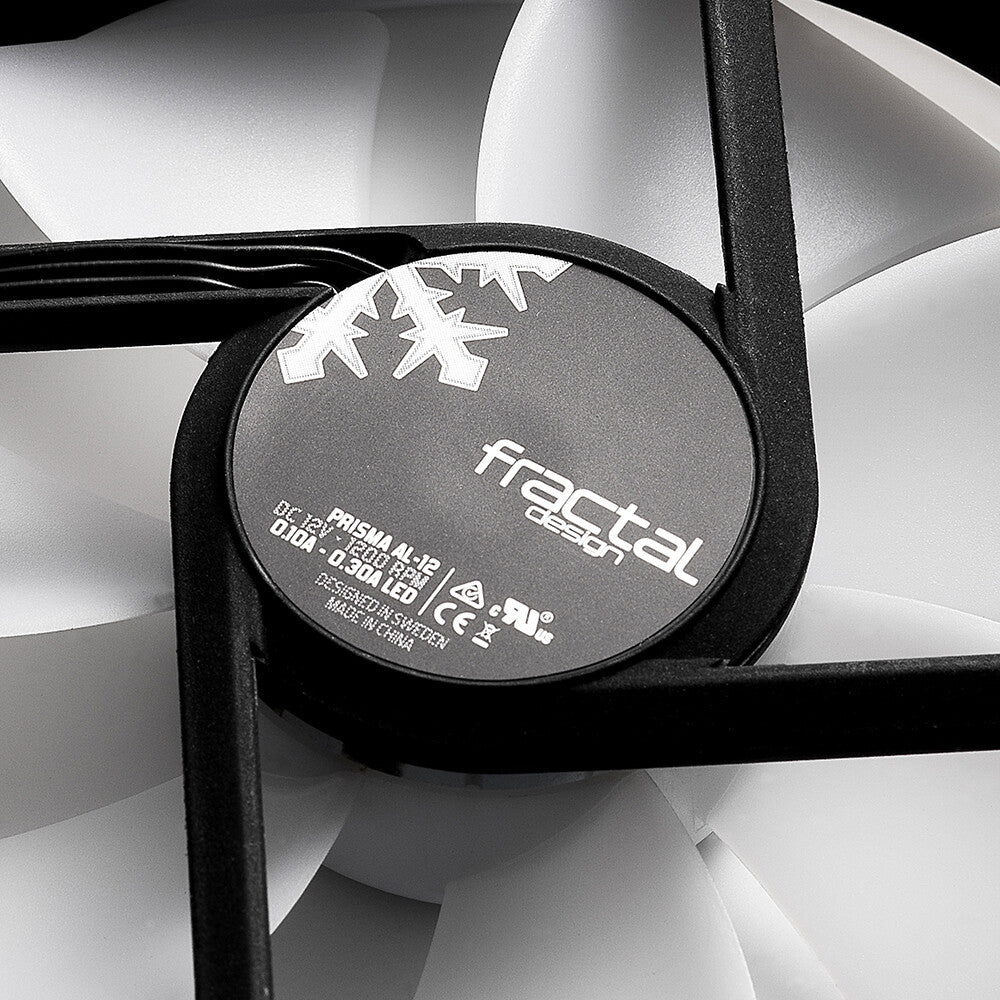

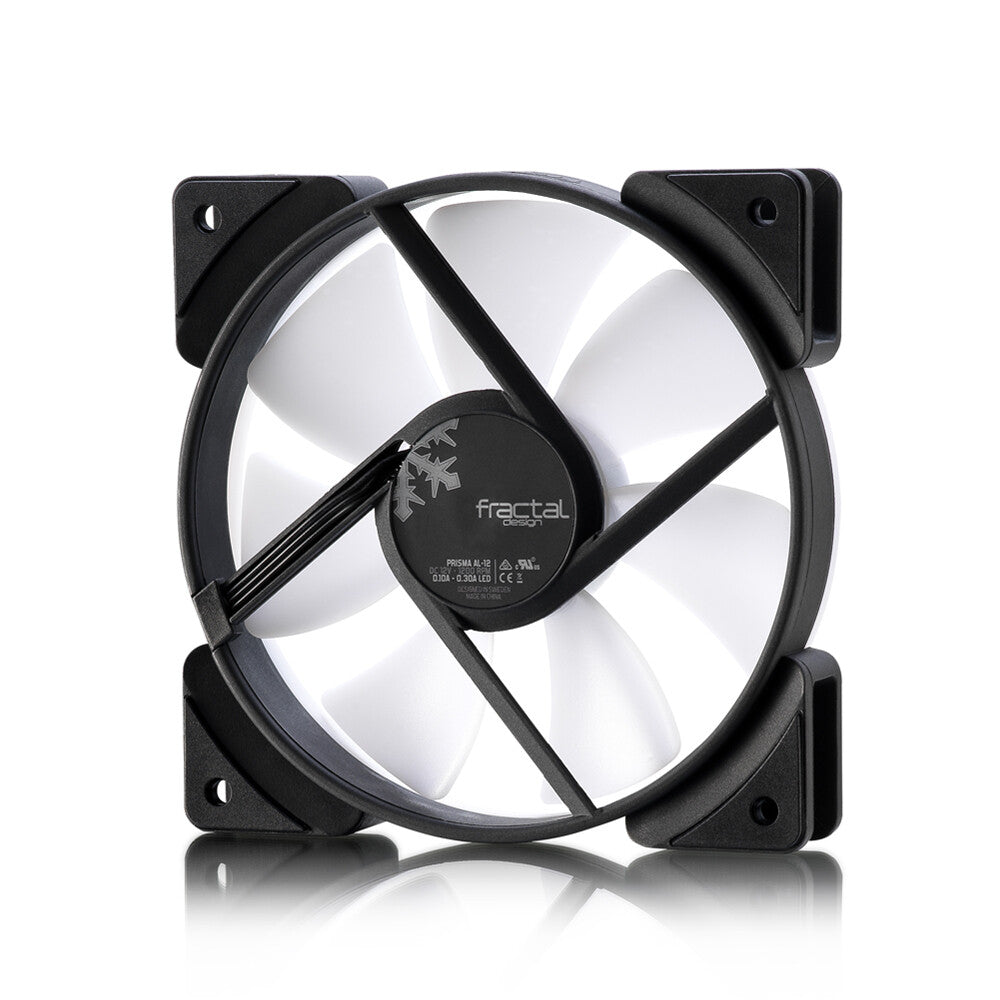

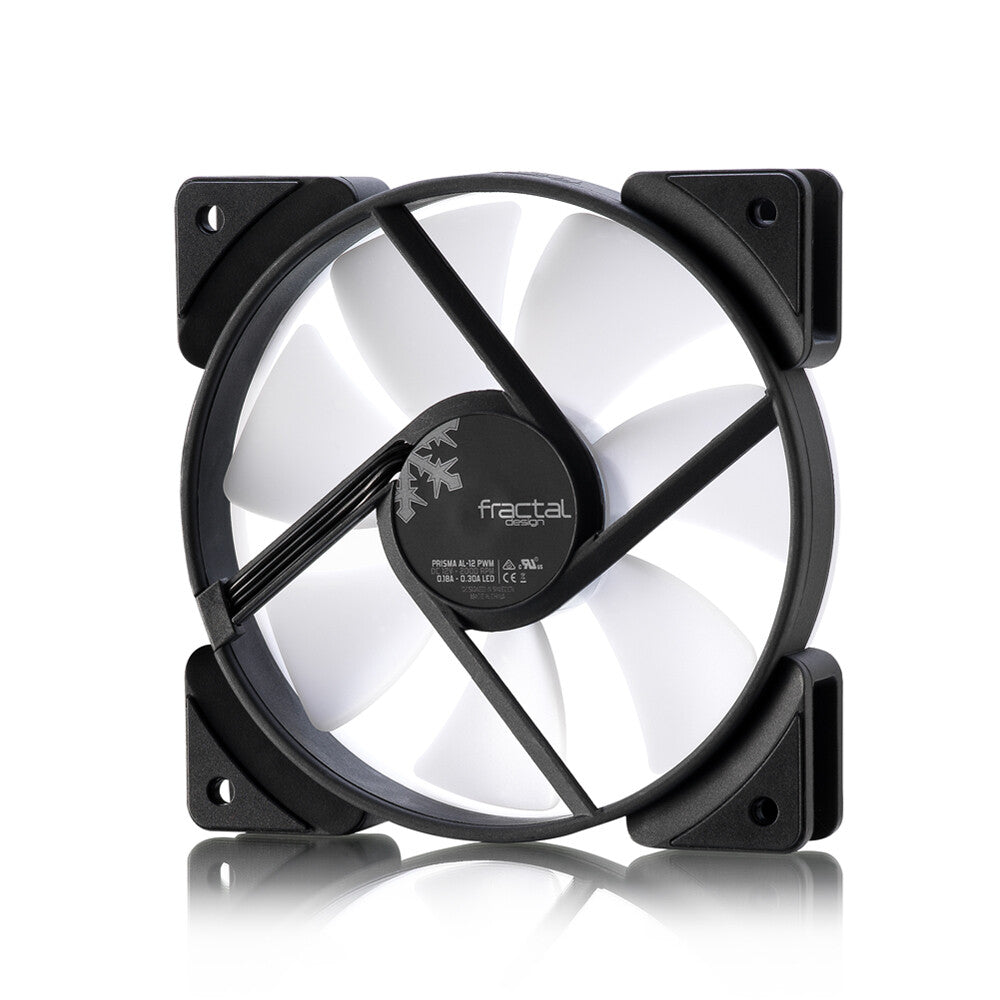

  • Aerodynamic stator struts with embedded wiring reduce noise and turbulence
  • Chainable RGB cables simplify wiring and make the most of available connections
  • PWM control with a wide speed range ideal for CPU heatsinks and radiators (PWM versions only)
  • Black sleeved power cables offer an extra touch of style
  • Asus AURA, Gigabyte Fusion, MSI Mystic Light, and ASRock Polychrome support
  • Adjust R1 RGB controller (sold separately) enables physical control of colors and effects
  • 3-pin/PWM versions and 120/140mm sizes available individually or in 3-pack sets

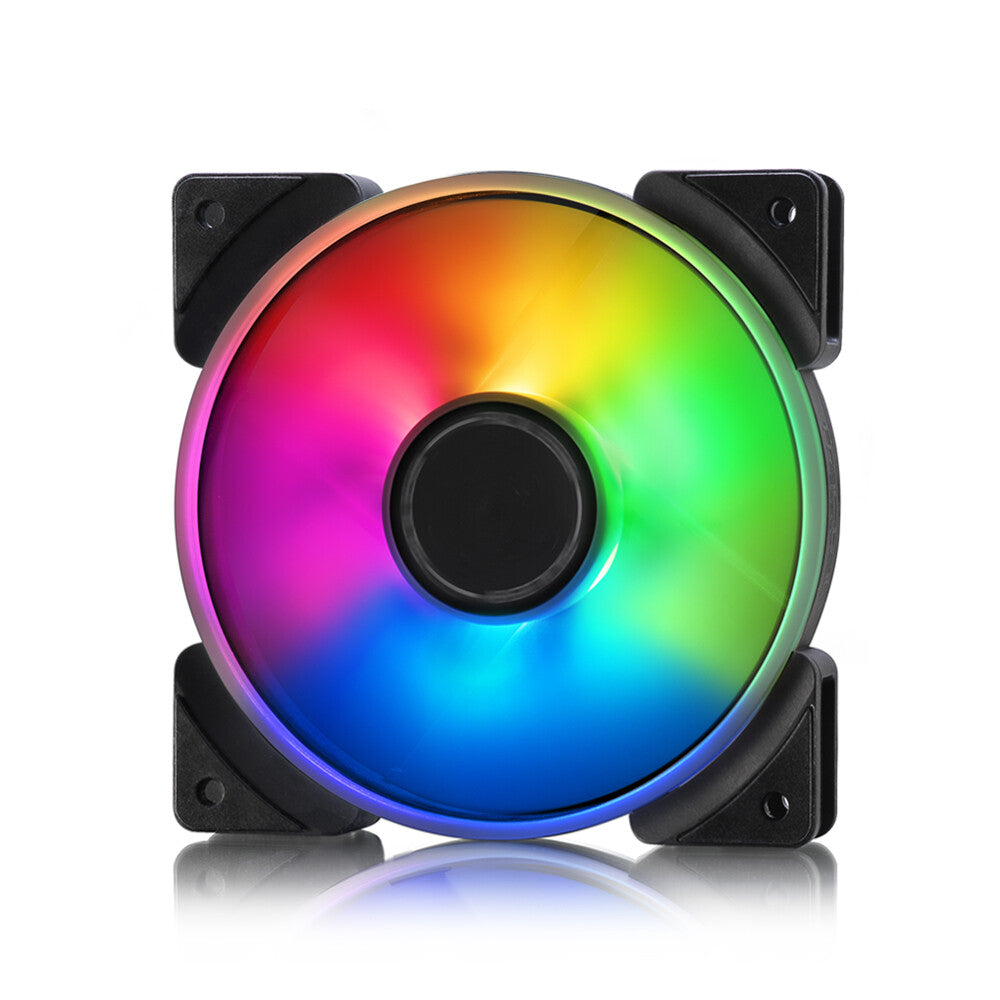

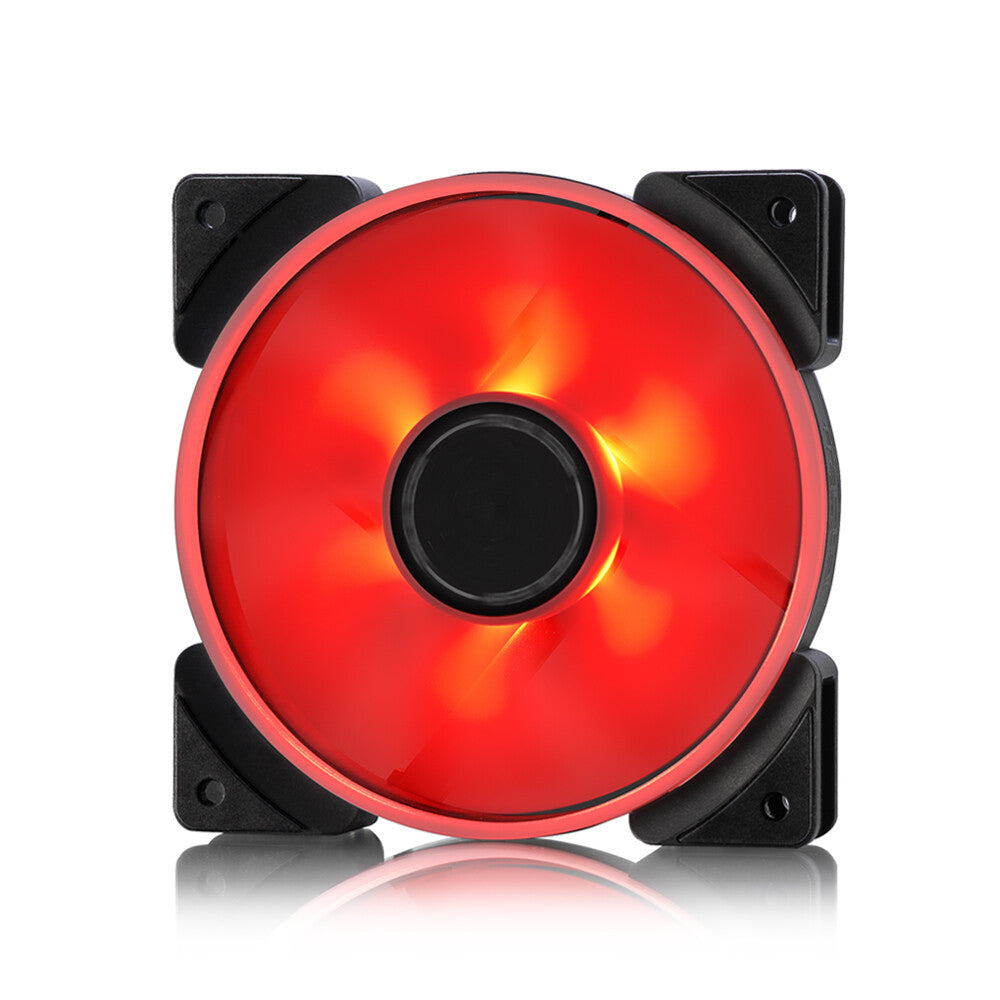

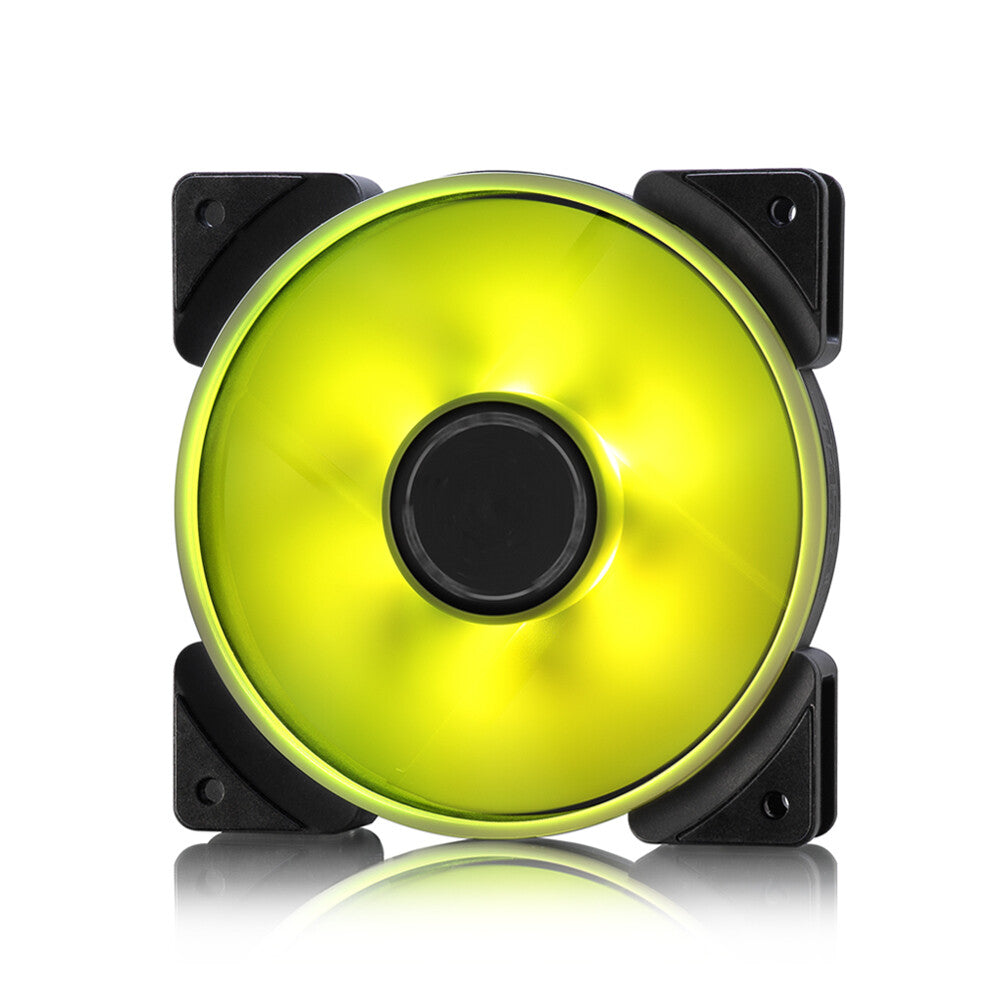

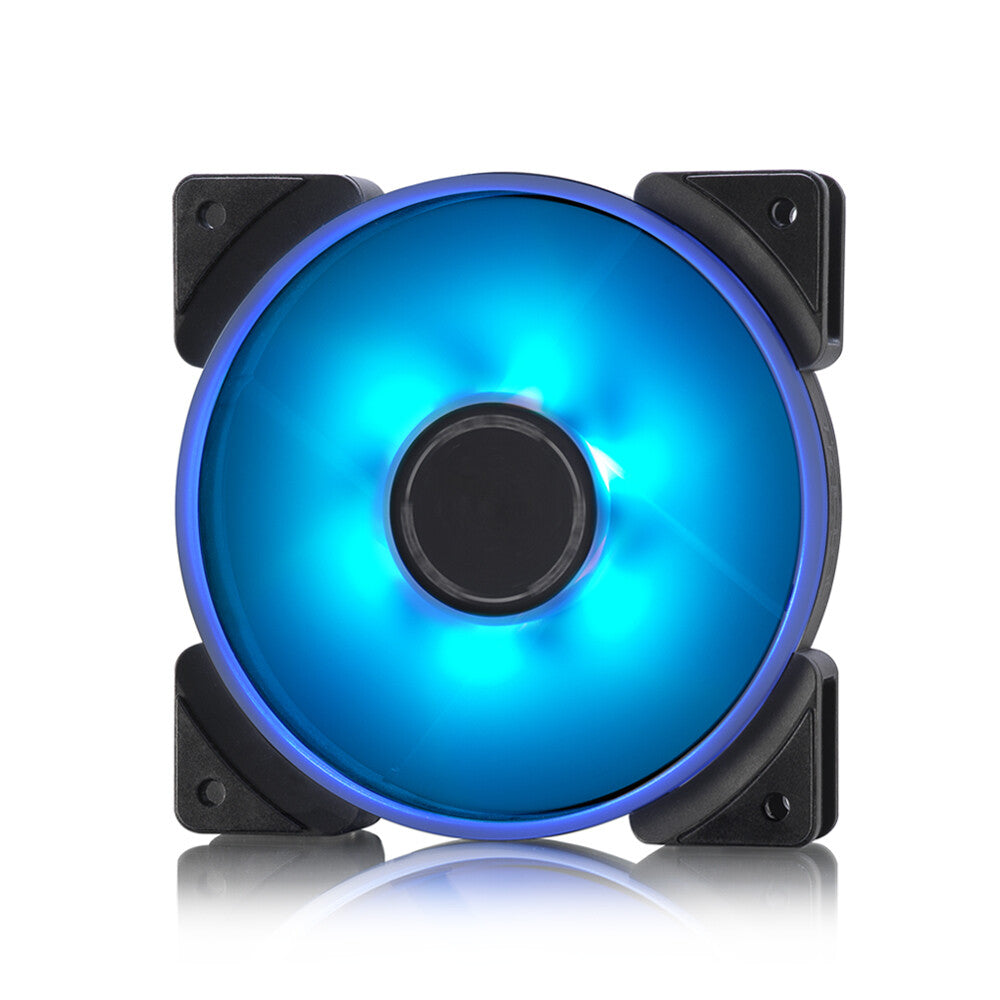

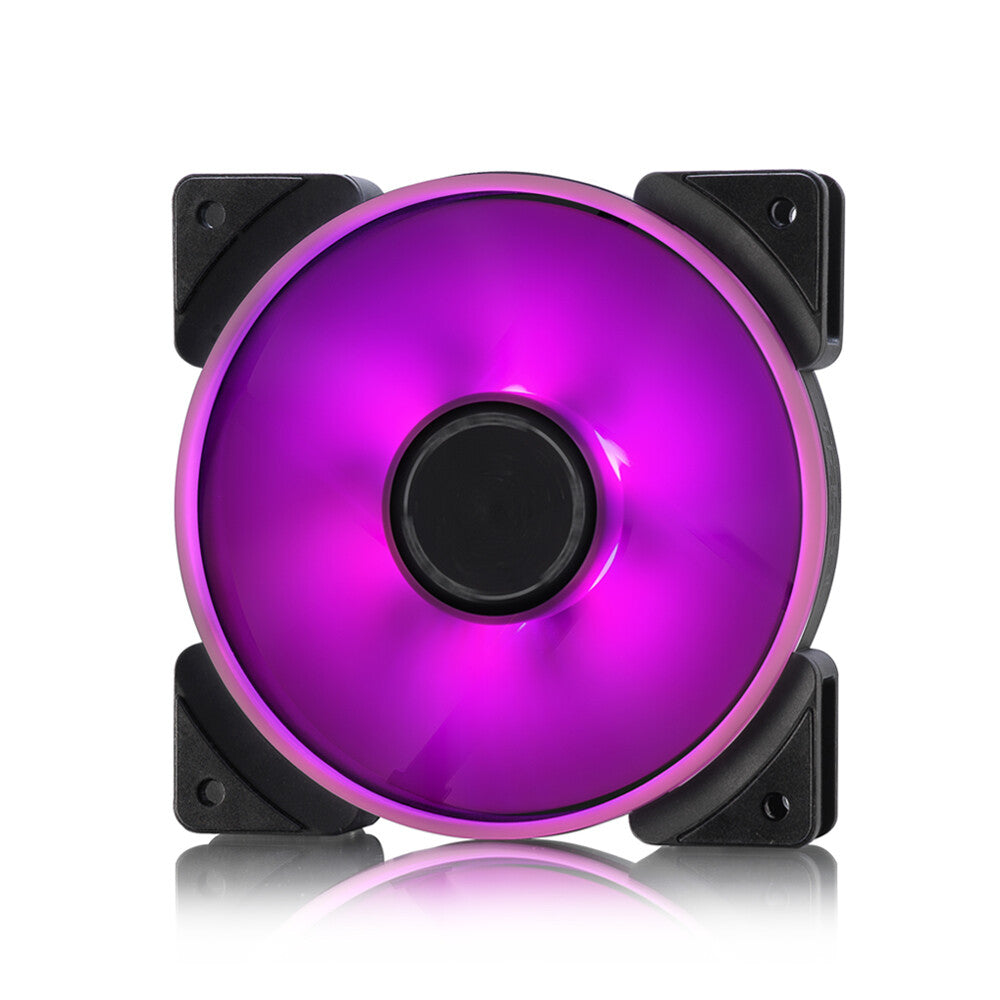

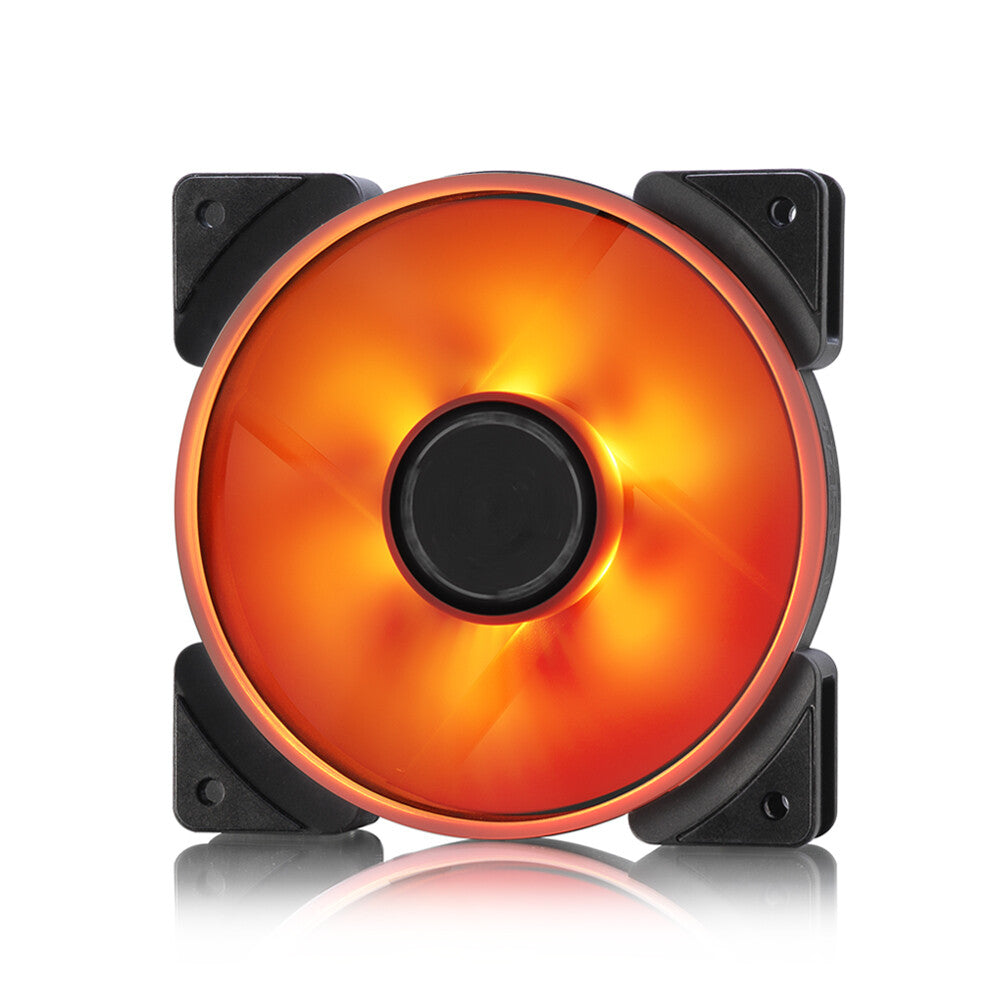

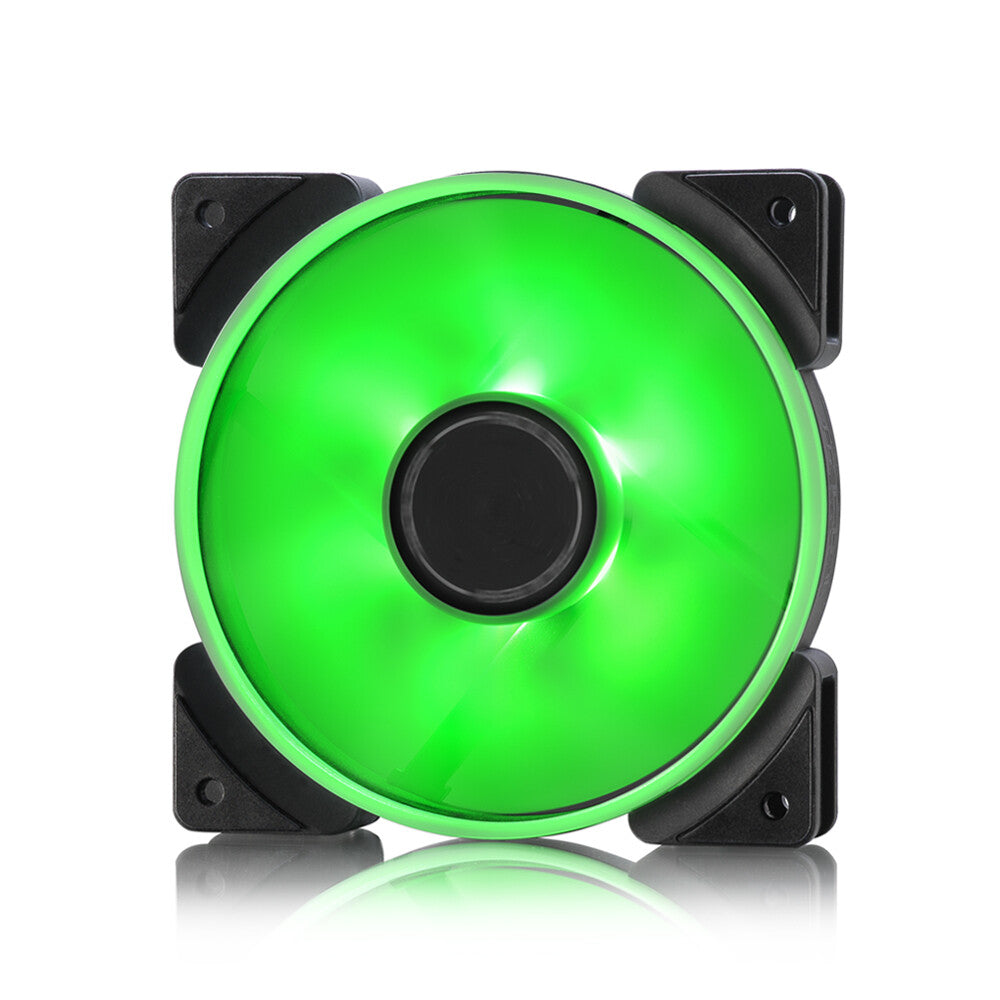

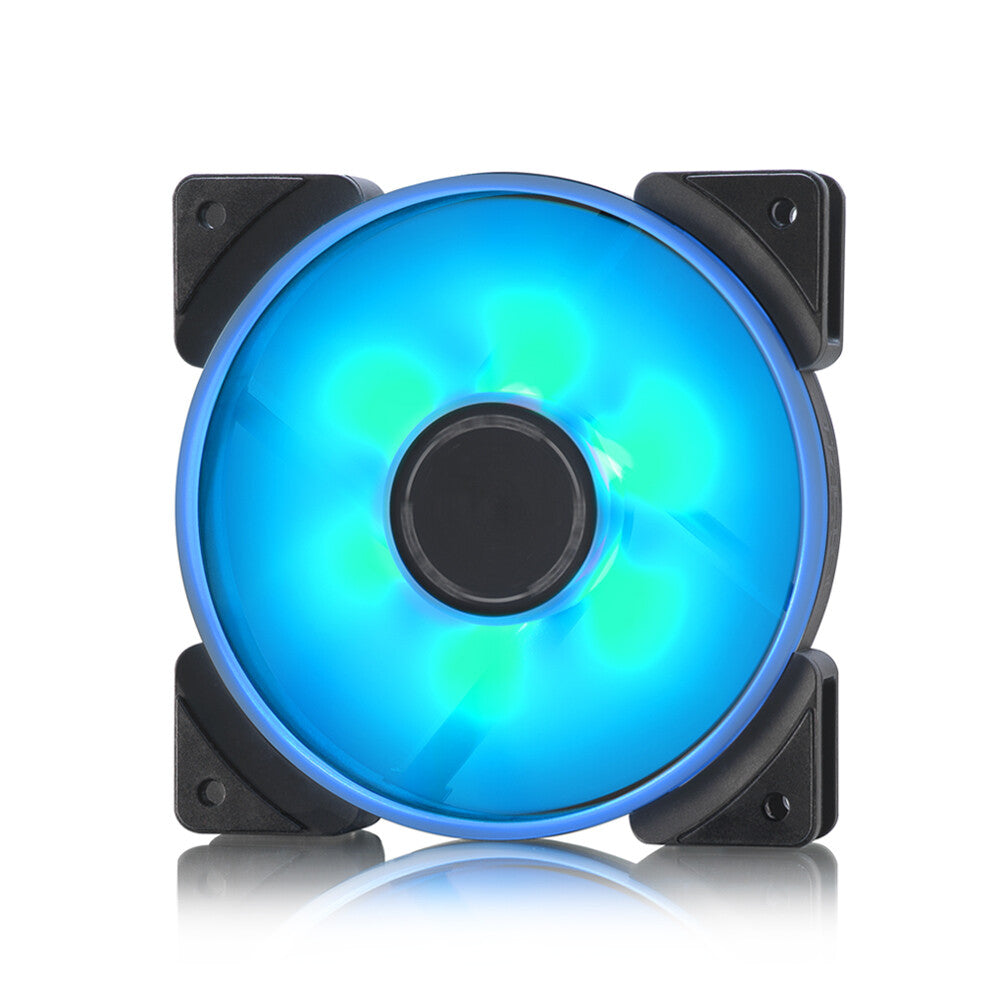

Fractal Design Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.

Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components. Those wanting more physical control can pair Prisma with the Adjust R1 controller to switch between colors, brightness, and motion effects with the push of button.

As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.

Performance
Mean time between failures (MTBF) 100000 h
Quantity per pack 1 pc(s)
Pulse-width modulation (PWM) support Yes
Maximum air pressure 2.78 mmH2O
Minimum air pressure 0.36 mmH2O
Airflow 145.62 m³/h
Maximum airflow 85.71 cfm
Minimum airflow (imperial) 20.68 cfm
Noise level (high speed) 32.7 dB
Noise level (low speed) 14.8 dB
Rotational speed (max) 2000 RPM
Rotational speed (min) 500 RPM
Fan diameter 12 cm
Type Fan
Suitable location Computer case
Design
Fan connector 4-pin
Illumination colour Multi
Number of LEDs 6
Illumination LED Yes
Number of fan blades 7
Product colour Black, White
Power
LED voltage 5 V
Rated current 0.18 A
Starting voltage 7 V
Voltage 12 V
Power supply 2.16 W
Weight & dimensions
Package weight 592 g
Package height 30 mm
Package depth 122 mm
Package width 182 mm
Cable length 0.5 m
Weight 169 g
Height 120 mm
Depth 25 mm
Width 120 mm
Packaging content
Number of screws 4
Screws included Yes
Other features
Country of origin China
Logistics data
Harmonized System (HS) code 84733080
